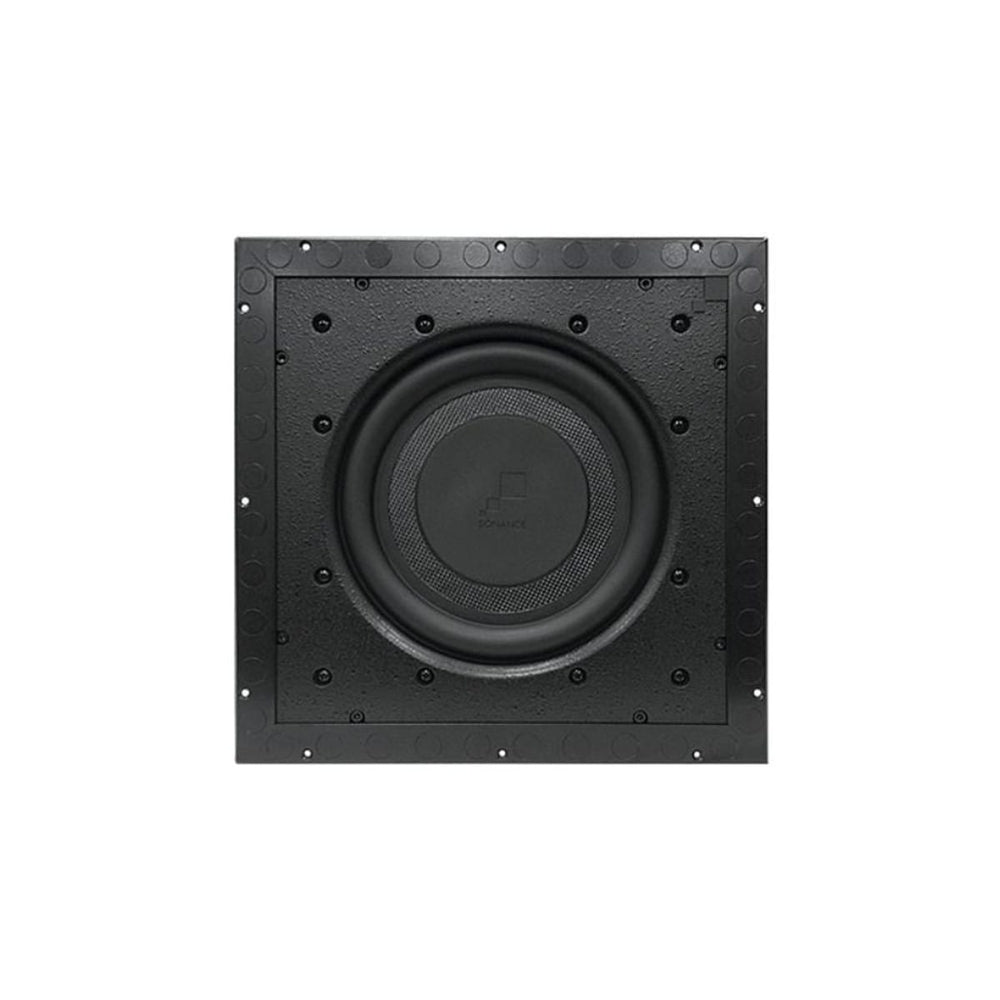

Sonance Reference Series VPSUB 10" Square In-Wall Retrofit Subwoofer

The VPSUB is a 10" In Wall Retrofit Subwoofer and is designed to fit any new construction or retro fit application in a standard 88.9mm / 3.5" deep wall cavity. The VPSUB delivers cabinet level performance in a discreet in wall form factor where it is not possible to fit a large rear enclosure in wall sub.

It provides a consistent aesthetic with other Visual Performance Series speakers and can be paired with Sonance DSP Amplifiers for custom tuned performance.

State of the art design and cutting edge materials deliver the bass of a large cabinet subwoofer without sacrificing floor space and the clever integrated cabinet means minimal sound transfer into adjoining rooms as well as offering a one box solution.

Please Note: The amplifier required is a Sonance DSP 2-150 or Sonance DSP 8-130 MKII, using two channels bridged

Specifications

Please Note: The amplifier required is a Sonance DSP 2-150 or Sonance DSP 8-130 MKII, using two channels bridged

Features

Aesthetics

• Sleek low profile design consistent with Sonance Visual Performance Series

Performance

• Massive re designed motor structure
• Dual Spider Technology (DST) for up to +/- 13mm of controlled linear excursion
• 115m / 4 1/2" precision aligned voice coil with 38mm / 1 1/2" winding height
• 0.64kg / 1.4 lb N38SH Neodymium magnet
• Custom tuned DSP settings when paired with a Sonance DSP amplifier (sold separately)

Installation

• Designed to fit into a standard 88.9mm / 3 1/2" wall cavity with 406.4mm / 16" on centre stud configuration
• Simplified single step grille painting process
• Spring loaded speaker wire terminals to accept standard wire or pin connector
