WyreStorm 4 4K HDMI 2.0, 18 GB Splitter With HDCP 2.2

With support for 4K/UHD resolutions, HDCP 2.2, and HD multi channel audio formats, the WyreStorm four output Splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays. As the SP-0104-H2 has a perfectly designed compact chassis, it is ideal for environments where unobtrusive installation is crucially important.

With support for 4K/UHD resolutions, HDCP 2.2, and HD multi channel audio formats, the WyreStorm four output Splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays.

Due to its support for HDCP 2.2 and the latest HDMI 2.0 video standards, the SP-0104-H2 from WyreStorm is a single input to four output HDMI splitter offering duplication of 4K @ 60Hz with full chroma subsampling rates of 4:4:4 and multichannel HD audio transmissions to local screens.

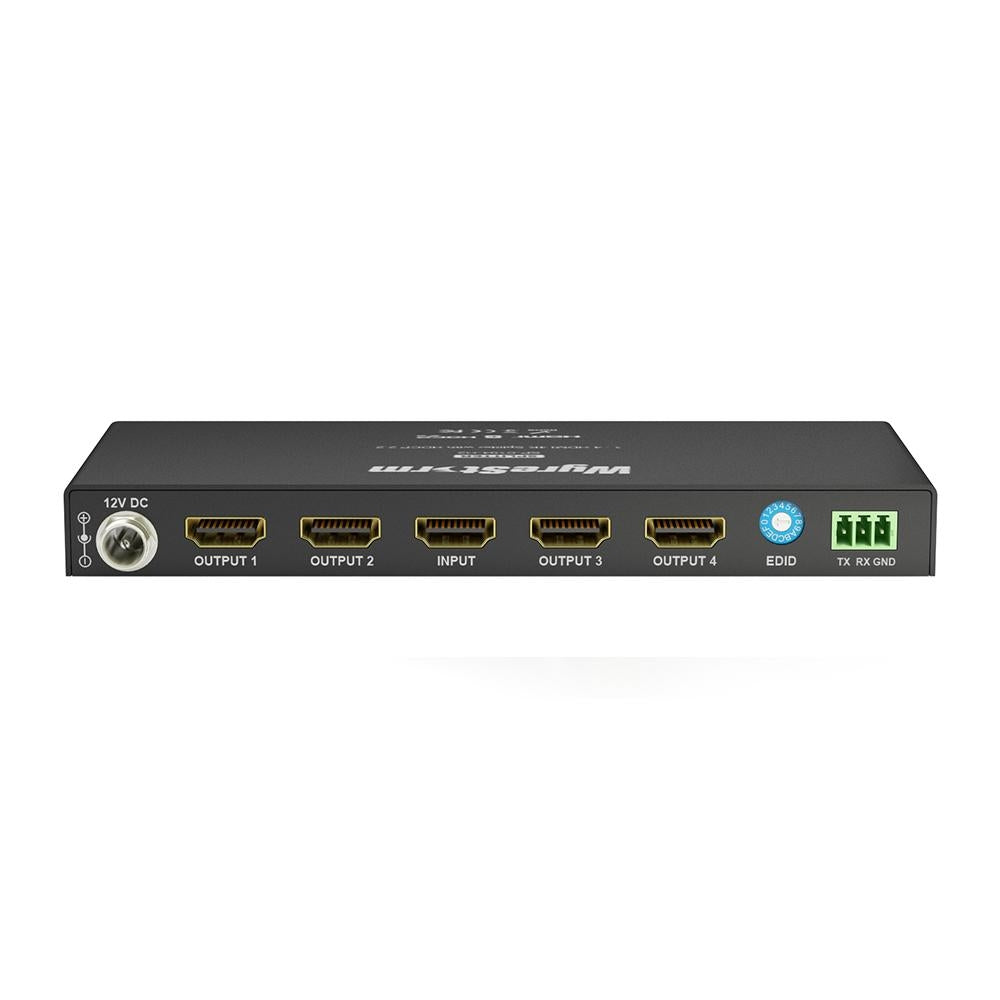

This splitter confirms connection of source and sink devices via easy to read front panel LED indication. The rear panel features a locking DC 12V power port, 3 pin Phoenix connector for firmware updates and adjustable EDID management for enhanced source/sink communication, resulting in simple yet reliable local distribution of video and audio that supports the latest 4K/UHD broadcast standards.

Being compact and able to be mounted on a wall, the SP-0104-H2 also offers a secure, easy and unobtrusive installation.

Specifications:

Features:

• Splits a single HDMI 4K/UHD or 1080p HD device to four 4K/UHD or HD display devices
• Supports resolutions up to 4K @ 60Hz, including 3840 x 2160 (UHD) and 4096 x 2160 (DCI) and 1920 x 1080p @ 60Hz
• HDCP 2.2 supported
• Colour depth 24bit (4K) and 36bit (1080p) full 4K chroma subsampling colour palette 4:4:4
• 3D compatible (up to 1080p)
• DVI support up to 1920x1200
• Multichannel Dolby and DTS HD audio supported up to 7.1 (mirrors source)
• Extensive EDID management for improved compatibility and communication between connected source and display devices

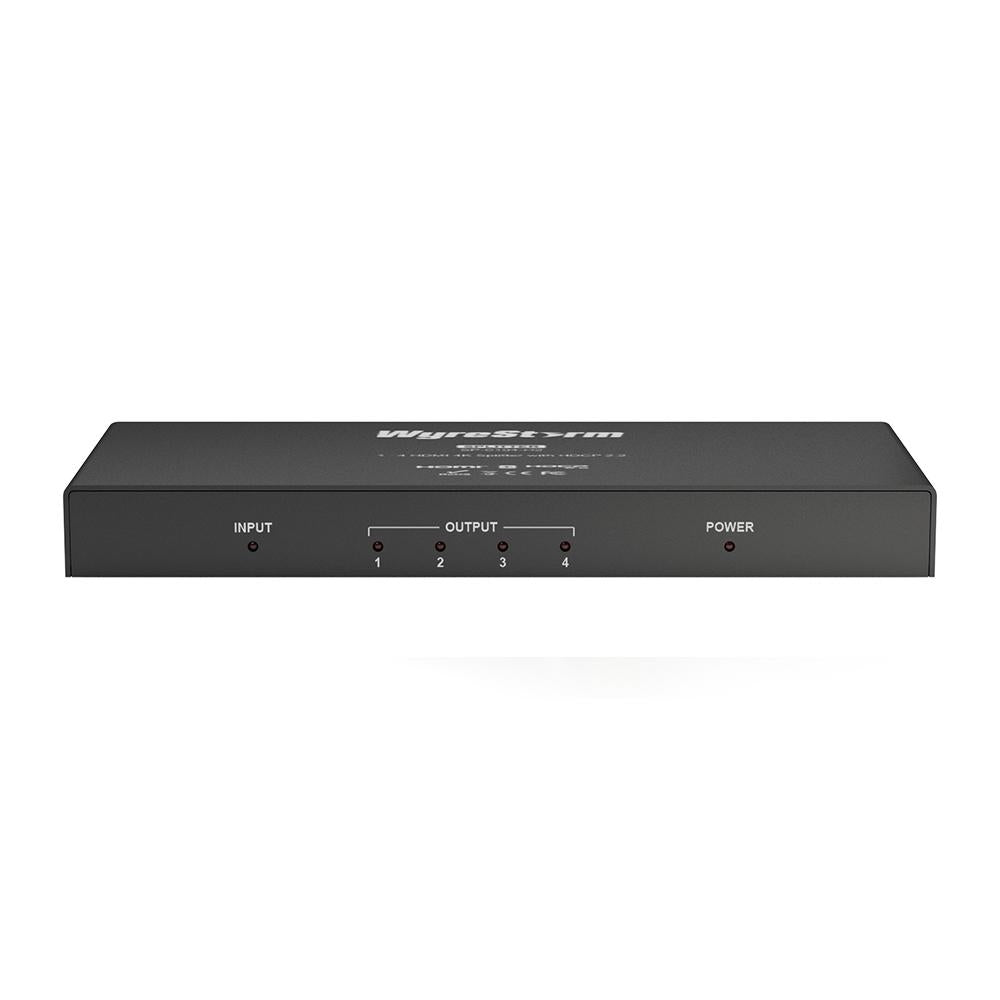

• Front panel LED indication for visual confirmation of I/O and power connectivity
• Locking DC 12v power port
• 3 pin Phoenix connector for firmware updates
• Transmission distance up to 10m / 33ft (4K / 1080p input, 4K output), 15m / 49ft (1080p output) using standard high speed HDMI cables
• Ultra slim 18mm chassis design for space saving local installation, surface mountable
• 12V DC 1A power supply and mounting brackets included
