Description

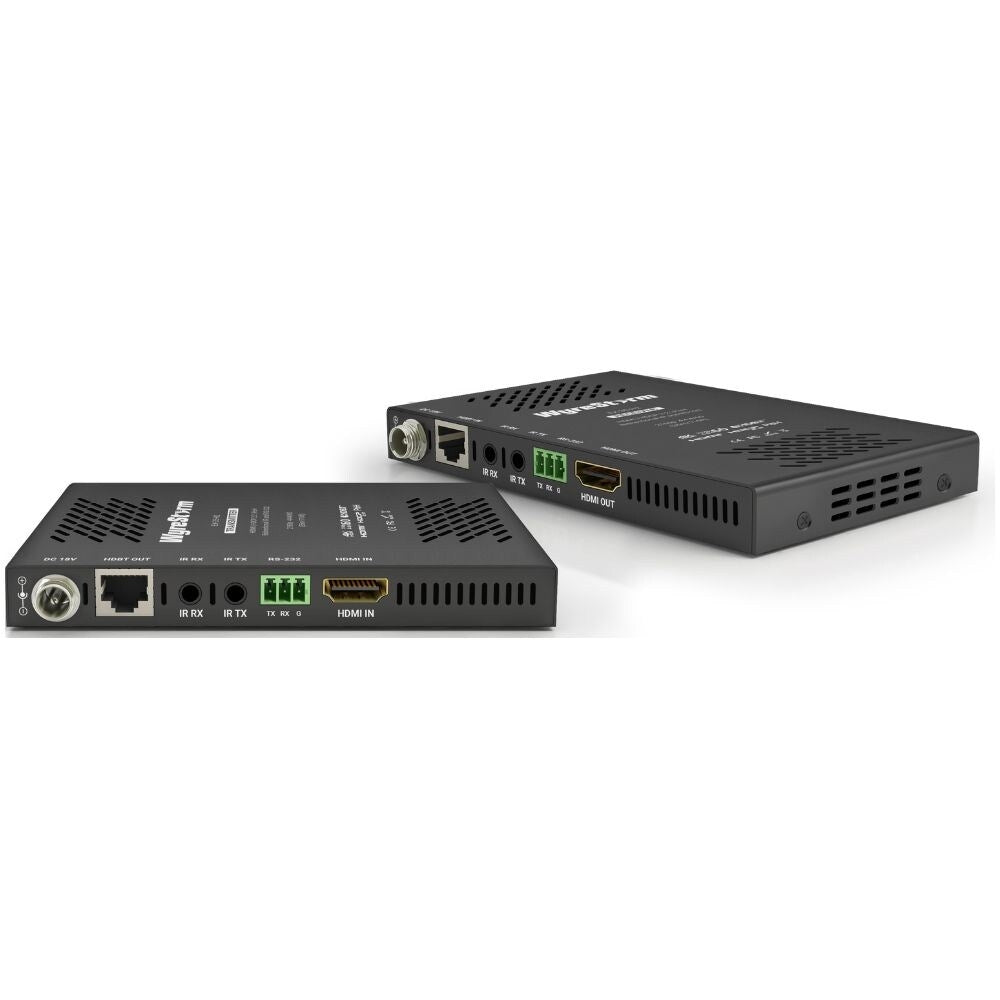

For extension of 4K UHD and HDR transmissions over medium distances in residential or commercial applications, the EX-35-H2 Low Profile Extender Set features WyreStorm's dynamic compression and HDBaseT™ technology to deliver visually without loss and latency free 4K/60 4:4:4 or HDR content, along with bidirectional control and 2 way PoH up to 35m / 115ft or 1080p to 70m / 230ft.
For extension of 4K UHD and HDR transmissions over medium distances in residential or commercial applications, the EX-35-H2 Low Profile Extender Set features WyreStorm's dynamic compression and HDBaseT™ technology to deliver visually without loss and latency free 4K/60 4:4:4 or HDR content, along with bidirectional control and 2 way PoH up to 35m / 115ft or 1080p to 70m / 230ft.
WyreStorm's HDBaseT™ extender set features VLC chipset (Visualy Lossless Compression) meaning it's ready for the next shift in content technology i.e. 60Hz HDR and 4:4:4 60Hz. Also, the latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-35-H2 supports the multi point distribution of this content over HDBaseT™.
Installers will not experience problems because of source equipment they have no control over with this extender as the WyreStorm H2 family automatically "re-clock" the source signal, overcoming clock stretching issues found in certain source devices. And as WyreStorm recognises no two installs are the same they have enables all of the H2 extenders to be powered from either the TX or RX, meaning maximum flexibility is achieved on site without the inconvenience of finding a mains outlet.
Please Note: Serial control via RS-232 only supported when connected to a compatible HDBaseT™ transmission device with routable RS-232.
Specifications:
Audio and Video | |

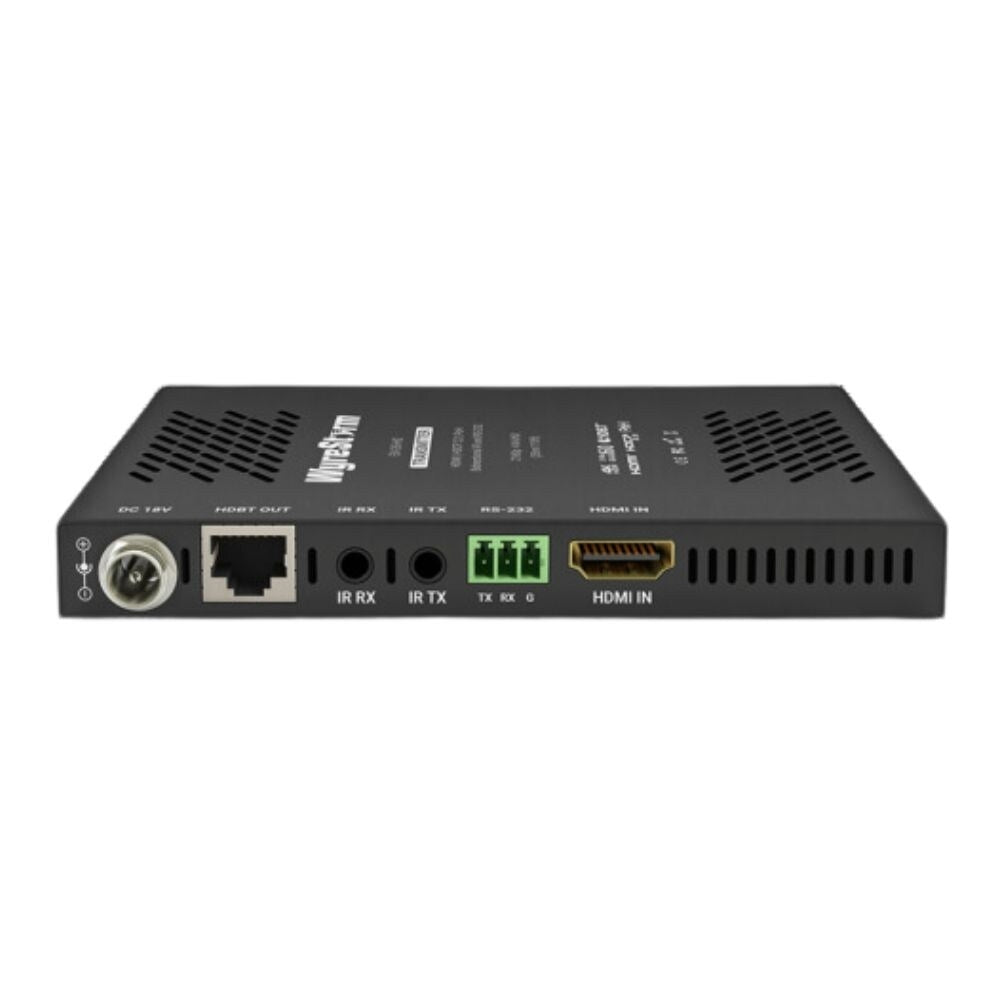

| Inputs | Transmitter: 1x HDMI 19 pin type A Receiver: 1x HDBaseT 8 pin RJ-45 female |
| Outputs | Transmitter: 1x HDBaseT 8 pin RJ-45 female Receiver: 1x HDMI 19 pin type A |
| Audio Formats | 2 channel PCM Up to 7.1 DTS-X and Dolby Atmos |
| Video Resolutions (Max) | HDMI1920x1080p @60Hz 36bit (15m/50ft)3840x2160p @30Hz 4:4:4 8bit per channel (7m/23ft)3840x2160p @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft)4096x2160p @60Hz 4:2:0 8bit per channel (7m/23ft) Using Cat61920x1080p @60Hz 36bit (100m/328ft)3840x2160p @30Hz 4:4:4 8bit per channel (70m/230ft)3840x2160p @24Hz 4:2:0 HDR 10bit per channel (70m/230ft)4096x2160p @60Hz 4:2:0 8bit per channel (70m/230ft) Using Cat6a/71920x1080p @60Hz 36bit (70m/230ft)3840x2160p @30Hz 4:4:4 8bit per channel (70m/230ft)3840x2160p @24Hz 4:2:0 HDR 10bit per channel (35m/115ft)4096x2160p @60Hz 4:2:0 8bit per channel (35m/115ft) |
| Color Depth | 1080p: 36bit | 4K UHD: 8bit HDR @24p: 10bit per channel BT.2020 |
| Maximum Pixel Clock | 297MHz |
Communication and Control | |
| HDMI | HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| HDBaseT | HDCP 2.2, EDID, 2 way PoH Bidirectional IR RS-232 |
| Ethernet | N/A |
| IR | 1x IR TX 3.5mm / 1/8" Mono Bidirectional over HDBaseT1x IR RX 3.5mm / 1/8" Stereo Bidirectional over HDBaseT |
| RS-232 | 1x 3 pin Screw Down Phoenix Connector Bidirectional over HDBaseT |
| Audio Return Channel (ARC) | N/A |
| Power | |
| Power Supply | Input: 100 to 240V AC 50/60Hz Output: 18V DC 1A |
| PoH | 2 way: 48V 15.4W |
| Max Power Consumption | 8.88W |
Environmental | |
| Operating Temperature | 0°C / 32°F to 45°C / 113°FRelative Humidity 10% to 90%, non-condensing |
| Storage Temperature | -20°C / -4°F to +70°C / 158°FRelative Humidity 10% ~ 90%, non-condensing |
| Maximum BTU | 30.30 BTU/hr |
Dimensions and Weight | |
| Height | 15mm/0.6" |
| Width | 109mm/4.3" |
| Depth | 64mm/2.52" |
| Weight | 0.17kg/0.37lbs |
Regulatory | |
| Safety and Emission | CE, FCC, RoHS |
Features:
- 4K UltraHD extender set capable of transmitting AV content over medium distances using single cable Cat6 cable
- HDBaseT™ Class B transmission of 4K HDR up to 35m / 115ft and 1080p @ 60Hz 36bit up to 70m / 230ft
- Full UHD 4K transmission supporting HDMI 2.0 video standards
- Supports all high definition resolutions up to and including 4K UHD @30hz 4:4:4 24bit | 4K HDR @ 24Hz 4:2:0 10bit (BT.2020). Please refer the Technical Specification tab for further details
- Revised chipset increases compatibility with new 4K UHD source devices
- Transmits discreet wide band two way IR control signal. Serial control commands together within HDMI signal over a single Cat5e/6
- Low profile chassis of 15mm for easier and more convenient installations behind screens at display zones

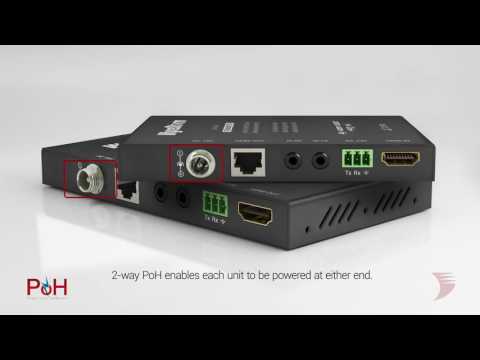

- Two way PoH (Power over HDBaseT™) enables either transmitter or receiver to be remotely powered by the other locally powered so mains power connectivity is not required at both source and display location
- 2 channel PCM audio and multichannel HD audio supports 7.1, DTS-X and Dolby Atmos™
- HDCP 2.2 compliant
- 3D compatible
- Switchable RS-232 function mode on transmitter and receiver for firmware update
- Threaded bushings allow use of both standard and locking DC power plugs

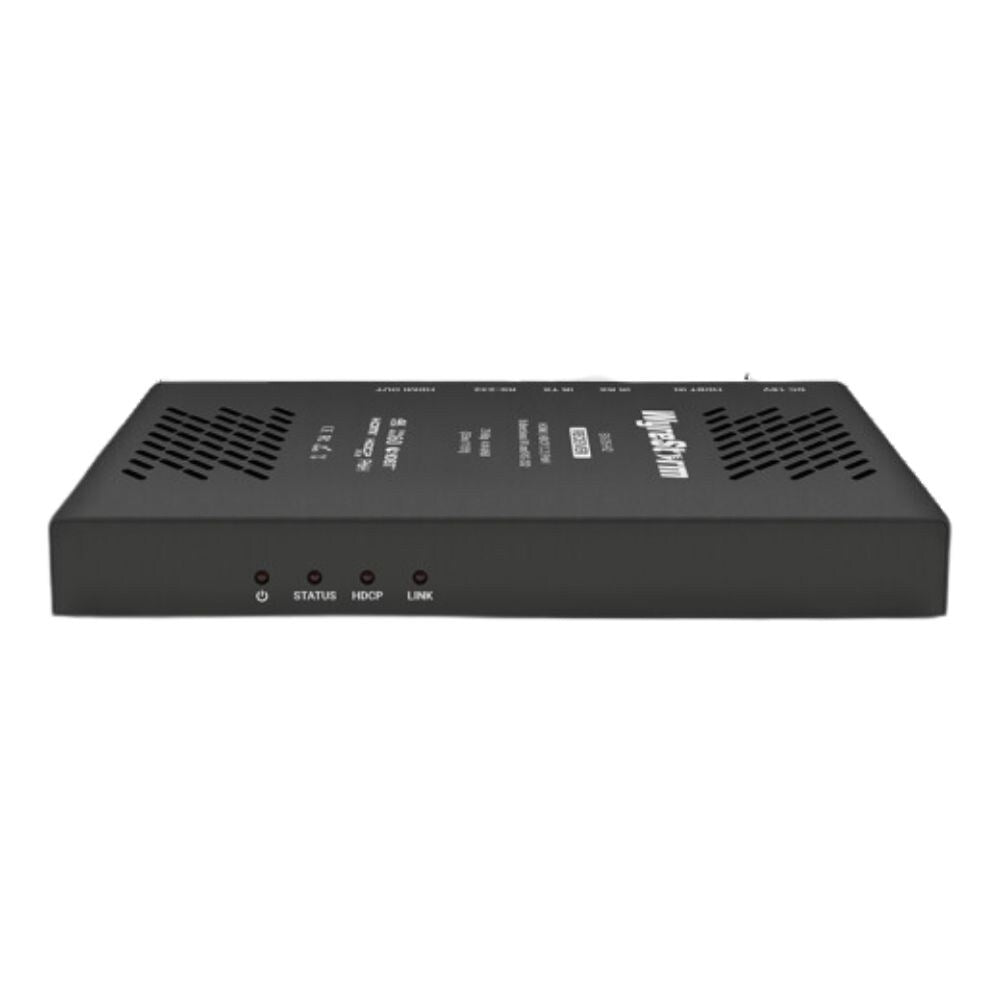

- Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT™ link between devices
- Cable termination follows IEEE-568B standards
- Automatically adjusts feedback, equalisation and amplification of signal for easy installation
- Energy efficient universal power supply included
Please Note:Serial control via RS-232 only supported when connected to a compatible HDBaseT™ transmission device with routable RS-232.
