Description

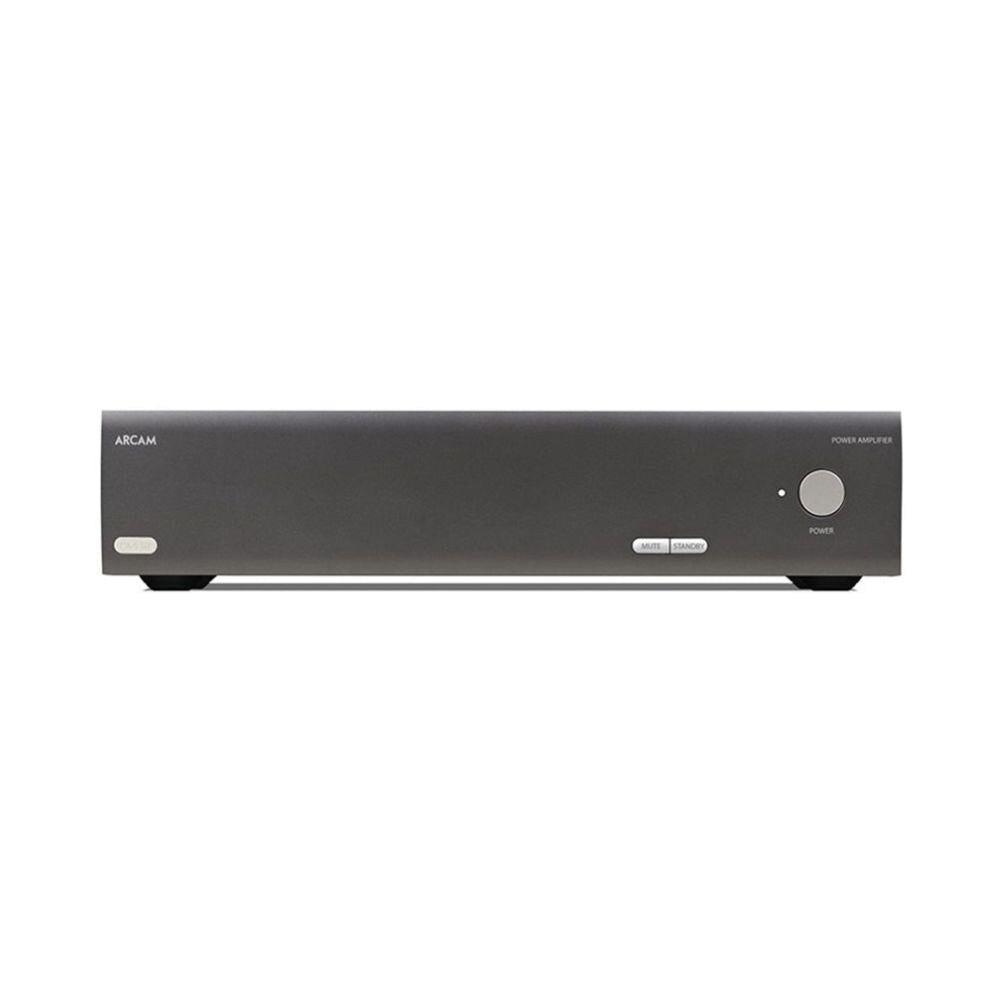

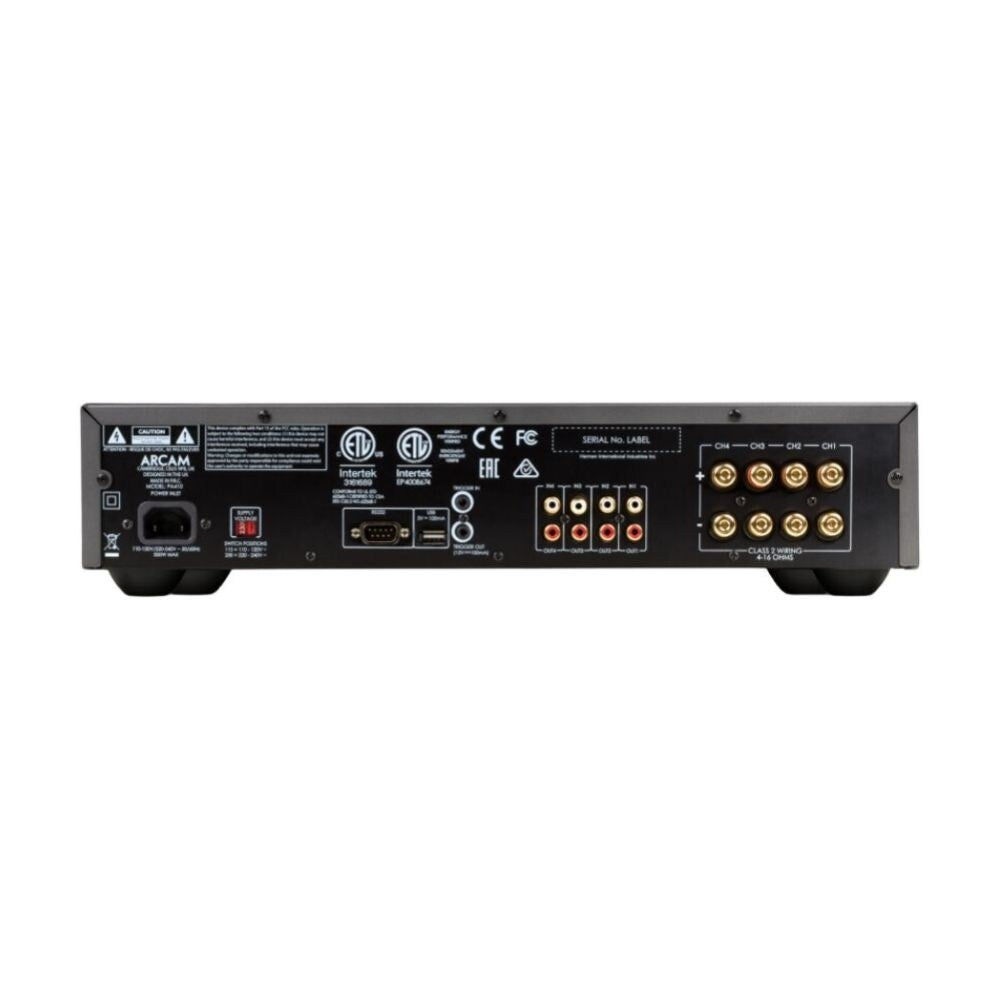

The PA410 Power Amp from Arcam is a high performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.The Arcam PA410 is a high performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best in class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
It offers truly exceptional power and immersive sound.
Specification
| Power Output | Continuous power output at 0.2% THD per channel |
| Four Channels Driven | 4Ω / 8Ω; 20Hz to 20kHz; 70W / 50W |
| Two Channels Driven | 4Ω / 8Ω; 20Hz to 20kHz; 90W / 60W |
| Harmonic Distortion | 80% power; 8Ω at 1kHz - 0.003% |
| Inputs | |
| Input Sensitivity | 50W / 8Ω - 600mVrms |
| Signal to Noise ratio (A-wtd) 50W / 8Ω | 105dB |
| Input Impedance | 10kΩ |
| Frequency Response | 20Hz to 20kHz +/-0.05dB |
| Mains Voltage | 110V to 120V or 220V to 240V, 50Hz to 60Hz |
| Power Consumption Maximum | 700W |
| Power Consumption Idle, Typical | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power Consumption Standby | <0.5W |
| Dimensions | Including Feet,Control Knob and Speaker Terminals: Height: 102mm / 4.0" Width: 433mm / 17.0" Depth: 290mm / 11.4" |
| Weight | 10kg / 22.05lb |
Features
- 4 channel power amplifier
- 4 x 50W Class AB amplification at 8ohm, 20Hz to 20kHz and 0.2% THD
- Toroidal transformer
- Ethernet or RS232 control
User guides
Download User Guides:
Data Sheet
