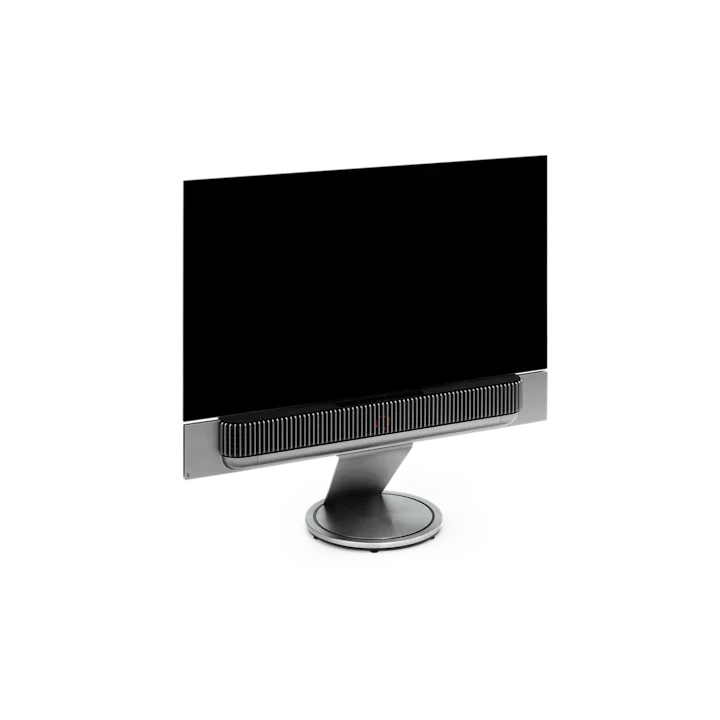

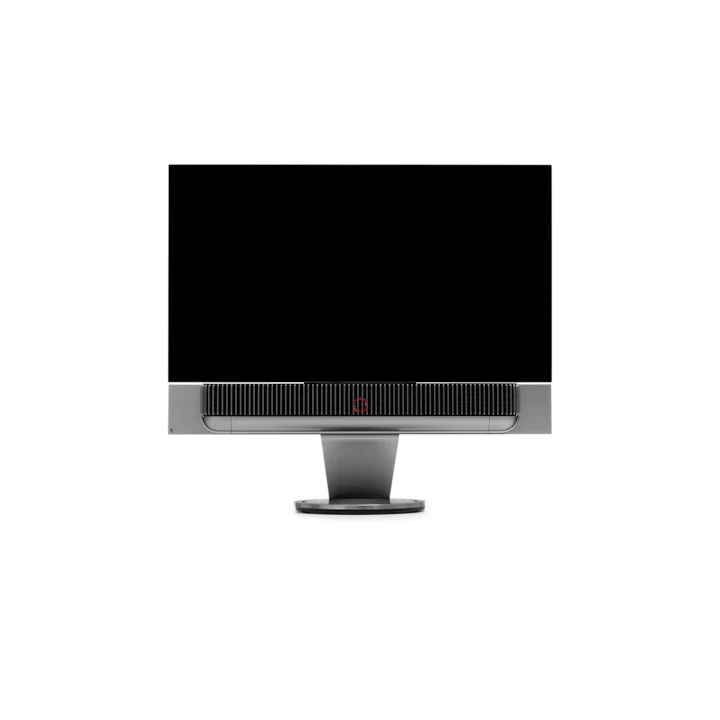

Bang & Olufsen Beovision Theatre Ferrari Edition Home Theatre

Thrill meets throttle. Vision meets velocity.

The Ferrari Collection

Two icons, redefining the speed of sound. With a special collection of beloved B&O products in a striking new design, unmistakably Ferrari in materials, quality, and colour.

SOUND

Recommended Room Size

10-60 m²100-600 ft²

Speaker Configuration

12 speaker drivers 2 x 1" tweeter4 x 2.5" full-range 2 x 3" mid-range 1 x 5.25" mid-range + 1 x 1"" tweeter for custom made coaxial centre speaker 2 x 6.5" woofer custom made

Amplifier

12 power amplifiers 10 x 60 watts amplifiers for center channel, left/right/upfiring/side firing outputs
2 x 100 watts amplifiers for bass outputs

Total: 800 W

Frequency Range

28Hz - 23,000 Hz

Advanced Sound Features

Integrated 7.1.4 Dolby Atmos decoding and custom-tuned post-processing with proprietary True Image up- / downmixing algorithm.Advanced Bass management systemAdaptive Bass LinearizationThermal protection

RoomSense

Automated speaker setup with external microphone:Speaker level and distance Speaker role Speaker position compensation from 30 - 10.000Hz Room resonance compensation from 30 - 200Hz

Sound format HDMI

Dolby Atmos supporting:Dolby Digital TrueHDDolby Digital plus 7.1 (including DD5.1)Dolby Atmos, Dolby MAT

PCM 7.1 multichannel

MPEG-2 AAC MPEG-4 HE-AAC

Customizable Sound EQ

Presets available and fully customisable through the Bang & Olufsen App.

DESIGN

Designer

Noto GmbH

Materials

AluminiumWood / FabricFabricPolymer

Placement options

Motorised Floor Stand +/- 35° rotationMotorised Wall Bracket left or right hinged with 60° max opening (55" or 65" screen) Table stand

Dimensions (cm)

55"Table Stand (free Stand/close to wall): 122.2 W x 35.9/26.5 D x 91.9 H cmMotorised Wall Bracket: 122.2 W x 19.2 D x 95.9 H cmMotorised Floor Stand: 122.2 W x 52.8 D x 118.9 H cm

65"Table Stand (free Stand/close to wall): 144.1 W x 35.9/26.5 D x 104.3 H cmMotorised Wall Bracket: 144.1 W x 19.2 D x 108.3 H cmMotorised Floor Stand: 144.1 W x 52.8 D x 131.3 H cm

77"Table Stand (free Stand/close to wall): 171.2 W x 35.9/26.5 D x 120.5 H cmMotorised Floor Stand: 171.2 W x 52.8 D x 147.4 H cm

*TV screen height and width may vary depending on TV model

Weight

55"Table Stand incl. LG G3 TV: 49 kgMotorised Wall Bracket incl. LG G3 TV: 62 kgMotorised Floor Stand incl. LG G3 TV: 69 kg

65"Table Stand incl. LG G3 TV: 53 kgMotorised Wall Bracket incl. LG G3 TV: 68 kgMotorised Floor Stand incl. LG G3 TV: 73 kg

77"Table Stand incl. LG G3 TV: 66 kgMotorised Floor Stand incl. LG G3 TV: 87 kg

POWER

Power Consumption

Typical: 120 W (Soundbar)

Power

100-240V 50/60Hz mains cable

Energy Efficiency Class

G

CONNECTIVITY

Bluetooth Version

Bluetooth 5.1 (BLE and EDR)

Bluetooth Codecs

Android: SBCIOS: AAC, SBC

Wi-Fi

Dual-Band Wi-Fi 5 (2.4 & 5 GHz)IEEE 802.11 b/g/a/n/ac

Streaming services

Apple AirPlaySpotify ConnectUPnPGoogle CastTIDAL ConnectB&O RadioDeezerQPlay 2.0

Beolink Multiroom

Seamlessly connect multiple Bang & Olufsen speakers to expand your music experience.

Beolink Surround

Enjoy a true surround sound experience by connecting additional speakers to your setup through wired or wireless connections.

Wireless Connections

8 x Wireless Power Link/WiSA

4 x Digital Power Link (Wireless or wired, Mozart Platform-based Bang & Olufsen speakers)

Physical Connections

Soundbar inputs:3 x HDMI input with CEC input 1 x HDMI eARC with passthrough 4K 120FPS / 8K 60FPS / 40Gbit4 x 1Gbit Ethernet (One port assigned for LG OLED TV connection for integrated control via Beoremote One and Bang & Olufsen App)1 x 3.5mm jack 1 x USB-C

Soundbar outputs:8 x Power Link (RJ45)4 x Digital Power Link (Wireless or wired, Mozart Platform-based Bang & Olufsen speakers)

Remote controls

Integrated system control, including LG OLED TV:Bang & Olufsen AppBeoremote One BTBeoremote Halo

On-Device Controls

Yes

Peripheral Unit Control

Integrated Peripheral Unit/Set-top Box Controller for two units, allowing you to control set-top boxes with the Bang & Olufsen remote control.


Available Screen Sizes

55"65"77"

Display Type & Resolution

4K OLED3840 x 2160, over 8M pixels

HDR

HDR 10HDR 10 ProHLGDolby Vision IQ

Gaming

< 1 ms response timeInput lag 12,8 msVRRG-sync and FreeSync™ compatibleALLM

4k and 2K HFRHGiG mode

Smart TV

webOS
