Description

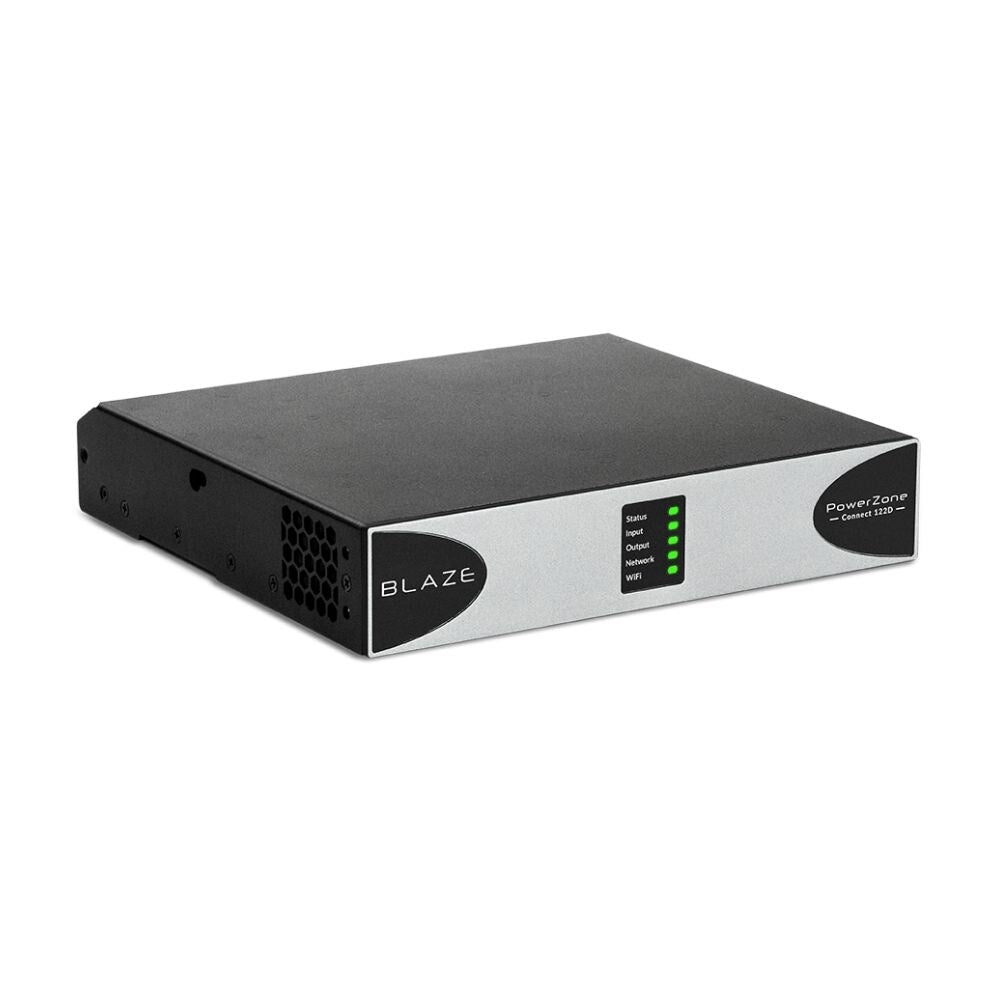

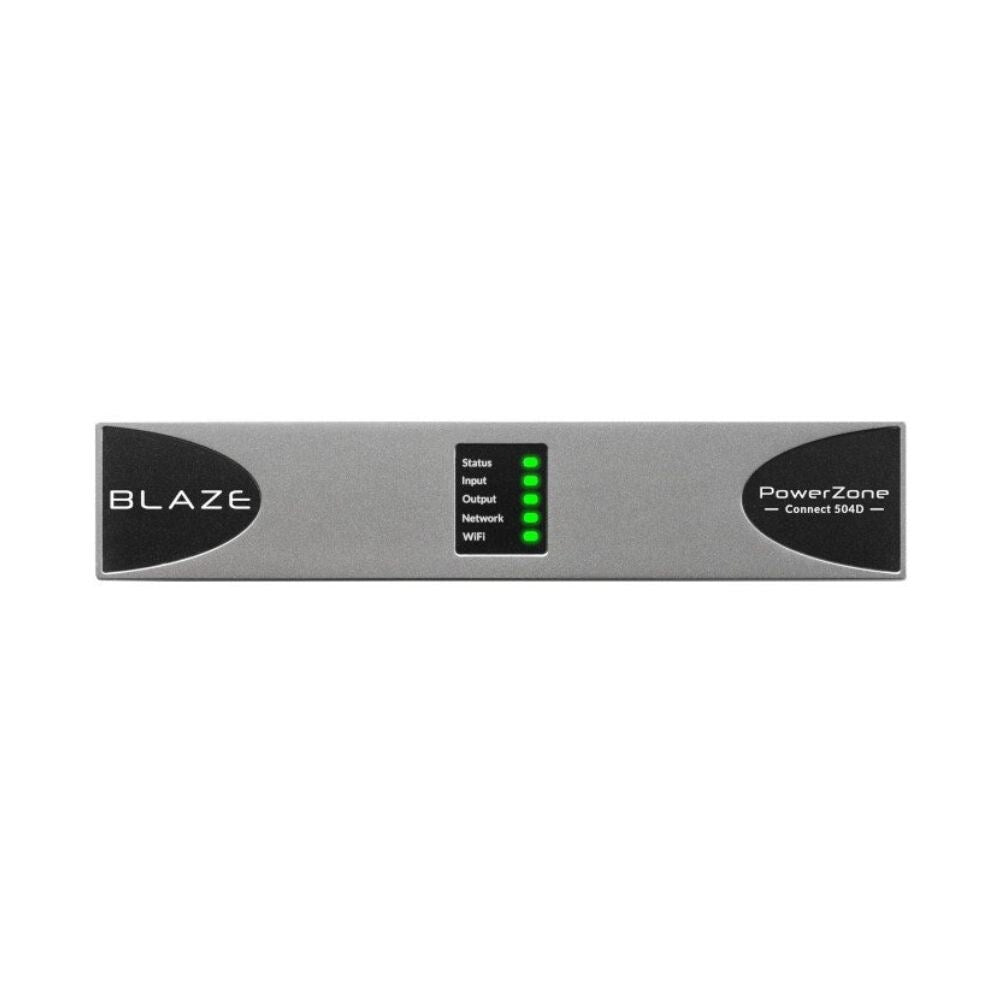

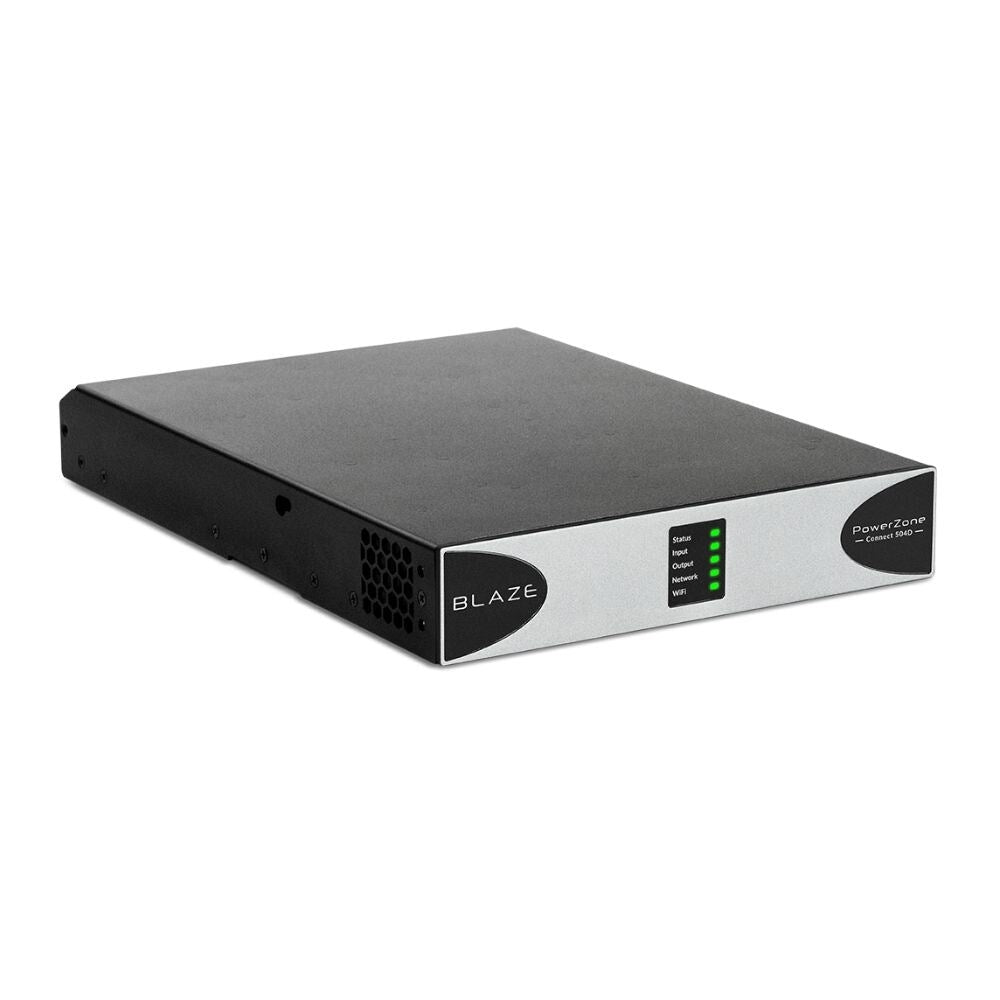

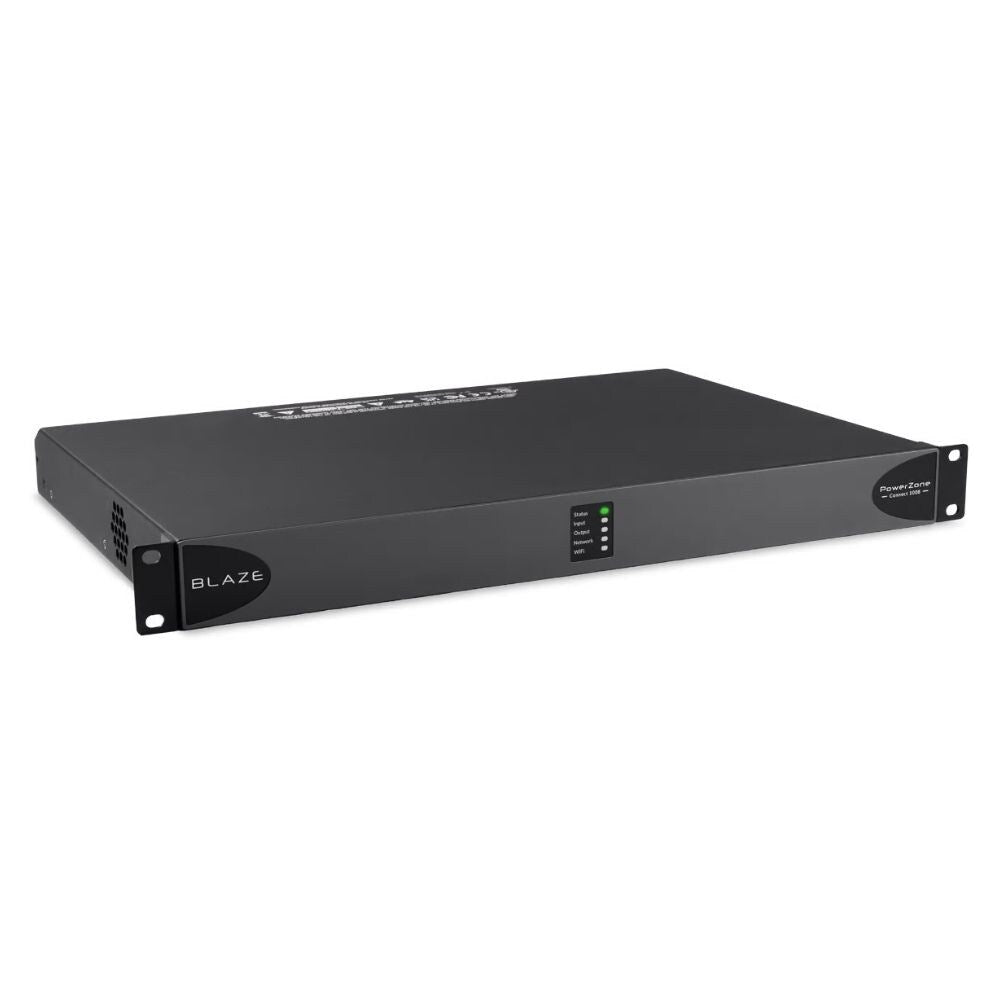

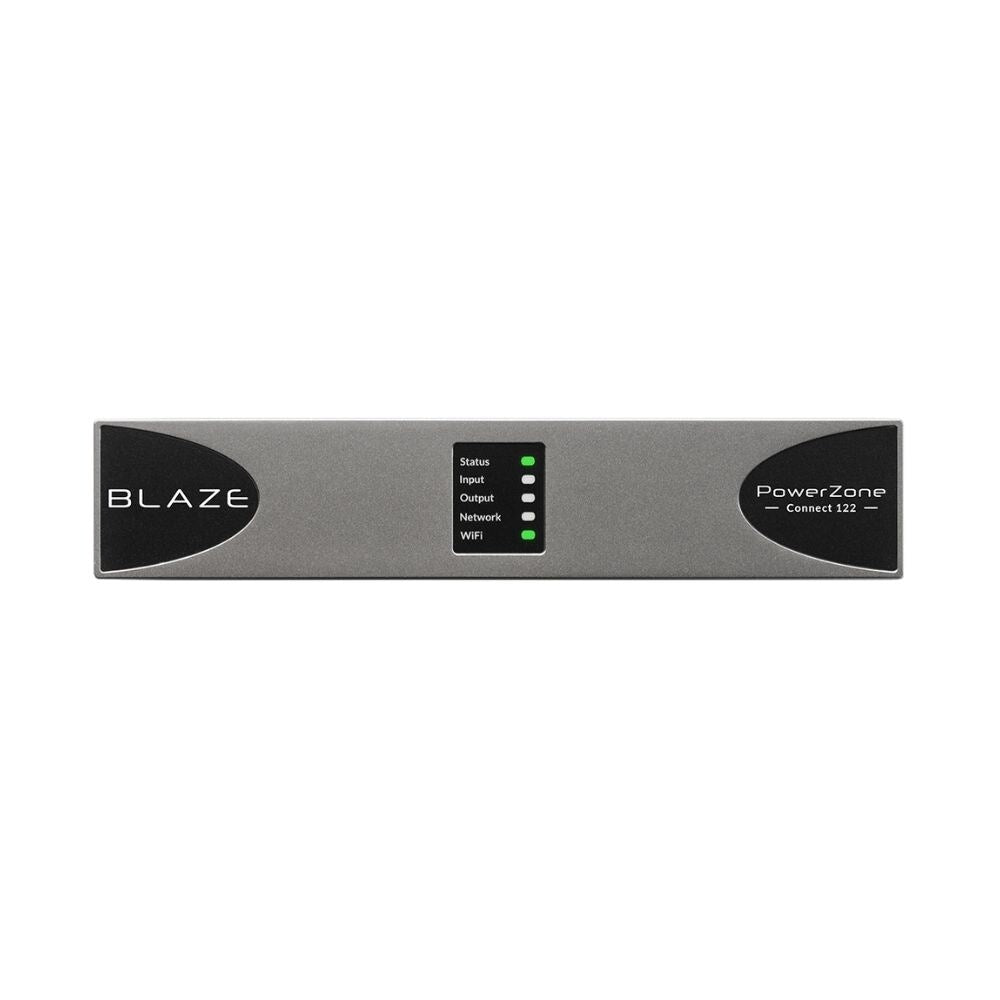

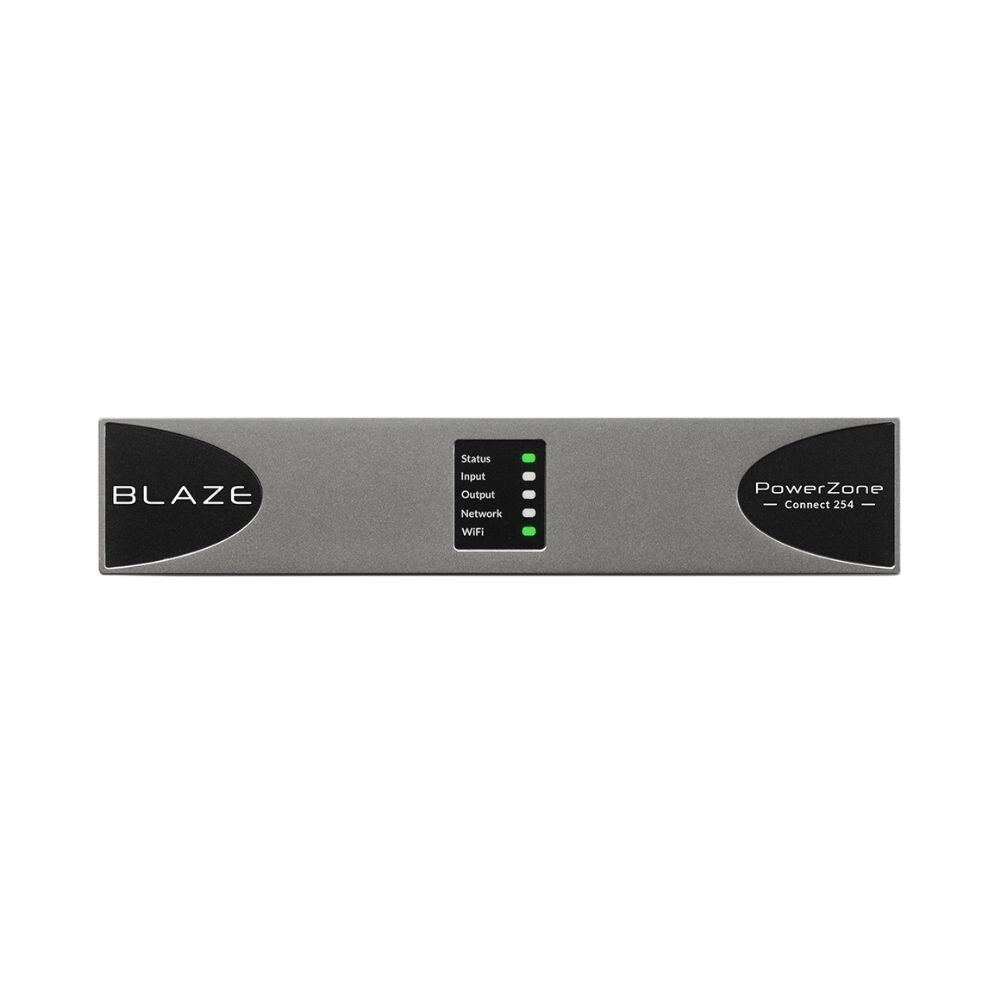

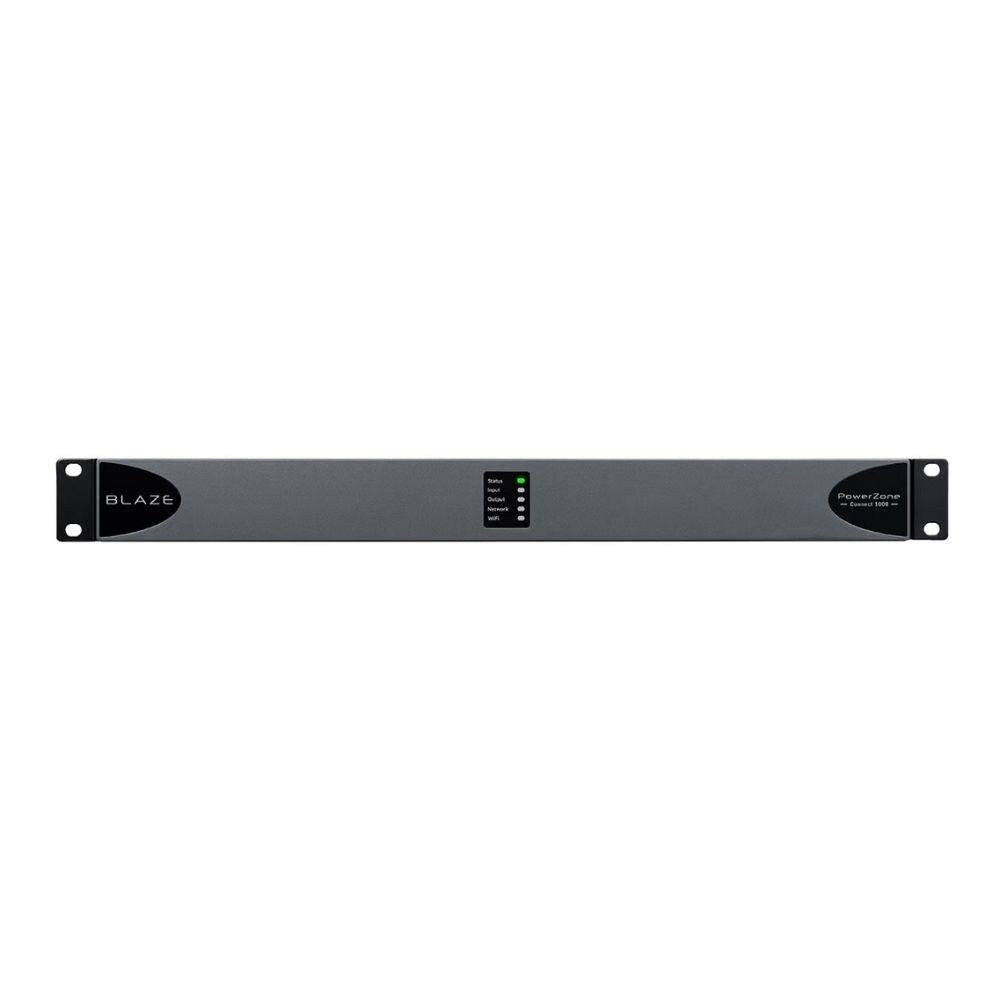

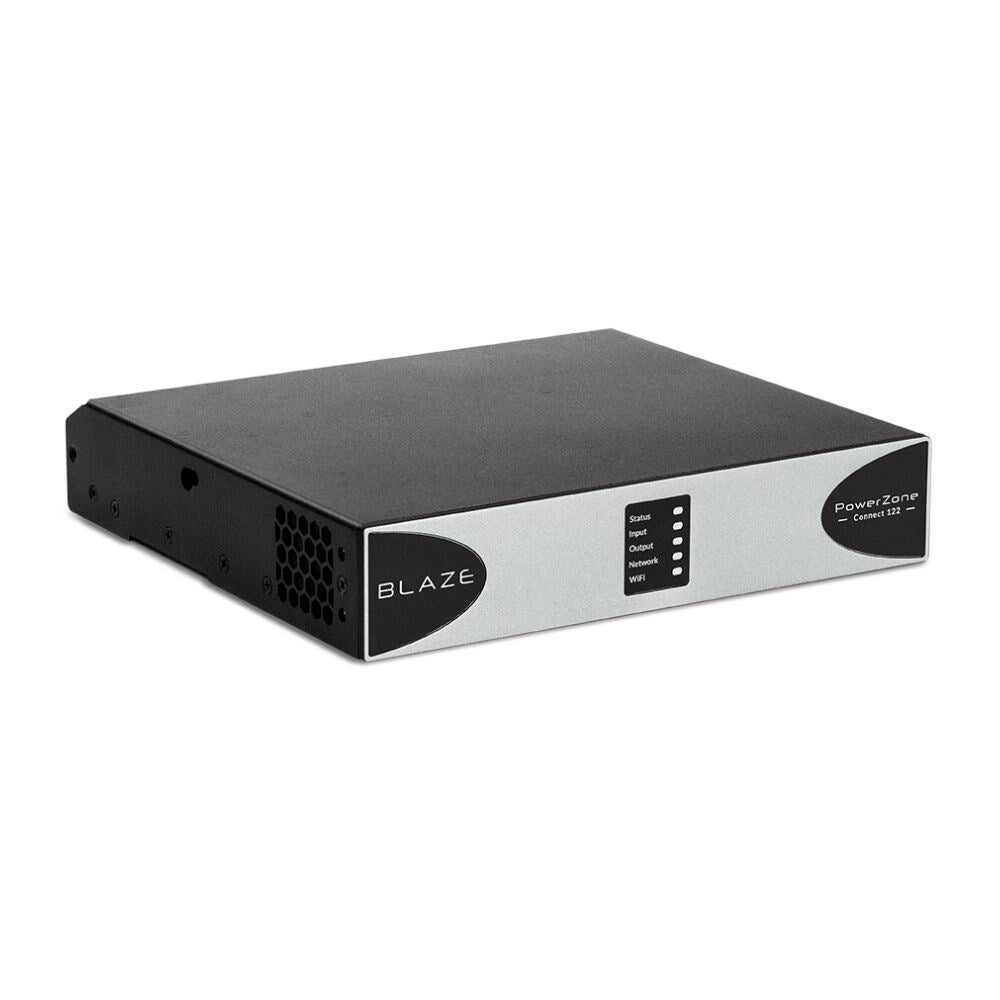

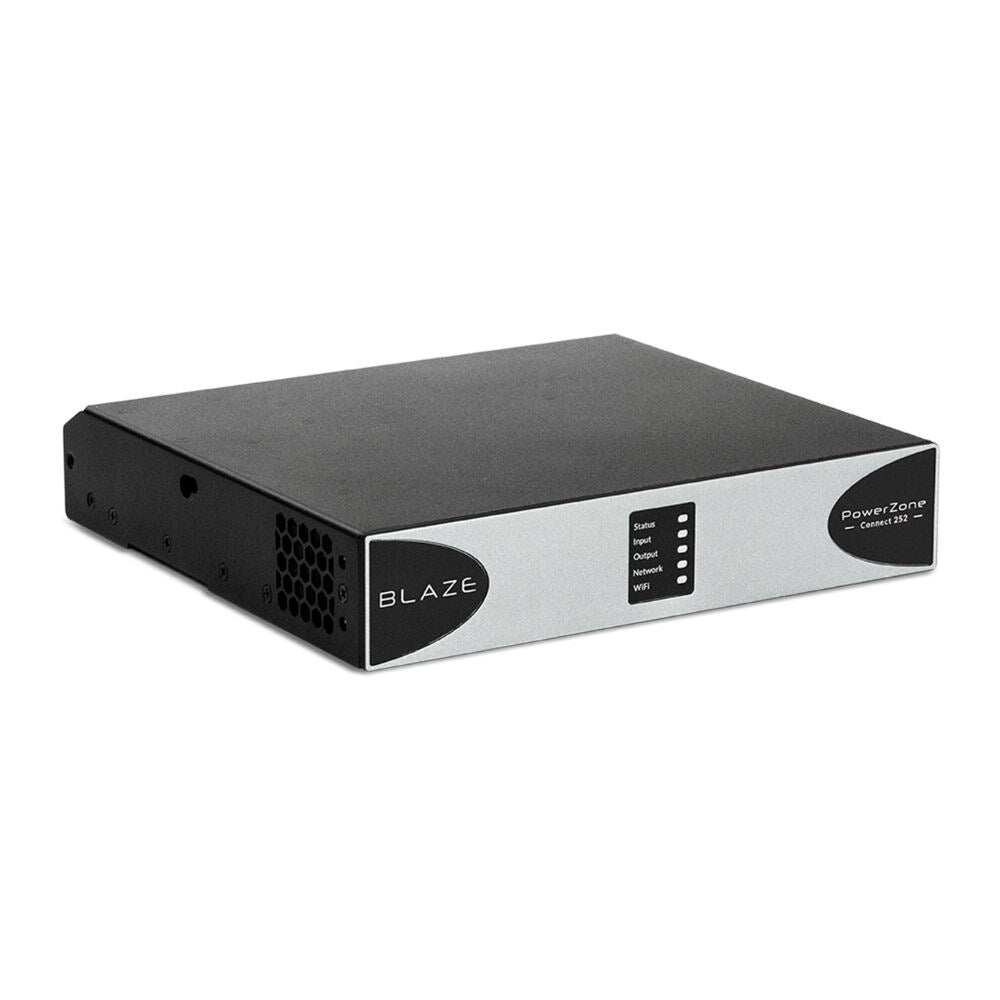

Blaze's PowerZone Connect 1U series is an award winning line of DSP enabled Class D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency and exceptional system configuration. Their compact form factor makes them an ideal choice for audio or voice installation projects with limited space, whilst demanding high output performance of up to 1000W. The amplifiers have a built in Wireless Access Point (WAP) for simple connection and easy system setup via Wi-Fi, with select models offering compatibility with Audinate Dante® AoIP networks and installations.
Blaze's PowerZone Connect 1U series is an award winning line of DSP enabled Class D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency and exceptional system configuration.
Their compact form factor makes them an ideal choice for audio or voice installation projects with limited space, whilst demanding high output performance of up to 1000W.
The amplifiers have a built in Wireless Access Point (WAP) for simple connection and easy system setup via Wi-Fi, with select models offering compatibility with Audinate Dante® AoIP networks and installations.
The PowerZone Connect 1U family powers both conventional low impedance, 4 Ω to 16 Ω, loudspeakers and constant voltage of 70 V/100 V transformer coupled speakers and features automatic power sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Blaze Audio's intuitive PowerZone Control web app is built into all the PowerZone Connect amplifiers for easy system setup.
PowerZone Control facilitates effortless customisation of even the most challenging audio or voice systems by delivering many DSP configuration options and tuning features. This including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
PowerZone Control caters to the demanding requirements of advanced system installs in locations such as retail stores, restaurants, hotels, educational facilities, theatres, bars, cafes, fitness locations, vast hospitality spaces and spaces with multiple meeting or conference rooms.

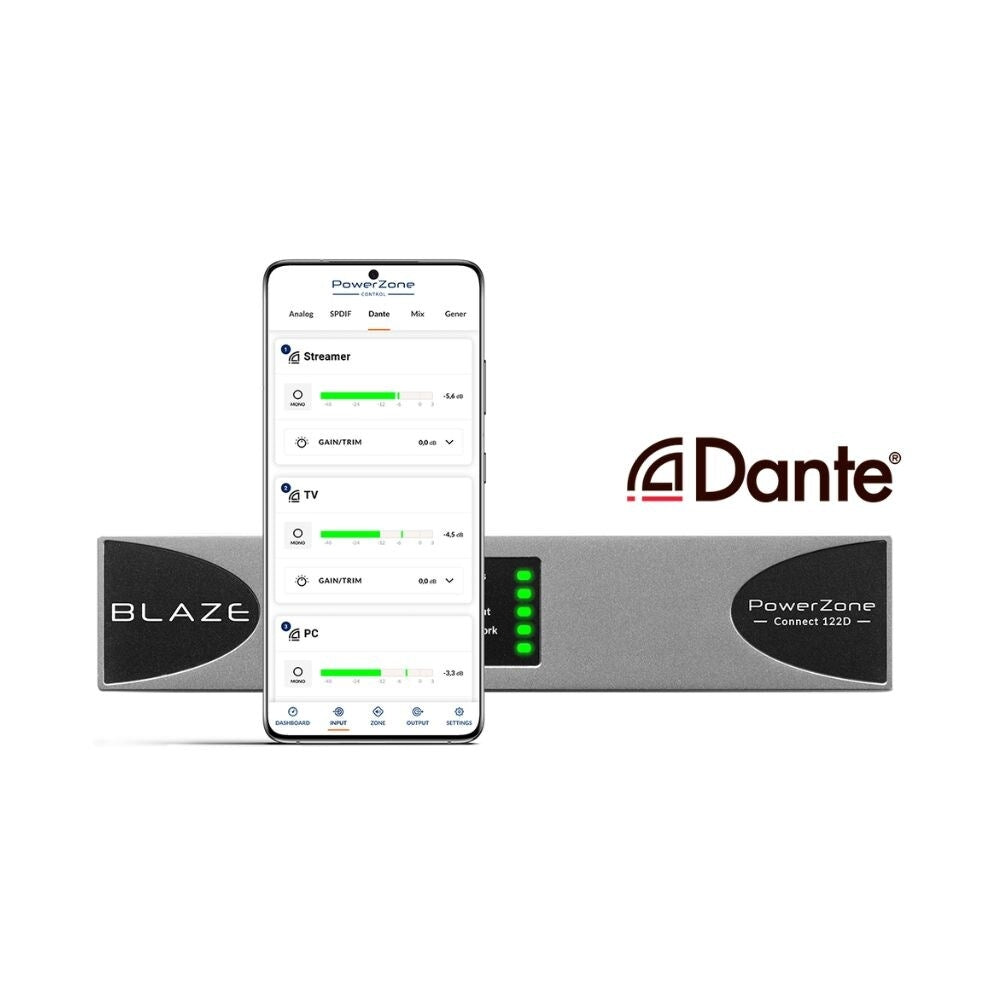

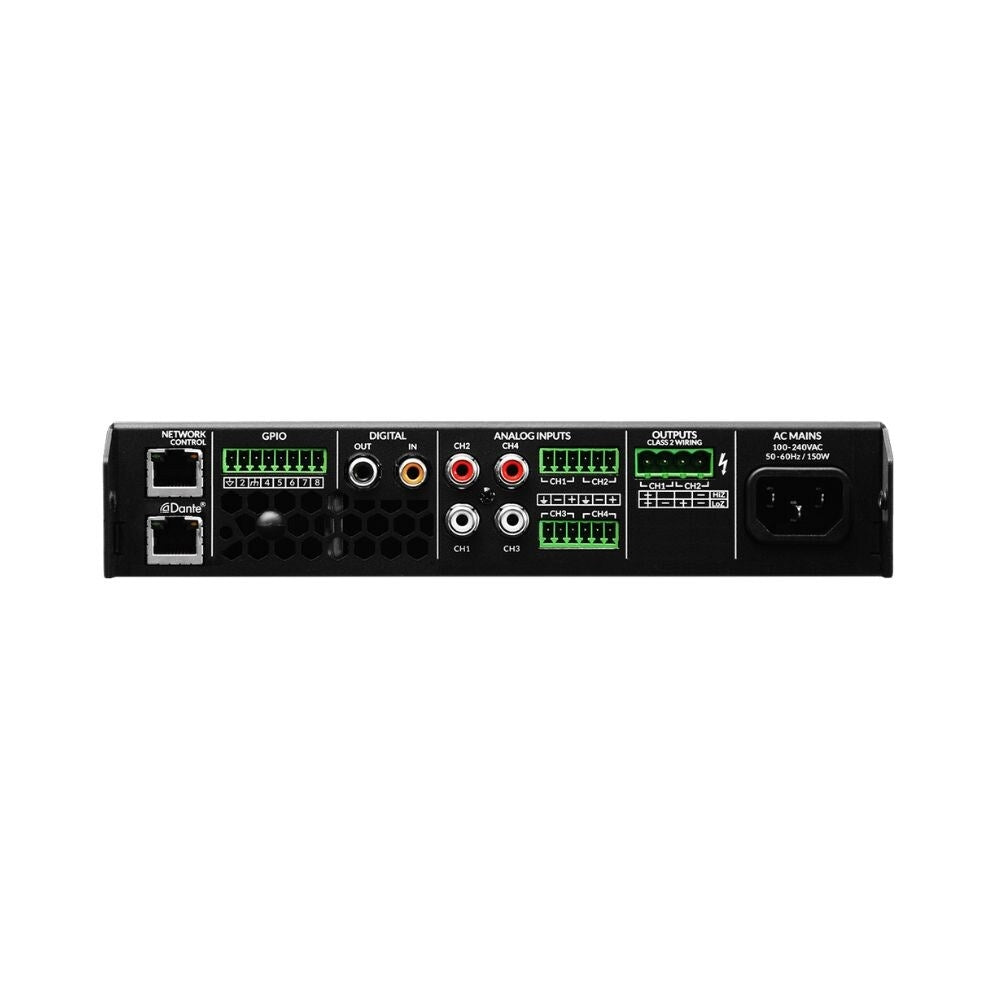

PowerZone Control is embedded in our PowerZone Connect DSP amplifier, and can be accessed from any device and browser via the PowerZone Connect built in wireless access point or RJ45 network port.
Specification
| Model | PowerZone Connect 122/122D | PowerZone Connect 252 | PowerZone Connect 254 | PowerZone Connect 504/504D | PowerZone Connect 508 | PowerZone Connect 1008 |
| Dante Options | 122D Audinate Dante® AoIP compatibility | 504D Audinate Dante® AoIP compatibility | ||||
| Total System Power | 125W | 250W | 250W | 500W | 500W | 1000W |
| Output Power @ 4/8 Ω | 2 x 60W | 2 x 125W | 4 x 60W | 4 x 125W | 8 x 60W | 8 x 125W |
|
Output Power @ 70/100V 100 V Line Mode is @ -1dB ≈ 90V |
1 x 125W | 1 x 250W | 2 x 125W | 2 x 250W | 4 x 125W | 4 x 250W |
| Power Share Up to Across Channels | 1 x 125W | 1 x 250W | 1 x 250W | 250W across channel 1/2 250W across channel 3/4 |
250W across channel 1/2/3/4 250W across channel 5/6/7/8 |
250W across channel 1/2 250W across channel 3/4 250W across channel 5/6 250W across channel 7/8 |
| Power | Consumption: 75W Standby Consumption: < 0.5W |
Consumption: 75W Standby Consumption: < 0.5W |
Consumption: 75W Standby Consumption: < 0.5W |
Consumption: 150W Standby Consumption: < 0.5W |
Consumption: 150W Standby Consumption: < 0.5W |
Consumption: 300W Standby Consumption: < 0.5W |
| Rack Size | 1U half width | 1U half width | 1U half width | 1U half width | 1U full width | 1U full width |
| Dimensions | Height: 44mm / 1.7" Width: 220mm / 8.7" Depth: 213mm / 8.4" |
Height: 44mm / 1.7" Width: 220mm / 8.7" Depth: 213mm / 8.4" |
Height: 44mm / 1.7" Width: 220mm / 8.7" Depth: 319mm / 12.6" |
Height: 44mm / 1.7" Width: 220mm / 8.7" Depth: 319mm / 12.6" |
Height: 44mm / 1.7" Width: 440mm / 17.3" Depth: 319mm / 12.6" |
Height: 44mm / 1.7" Width: 440mm / 17.3" Depth: 319mm / 12.6" |
| Weight | 2kg / 4.4lb | 2kg / 4.4lb | 2.8kg / 6.2lb | 2.8kg / 6.2lb | 3.5kg / 7.7lb | 3.8kg / 8.4lb |
| Optional Accessories Sold Separately | 2 x Rack ears 1 x 1/2 rack plate extension 2 x 1/2 rack mounting plates 2 x Rear supports |
2 x Rack ears 1 x 1/2 rack plate extension 2 x 1/2 rack mounting plates 2 x Rear supports |
2 x Rack ears 1 x 1/2 rack plate extension 2 x 1/2 rack mounting plates 2 x Rear supports |
2 x Rack ears 1 x 1/2 rack plate extension 2 x 1/2 rack mounting plates 2 x Rear supports |
2 x Rear supports | 2 x Rear supports |
Features
- Specific models of the PowerZone Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations
- Full width or half width compact 1U form factor
- Ideal choice for audio or voice installation projects with limited space constraints
- DSP enabled Class D amplifiers with high output performance of up to 1000W
- Low impedance, 4 to 16Ω and high impedance 70 or 100 volt line
- PowerZone Control web app for easy system setup
- DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking etc

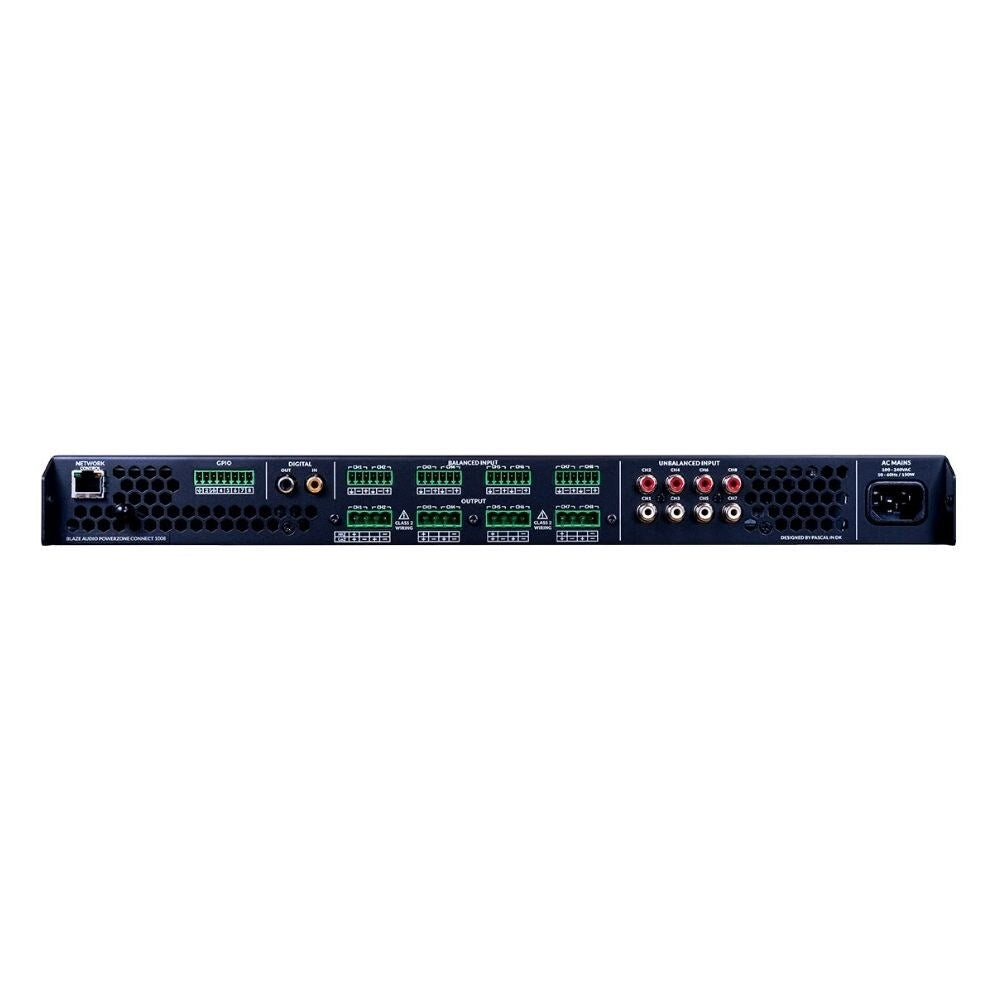

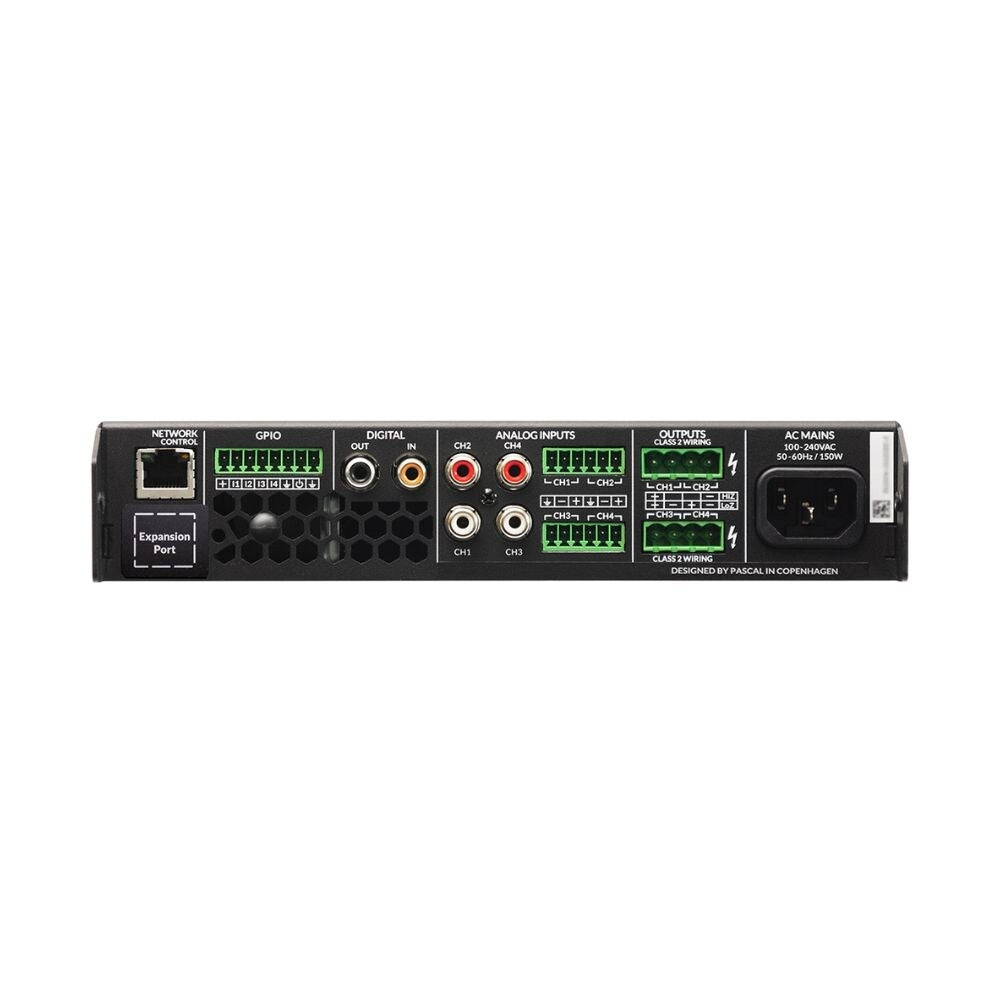

- Built in wireless access point or RJ45 network port for simple connection and easy system setup
User guides
Download User Guides:
Data Sheet 122
252
254
504
