Description

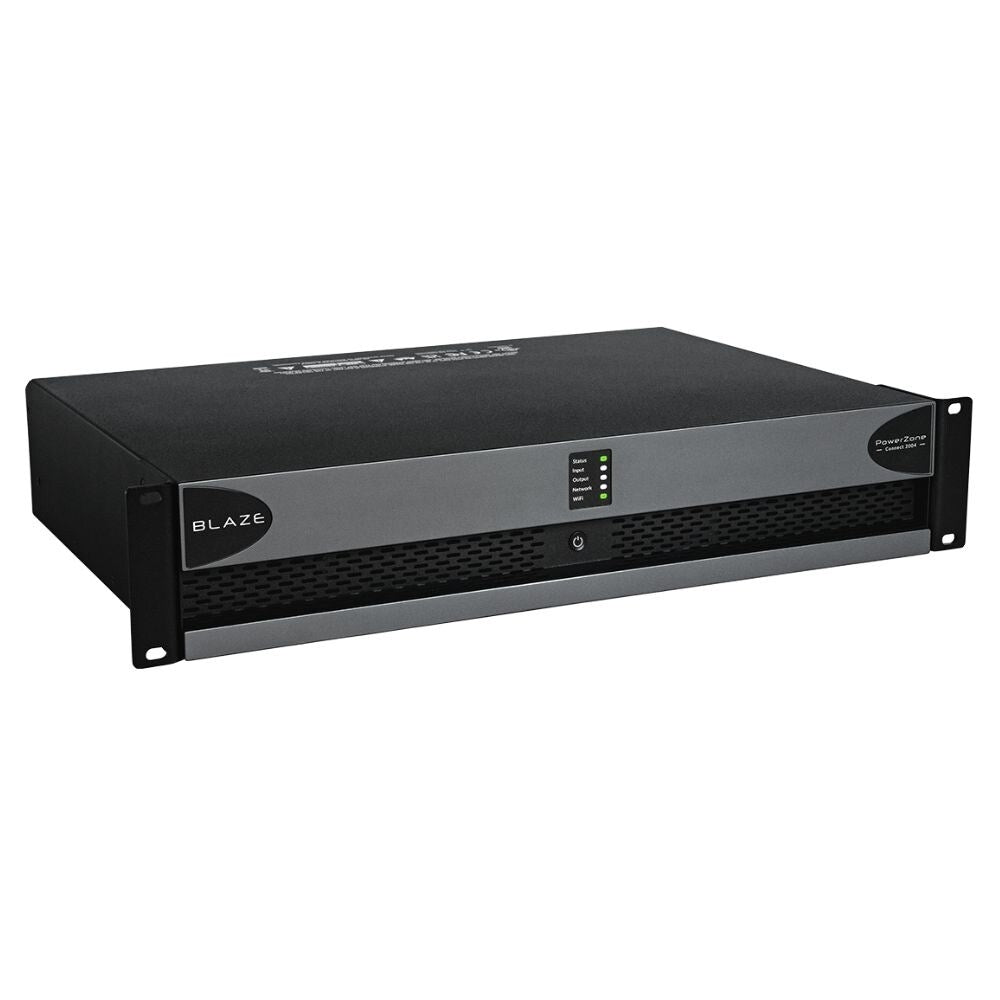

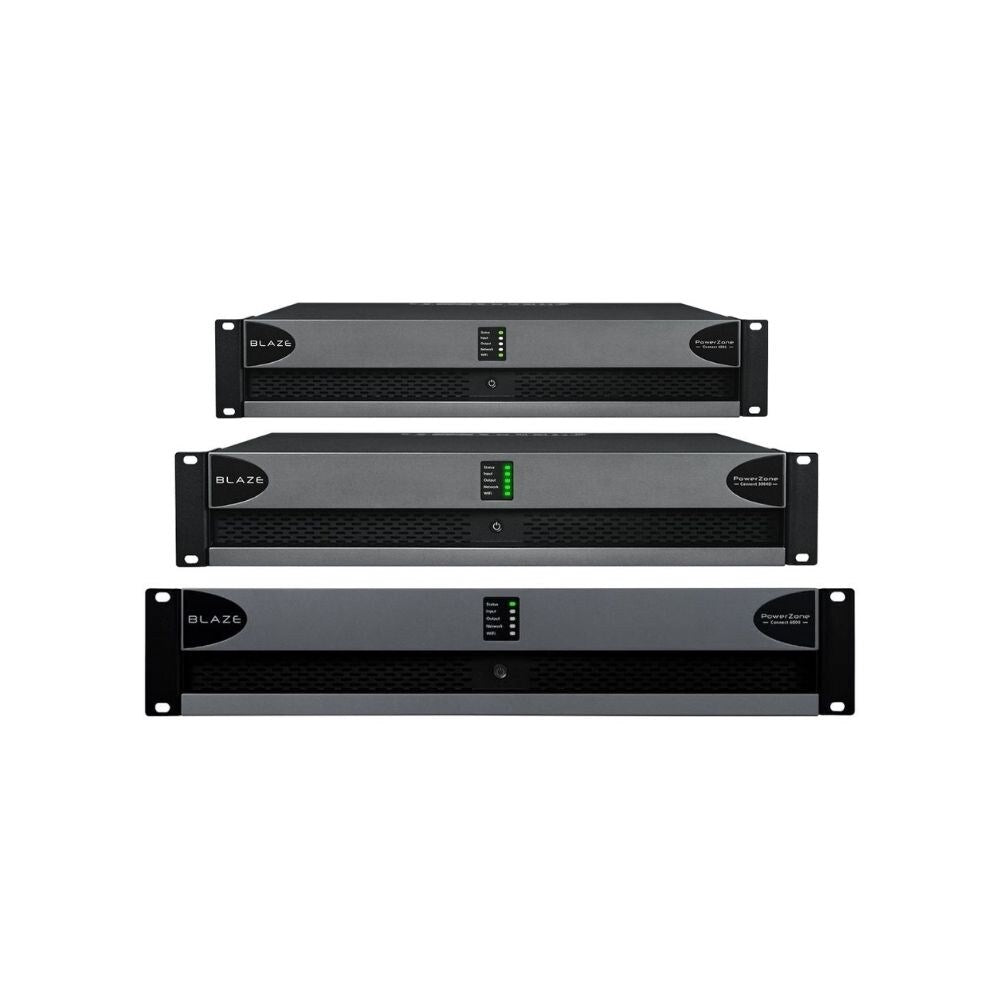

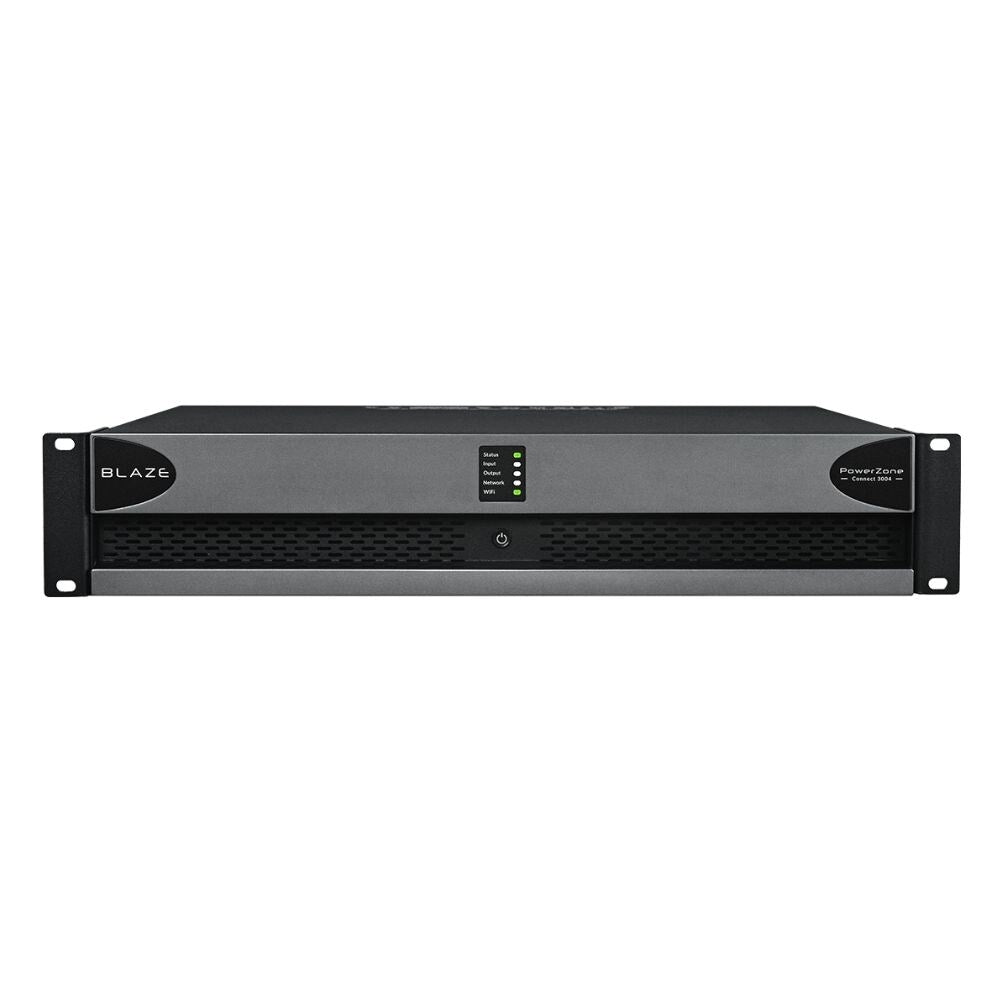

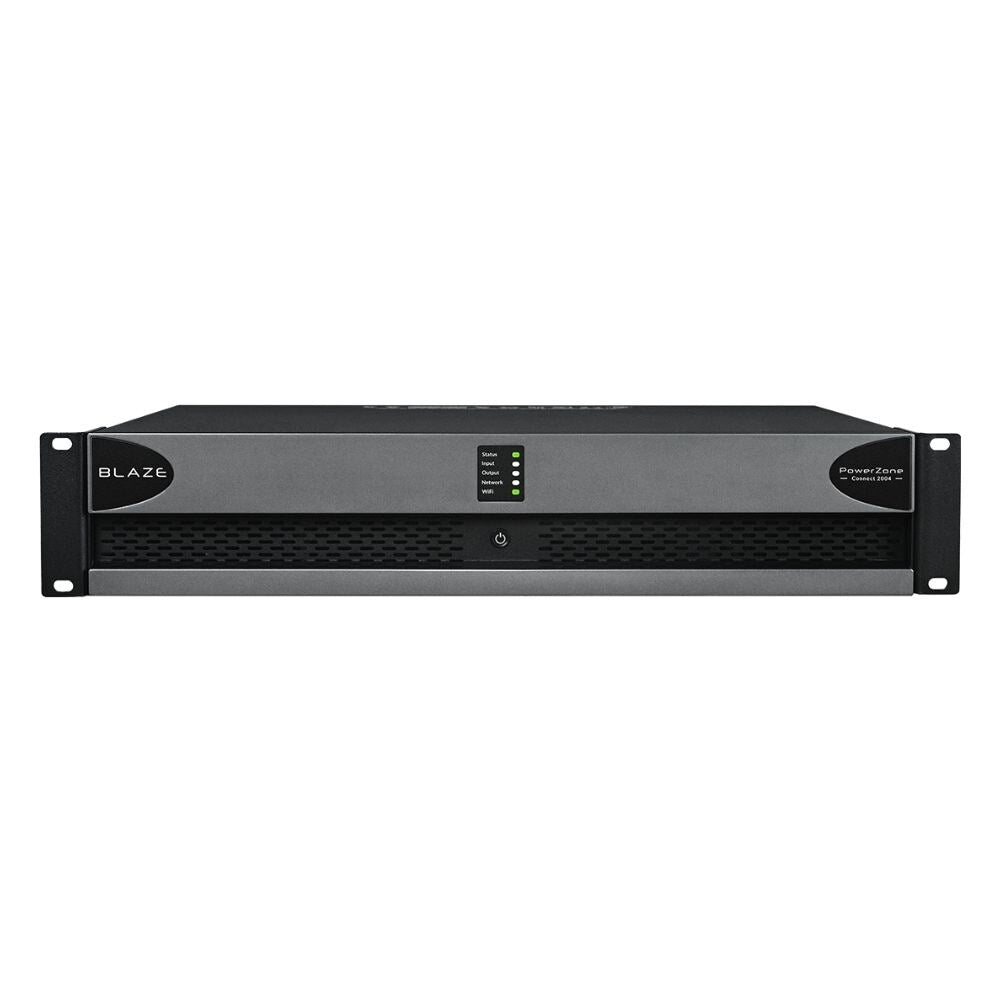

The Blaze PowerZone Connect 2U series is an award winning line of ultra reliable and full matrix DSP enabled Class D amplifiers that delivers exceptional system configuration and flexible output. Delivering a total system power ranging from 1000 W to 6000 W, this amplifiers have built in Wireless Access Point for simple connection and easy system setup via Wi-Fi, with selected models offering compatibility with Audinate Dante AoIP networks and installations.
The Blaze PowerZone Connect 2U series is an award winning line of ultra reliable and full matrix DSP enabled Class D amplifiers that delivers exceptional system configuration and flexible output.
Delivering a total system power ranging from 1000 W to 6000 W, this amplifiers have built in Wireless Access Point for simple connection and easy system setup via Wi-Fi, with selected models offering compatibility with Audinate Dante AoIP networks and installations.
The PowerZone Connect 2U amplifiers powers both conventional low impedance 2 Ω to 16 Ω speakers and constant voltage, 70 V/100 V, transformer coupled loudspeakers and features proportional distribution in both Lo-Z and Hi-Z modes.
Specific models of the PowerZone Connect 2U amplifiers offer compatibility with Audinate Dante AoIP networks and installations.
Blaze Audio's intuitive PowerZone Control web app is built into all the PowerZone Connect amplifiers for easy system setup. This control facilitates effortless customisation of even the most challenging audio or voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator and much more.
The PowerZone Control caters to the demanding requirements of advanced system installs in locations such as retail stores, restaurants, hotels, educational facilities, theatres, bars, cafes, fitness locations, vast hospitality spaces and spaces with multiple meeting or conference rooms.
PowerZone Control is embedded in Blaze's PowerZone Connect DSP amplifiers and can be accessed from any device and browser via the PowerZone Connect built n Wireless Access Point or RJ45 network port.
Specification
| PowerZone Connect 1002 | PowerZone Connect 1502 | PowerZone Connect 2004/2004D | PowerZone Connect 3004/3004D | PowerZone Connect 4008 | PowerZone Connect 6008 | |
| Dante Compatibility | 2004D Audinate Dante AoIP compatibility | 3004D Audinate Dante AoIP compatibility | ||||
| Total System Power | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W |
| Output Power @ 2Ω | 2 x 500W | 2 x 750W | 4 x 500W | 4 x 750W | 8 x 500W | 8 x 750W |
| Output Power @ 4Ω | 2 x 500W 1 x 1000W Bridged |
2 x 750W 1 x 1500W Bridged |
4 x 500W 2 x 1000W Bridged |
4 x 750W 2 x 1500W Bridged |
8 x 500W 4 x 1000W Bridged |
8 x 750W 4 x 1500W Bridged |
| Output Power @ 8Ω | 2 x 250W 1 x 1000W Bridged |
2 x 400W 1 x 1500W Bridged |
4 x 250W 2 x 1000W Bridged |
4 x 400W 2 x 1500W Bridged |
8 x 250W 4 x 1000W Bridged |
8 x 400W 4 x 1500W Bridged |
| Output Power @ 70V | 1 x 1000W Bridged | 1 x 1200W Bridged | 2 x 1000W Bridged | 2 x 1200W Bridged | 4 x 1000W Bridged | 4 x 1200W Bridged |
| Output Power @ 100V | 1 x 1000W Bridged | 1 x 1500W Bridged | 2 x 1000W Bridged | 2 x 1500W Bridged | 4 x 1000W Bridged | 4 x 1500W Bridged |
| Power | Consumption: 350W Standby Consumption < 0.5W |
Consumption: 350W Standby Consumption < 0.5W |
Consumption: 700W Standby Consumption < 0.5W |
Consumption: 700W Standby Consumption < 0.5W |
Consumption: 1400W Standby Consumption < 0.5W |
Consumption: 1400W Standby Consumption: < 0.5W |
| Rack Size | 2U full width | 2U full width | 2U full width | 2U full width | 2U full width | 2U full width |
| Dimensions | Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 321mm / 12.6" |
Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 321mm / 12.6" |
Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 321mm / 12.6"" |
Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 321mm / 12.6" |
Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 414mm / 16.3" |
Height: 88mm / 3.5" Width: 440mm / 17.3" Depth: 414mm / 16.3" |
| Weight | 5.9kg / 13.0lb | 5.9kg / 13.0lb | 7.4kg / 16.3lb | 7.4kg / 16.3lb | 11.6kg /25.6lb | 11.6kg /25.6lb |
| Included | 2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
2 Rack ears, fitted 4 Adhesive feet Input or output connection plugs |
Features
- Specific models of the PowerZone Connect 2U amplifiers offer compatibility with Audinate Dante AoIP networks and installations
- Full width 2U form factor
- Ideal choice for large audio or voice installation projects
- DSP enabled Class D amplifiers with high output performance of 1000W to 6000W
- Low impedance 2Ω to 16Ω and high impedance 70 or 100 volt line
- PowerZone Control web app for easy system setup
- DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking etc
- Built in wireless access point or RJ45 network port for simple connection and easy system setup
User guides
Download User Guides:
Data Sheet
