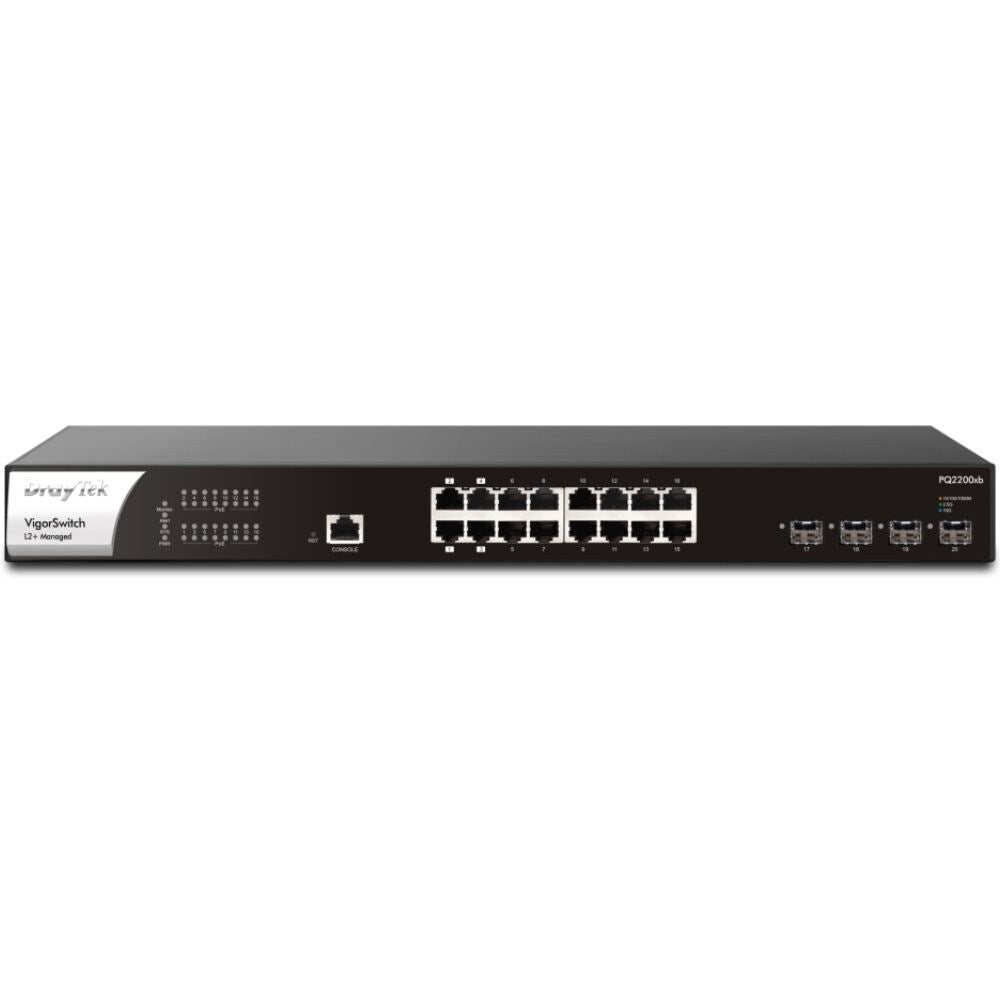

DrayTek 16 Port 2.5G Switch With 4 Ports PoE++, 12 Ports PoE+, 400W and 4 SFP+ Ports

Description:

VigorSwitch PQ2200xb is a 2.5 Gigabit L2+ Managed switch with 4 PoE++ 2.5GbE ports, 12 PoE+ 2.5GbE ports (total of 400W output) with 4 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

The PQ2200XB provides power through Ethernet to the PoE enabled 2.5 Gigabit LAN ports. Up to 90W (PoE++) can be delivered to the each of the first 4 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working

With Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2200xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reducing the setup time required for a complex network, with VLANs spanning multiple switches

With Voice VLAN and Surveillance VLAN, the VigorSwitch PQ2200xb simplifies the setup of connected IP Phones and IP Cameras. Move around ports on the switch without having to manually reconfigure VLAN and QoS settings each time, instead the switch will auto-assign VLAN tags and Quality of Service to IP Phones and IP Cameras, ensuring that each device remains on the correct network and that essential Voice and Video data is prioritised on the network.

Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.

Features:

• 16 x RJ-45 multi Gigabit Ethernet Ports (2500/1000/100/10) with PoE (4 PoE++ / 12 PoE+)
• 4 x SFP+ 10GbE Ports for uplink / fibre
• Console port
• PoE (Power over Ethernet) for IP phones, wireless access points, IP cameras etc.
• 400 Watt PoE budget
• 802.1q VLANs with Dynamic MAC based, Voice and Surveillance VLAN
• VLAN Routing and Static Route with DHCP server / relay
• QoS for Application traffic prioritisation
• Access Control List (ACL)
• Port Mirroring and Link Aggregation
• IGMP Snooping and Querying
• IPv4 and IPv6 support with IP Conflict Prevention
• Centrally managed or standalone operation

Specifications:
