Description
Description:

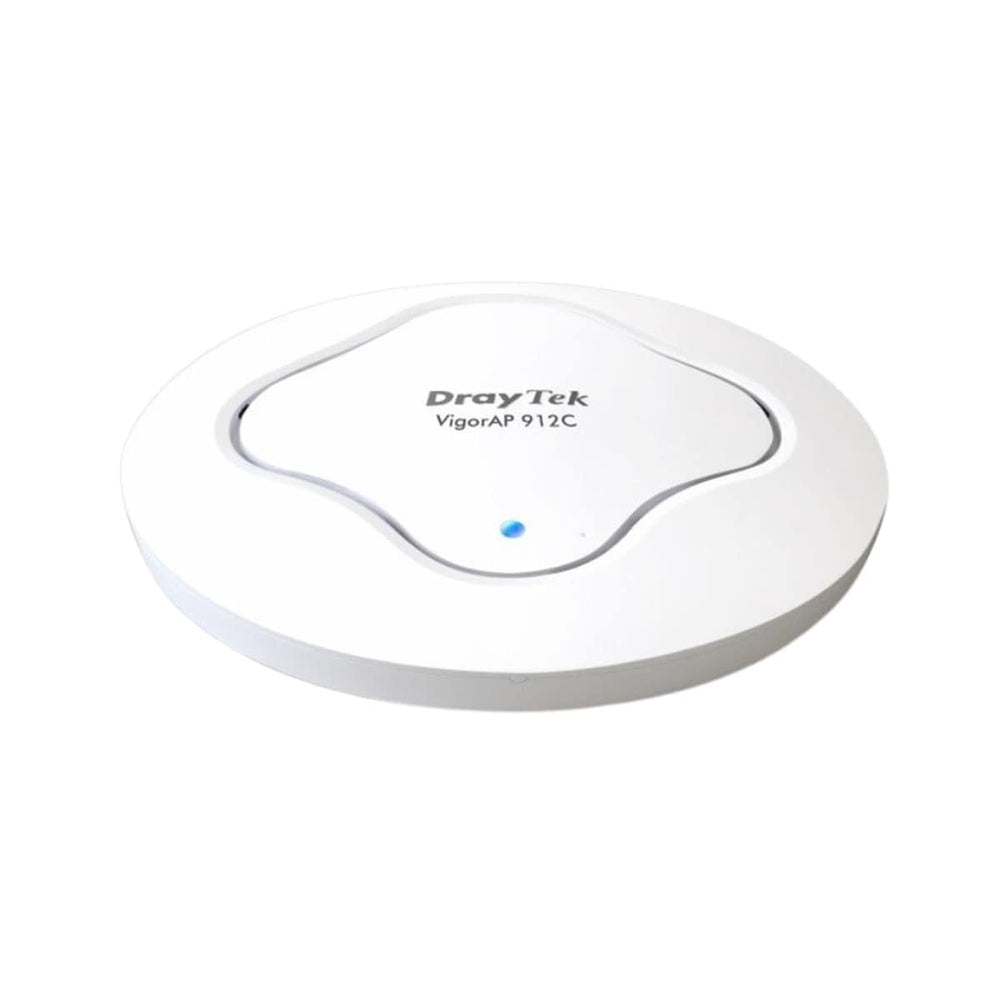

The VigorAP 912C is a dual band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.
Features:
- Mesh Wireless: Links up to 8 DrayTek Vigor AP access points over wireless with mesh. Mesh auto configures wireless links
- Easy to Configure and Manage: Set up of the VigorAP 912C is easy with DrayTek's wireless app
- Dual Band 11ac Waves 2 Access Point: Up to 866Mbps + 300Mbps total wireless bandwith, Connects 128 clients per wireless band, 256 in total
- Wireless Security and VLANs: Secure wireless networks with 802.1x and access control
- AP and Repeater Modes: Use the VigorAP 912C as an access point or extend an existing wireless network
- Central Management with Vigor ACS: Manage VigorAps from the cloud with DaryTek's VigorACS
- PoE: Power the Vigor 912C through its Gigabit Ethernet cable with standard IEEE 802.3af PoE
- Ceiling Mounting: With flexibility in mind, the AP 912C is designed to be installed on ceilings or walls
- Wireless Optimisation: Band steering, Airtime Fairness and AP assisted mobility features help to improve wireless network efficiency
- Multi SSID over Mesh: Provide separate wireless networks for 4 separate LANs over mesh
- Mesh Auto Optimisation: DrayTek's Mesh is self organising and self healing to ensure reliable wireless connectivity
- Central Management with a DrayTek Router: Manager, monitor and provisions VigorAPs connected to a DrayTek router
Specifications:
| Physical Interfaces | 1 x Gigabit Ethernet LAN Port RJ45 (accepts PoE Power) Factory Reset Button (recessed) DC Power Socket 1 x Security Lock |
| Wireless Performance | AC1200 Class Wireless Access Point 5GHz: PHY Rate 866Mb/s 2.4GHz: PHY Rate 300Mb/s |
| Wireless LAN Compatibility | IEEE 802.11ac (Wave 1 & 2) / a / b / g / n Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation Up to 128 clients per radio |
| Security Features | Wireless Encryption: WPA2-Personal (WPA2/PSK) WPA2-802.1x WPA3-Personal Mixed (WPA2+WPA3)/PSK Also supports WPA/WEP (Not recommended) |
| Wireless Performance Optimisation | Airtime Fairness Band Steering AP-Assisted Client Mobility WMM (Wireless MultiMedia) Bandwidth Management (Per Station / Per SSID) |
| Power Requirements | Maximum Power Consumption: 10 Watt DC 12V via external 100-240v AC/DC PSU 802.3af PoE via LAN port. Requires PoE injector or a PoE switch such as the VigorSwitch P2100 |
| Environmental & Dimensions | Operating Temperature : 0°C to 45°C Operating Humidity: 10% to 90% (Non-condensing) Dimensions: Width / Diameter 162mm Height: 42mm Weight: 0.3kg Ceiling or wall mountable (requires rear cable entry) |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
Users Guide
Security Best Practice White Paper
