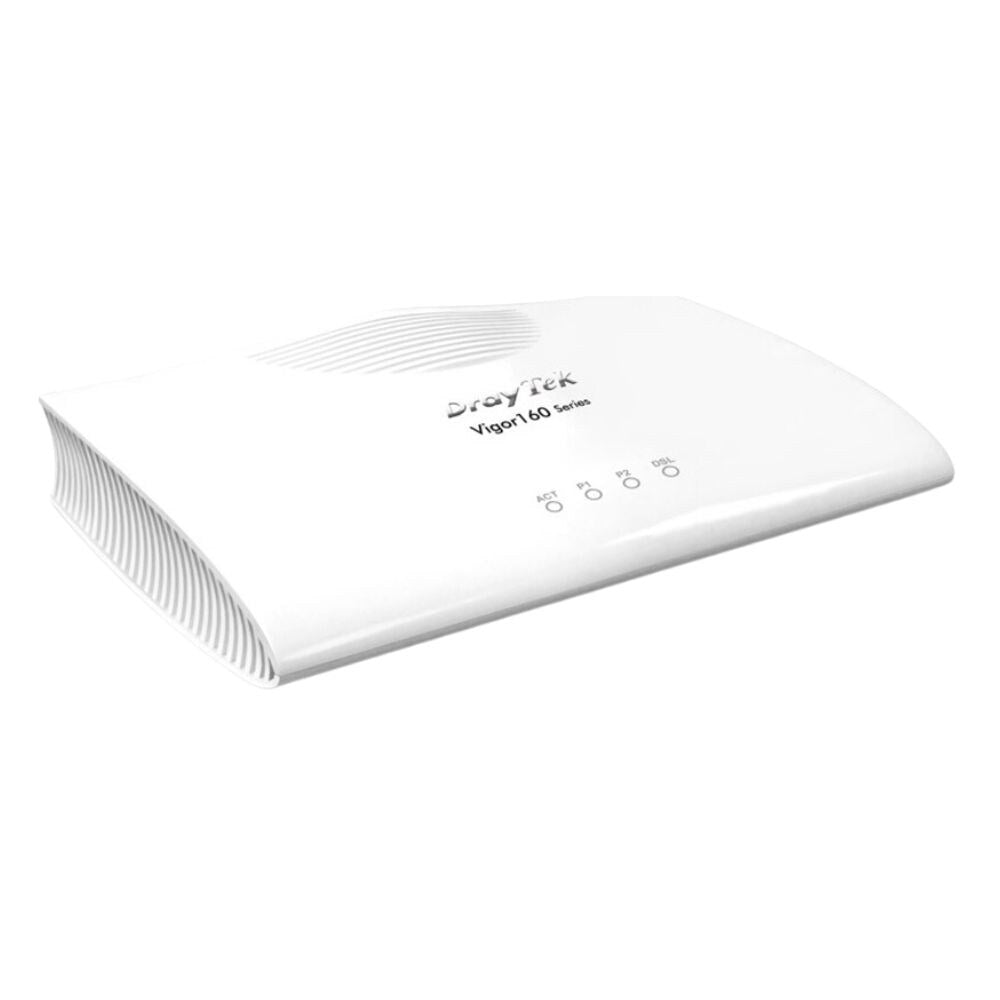

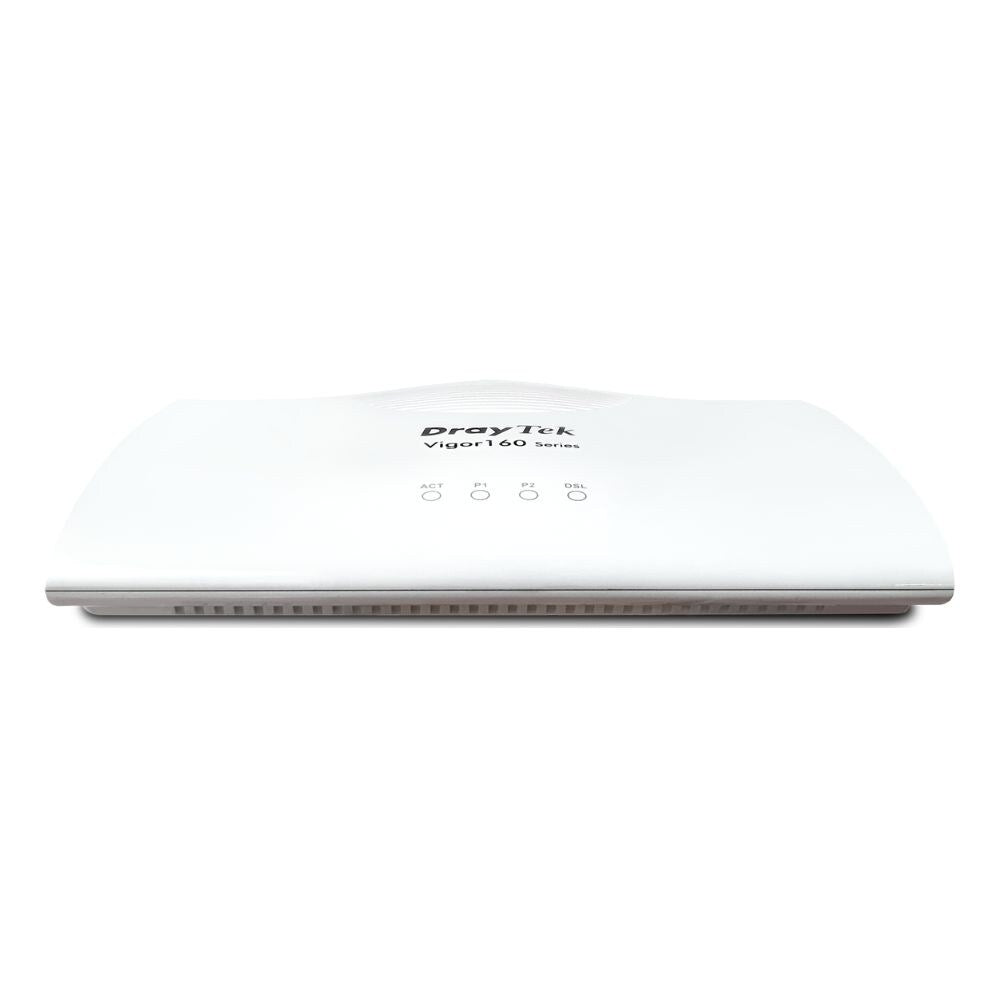

DrayTek Vigor 166 G.Fast Modem

Description:

The DrayTek Vigor 166 modem connects to G.fast and VDSL connections for full performance with ultrafast and superfast FTTC (Fibre to the Cabinet) services. Connect your Ethernet based firewall or router to ultrafast and superfast broadband, simply by adding in the Vigor 166 modem.

This modem operates as a full bridge straight out of the box and is pre configured to work with most UK DSL connections, with no configuration needed on the modem itself. Support for Vectoring, G.INP and VDSL2 35b SuperVectoring ensures full compatibility with UK VDSL and G.fast networks.

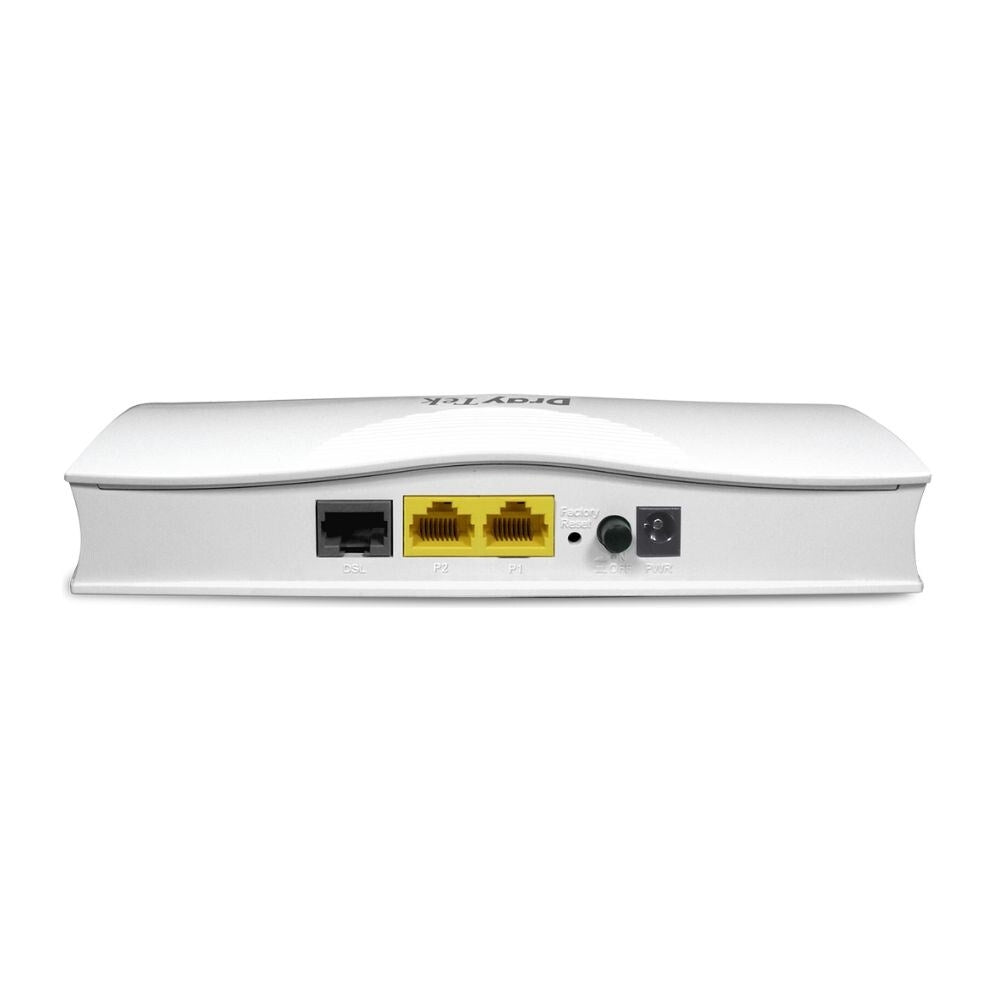

The Vigor 166 has two Gigabit LAN ports, so, in addition to providing internet connectivity, you can plug a laptop into the second port to check the Vigor 166's web interface without disrupting the internet connection. When in NAT Router mode, the Vigor 166's two LAN ports can be used to connect two devices such as PCs, Wireless Access Points and servers or more with an additional switch.

Add DSL connectivity to any router With the full bridging modem functionality. This makes it easy to connect your router or firewall to G.fast and VDSL connections. Simply enter your ISP's username and password or use DHCP with ISPs such as Sky or TalkTalk. The modem passes it through transparently, without adding any additional layers of complexity such as NAT (Network Address Translation).

When used with a DrayTek Vigor router, the Vigor 166 modem reports its DSL status to the router, so that you can check on the modem's DSL status straight from the router's web interface. This modem is compatible with IPTV and ISP Video on Demand services like YouView and Sky Q with no extra configuration needed to it.

No setup needed as the Vigor 166 modem is designed exclusively for use in the UK, with the required network settings pre-set, such as the OpenReach VLAN tag. This means that a multitude of routers and other devices can connect through the Vigor 166 with a minimum of issues, even devices that don't support VLAN tags. Out of the box, the Vigor 166 passes through the DSLinternet connection to the device connected to its Ethernet port.

The Vigor 166 modem is pre-set to work as a fully bridging modem. It can also be used as a mini router, providing NAT, port forwarding and DMZ Host to connected devices. In the web interface of the Vigor 166, the modem mode provides a streamlined menu, displaying only the options relevant for its full bridge functionality, such as MTU (maximum packet size) and VLAN tags. When switched to router mode, it provides the full list of menu options, with settings to have the Vigor 166 connect to the ISP itself, as well as configure NAT and Firewall settings.

Features:

• G.fast ultrafast fibre and VDSL2 superfast fibre to Ethernet modem
• Bridges DSL to your router or firewall
• Pre configured to work with most ISPs
• Compatible with IPTV and ISP video on demand services e.g. YouView, Sky Q
• 2 Gigabit LAN ports

Specifications:
