Description:

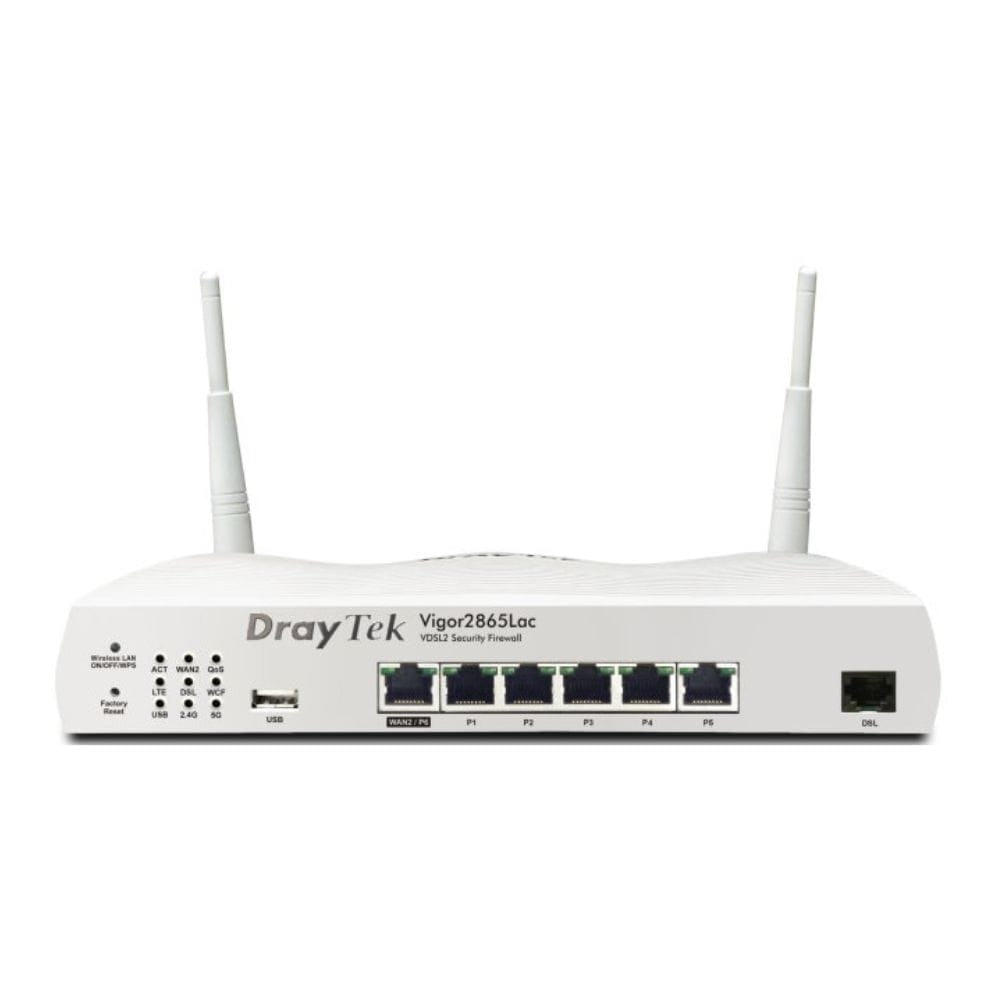

The DrayTek's Vigor 2865 Series multi WAN Firewall VPN routers are well suited for superfast VDSL broadband and Ethernet based FTTP fibre Broadband. Offering Gigabit throughput, Quality of Service, VPN client or server, comprehensive firewall and Content Filtering controls, the 2865 Series stands out as one of the most versatile devices on the market, compatible with various network requirements.
Featuring high throughput with Load Balancing and Failover connectivity, suitable for handling Fibre to the Premises (FTTP) and Gigabit internet connections. Offering up to 950Mbps per WAN of hardware accelerated throughput while retaining its full feature set.
The New Vigor 2865L-5G model integrates a 5G/LTE modem, enabling users to leverage mobile broadband effectively, whether for failover or load balanced broadband connections. Also adding the new Vigor 2865Lax-5G model integrates a 5G/LTE modem, enabling users to leverage mobile broadband effectively, whether for failover or load balanced broadband connections.
Additionally, its Wi-Fi 6 module ensures rapid and efficient wireless connectivity with DrayTek VigorAP access points and end devices.
Features:
- VDSL2 superfast fibre and Gigabit ethernet WAN router
- Multi WAN Gigabit performance router with Load Balancing and Failover
- Up to 950Mbps firewall throughput for ethernet WAN
- 5+1 Gigabit RJ-45 LAN ports
- Up to 800Mbps VPN throughput with IPsec acceleration
- 32 LAN to LAN and remote worker VPN Tunnels
- 16 DrayTek SSL VPN or open VPN Tunnels
- 8 LAN subnets with VLANs port based or 802.1q
- SPI firewall and content filtering
- Optional VigorCare available
- Can be centrally managed by VigorACS
- 4G or 5G models
- 5G with dual sim slot
Please Note: Wi-Fi is available on 'ac' and 'ax' models and the integrated 4G+ LTE modem on 'Lac' models and integrated 5G on 'Lax' models which takes full advantage of mobile broadband
Specifications:
| Physical Interfaces | WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11 WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45 2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer or 1x USB 2.0 Port ('L' models) 2x Removable Wireless antennas, wireless models Two removable 4G/LTE Wireless antennas for 'LAC' models Four removable 5G/LTE Wireless antennas for 'LAX' models Wireless On, Off and WPS button recessed factory reset button |
| Performance | NAT Performance: 100 Mb/s Max Sync Rate with VDSL2 300 Mb/s Max Sync Rate with VDSL2 35b 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration 1.3Gb/s Total multi WAN NAT Throughput 800 Mb/s NAT Throughput per WAN without Hardware Acceleration 60,000 NAT Sessions 8000 Hardware Accelerated NAT Sessions VPN Performance: 300 Mb/s IPsec (AES256) VPN Performance 800 Mb/s Hardware Accelerated IPsec VPN Performance 130 Mb/s SSL VPN Performance Max. 32 Concurrent VPN Tunnels Max. 16 Concurrent SSL VPN / OpenVPN Tunnels |
| Internet Connection | Load Balancing: IP based, Session based Hardware Acceleration 802.1p/q Multi-VLAN Tagging WAN Active on Demand: Link Failure, Traffic Threshold Connection Detection: PPP, ARP Detect, Ping Detect WAN Data Budget Dynamic DNS DrayDDND with automated LetsEncrypt Certificates |
| VDSL and ADSL Features | BT Infinity Option 1 and Option 2 compatible compliant with Open Reach SIN 498 Auto Detection of VDSL and ADSL line modes Support for G.INP and Vectoring |
| Firewall and Content Filtering | IP based or User based Firewall Policy User based Time Quota DoS Attack Defence Spoofing Defence Content Filtering: Application Content Filter URL Content Filter DNS Keyword Filter Web Features |
| LAN Management | 802.1q Tag based, Port based VLAN Up to 8 LAN Subnets. NAT or Routing mode selectable per LAN interface. Up to 16 VLANs Multiple IP Subnet Custom DHCP Options Bind-IP-to-MAC DHCP Pool Count up to 1022 addresses for LANs 1-3 DHCP Pool Count up to 253 addresses for LANs 4 to 8 Wired 802.1x Port Authentication Port Mirroring Local DNS Server Conditional DNS Forwarding Hotspot Web Portal Hotspot Authentication: Click Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking Features | Policy based Routing: Protocol, IP Address, Port, Domain/Hostname, Country High Availability: Active standby, hot standby DNS Security (DNSSEC) Local RADIUS server SMB File Sharing. Requires external storage Multicast: IGMP Proxy, IGMP Snooping and Fast Leave, Bonjour Routing Features: IPv4 and IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP |
| Bandwidth Management | IP based Bandwidth Limit IP based Session Limit User based Data Quota Quality of Service (QoS) Classify via TOS, DSCP, 802.1p, IP Address, Service Type 4 Priority Queues App QoS VoIP Prioritisation Class based Outbound Traffic Tagging: DSCP and IP Precedence |
| Management | Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069 Config File Export and Import Import Config from Vigor 2862 Auto Backup Config to USB Storage Firmware Upgrade via TFTP, HTTP, TR-069 2 Level Administration Privilege Access Control Features: Access List, Brute Force Protection Syslog SMS, E-mail Notification Alert SNMP: v1, v2c, v3 |
| Router Central Management Features |
AP Management: Up to 20 Vigor Access Points Switch Management: Up to 10 VigorSwitch network switches VPN Management: Up to 8 Vigor routers DrayTek Mesh: Up to 7 Vigor access points |
| Power |
Power Consumption: 24W maximum 'ac' model Operating Power: DC 12V via external PSU |
| Operating Requirements | Temperature Operating: 0°C to 45°C Humidity 10% to 90% non-condensing |
| Indluded | External PSU |
User guides
Download User Guides:
Data Sheet
Data Sheet Lax-5G
Data Sheet L-5G
DrayTek Data Book
Quick Start Guide
Users Guide
Security Best Practice White Paper
