Description
James Loudspeaker's JAM-FXA550S 3 way 5.25" angled baffle in wall / in ceiling is for use in applications where coverage is a challenge. Designed to provide high performance at an off axis position while ensuring reduced reflections from the any adjacent boundary. This speaker is a full 3 way design in a style edge detail appearing virtually flush when installed.James Loudspeaker has introduced the JAM-FXA550S 3 way 5.25" angled baffle in wall / in ceiling for use in applications where coverage is a challenge.
Designed to provide high performance at an off axis seating position while ensuring reduced reflections from the any adjacent boundary, this speaker is a full 3 way design in a style edge detail appearing virtually flush when installed.
The JAM-FXA550S makes an outstanding ceiling speaker for both L/C/R and surround applications as well as a great in wall surround speaker, allowing downward coverage to adhere to many 3D immersive specifications such as Atmos®, Auro3D and DTS:X.
The FXA series also provides an ideal solution for additional rooms where speakers must be located off from the main listening area. A beryllium tweeter provides high fidelity performance.

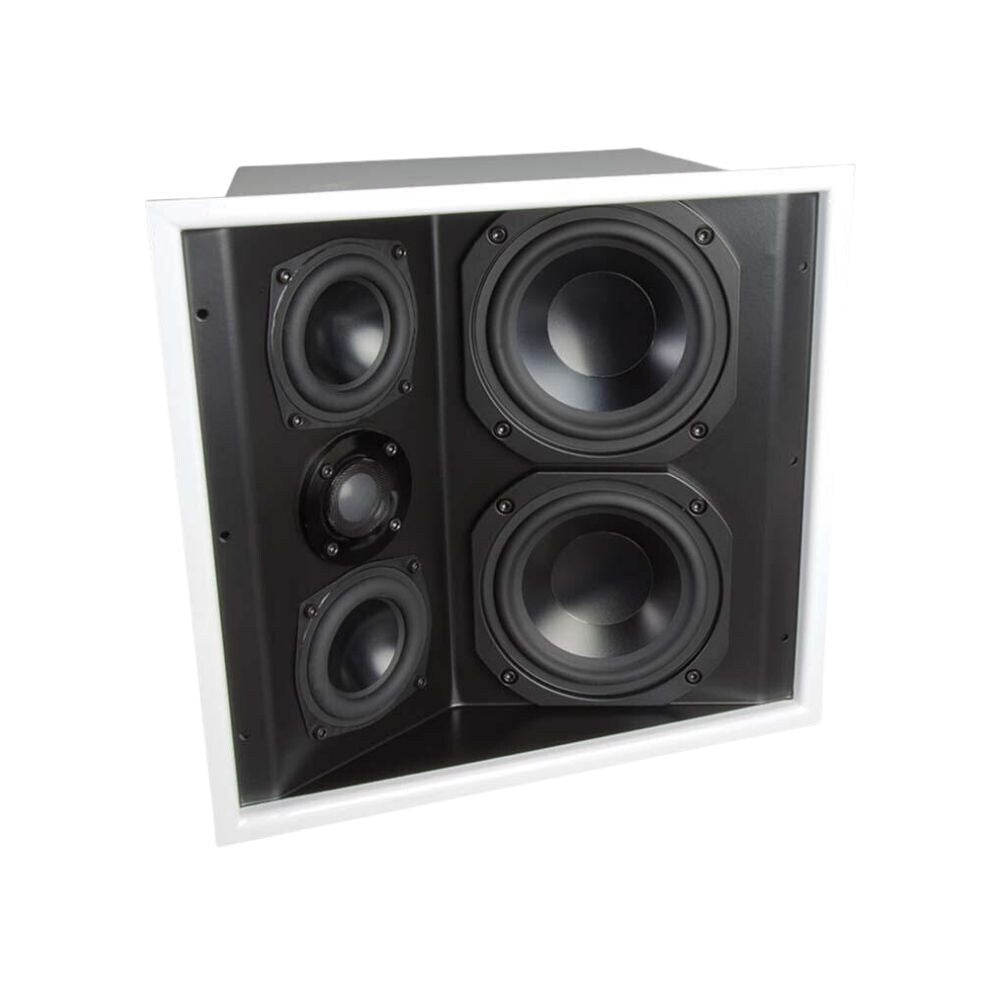

Along with the BE tweeter, dual 3" high excursions mid range transducers are mounted on the main baffle which is angled at 30° towards the listening area. Dual 5.25" woofers are angled on the adjacent baffle at 20° to provide full bass response. All woofers are designed with aluminium cones, Santoprene™ surrounds and die cast baskets to be outdoor and marine vessel ready. All enclosures are constructed with aircraft aluminium and include aluminium white paintable grilles.
James Loudspeaker is dedicated to providing the optimal performance solution for any application and this angled baffle loudspeakers is ideal for specialised applications such as front L/C/R ceiling speakers or Atmos® surrounds.
Specification
| Tweeter | 1 x 25mm / 1" beryllium |
| Mid Range | 2 x 76.2mm / 3" high excursion |
| Woofer | 2 x 139mm / 5.25" aluminium cones with Santoprene™ surrounds |
| Enclosure | Aircraft marine grade aluminium |
| Finish | White grille |
| Crossover | 3 Way |
| Frequency Response | 65Hz to 40kHz ±3dB |
| Nominal Impedance | 4Ω |
| Sensitivity | 89dB @ 2.83V/1m |
| Recommended Power Range | 50W to 250W |
| Cut Out | 308mm / 12.125" x 308mm / 12.125" |
| Dimensions | Height:323.85mm / 12.75" Width: 323.85mm / 12.75" Depth: 149.35mm / 5.88" |
Features
- This speaker is perfect for applications where coverage is a challenge
- Providing high performance at an off axis seating position while ensuring reduced reflections
- This speaker is a full 3 way design in a style edge detail appearing virtually flush when installed
- An outstanding ceiling speaker for both L/C/R and surround applications
- Allowing downward coverage to adhere to many 3D immersive specifications such as Atmos®, Auro3D and DTS:X
- The enclosure is constructed with aircraft aluminium for durability and include aluminium white grilles
