The QX-SPL5-LR 5" stereo in wall soundbar raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The stereo format of this soundbar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure. Perfect for any home entertainment system, this versatile soundbar can be custom built to match each individual TV.The QX-SPL5-LR 5" stereo in wall soundbar raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The stereo format of this soundbar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure. Perfect for any home entertainment system, this versatile soundbar can be custom built to match each individual TV.

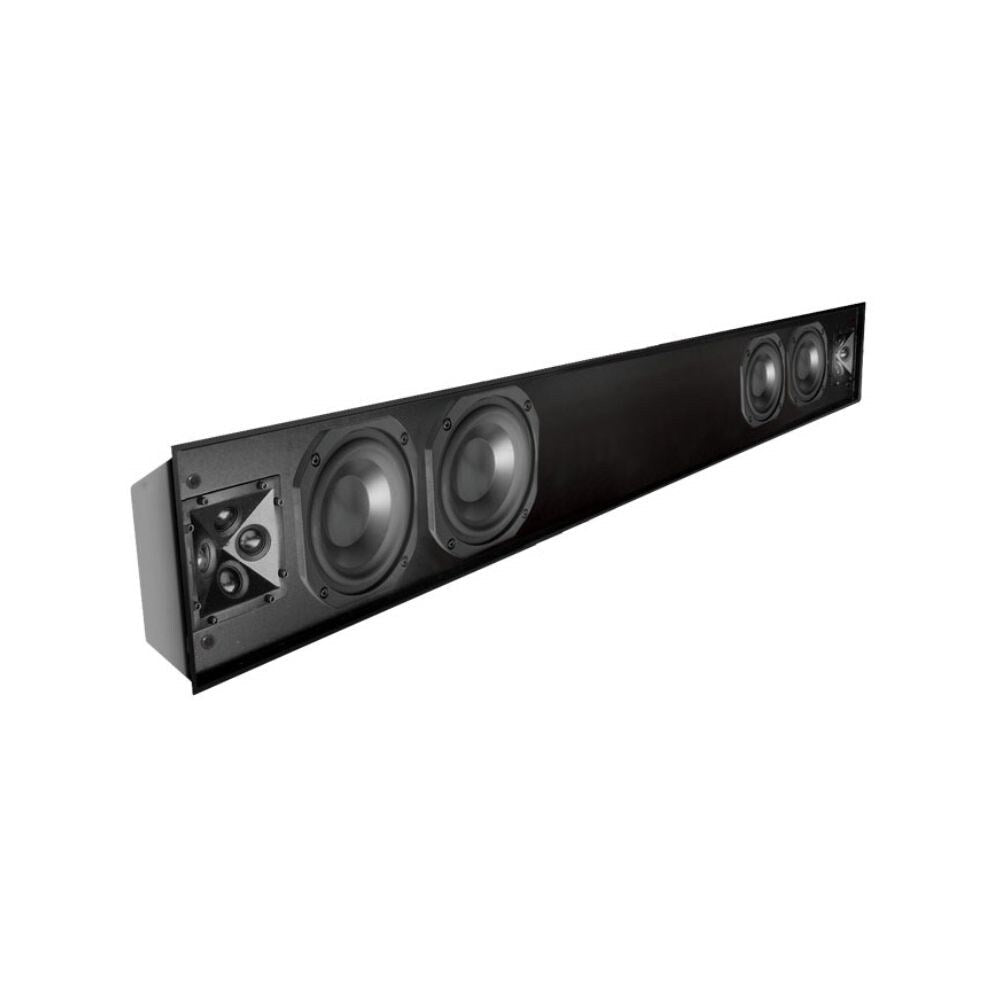

Equipped with high output, low profile woofers and the signature ultra-wide dispersion QX style quad aluminium tweeter array, this low-visibility soundbar delivers a powerful punch in a small package. Capable of reaching frequencies across a broad range down to below 65Hz, with an impressive 89dB sensitivity.

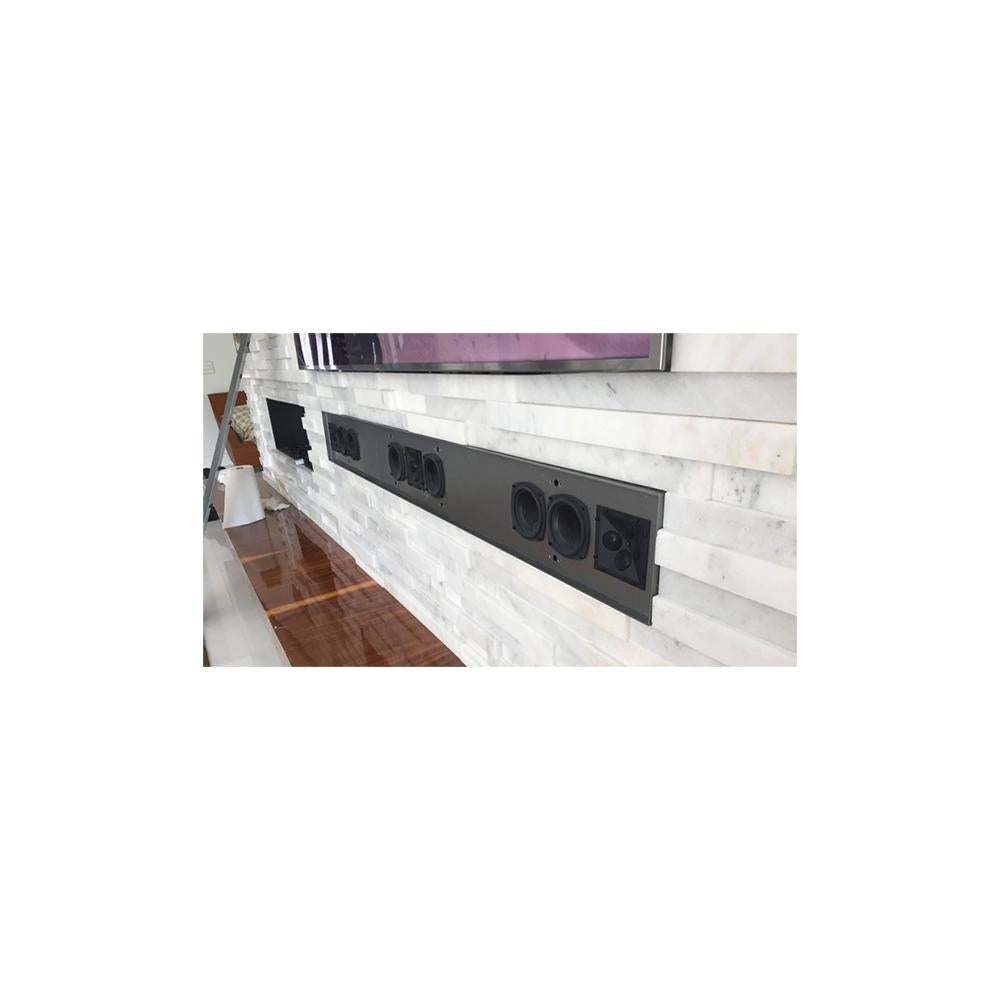

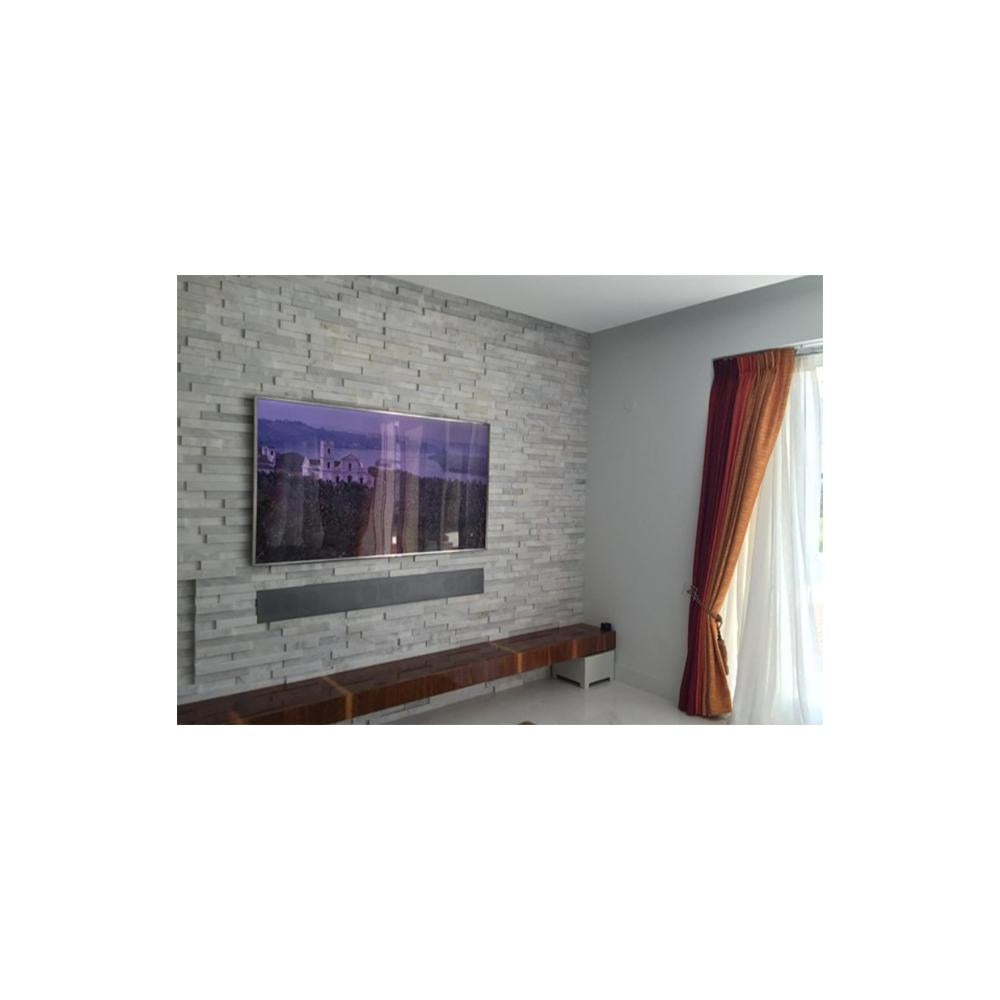

The in wall cabinet is constructed of aircraft grade aluminium for strength and sonic performance. Complete with a matching borderless aluminium perforated grille which sits only 3/16" (5mm) off the wall or completely flush with the addition of a pre-construction board, this speaker is both study and reliable as well as elegantly integrated into each system, providing a subdued visual effect, designed to be as unobtrusive as possible.
The James QX Series soundbars feature aluminium cone woofers with Santoprene™ rubber surrounds and quad aluminium tweeter arrays that deliver wide dispersion and reference- quality sound. The quad tweeter array is designed to provide superb off-axis stereo performance, even in rooms with speakers mounted in less than perfect locations.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 8 x 19mm / 0.75" aluminium |
Woofer | 4 x 132mm / 5.25" aluminium |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 65Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω |
Sensitivity | 89db 2.83V/1m |
Recommended Power Range | 25W to 200W |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 206.38mm / 8.13" Width: Up to 1854mm / 73" Custom width: please see overview for further details Depth: 104.77mm / 4.13" |
Grille Height | 206.38mm / 8.13" |
