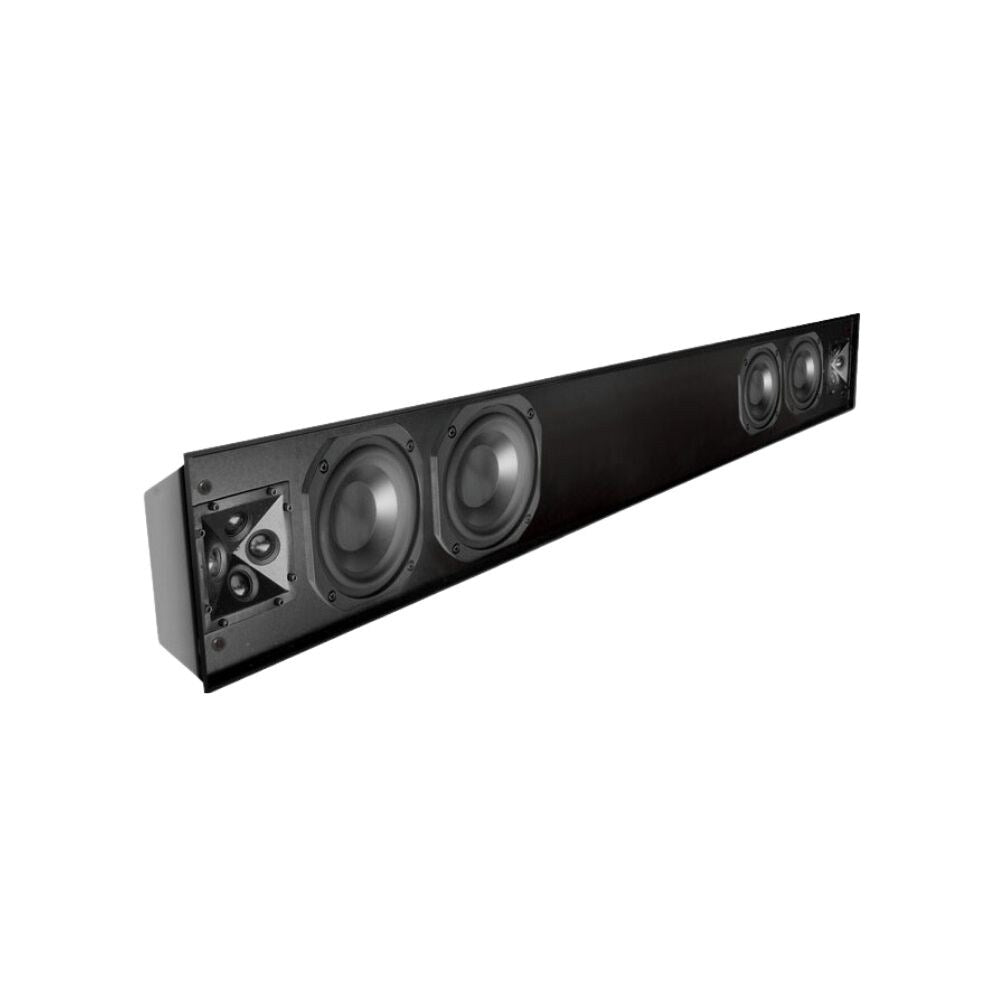

The JAM-QX-SPL5-LR-M 5" stereo in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The stereo format of this bar features two individual systems to provide both left and right channels for full stereo in a single enclosure. Perfect for any outdoor or marine entertainment system and providing seamless integration, elegant design and high output quality audio. Custom width options available.The JAM-QX-SPL5-LR-M 5" stereo in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The stereo format of this bar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure.

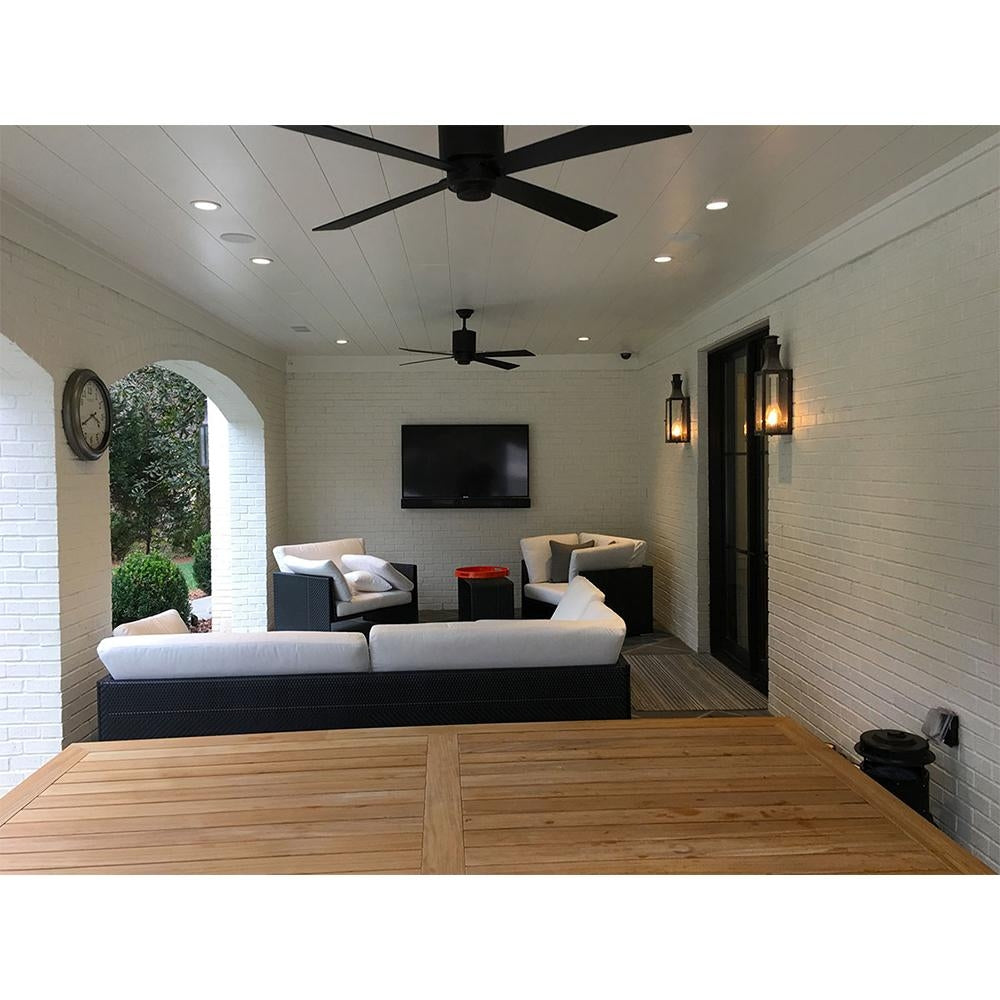

Perfect for any outdoor or marine entertainment system, being IP65 rated and providing seamless integration and elegant design as well as high output quality audio.
Capable of reaching frequencies across a broad range down to below 65Hz, the JAM-QX-SPL5-LR-M offers full range response with an impressive 89dB sensitivity. The in wall cabinet is constructed of aircraft grade aluminium for strength, sonic performance and is ideal for outdoor/marine applications.
Complete with a matching borderless aluminium perforated grille which sits only 5mm / 3/16" from the wall or completely flush with the addition of a pre construction board, this speaker is both study and reliable, providing a subdued visual effect.
All James' QX Series SoundBars feature aluminium cone woofers with Santoprene™ rubber surrounds and quad aluminium tweeter arrays that deliver wide dispersion and reference quality sound. The quad tweeter array is designed to provide superb off axis stereo performance, even in spaces with speakers mounted in less than perfect locations.

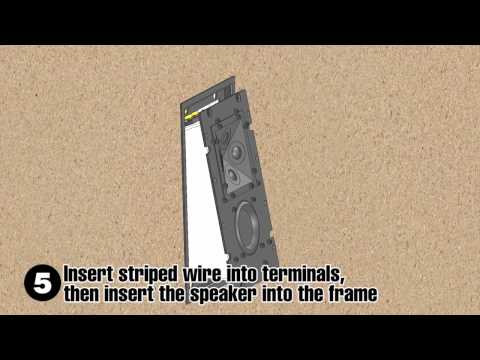

The JAM-QX-SPL5-LR-M features a unique three piece installation method employing a lightweight frame and independent speaker body.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 8 x 19mm / 0.75" aluminium |
Woofer | 4 x 132mm / 5.25" aluminium with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 65Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω |
Sensitivity | 89db 2.83V/1m |
Recommended Power Range | 25W to 200W |
Protection Rating | IP65 |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 206.38mm / 8.13" Width: Up to 1854mm / 73" Custom width: please see overview for further details Depth: 104.77mm / 4.13" |
Grille Height | 206.38mm / 8.13" |
