Description
The James JAM-OW68QBE 6.5" 2 way full range quad tweeter array on wall loudspeaker is built with elegant design and powerful performance in mind and to seamlessly integrate into both indoor and outdoor applications. This on wall speaker is truly a multi use speaker. Ideal for indoor applications, this speaker is available in standard and custom colour finishes.
The James JAM-OW68QBE 6.5" 2 way full range quad tweeter array on wall loudspeaker is built with elegant design and powerful performance in mind and to seamlessly integrate into indoor and applications. This on wall speaker is truly a multi use speaker.
This speaker is available in standard and custom colour finishes.

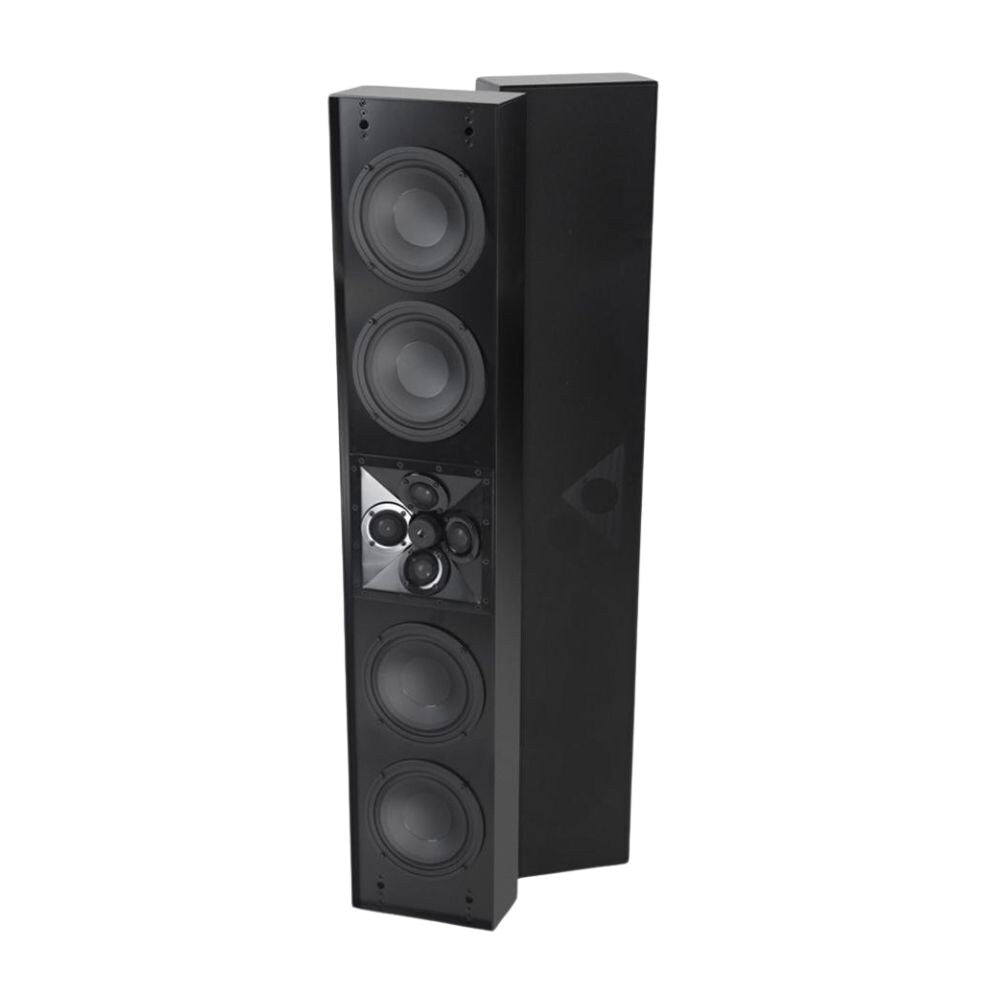

This full range on wall speaker features four proprietary 6.5" neodymium woofers to provide bass down to 70Hz and four 1" beryllium dome tweeters for silky smooth response up to 40kHz. Designed to provides a seamless transition between the woofer and tweeter, this speaker will deliver excellent on and off axis performance.
This on wall speaker is designed to be installed with a simple through hole design or with brackets to provide versatility in installation.
Custom Colour Speaker Options

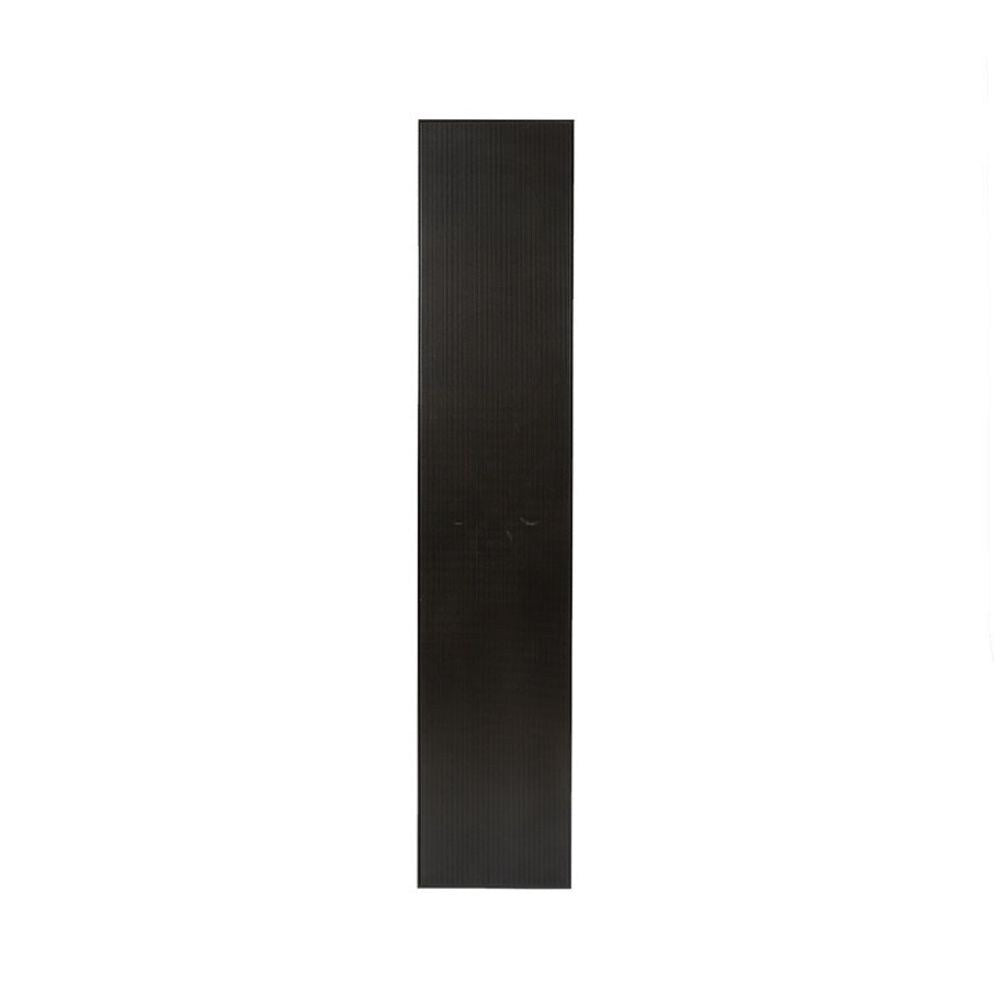

These on wall speakers offer custom power coated coloured grilles. Custom colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.
For associated installations brackets and custom masonry box, please refer to the related items section.
Specification
| Tweeter | 4 x 25mm / 1" quad array |
| Woofer | 4 x 165mm / 6.5" neodymium |
| Enclosure | Aircraft Marine Grade Aluminium |
| Finish | Please select from Gloss white - JAM-OW68QBE-GW Satin black - JAM-OW68QBE-STBK For further details on the custom grille colour, please refer to the overview section |
| Frequency Response | 70Hz to 40kHz +/-3dB |
| Nominal Impedance | 4Ω |
| Sensitivity | 96dB 2.83V/1m |
| Crossover | 2 way |
| Recommended Power Range | 25W to 200W |
| Dimensions | Height: 1016mm / 40" Width: 206.38mm / 8.13" Depth: 101.60mm / 4" |
Features
- Provides silky smooth response across a broad range of frequencies from 40kHz all the way down to below 70Hz
- Offers an impressive sensitivity of 96dB
- Provides an excellent on and off axis performance
- Features four 1" beryllium dome tweeters and four 6.5" neodymium woofers
- Constructed entirely of aircraft grade aluminium for strength, sonic performance and durability
- Its stainless steel perforated grille will provide years of trouble free use
- This speakers provides the perfect solution for integrated audio where in wall speakers are not able to be installed
- Various finishes available, gloss white, satin black and custom colours
- Mounting bracket accessories and mounting back box are available - please see related items
User guides
Download User Guides:
Data Sheet
