James Installation Accessories for QX830 8" LCR In-Wall Speaker

James Loudspeaker offer various accessories for their JAM-QX830X 3 way dual 8" LCR in wall speaker. Whether brackets, pre construction boards or a masonry back box are required for the project, these items will facilitate easy installation and seamless integration with no risk of mis-alignment of the speaker.James Loudspeaker offer various accessories for their JAM-QX830X 3 way dual 8" LCR in wall speaker. Whether brackets, pre construction boards or a masonry back box are required for the project, these items will facilitate easy installation and seamless integration with no risk of mis-alignment of the speaker.

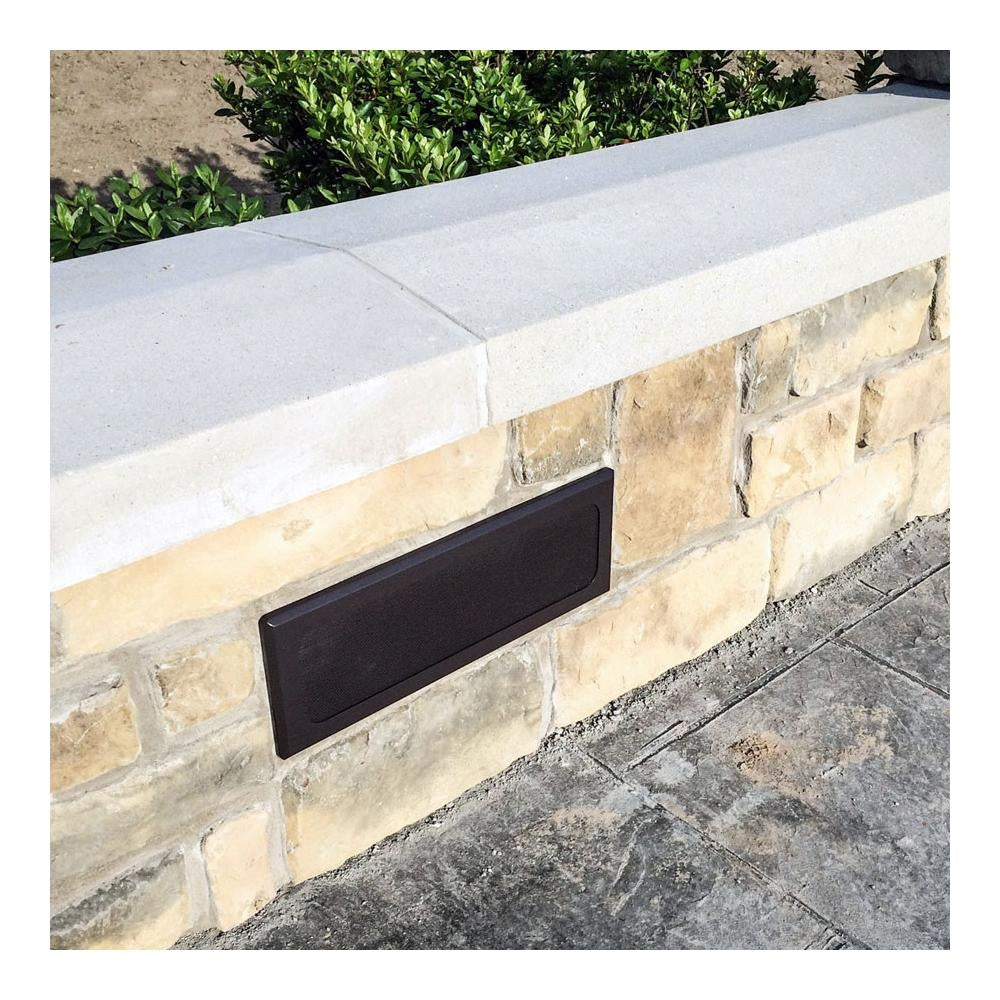

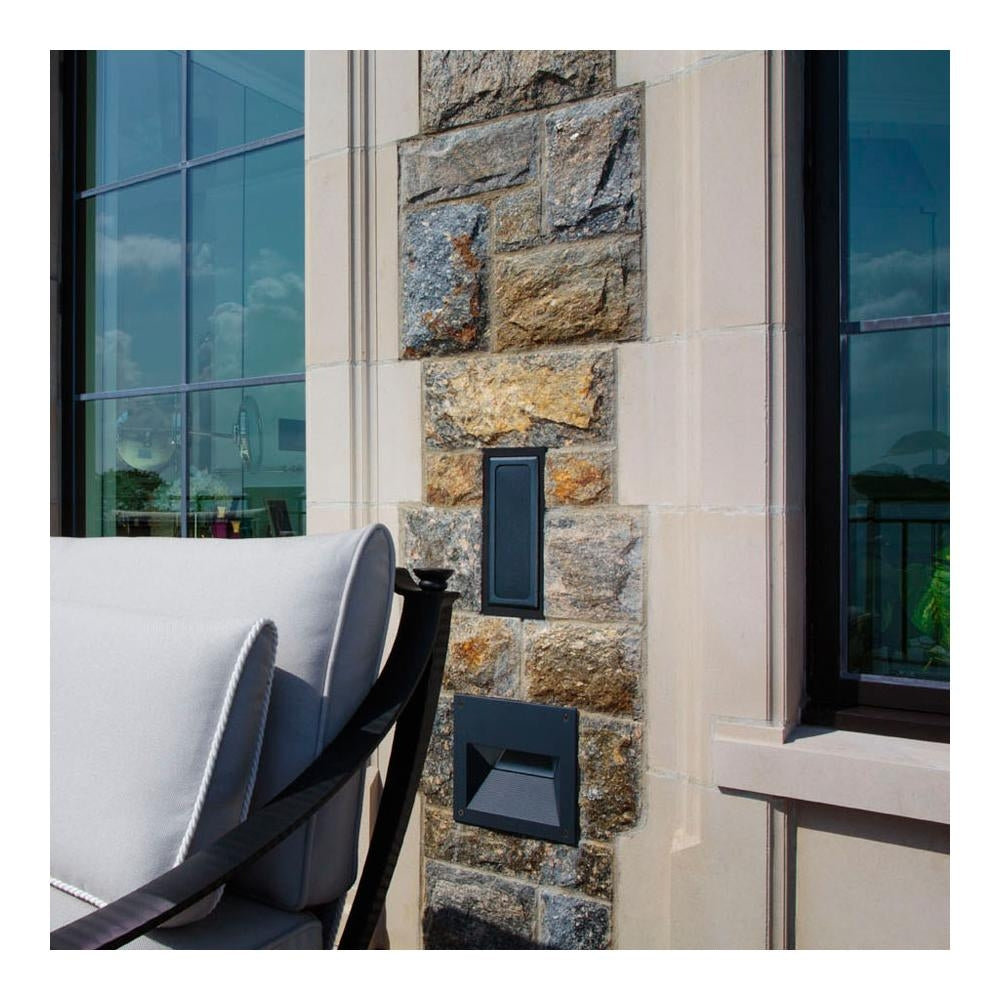

All of these accessories are suitable for indoor as well as outdoor applications.

JAM-QX830PB - pre construction bracket for JAM-QX830X

James' pre construction bracket for JAM-QX830X built using galvanized steel and is easily installed on the stud bay to indicate where the plaster (sheetrock) will be trimmed. This means that installers can simply fix the plaster up the lip edge of our pre construction board and there is no risk of misalignment or misplacement of speaker locations or orientation when they are installed.

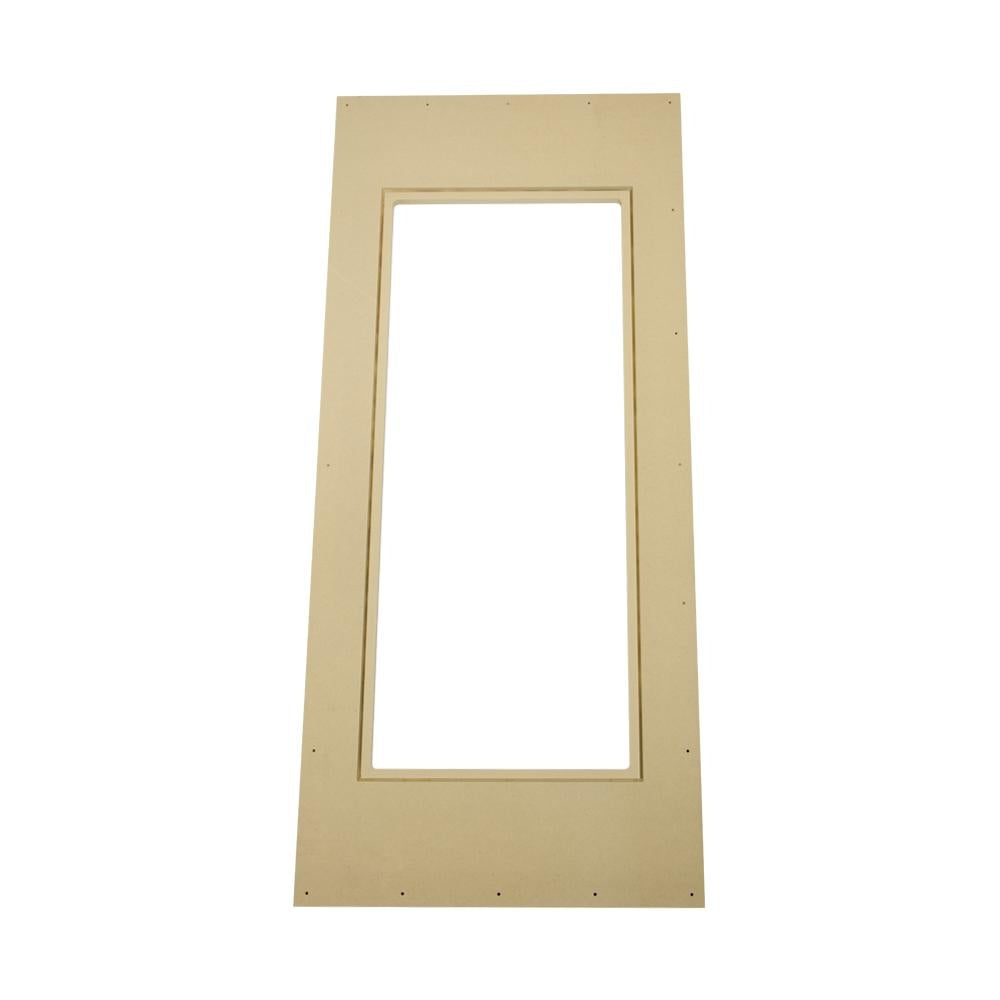

JAM-QX830PBF - flush mount pre construction bracket for JAM-QX830X.

Please provide surface depth when ordering

Flush mount boards install directly to the studs using MDF material, the same thickness as the plaster (sheetrock). Then sheetrock can be installed up to the edge of the MDF and taping and mudding can be performed as if the MDF board were part of sheetrock. The plastering (mudding) is done up to a lip on the board next to the cut out in which the speaker will be installed such that the grille is seamlessly flush with the wall. This accessory makes the installation and integration process as easy as possible.

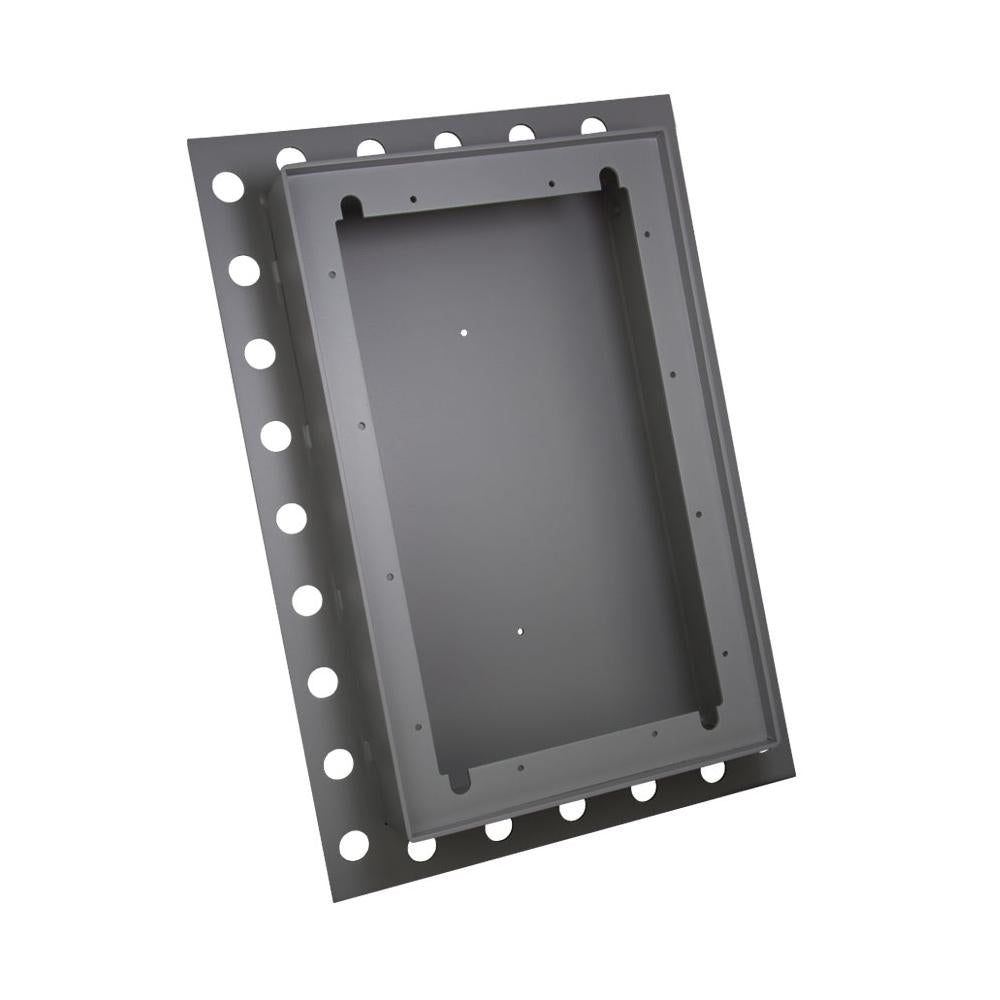

JAM-QX830-MB - masonry back box for JAM-QX830X.

Please complete Installation Details Form with order

This mason back box for the JAM-QX830X speaker features a mud ring. This would be typically used in a cinder block wall with a rock facade, the mud ring going between the brick and rock. Mason boxes are designed to order to ensure exact location of the speaker.

Specification

Features

• These items will facilitate easy installation and seamless integration with no risk of mis-alignment of the speaker
• The accessories are suitable for indoor as well as outdoor applications
