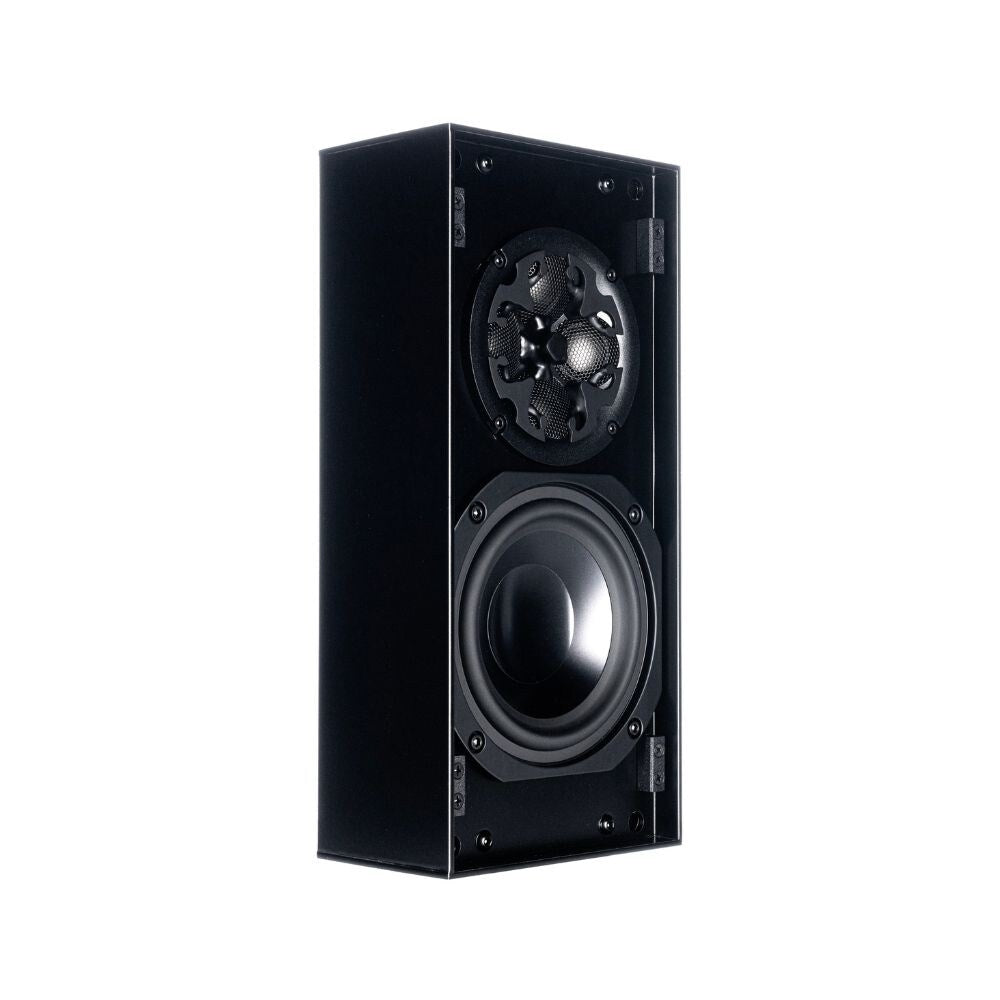

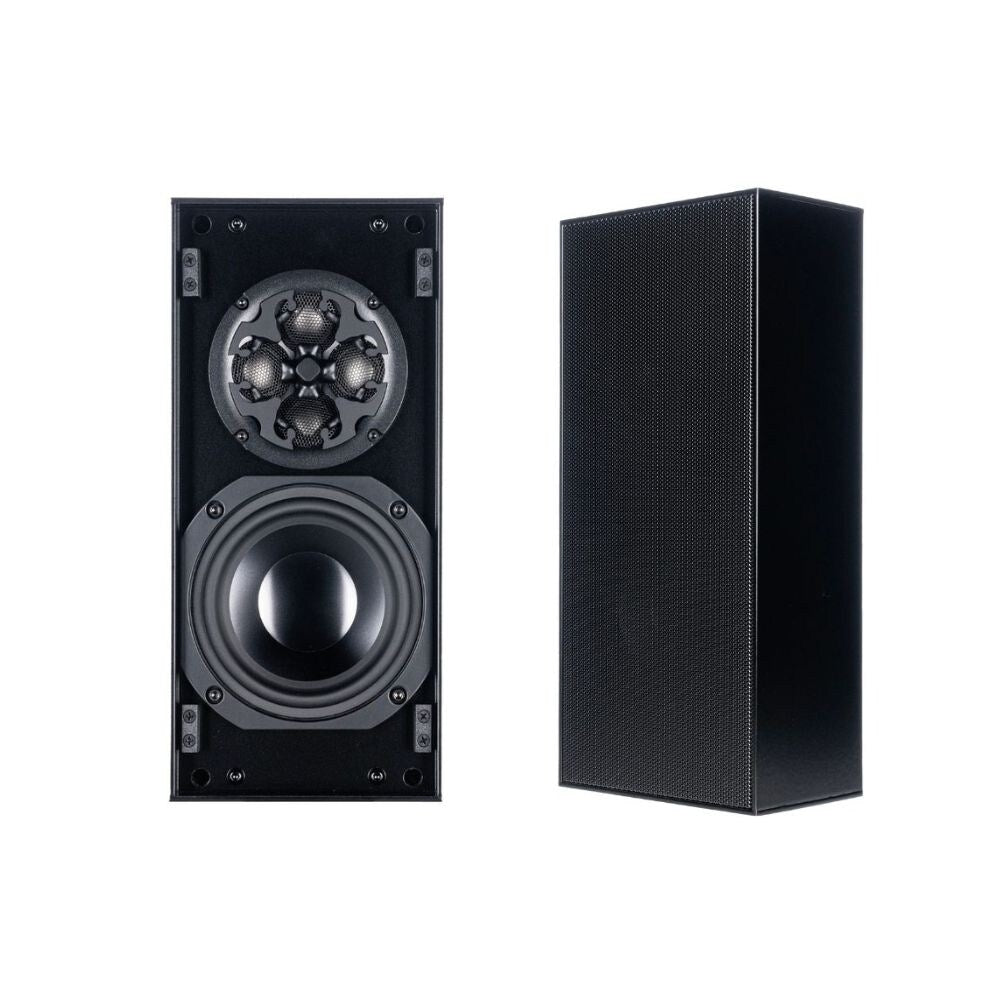

The James On Wall 52 with Quadratech is a two-way on wall speaker that delivers exceptional audio for surface mounted applications.
The James On Wall 52 with Quadratech is a two way on wall speaker that delivers exceptional audio for surface mounted applications.

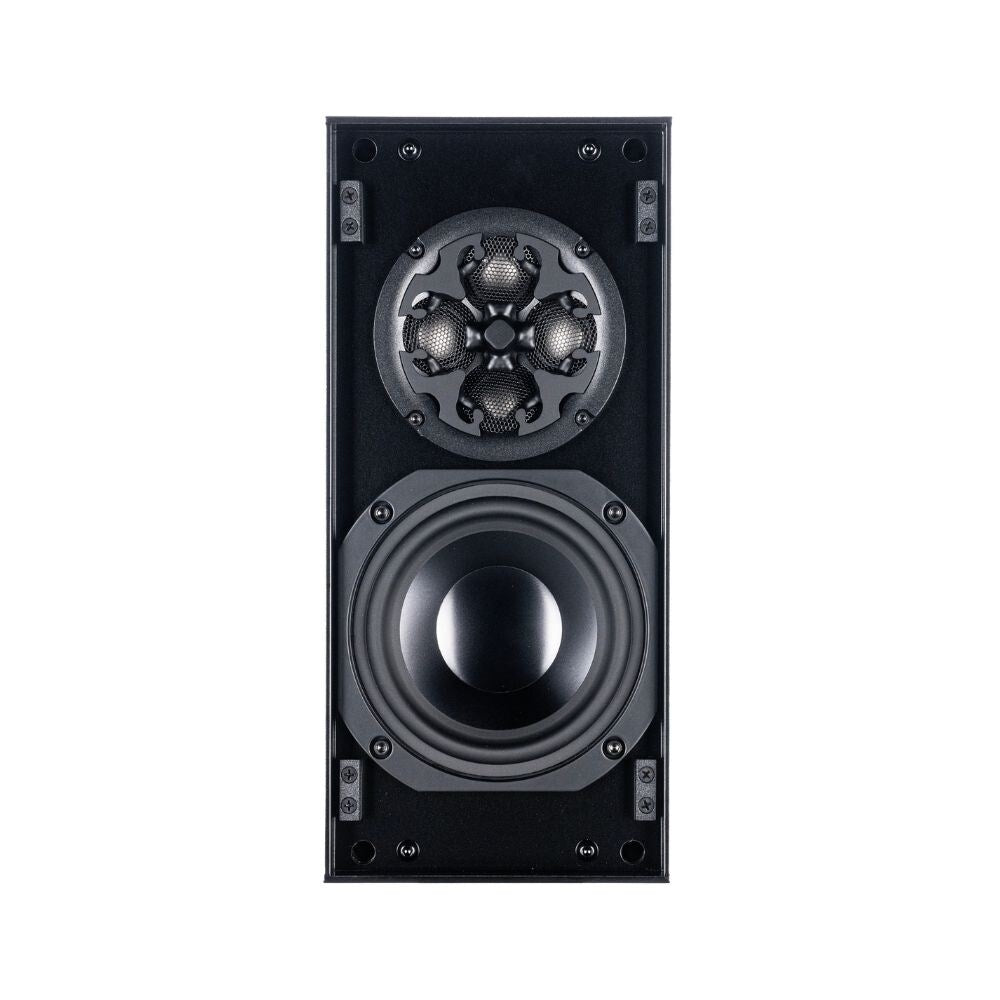

The On Wall Series of speakers is meant to deliver high quality audio and durability in a sleek, versatile and on wall design. The OW52QT boasts a compact design that easily integrates into any environment. This speaker is suitable for indoor operation and can be ordered with marine hardware for outdoor operation. With the James high excursion proprietary woofers and the revolutionary James Quadratech tweeter, this compact speaker offers silky smooth response across a broad range of frequencies from 24kHz all the way down to below 70Hz, with an impressive sensitivity of 88dB.
This versatile speaker pairs perfectly with the James SPL5QT series to provide a compact surround sound system, delivering crystal clear audio with minimal visual impact. It can also easily be used as a standalone on wall or bookshelf speaker with or without a companion James subwoofer. James On Wall Series speakers are built to order at custom height/lengths to best fit into design and architecture for each unique project.

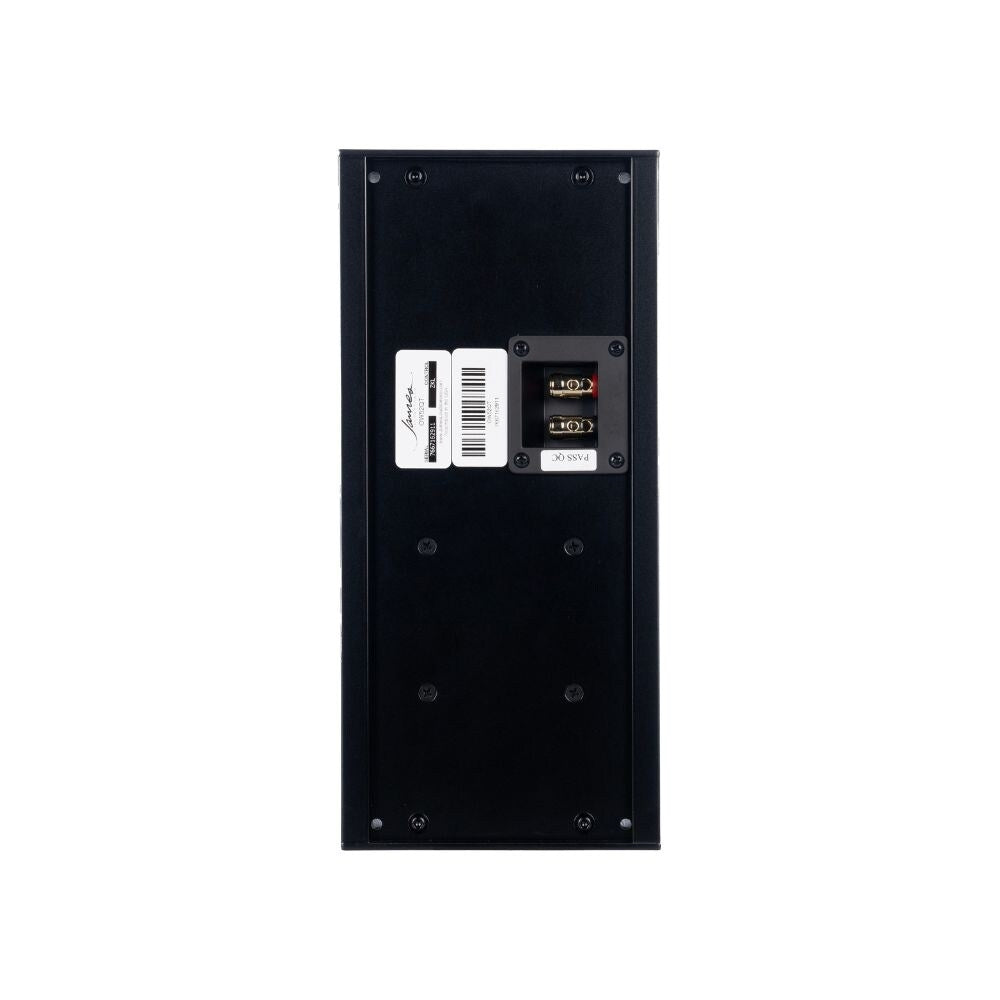

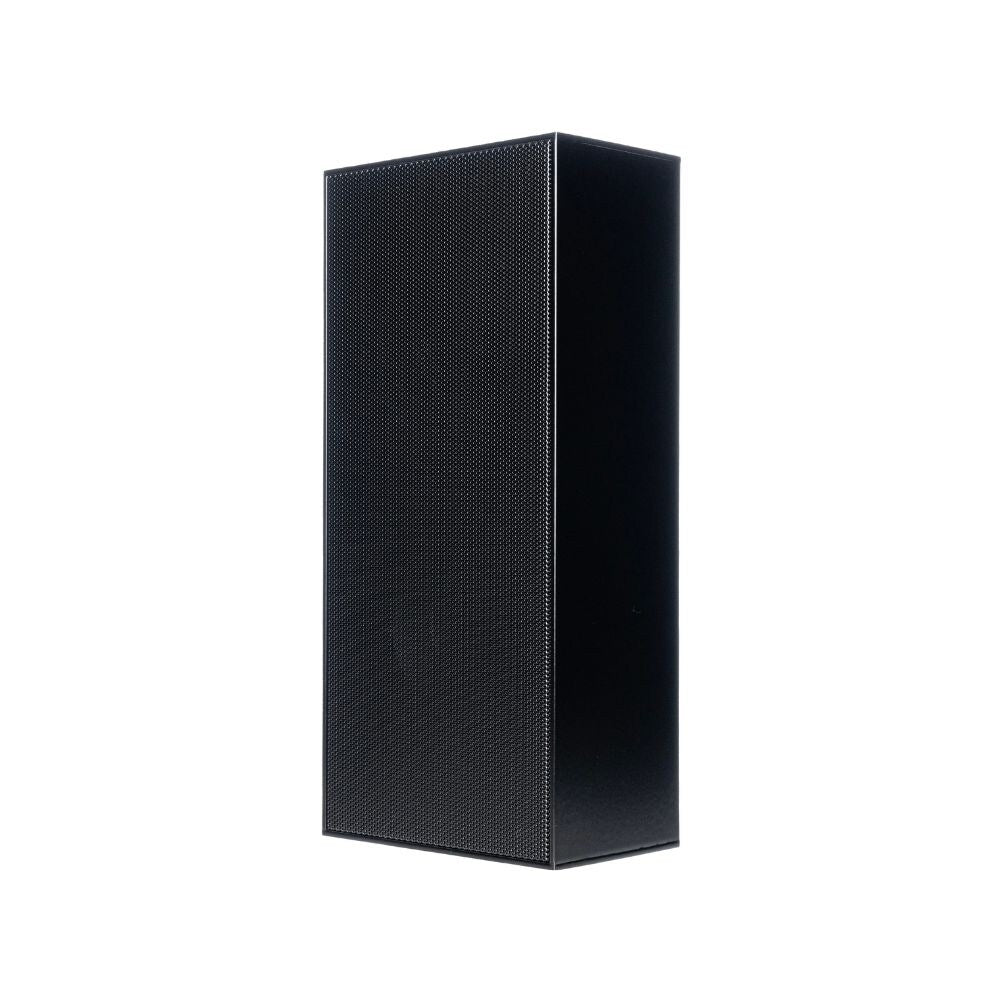

The OW52QT is constructed from aircraft grade aluminum for strength, sonic performance and durability, whilst including a stainless steel perforated grille to provide years of trouble free use. Blind through holes are incorporated into each speaker for wall mounting, or brackets are available and sold separately.
For outdoor or marine applications order the OW52QT-M.
James Loudspeaker make a wide range of speakers designed for seamless integration into the environment. One of the many ways that James accomplish this is with on wall style speakers. With everything from ultra slim to larger format high output speakers, there is an on wall speaker that suits your needs perfectly. Designed to be installed with a simple through hole design or with brackets to provide versatility in installation, the many on wall speakers that James offer are all built with elegant design and powerful performance in mind. Along with the wide variety of standard models, they also offer a wide range of custom speakers to further integrate into the environment. From speakers that go from floor to ceiling to speakers mounted inside a recess or even angled speakers designed to be placed in a corner, we have the design and performance that you are looking for in an on wall speaker. Using proprietary aluminum cone woofers and a variety of different tweeter options including James' legendary quad tweeter array for ultra wide dispersion. The speakers are built for on wall applications and provide the perfect solution for integrated audio where in wall speakers are not a possibility.
For associated installations brackets and custom masonry box, please refer to the related items section.
Tweeter | Quadratech |
Woofer | 1 x 5.25" / 133mm aluminium cone |
Dispersion Technology | Quadratech tweeter with Cymatic Diffuser |
Frequency Response | 70Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω |
Sensitivity | 88dB 2.83V/1m |
Crossover | 2 way |
Recommended Power Range | 20W to 150W |
Enclosure | Aircraft marine grade aluminium |
Finishes | Gloss white, satin black or custom colours |
Dimensions | Height: 317.50mm / 12.5" Minimum: Order any custom height or length Width: 146.05mm / 5.75" Depth: 88.90mm / 3.5" |
Please Note: For custom grille colour options, please contact the Habitech Team on 01256 638500 or your local Business Development Manager for a quotation. Please ensure the standard RAL colour you wish to purchase is confirmed at the time of placing your order.
