James PowerPipe Port Toekick For QX320 Style Speakers

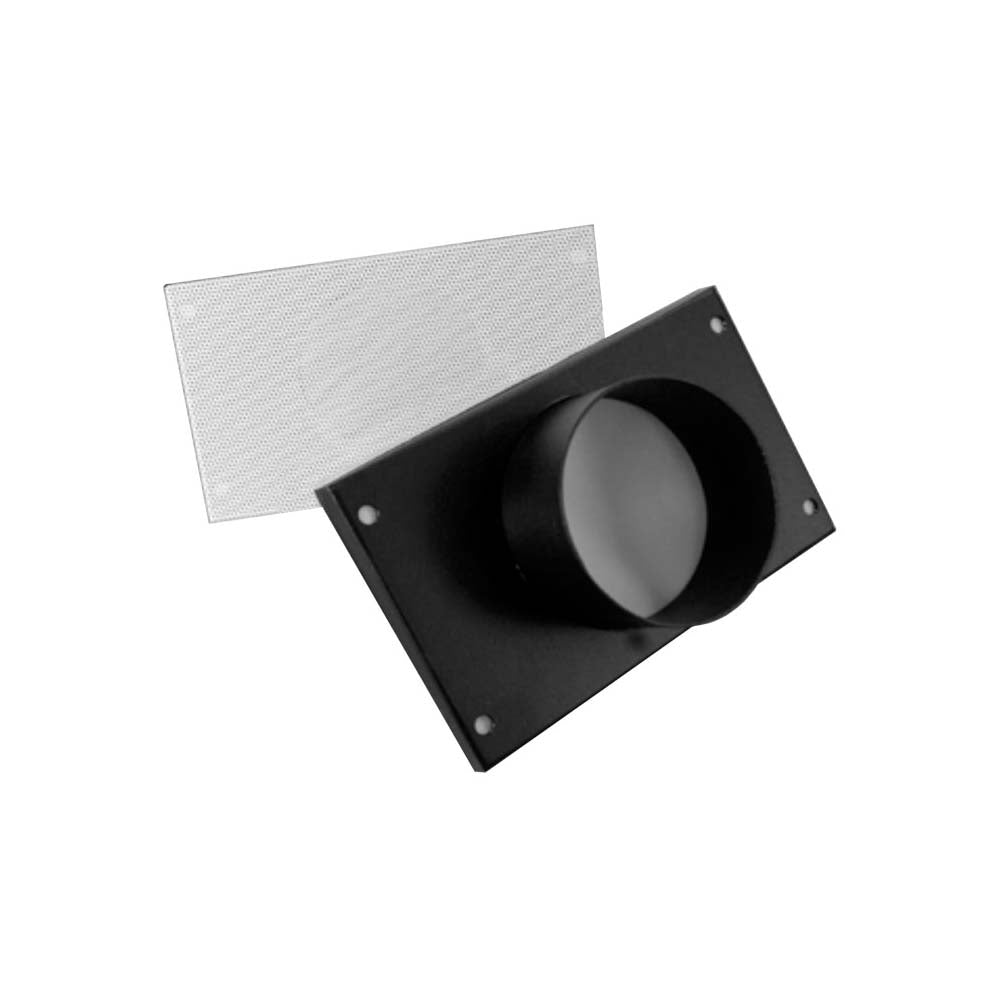

The TK4S-QX320 4" PowerPipe Port QX320 Style Toekick with straight entry provides an even more versatile variety of aesthetic options to match a subwoofer port to any look needed. The toekick has an added benefit, as it is made to perfectly match a QX320 style speaker and appears like another speaker, not a subwoofer.

The TK4S-QX320 4" PowerPipe Port QX320 Style Toekick with straight entry provides an even more versatile variety of aesthetic option to match a subwoofer port to any look needed. The toekick has an added benefit, as it is made to perfectly match a QX320 style speaker and appears like another speaker, not a subwoofer.

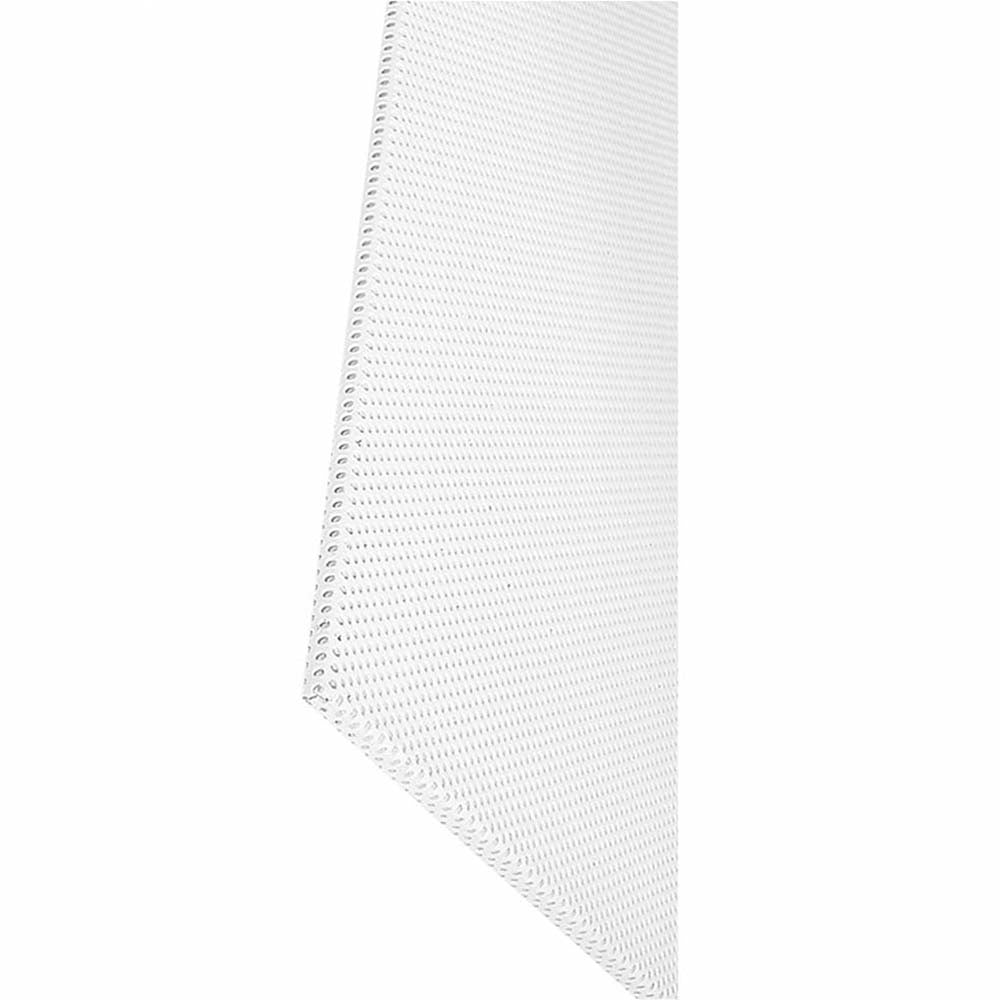

This James Loudspeaker's toekick uses the same mounting plate and grille assembly as the QX320 2 way 3" LCR in wall speaker. The QX320 Style Toekick offers a zero visual impact as it has a consistent look with the QX320 speakers. The overall toekick depth 1.6" / 41mm.

James Loudspeaker's line of toekicks offer a design that perfectly matches your requirement, whether seeking to match an HVAC vent, a Small Aperture series speakers, or simply blend in with the surrounding material.

The term "toekick" came from the first PowerPipe subwoofers where the port was designed to fit nicely in the toekick area in the front of a cabinet. Now, the term include all versions of ports used for PowerPipe subwoofers.

Specification

Compatible With	JAM-QX320 James 2 way 3" LCR in wall speaker PowerPipe Subwoofer: PP6-M, PP8-M, PP10, PP10-M, PP12, PP12-2, PP12-2-M and PP12-M Specifically For: 101.6mm / 4" power pipe hose
Style	Straight entry 180°
Construction	Aluminium
Finish	Black powder coat
Grille Finish	Gloss white
Dimensions	Height: 184.15mm / 7.25" Width: 288.92mm / 11.38"
Grille	Height: 9.52mm / 0.38"

Features

• Shared aesthetic with the QX320 in wall speaker
• Designed to be the adapter piece between the power pipe subwoofer and the grille
• Compatible with James Loudspeakers PowerPipes: PP6-M, PP8-M, PP10, PP10-M, PP12, P12-M, PP12-2 and PP12-2-M^
• Designed to fit perfectly in the toekick area in the front of a cabinet

^ Please refer to the Download section for compatible PowerPipe Series Data Sheets

Understanding toekick model numbers. Let's take an example - TK4S-QX320 models start with the "TK" designation for Toe Kick. The next character is a number and indicates the diameter of the tube or hose. Available are 3",4" and 8". As the 4th character is an "S", this indicates a "straight through" design, meaning no 90° bend. The remainder of the model number indicates its compatible with one of James' in wall speakers.
