The JAM-QX-SPL3-LCR-M Outdoor Marine Grade 3" LCR high output in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The left, centre and right format of this soundbar features two individual systems to provide these channels in a single enclosure. Perfect for any outdoor or marine entertainment system, this versatile soundbar can be custom built to match each individual TV.The JAM-QX-SPL3-LCR-M Outdoor Marine Grade 3" LCR high output in wall soundbar with white grille from James Loudspeaker sets new levels in sound output and wide frequency response. The left, centre and right format of this soundbar features two individual systems to provide both left, right and centre channels in a single enclosure. Perfect for any outdoor or marine entertainment system, this versatile soundbar can be custom built to match each individual TV.

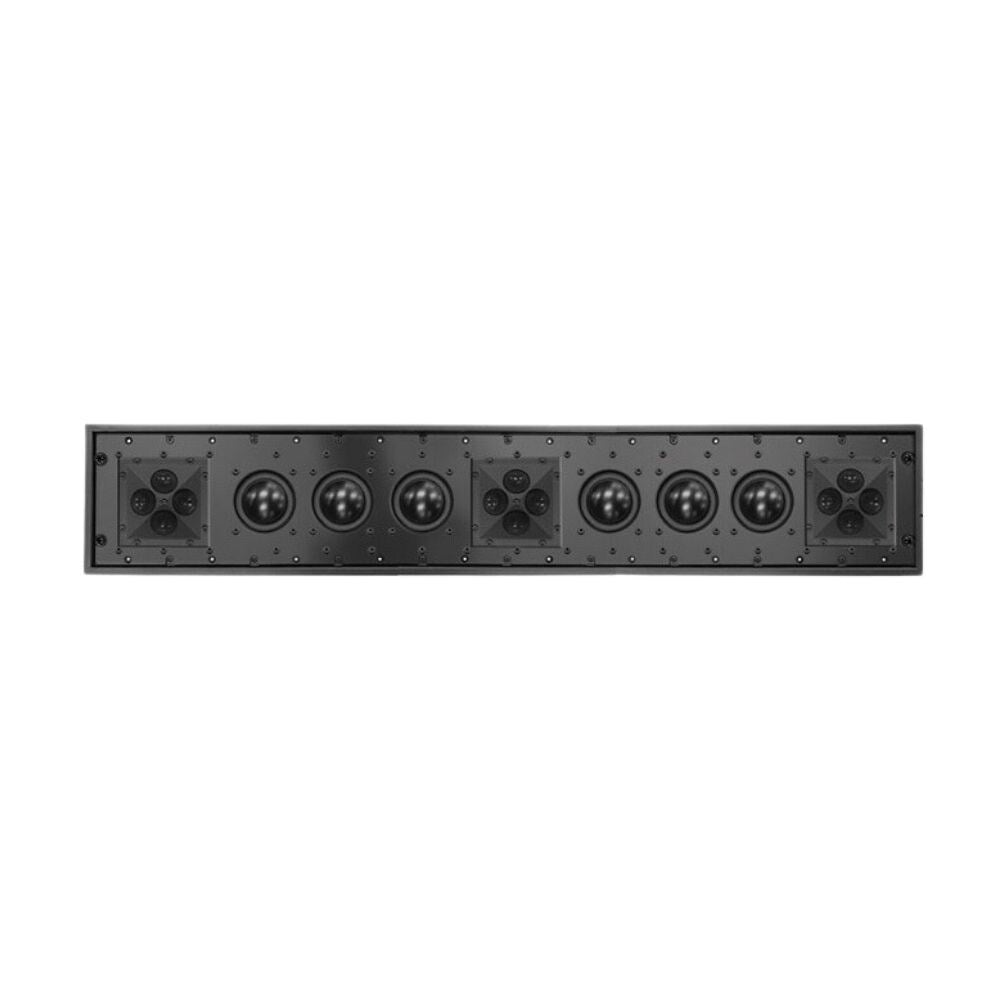

Equipped with high output, low profile woofers and the signature ultra wide dispersion QX style quad aluminium tweeter array, this low visibility sound bar delivers powerful audio in a small package. Capable of reaching frequencies across a broad range down to below 70Hz, the JAM-QX-SPL3-LCR-M delivers a full range response with an impressive 89dB sensitivity.

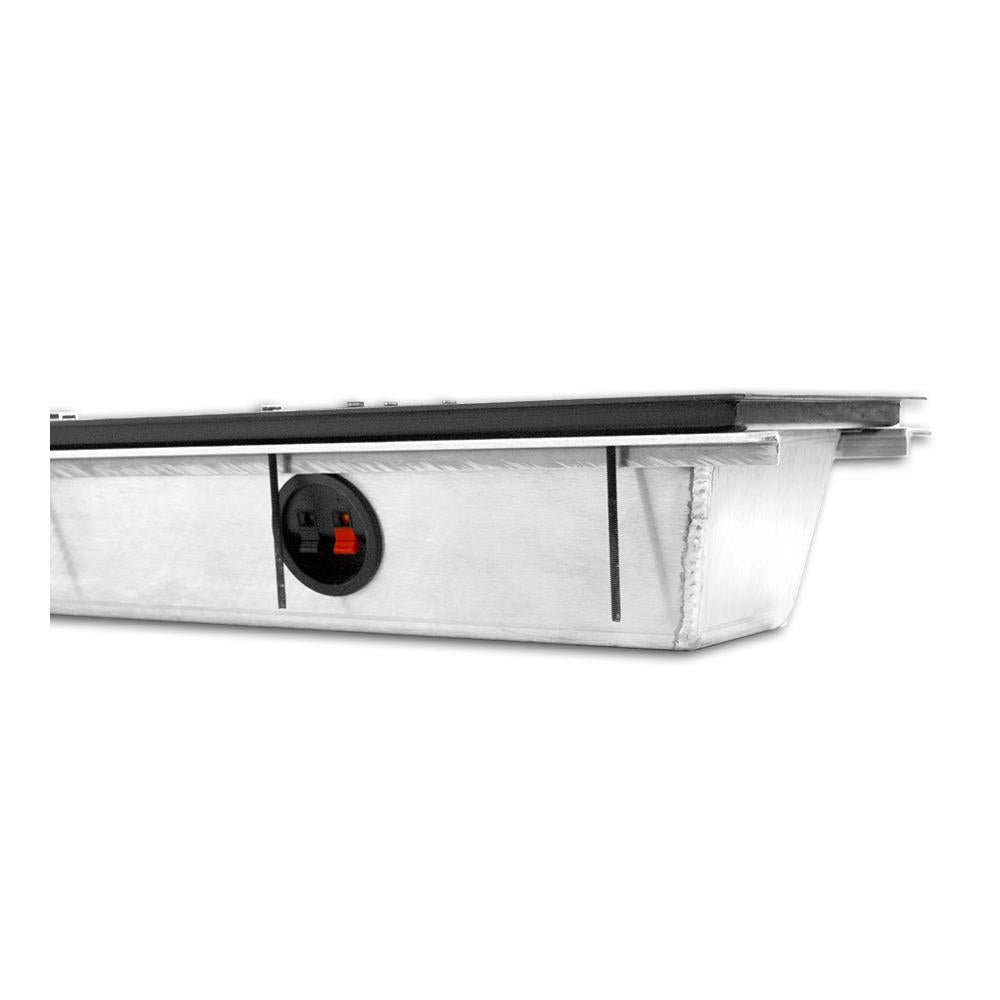

The cabinet is constructed of aircraft grade aluminium for strength and sonic performance, complete with a matching borderless aluminium perforated grille which sits only 5mm / 3/16" (5mm) from the wall or completely flush with the addition of a pre-construction board.
This soundbar is both study and reliable as well as elegantly integrated into any outdoor/ marine system, providing a subdued visual effect, designed to be as unobtrusive as possible. It is also IP65 rated.
James Loudspeaker strive to deliver uncompromising solutions for all audio needs, which means great sound has never looked so good.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 12 x 19mm / 0.75" aluminium |
Woofer | 6 x 76mm / 3" high excursion aluminium cone woofers with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 70Hz to 24kHz +/-3dB |
Nominal Impedance | 4Ω |
Sensitivity | 89db 2.83V/1m |
Recommended Power Range | 25W to 200W |
Protection Rating | IP65 |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 184.63mm / 7.27" Width: Up to 1854mm / 73" Custom width: please see overview for further details Depth: 104.77mm / 4.13" |
Grille Height | 184.63mm / 7.27" |
