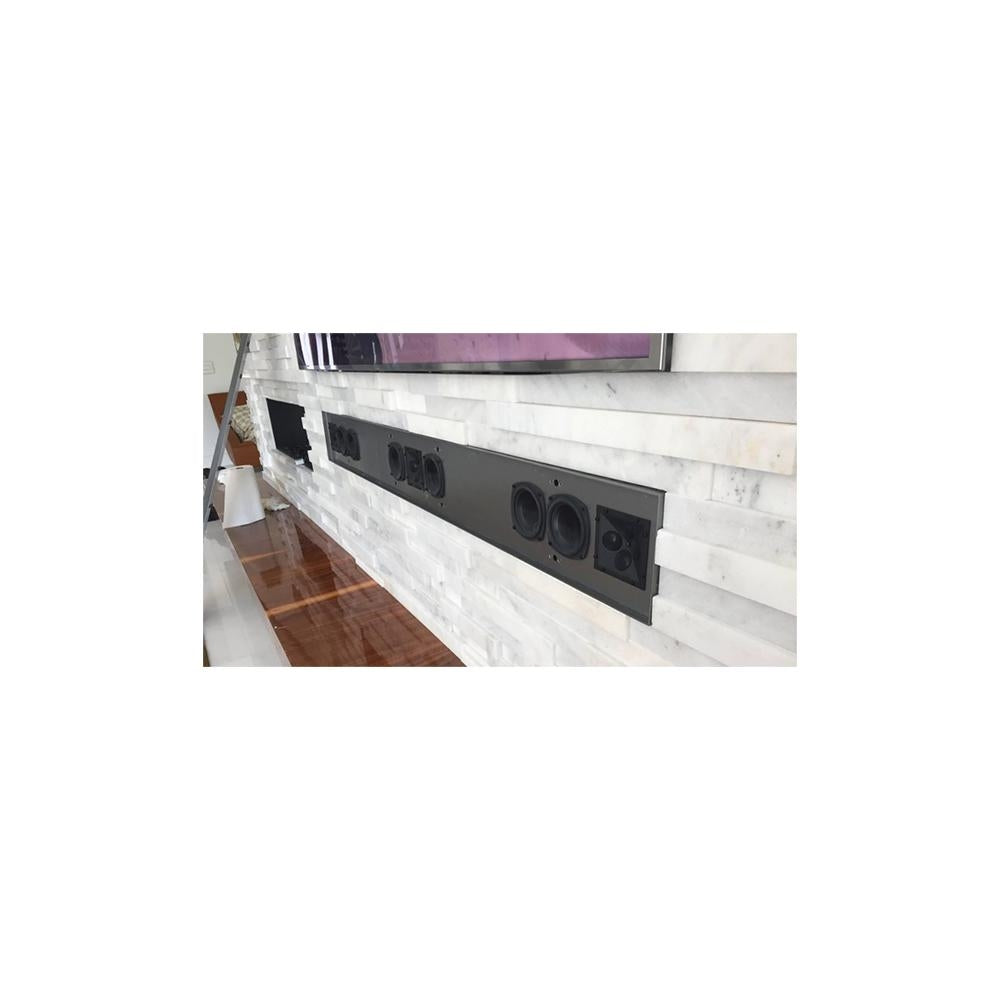

The JAM-QX-SPL3-LR 3" LR channel in wall soundbar from James Loudspeaker sets new levels in sound output and wide frequency response. Perfect for any home entertainment system, this versatile soundbar can be custom built to match the width of each individual TV, providing seamless integration and elegant design as well as high quality audio.The JAM-QX-SPL3-LR 3" LR channel in wall soundbar from James Loudspeaker sets new levels in sound output and wide frequency response. The stereo format of this soundbar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure. Perfect for any home entertainment system, this versatile soundbar can be custom built to match the width of each individual TV, providing seamless integration and elegant design as well as high quality audio.

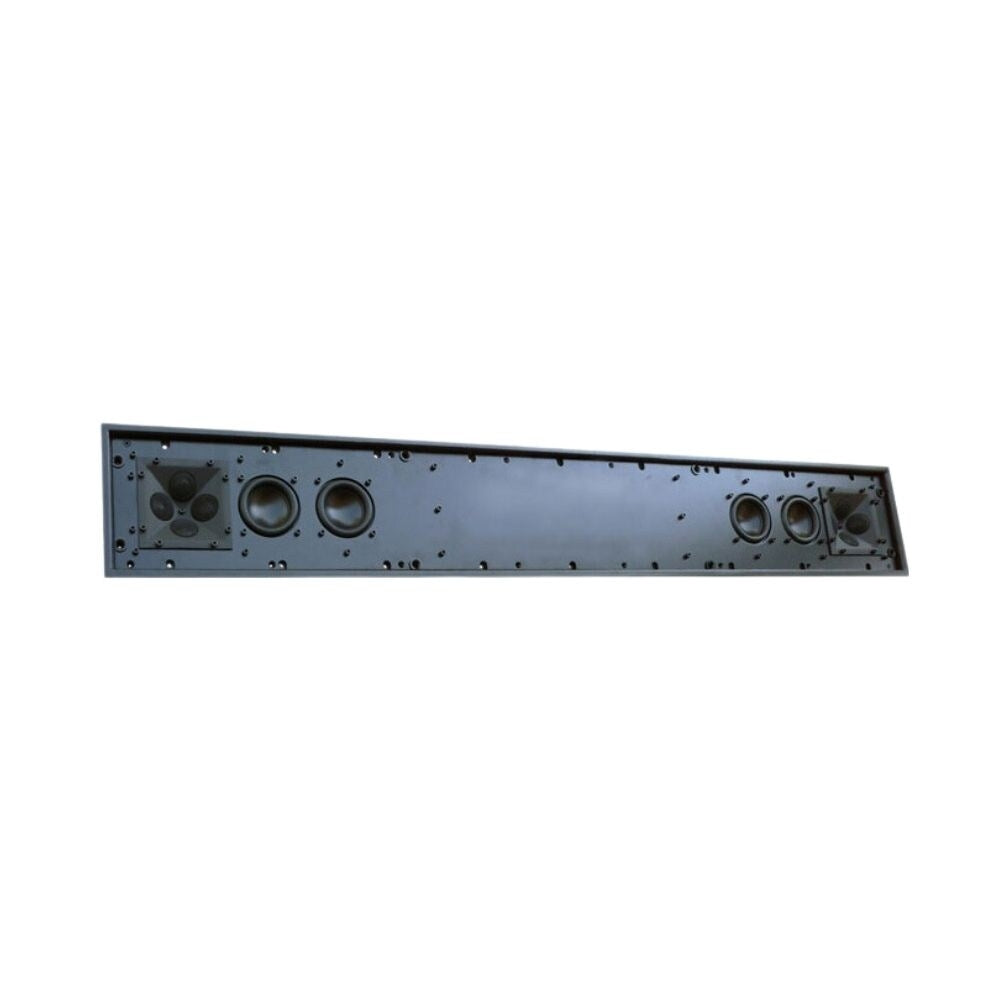

Equipped with high output, low profile woofers and James' signature ultra wide dispersion QX style quad aluminium tweeter array, this low visibility soundbar delivers powerful audio in a small package. Capable of reaching frequencies across a broad range down to below 70Hz and has an impressive 89dB sensitivity.
The cabinet is constructed of aircraft grade aluminium for strength and sonic performance, complete with a matching borderless aluminium perforated grille which sits only 5mm / 3/16" from the wall or completely flush with the addition of a pre-construction board.
This soundbar is both study and reliable as well as elegantly integrated into each system, providing a clean, streamlined appearance that seamlessly integrates into any designed space.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 8 x 19mm / 0.75" aluminium |
Woofer | 4 x 76mm / 3" high excursion aluminium cone woofers with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 70Hz to 24kHz +/-3dB |
Nominal Impedance | 4Ω |
Sensitivity | 89db 2.83V/1m |
Recommended Power Range | 25W to 200W |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 184.63mm / 7.27" Width: Up to 1854mm / 73" Custom width: please see overview for further details Depth: 104.77mm / 4.13" |
Grille Height | 184.63mm / 7.27" |
