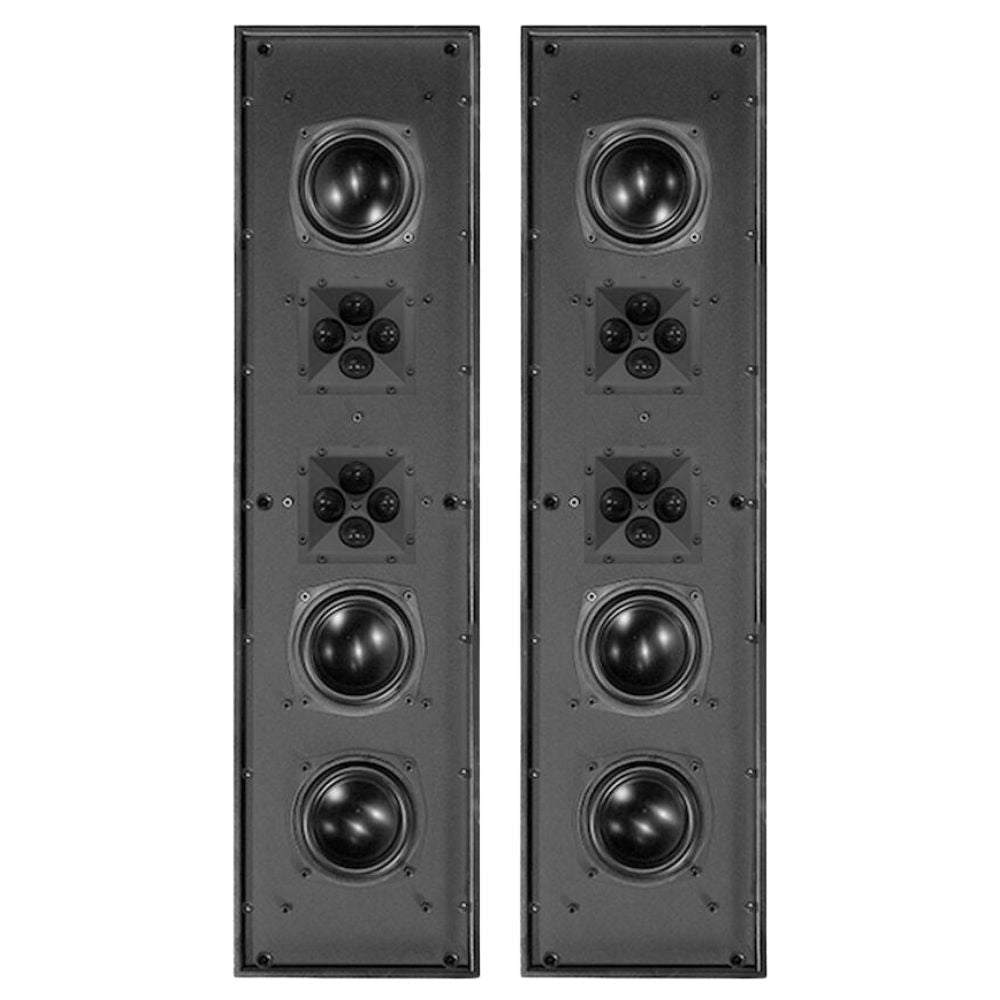

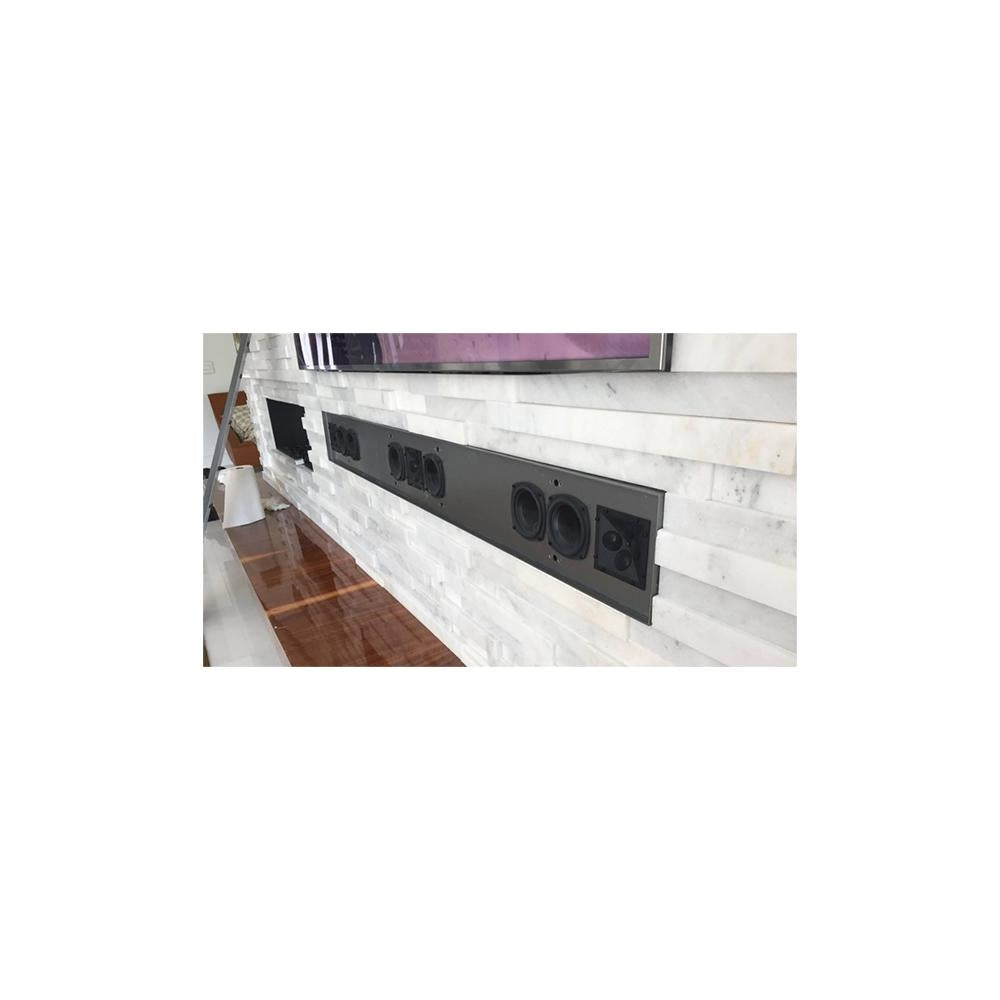

The JAM-QX-SPL3-CS In Wall Centergy 3" quad tweeter array left, right and centre speaker soundbar pair raise the benchmark for wall mounted home, outdoor and marine entertainment systems. They set new levels in sound output and wide frequency response. Available with a variety of colour options and custom widths and heights.The JAM-QX-SPL3-CS In Wall Centergy 3" quad tweeter array left, right and centre speaker soundbar pair raise the benchmark for wall mounted home, outdoor and marine entertainment systems. They set new levels in sound output and wide frequency response. Available with a variety of colour options and custom widths and height.
Perfect for any entertainment system, this versatile soundbar pair are custom built to match each individual TV, providing seamless integration and elegant design as well as high quality audio.
The James Centergy 3" quad tweeter array custom soundbars combine elegant, modern styling with James Loudspeaker's legendary audio performance, offering a unique solution to the new OLED displays which can be only fractions of an inch off the wall. These soundbars mount in the wall and offer James' Centergy Technology. This 'Centergy' format feature three individual systems to provide left and right channels in either bar and a centre channel split between them. Equipped with high output, low profile woofers and the signature ultra wide dispersion, the JAM-QX-SPL3-CS quad aluminium tweeter array offer low visibility and yet provides a powerful sound quality in a small package. Capable of reaching frequencies across a broad range down to below 70Hz, the JAM-QX-SPL3-CS offer full range response with an impressive 89dB sensitivity.
The cabinet design features all aircraft grade aluminium for strength, sonic performance and durability for marine or outdoor applications. For the Marine version please order JAM-QX-SPL3-CS-M
Complete with a matching borderless aluminium perforated grille which sits only 5mm / 3/16" from the wall or completely flush with the addition of a pre-construction board, this speaker pair is both sturdy and reliable as well as elegantly integrated into each system. The JAM-QX-SPL3-CS soundbars deliver wide dispersion and reference quality sound with aluminium cone woofers with Santoprene™ rubber surrounds and quad aluminium tweeter arrays. This quad tweeter array is designed to provide superb off axis stereo performance, even in rooms with speakers mounted in less than perfect locations.
Custom Options:
Custom Colour Options
This soundbar offers custom power coated coloured enclosures. Custom colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the outdoor space.
Please Note: For custom speaker colour options, please contact the Habitech Team on 01256 638500 or your local Business Development Manager for a quotation. Please ensure the standard RAL colour you wish to purchase is confirmed at the time of placing your order.
Custom Hydro Dipping
James now offers an innovative custom finish for their products - hydro dipping custom finishes allow you to create a myriad of designs for the exterior of James' speakers. Perfect for matching your speakers with key elements in your room/space or simply to make a design statement, the choice is very much yours.
Please see related items for more details and to add this custom finish to your order.
Custom Height Options
Please confirm the height required and also the TV make and model number on submitting your order.
Custom Width Options
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
*Please note: These customisations can be ordered by clicking on the option in the related items below and adding to your order.
JAM-QX-SPL3-CS QX Centergy 3" Quad Tweeter Array L/R/C In Wall Soundbar, Pair |
JAM-QX-SPL3-CS-M QX Centergy 3" Quad Tweeter Array L/R/C In Wall Soundbar, Pair |
|
Tweeter | 8 x 19mm / 0.75" aluminium | 8 x 19mm / 0.75" aluminium |
Woofer | 3 x 76mm / 3" high excursion cone woofers with Santoprene™ rubber surrounds | 3 x 76mm / 3" high excursion cone woofers with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |
Finish | Select from: Studio black - JAM-QX-SPL3-CS-STUDIOBK Satin black - JAM-QX-SPL3-CS-STBK Gloss black - JAM-QX-SPL3-CS-GLBK Dark titanium - JAM-QX-SPL3-CS-DKTI Light titanium - JAM-QX-SPL3-CS-LITI Mirror silver - JAM-QX-SPL3-CS-MRSLV For custom colour options, please see the overview for more details |
Select from: Studio black - JAM-QX-SPL3-CS-M-STUDIOBK Satin black - JAM-QX-SPL3-CS-M-STBK Gloss black - JAM-QX-SPL3-CS-M-GLBK Dark titanium - JAM-QX-SPL3-CS-M-DKTI Light titanium - JAM-QX-SPL3-CS-M-LITI Mirror silver - JAM-QX-SPL3-CS-M-MRSLV For custom colour options, please see the overview for more details |
Grille Finish | White | White |
Frequency Response | 70Hz to 24kHz +/-3dB | 70Hz to 24kHz +/-3dB |
Nominal Impedance | 4Ω | 4Ω |
Sensitivity | 89dB 2.83V/1m | 89dB 2.83V/1m |
Recommended Power Range | 50W to 100W | 50W to 100W |
Protection Rating | - | IP65 |
Required Mounting Depth | 98.42mm / 3.88" | 98.42mm / 3.88" |
Grille Dimensions | Height: 678.18mm / 26.7" Width: 184.66mm / 7.27" |
Height: 678.18mm / 26.7" Width: 184.66mm / 7.27" |
Dimensions | Height: Custom: 619mm / 24.37" minimum Width: 184.66mm / 7.27" Custom widths available, please see Overview Depth: 104.77mm / 4.13" |
Height: Custom - 619mm / 24.37 minimum Width: 184.66mm / 7.27" Custom widths available, please see Overview Depth: 104.77mm / 4.13" |
