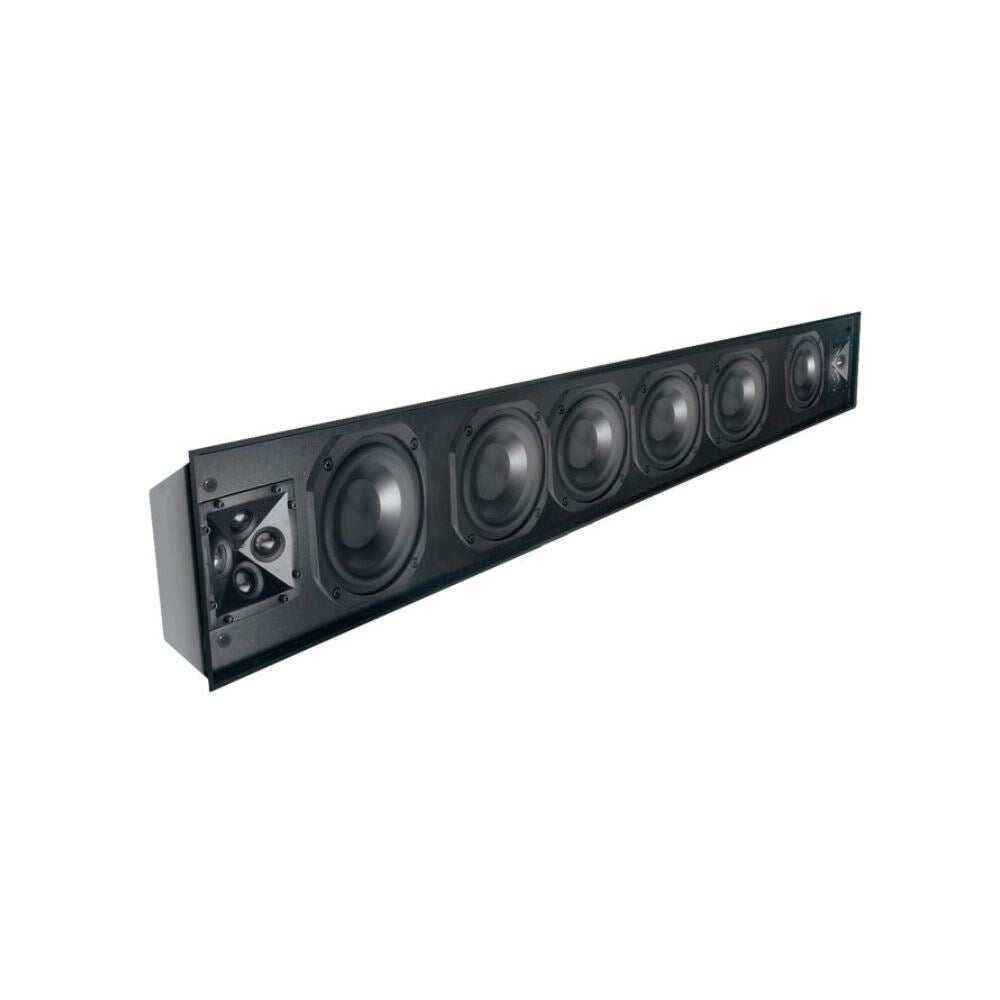

The James Loudspeaker JAM-QX-SPL5-LRSUB-M 5" channel L/R + sub in wall soundbar with white grille produces left and right channel audio as well as bass energy from the centre mounted built in subwoofers. They are ideal for bringing clarity and full range sound to applications where the siting of an external subwoofer is impractical. Perfect for outdoor and marine applications being IP65 rated with custom width options also available.The James Loudspeaker JAM-QX-SPL5-LRSUB-M 5" channel L/R + sub in wall soundbar with white grille produces left and right channel audio as well as bass energy from the centre mounted built in subwoofers. They are ideal for bringing clarity and full range sound to applications where the siting of an external subwoofer is impractical. Perfect for outdoor and marine applications being IP65 rated with custom width options.
These soundbars can be customised to match nearly any flat panel display.
The JAM-QX-SPL5-LRSUB-M LRSUB offers high output, superb clarity and bass extension below 45Hz from almost any size form factor. The 2.1 configuration of these soundbar make it a perfect complement to the James Loudspeaker A2.1 three channel amplifier, which features onboard crossovers and independent controls for easy system calibration.

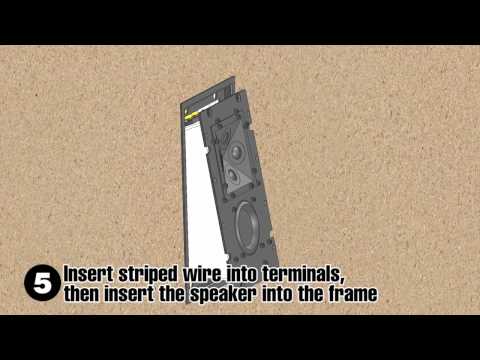

James Loudspeaker soundbars are built from elegant aircraft grade aluminium for strength, sonic performance and suitability for marine and outdoor use. Each soundbar features proprietary aluminium cone woofers and aluminium dome quad tweeters for unsurpassed dispersion and musicality. Each soundbar comes with a matching aluminium perforated grille. The borderless aluminium grilles stand only 5mm /3/16" from the wall, giving these speakers a clean, streamlined appearance that seamlessly integrates into any designed space. The grilles attach via grille cups for quick and simple installation. The QX Series soundbars feature a unique three piece installation method employing a lightweight frame and independent speaker body.
These subwoofer soundbars are suitable for both new construction and retrofit applications, as James strive to offer uncompromising solutions for all your audio needs. Great sound has never looked so good.
NB:Tweeter and Woofer driver count are configuration dependent. Please refer to the Data Sheet in the Download section for further information.
Custom Width Options (please confirm with your order the width, make and model of your TV)
James offers two custom width options to fit your installation requirements and needs:
JAM-SPL-W97* - offers custom widths from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98* - offers custom widths from 2489mm+ (98"+) for their soundbars
Tweeter | 19mm / 0.75" aluminium* |
Woofer | 132mm / 5.25" aluminium cone woofers with Santoprene™ rubber surrounds* |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 45Hz to 24kHz ±3dB |
Nominal Impedance | 4/8Ω* |
Sensitivity | 89db 2.83V/1m |
Protection Rating | IP65 |
Recommended Power Range | L/R: 25W to 100W/Channel Sub: 50W to 150W/Channel |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 206.38mm / 8.13" Width: Up to 1854mm / 73" Custom width: please see overview for further details Depth: 98.55mm / 3.88" |
Grille Dimension | Proud 5mm / 3/16" |
*Driver count and impedance are configuration dependent Please refer to the Data Sheet in the Download section for further information |
