James Small Aperture 3 Way In-Ceiling Speaker With White or Custom Colour Grilles: EACH

The James Small Aperture® JAM-SA63-8 in ceiling speaker series have a very small 3" round or 3" x 3" square sound aperture yet packs in a full 3 way system for deep bass and wide frequency response. A seamless edge detail allows for a smart, modern and discrete look. Comes with a 3" white round or square grille or custom colour grille options are available.

The James Small Aperture® JAM-SA63-8 in ceiling speaker series have a very small 3" round or 3" x 3" square sound aperture yet packs in a full 3 way system for deep bass and wide frequency response. A seamless edge detail keeps them looking smart, modern and discrete. Comes with a 3" white round or square grille or custom colour grille options are available.

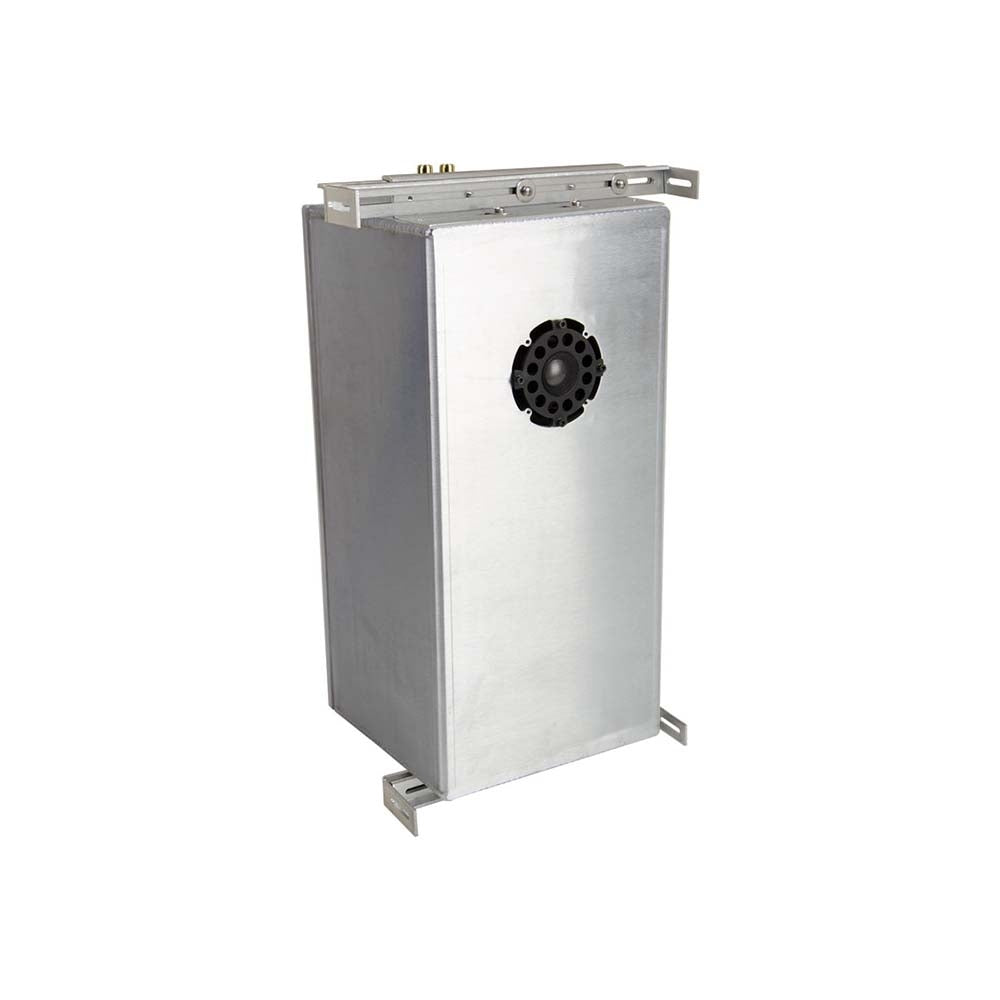

Designed for whole house audio installations, particularly where critical listening is of paramount importance and aesthetics are equally as vital. The JAM-SA63-8 enclosure has a small width footprint with a 7.5" / 190.5mm depth and is ideally suited for in ceiling applications but can also equally be mounted in wall. The JAM-SA63-8 enclosure is constructed of aircraft grade aluminium for robustness and durability and designed with a slender 8" width for newer, more constricted ceiling construction.

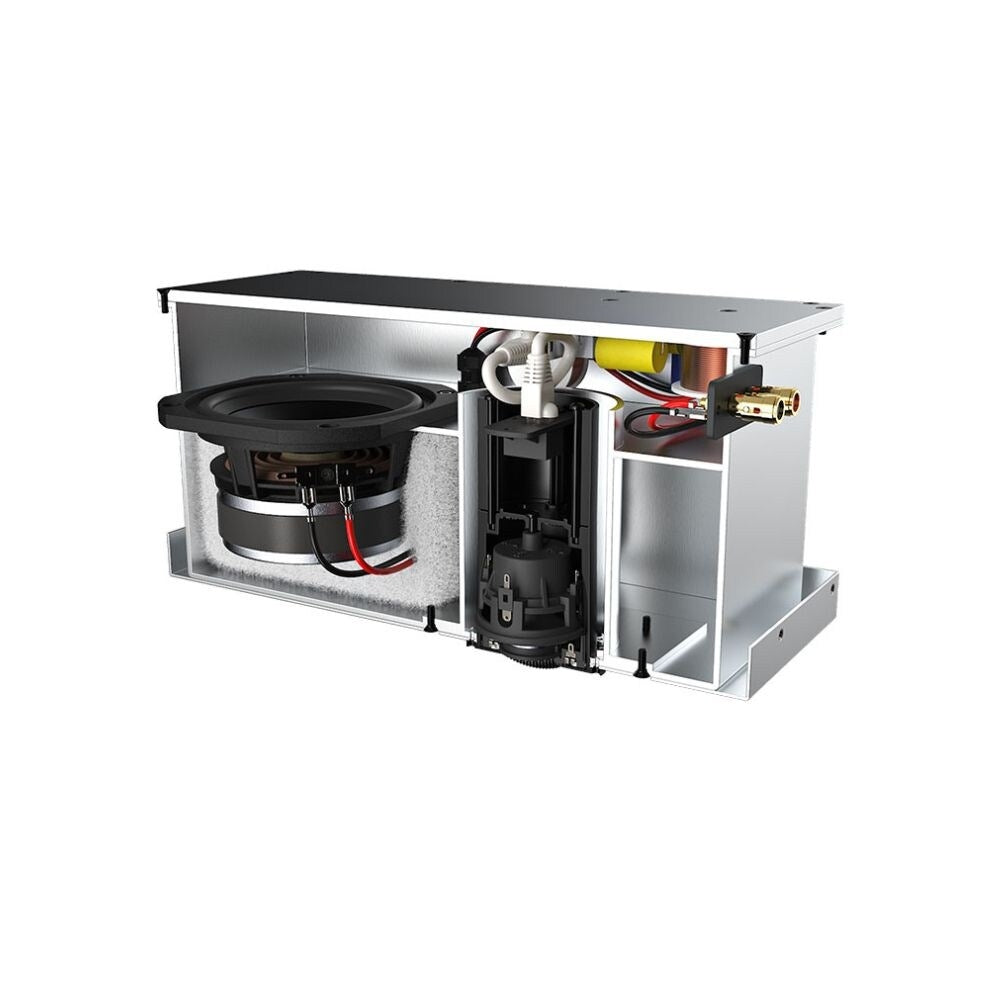

James Loudspeaker has always sought to strive for better solutions through innovation and this is truly reflected in their commitment to the Small Aperture® (SA) Series. These barely visible ultra-high performance architectural speakers have been created to redefine the concept of a decor matched entertainment system. This system includes a mini PowerPipe 6.5" subwoofer, 2" midrange and 0.75" dome tweeter for wide 38Hz to 22kHz response. Having a real subwoofer also allows the system to play at higher output levels. Deep bass and high SPL from such a small, barely visible opening are the key objectives of the SA Series.

Premium components and modular design provide long life and easy service, while an internal protection circuit offers the utmost reliability. The SA series is designed to also accept industry standard lighting trim kits to allow integration with similarly styled lighting products.

The SA63-8 options available are:

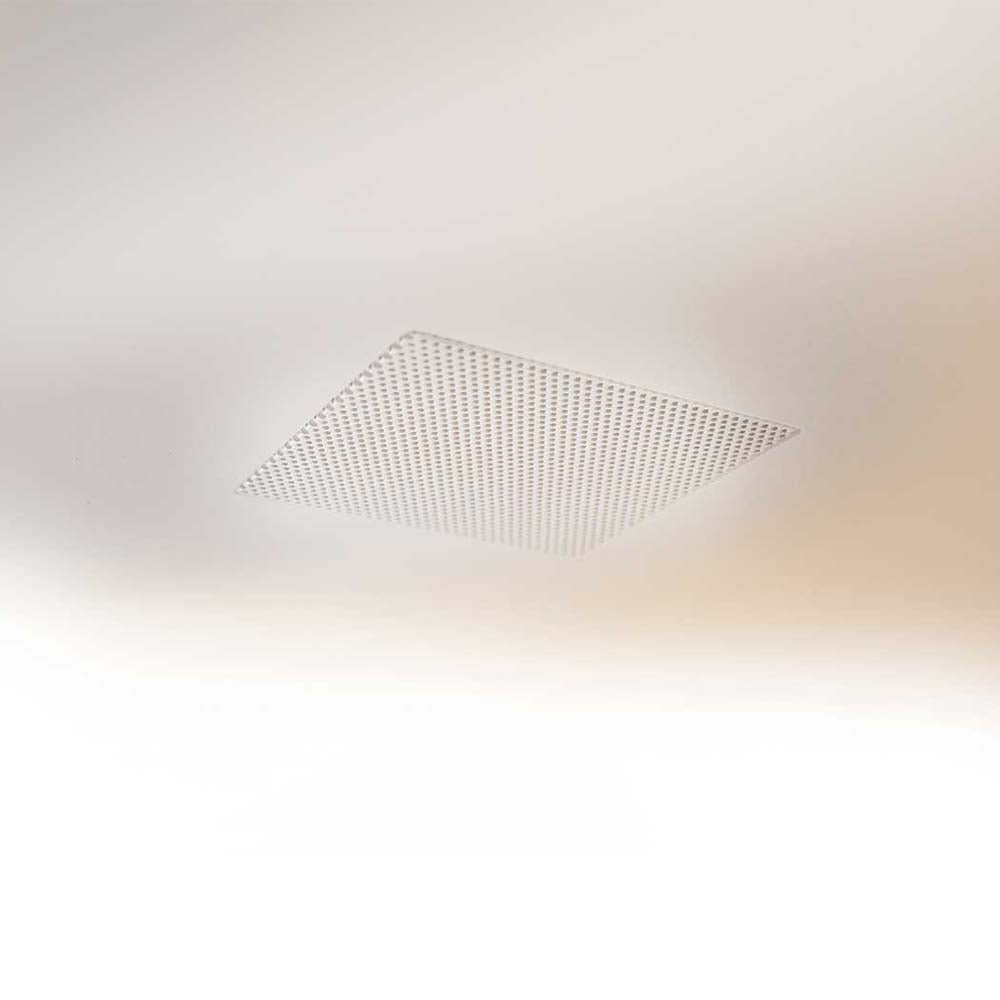

Stud wall / ceiling plasterboard offering a flush finish.

JAM-SA63-8-R-3-SR (Round)
JAM-SA63-8-S-3-SR (Square)

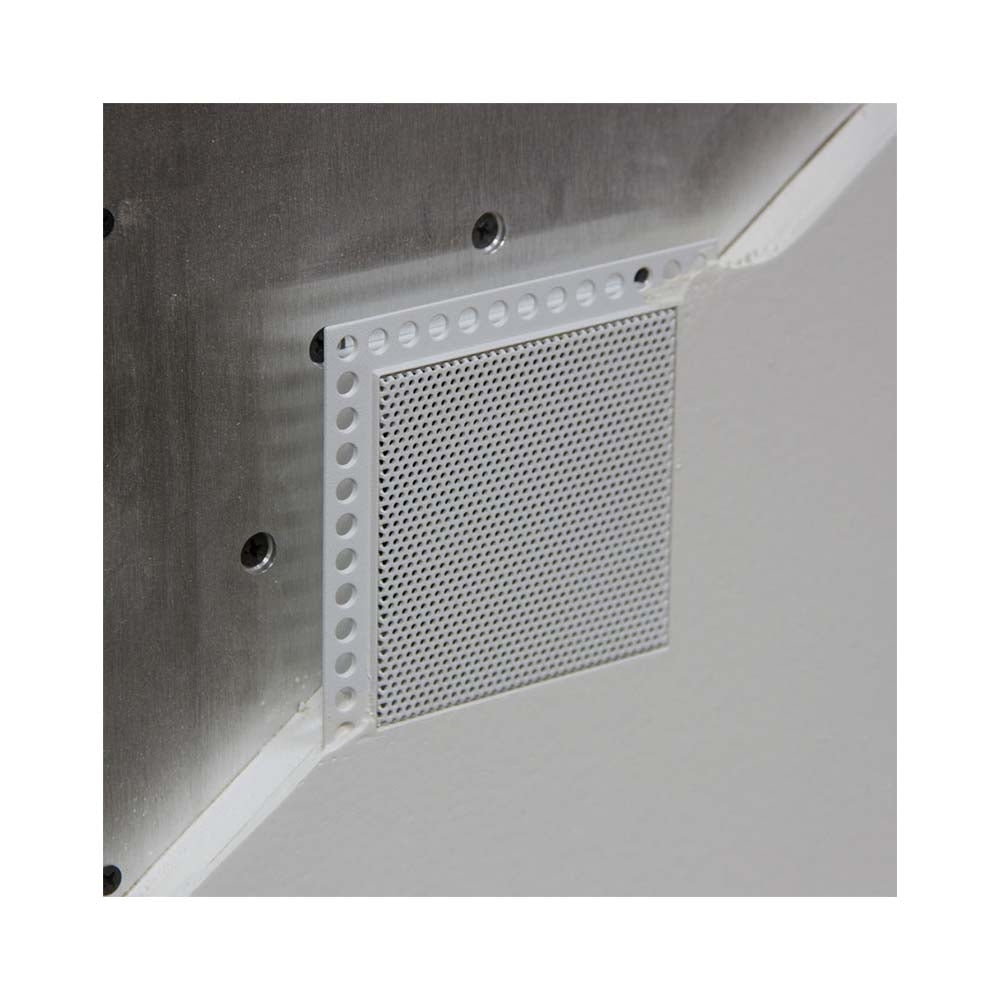

Are designed to be installed directly into the stud wall/plaster board (sheetrock) of a ceiling. The specially designed mud ring allows you to apply sheetrock mudding material and evenly distribute. The JAM-SA63-8 in ceiling speaker will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

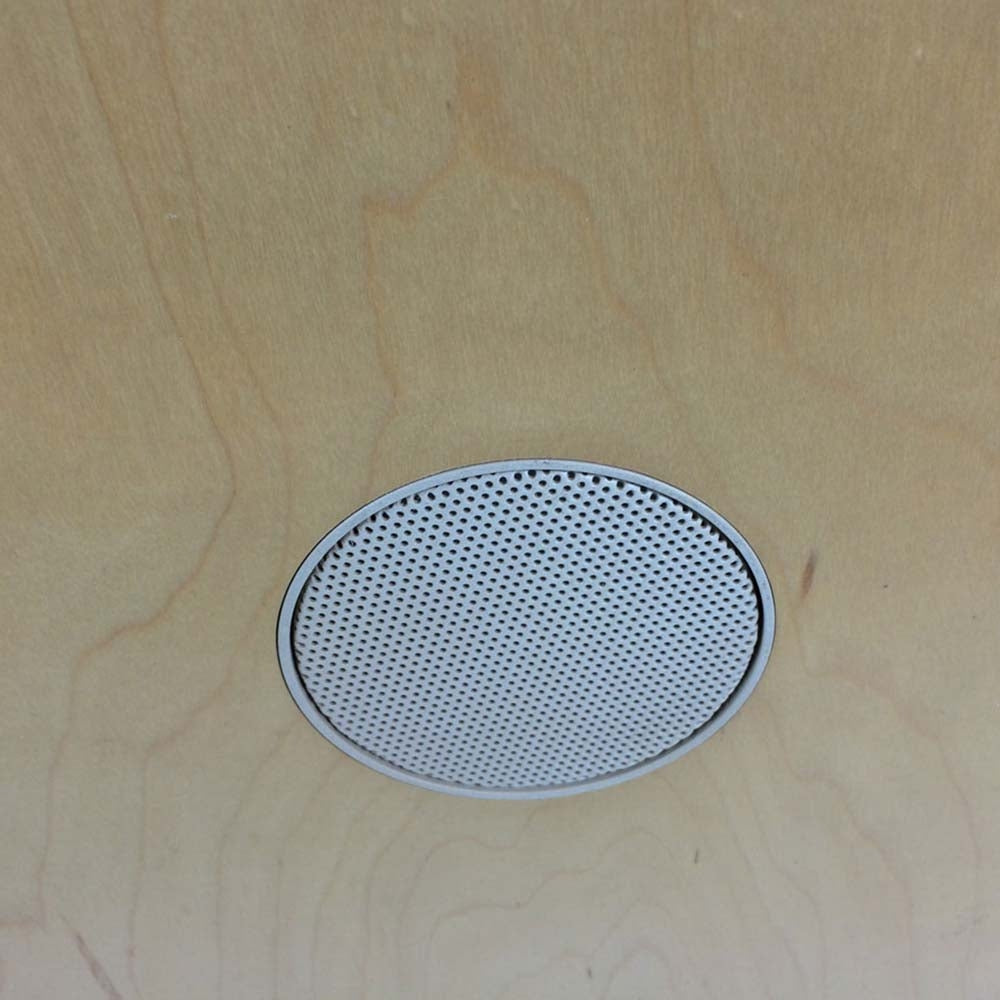

Solid surface offering a flush finish.

JAM-SA63-8-R-3-SS (Round)
JAM-SA63-8-S-3-SS (Square)

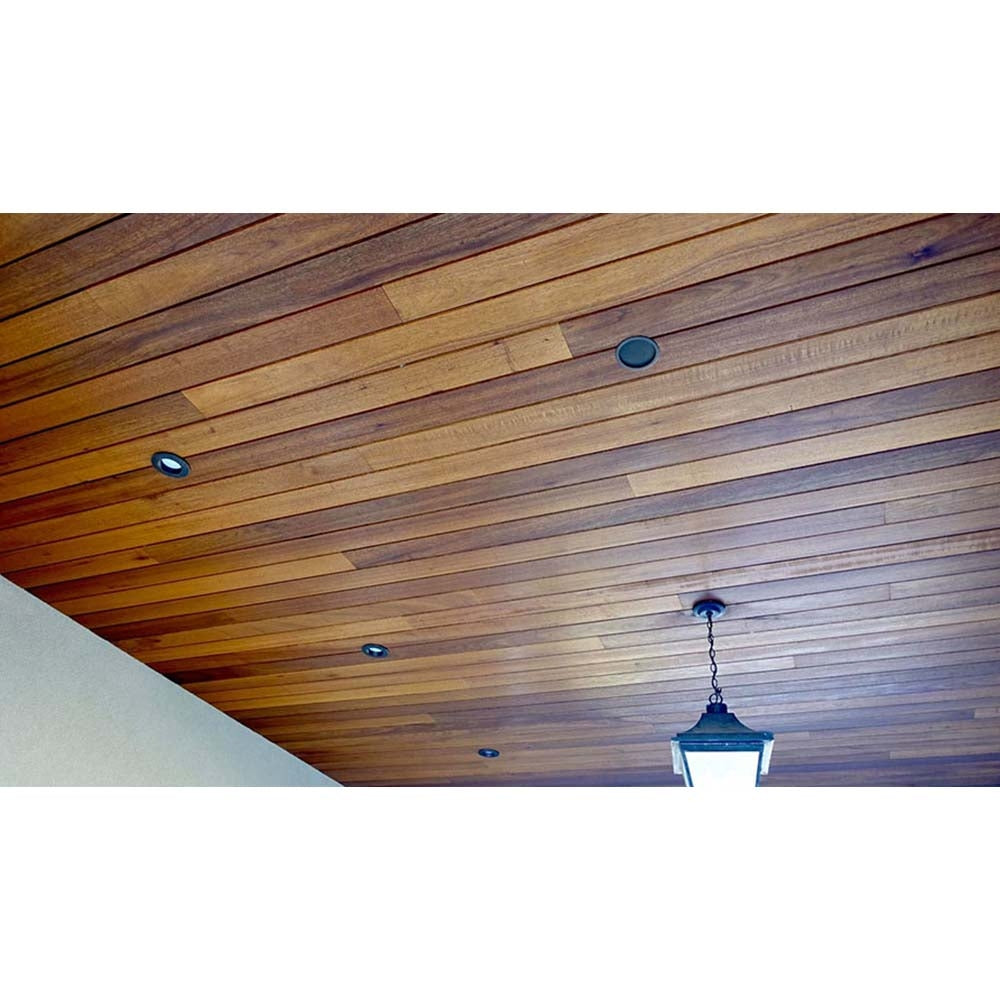

Are ideal solutions for any hard material surface, such as marble, wood, etc. These speakers will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

Retrofit with a bezel around the grille

JAM-SA63-8-R-3-RF (Round)
JAM-SA63-8-S-3-RF (Square)
Are designed to solve two installation needs. Firstly, when installing a SA series speaker in a dropped ceiling, these items provides a 9.53mm / 3/8" edge to cover the edge of the ceiling board, covering any rough cut issues. Secondly, these items can be used to cover any errors made in a solid surface cut out where a wood ceiling panel was not cut exactly or there are tear outs and the visual would not be appealing. Available with square and round 3" grilles.

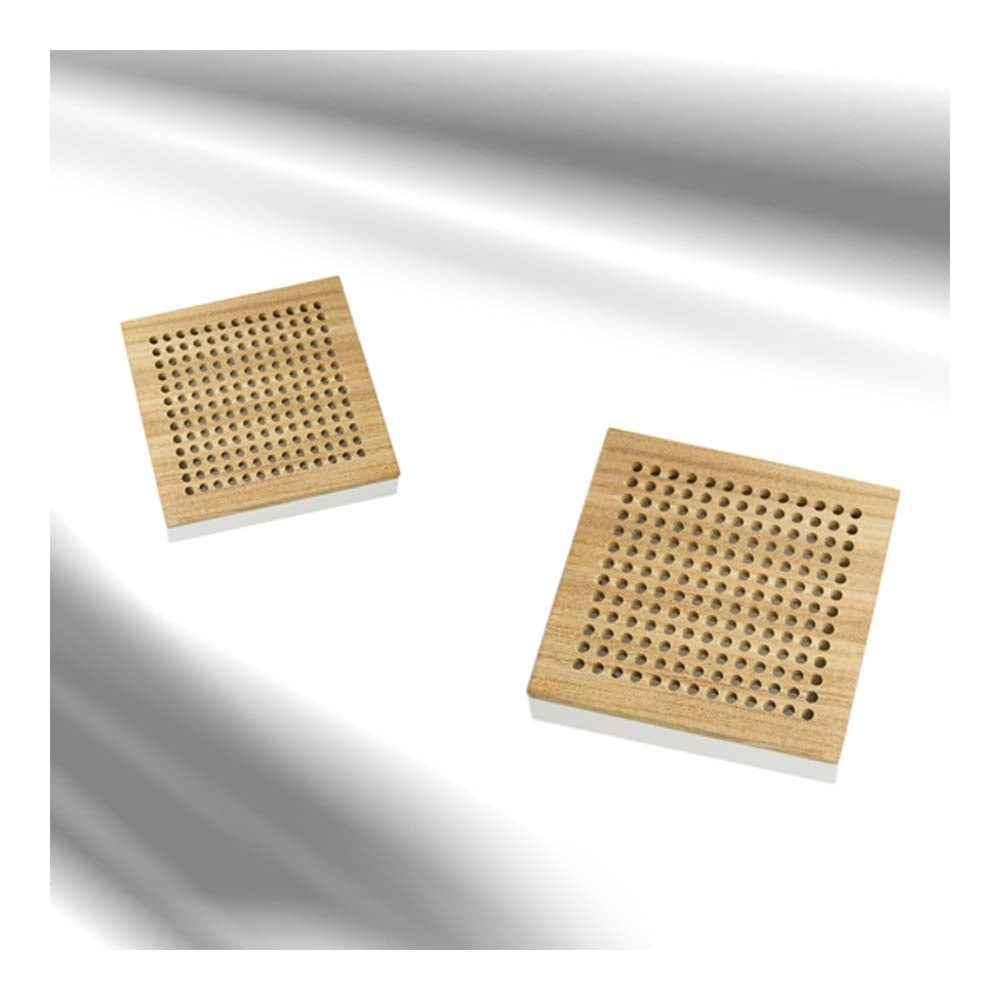

Custom Colour Grille Options

These Small Aperture® in ceiling speakers offer custom power coated coloured grilles. Custom grille colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.
NBFor associated spacer rings please see the related items section

Specification

Features

• Concealed micro PowerPipe Woofer in every SA speaker offers astounding bass response
• A shallow depth audio solution that installs best into ceilings and also walls
• The SA design also accommodates a wide range of ceiling material thickness, from 1/2" sheetrock and greater

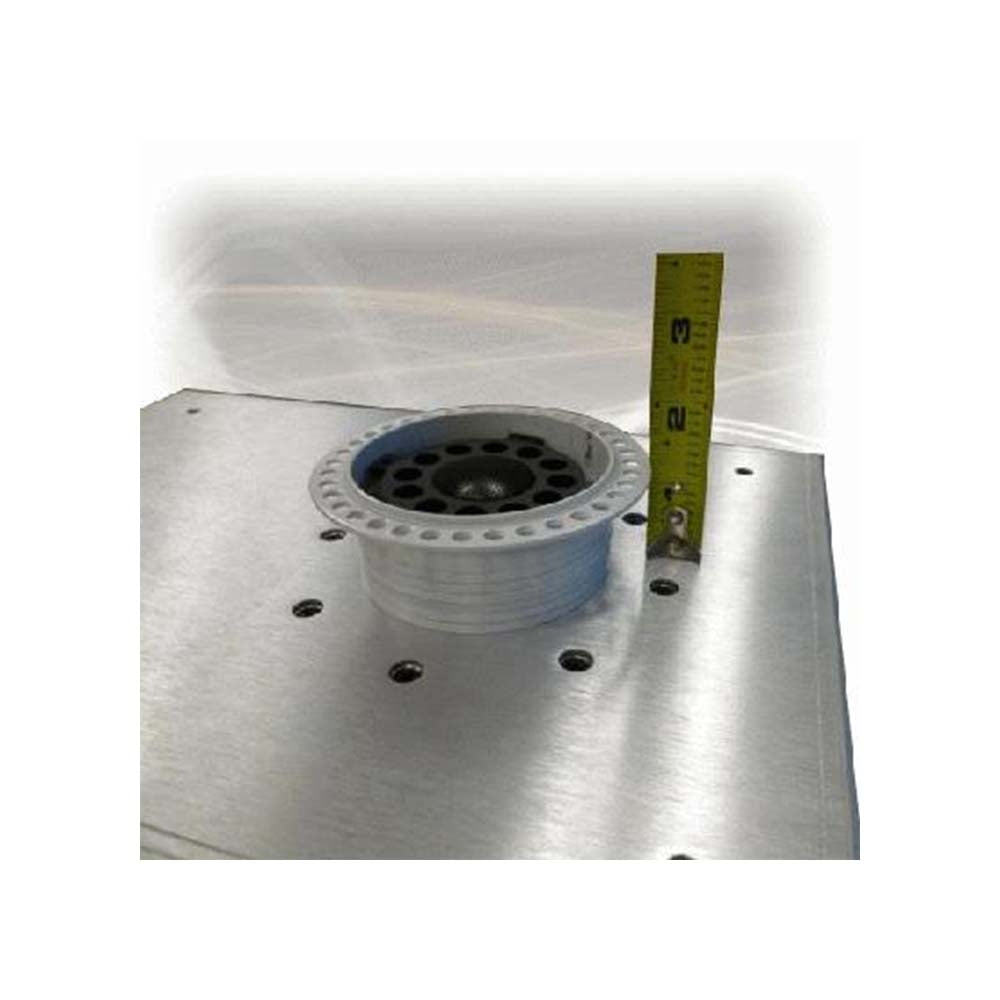

• By using spacing rings, the trim kit can be spaced further and further from the cabinet body (enclosure)
• The design of the tuning system keeps the sub section tuned to the same frequency for consistent bass response
• Engineered to produce high levels of clarity and wide off axis performance
• The mid/high frequency module is constructed from robust and durable die cast aluminium, meaning the module is rugged and dimensional precise
• Built with aircraft grade aluminium and employs a modular design
• Incorporates protection circuitry to help ensure the speaker's long term performance and reliability
• All of James' transducers are unique in their design, allowing all performance parameters to be optimised to the specific system and application
• Utilise the speaker for whole house audio and home cinemas without compromising system performance
• Ability to blend the speakers into a variety of room environments. The speaker's aesthetics mimic the look of lighting fixtures
• More affordable solution without sacrificing performance or custom flexibility
• Available with custom colour grilles
