James Small Aperture Offset to Right 3 Way In-Ceiling Full Range Speaker, White or Custom Grille Colours: EACH

The SA63-7-R is part of the James' Small Aperture® series of in ceiling speakers that provide high volume levels, deep bass and wide coverage from a small 3" seamless and flush round or square opening. This speaker is virtually hidden and yet provides the complete musical experience. The port is offset right from centre, allowing the speaker to be positioned close to the ceiling joists. It comes with a 3" white or custom grille colour options.

The SA63-7-R is part of the James' Small Aperture® series of in ceiling speakers that provide high volume levels, deep bass and wide coverage from a small 3" seamless and flush round or square opening. The SA Series models are virtually hidden and yet provide the complete musical experience.

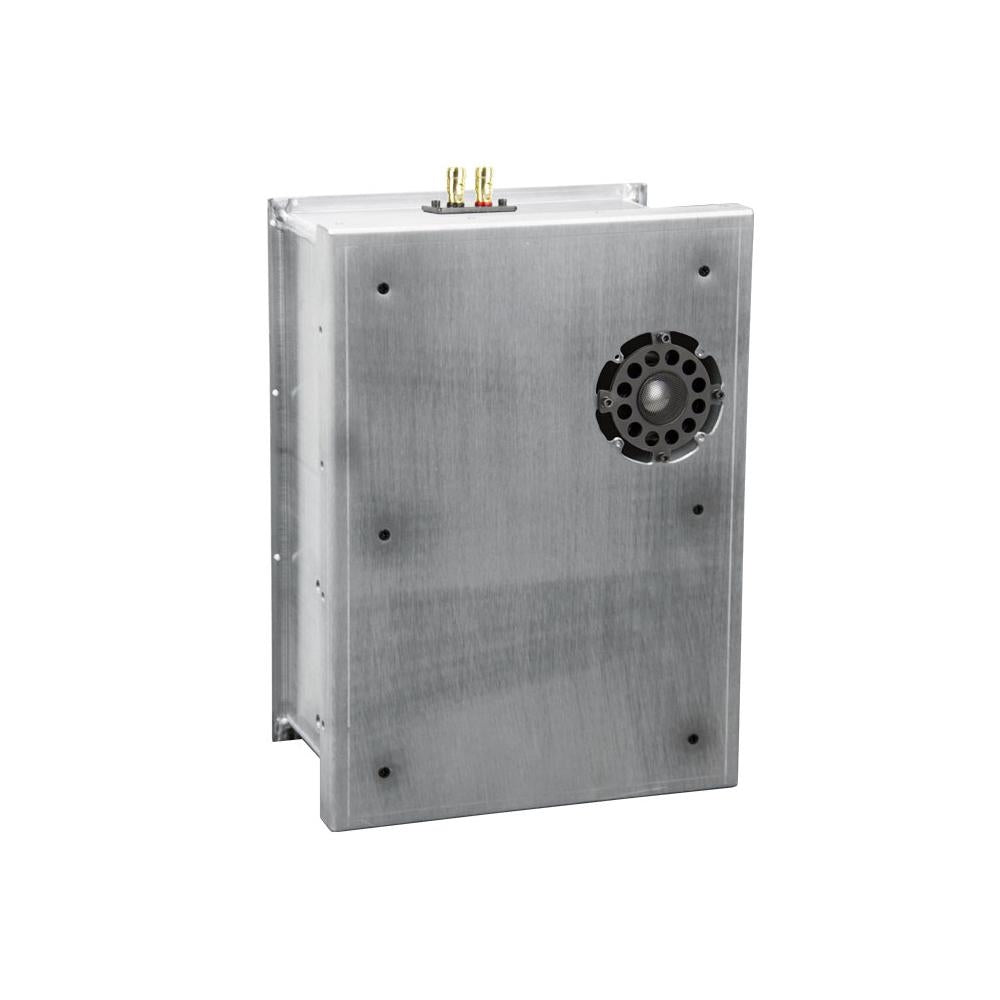

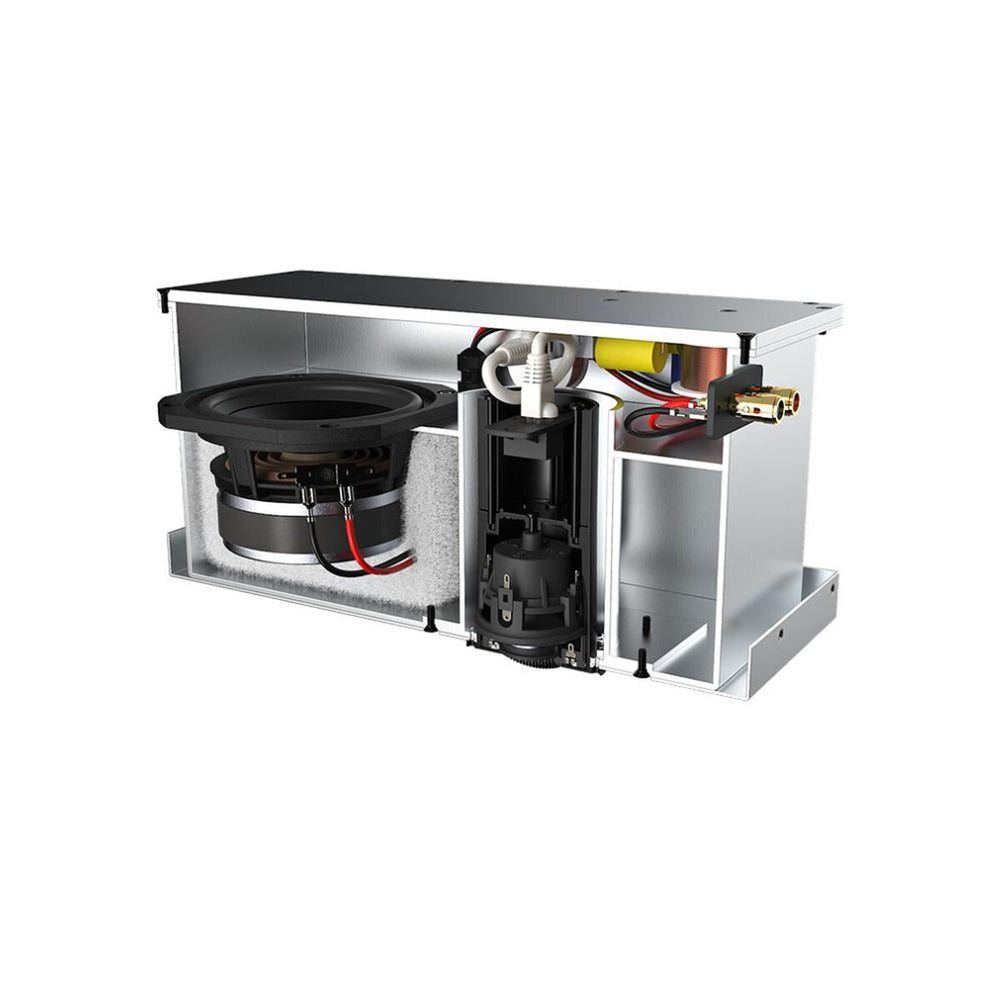

The JAM-SA63-7-R includes an offset port, being 2.5" / 63.5mm offset right from centre, which allows the speaker port to be positioned close to the ceiling joists where there are in line with light fixtures located near these joists. Each system is a true full range, 3 way design with a 0.75"/ 19mm aluminium dome tweeter, 2" / 50mm aluminium midrange driver and a 6.5" / 165mm aluminium mini PowerPipe subwoofer, all concentrically mounted.

Designed for whole house audio installations, the JAM-SA63-7-R is especially suited for high-end homes where critical listening is paramount and aesthetics are equally as vital. The point source mid/high module pan provides an excellent off axis response and the hidden mini PowerPipe woofer generates bass down to 38Hz for a truly full range music experience and yet the user only sees a 3" round or square seamless flush opening. The grille configuration also accepts industry standard mounting and accepts high end lighting trim kits to allow the speaker to match lighting fixtures in the same installation. James Loudspeaker offers a wide variety of grille options, even matching light fixture trims with custom matching trims.

The SA63-7-R options available are:

Stud ceiling:

JAM-SA63-7-R-R-3-SR (Round)
JAM-SA63-7-R-S-3-SR (Square)
Are designed to be installed directly into the stud wall/plaster board (sheetrock) of a ceiling. The specially designed mud ring allows you to apply sheetrock mudding material and evenly distribute. The SA63-7-R in ceiling speaker will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

Solid surfaces:

JAM-SA63-7-R-R-3-SS (Round)
JAM-SA63-7-R-S-3-SS (Square)

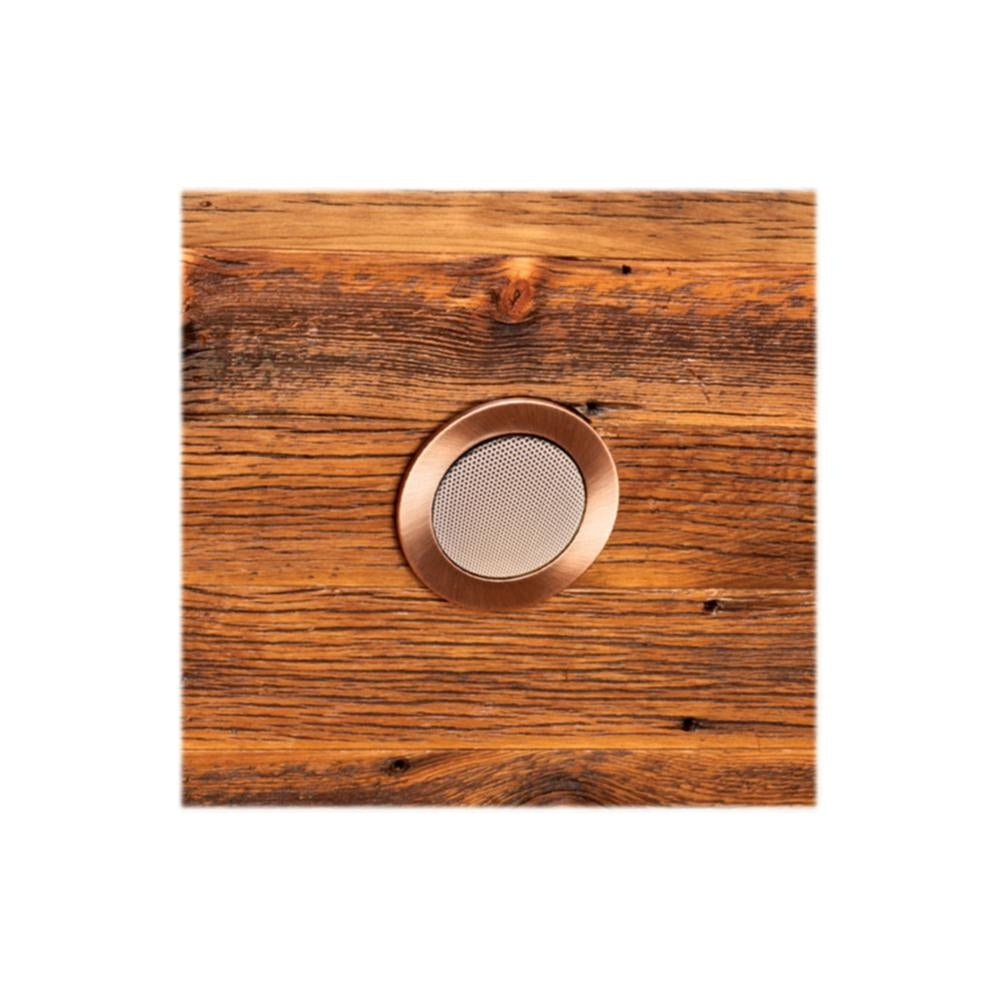

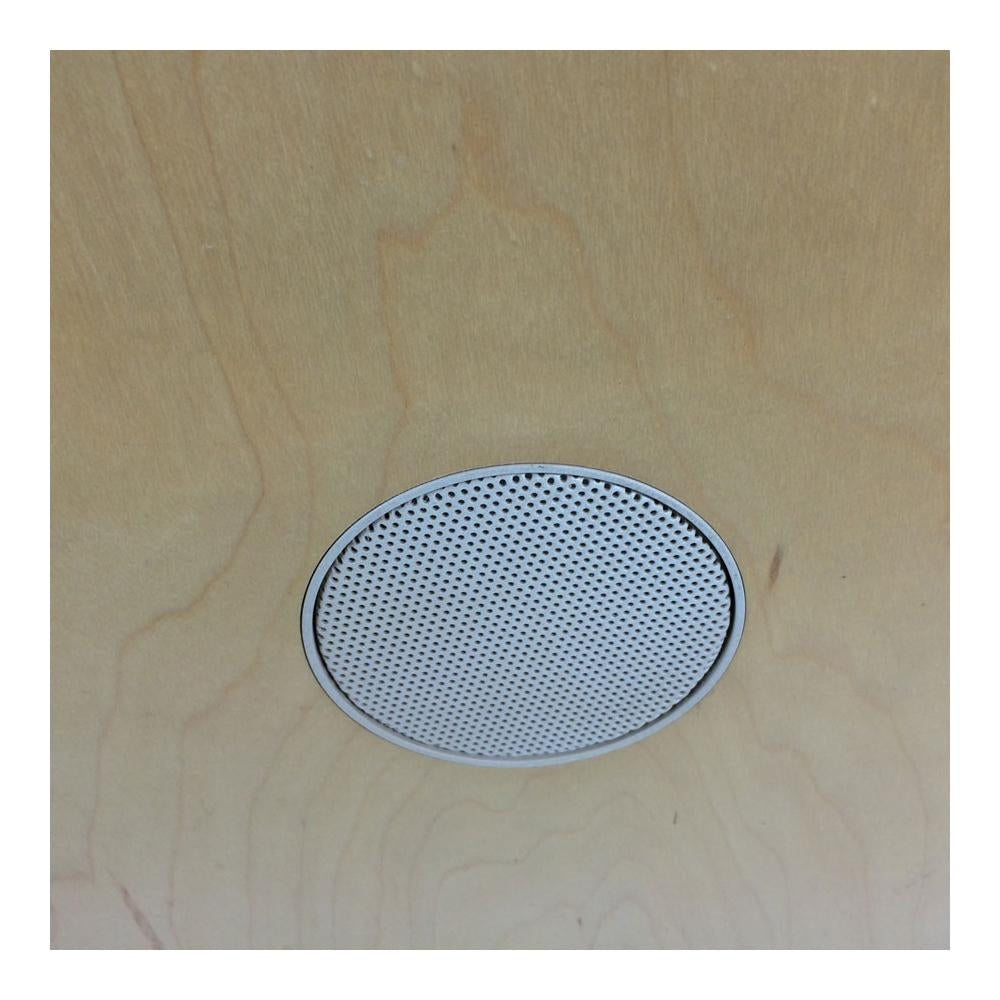

Are ideal solutions for any hard material surface, such as marble, wood, etc. These speakers will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

Retrofit:

JAM-SA63-7-R-R-3-RF (Round)
JAM-SA63-7-R-S-3-RF (Square)
Are designed to solve two installation needs. Firstly, when installing a SA series speaker in a dropped ceiling, these items provides a 9.53mm / 3/8" edge to cover the edge of the ceiling board, covering any rough cut issues. Secondly, these items can be used to cover any errors made in a solid surface cut out where a wood ceiling panel was not cut exactly or there are tear outs and the visual would not be appealing. Available with square and round 3" grilles.

Custom Colour Grille Options:

These Small Aperture® in ceiling speakers offer custom power coated coloured grilles. Custom grille colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.
NB: For associated spacer rings please see the related items section

Specification

Features

• A shallow depth audio solution that installs into ceilings
• The SA design also accommodates a wide range of ceiling material thickness, from 1/2" sheetrock and greater
• By using spacing rings, the trim kit can be spaced further and further from the cabinet body (enclosure)
• The design of the tuning system keeps the sub section tuned to the same frequency for consistent bass response
• The mid/high frequency module is constructed from robust and durable die cast aluminium, meaning the module is rugged and dimensional precise
• SA speakers to perfectly match lights in the room
• Built with aircraft grade aluminium and employs a modular design
• Incorporates protection circuitry to help ensure the speaker's long term performance and reliability
• All of James transducers are unique in their design, allowing all performance parameters to be optimised to the specific system and application
• Utilise the speaker for whole house audio and home cinemas without compromising system performance

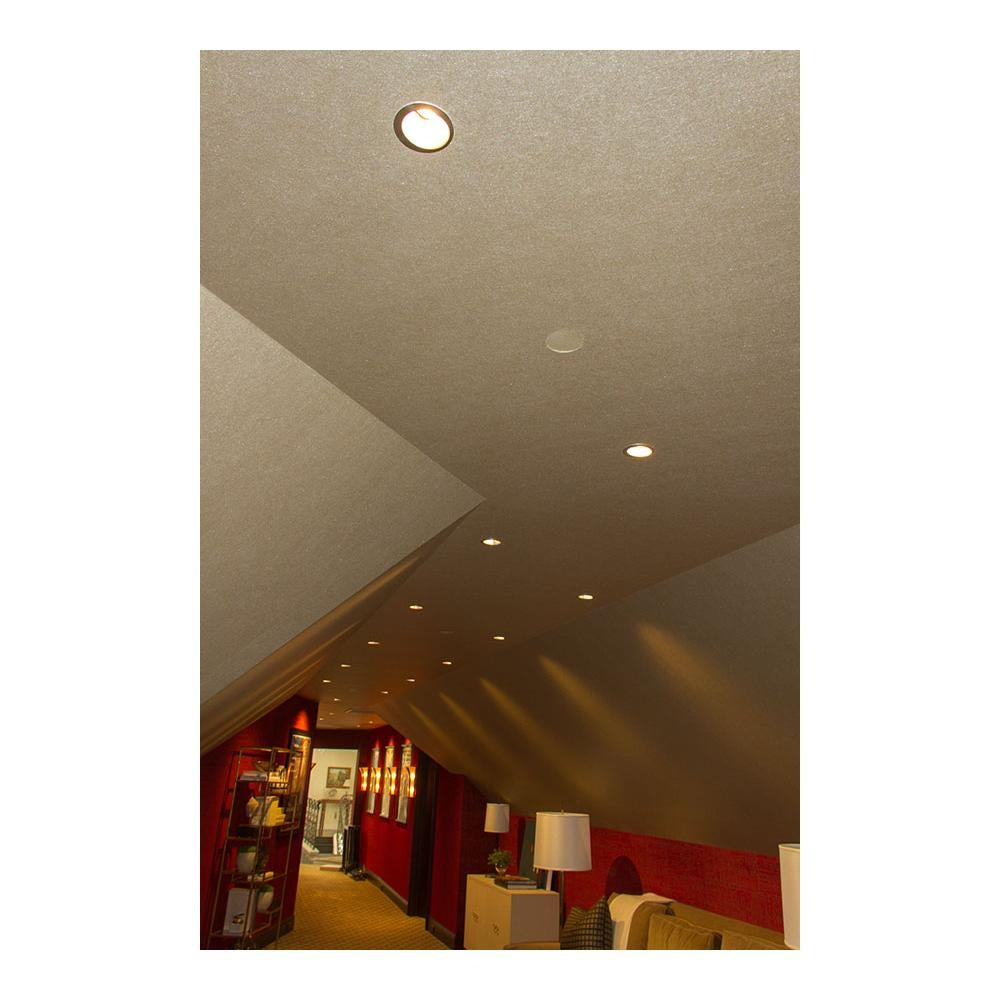

• Ability to blend the speakers into a variety of room environments. The speaker's aesthetics mimic the look of lighting fixtures
• More affordable solution without sacrificing performance or custom flexibility
• Custom colour grille options available
