James Loudspeaker's JAM-SPL5QT-LR left and right channel soundbar soundbar delivers impressive output and wide frequency response, designed as a left and right channel it is perfect for any stereo system application. James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion.
James Loudspeaker's JAM-SPL5QT-LR left and right channel soundbar soundbar delivers impressive output and wide frequency response, designed as a left and right channel it is perfect for any stereo system application. James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion.
Complete with coloured aluminium perforated grille, this soundbar mounts directly to any TV, to seamlessly integrate this speaker into any indoor or outdoor entertainment system. Various standard enclosure colours and shape or width options also available.

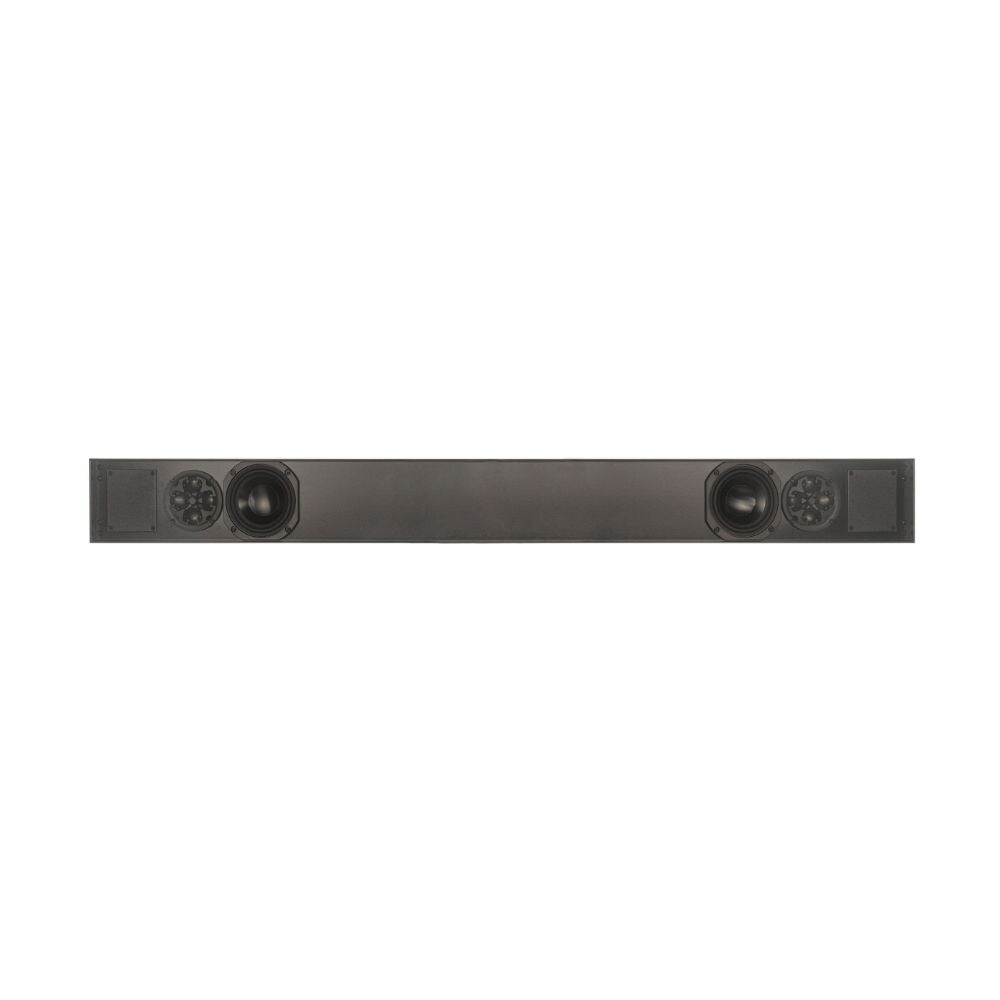

James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion. When combined with James' high output 5.25" (133mm) woofers, the SPL5QT-LR has a remarkable 89dB sensitivity with bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound.
The James Loudspeaker SPL5QT-LR is a custom width soundbar and is available at an absolute minimum width of 619mm ( / 24.375" up to 1880mm / 74" as standard. If a larger width is required an additional charge will be applicable, please select from the following two options:
Option 1, JAM-SPL-W97 is 1880mm / 74" to 2463mm / 97"
Option 2, JAM-SPL-W98 is 2489mm / 98" and above.
Please confirm the width, make and model of your TV with your order.
The cabinet is constructed of aircraft grade aluminium for strength, sonic performance and suitability for outdoor or marine applications.
For outdoor or marine applications, order the JAM-SPL5Q-LR-M.
Coming in a variety of standard colours as well as an infinite number of custom colour options, these soundbars come in a variety of formats, catering to the preference of each customer. Please see the technical specification tab for more details. It can even be mounted in a dual monaural design on either side of the display using James Loudspeaker's "centergy" technology. Also available for wall mounting or configurable for other custom applications, this sound bar combines high quality audio with elegant design for the perfect home entertainment solution.
These soundbars simply ensure that each and every individual enjoys the same stellar performance.
Custom brackets for TV mounting are available and can be purchased separately. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting. Please see related items.
Customisation Optional Extras
Custom Hydro Dipping
James now offers an innovative custom finish for their products, hydro dipping custom finishes allow you to create a myriad of designs for the exterior of James' speakers. Perfect for matching your speakers with key elements in your room or space or simply to make a design statement, the choice is very much yours. Please speak to your local Business Development Manager or the Team at Habitech on 01256 638500 for further details about custom hydro dipping.
Custom Width Options Please confirm with your order the width, make and model of your TV
Standard Width 1048mm / 41.25" to 1880mm / 74"
James offers two additional width options to fit your installation requirements and needs:
JAM-SPL-W97 offers custom widths from 1880mm / 74" to 2463mm / 97" for soundbars
JAM-SPL-W98 offers custom widths from 2489mm+ / 98"+ for soundbars
Custom Curved Soundbar Option
Please confirm with your order the width, make and model of your TV.
James also offer a custom curved soundbar option with JAM-SPL-CURVED
JAM-SPL5QT-LR 5.25" LR Stereo Soundbar Indoor |
JAM-SPL5QT-LR-M 5.25" LR Stereo Soundbar Marine Grade Outdoor |
|
Tweeter | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber, aluminium | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber, aluminium |
Woofer | 4 x 5.25" aluminium | 4 x 5.25" aluminium |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |

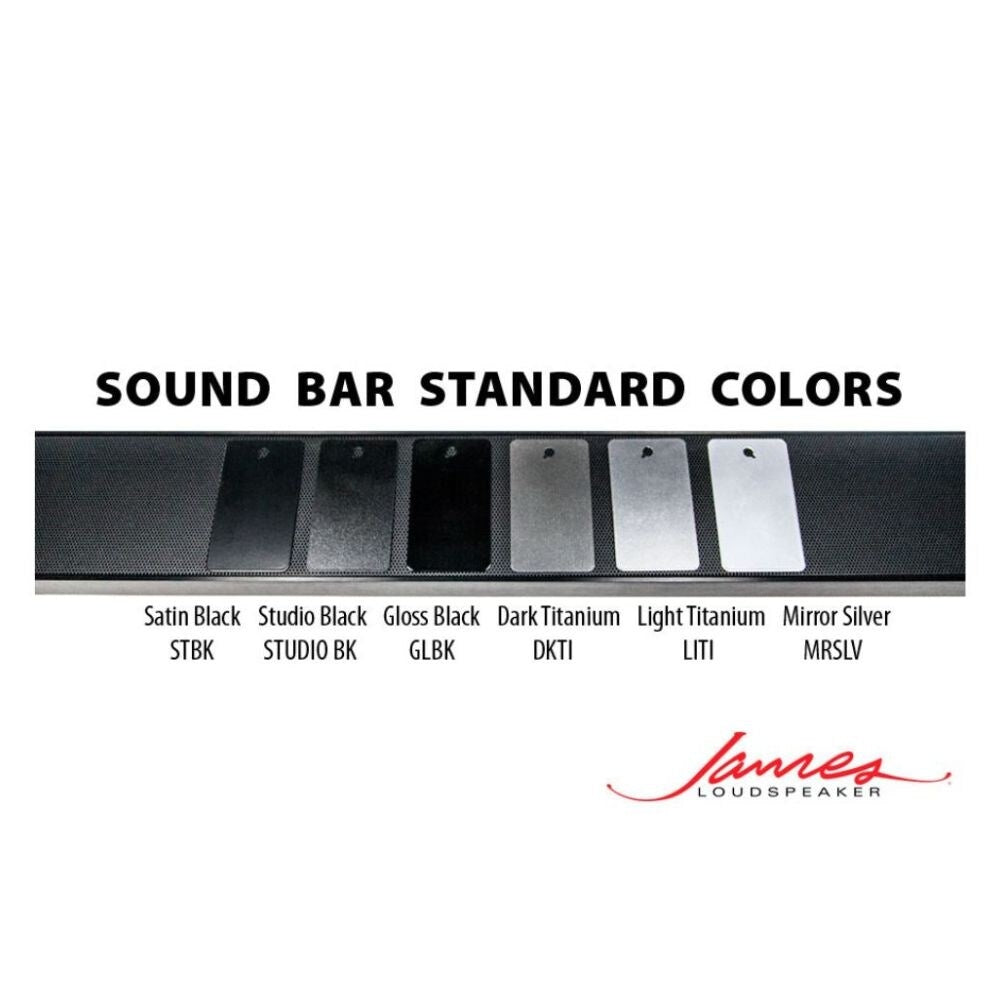

Finish | Select from: Studio black - JAM-SPL5QT-LR-STUDIOBK Satin black - JAM-SPL5QT-LR-STBK Gloss black - JAM-SPL5QT-LR-GLBK Dark titanium - JAM-SPL5QT-LR-DKTI Light titanium - JAM-SPL5QT-LR-LITI Mirror Silver - JAM-SPL5QT-LR-MRSLV |
Select from: Studio black - JAM-SPL5QT-LR-M-STUDIOBK Satin black - JAM-SPL5QT-LR-M-STBK Gloss black - JAM-SPL5QT-LR-M-GLBK Dark titanium - JAM-SPL5QT-LR-M-DKTI Light titanium - JAM-SPL5QT-LR-M-LITI Mirror Silver - JAM-SPL5QT-LR-M-MRSLV |
Frequency Response | 65Hz to 24kHz +/-3dB | 65Hz-24kHz +/-3dB |
Nominal Impedance | 8Ω | 8Ω |
Sensitivity | 89dB 2.83V/1m | 89dB 2.83V/1m |
Recommended Power Range | 25W to 150W | 25W to 150W |
Protection Rating | - | IP65 |
Dimensions | Height: 146.50mm / 5.75" Width Custom: Up to 1854mm / 73" Absolute Minimum: 619.13mm / 24.375" For further custom width options please see the overview Depth: 88.90mm / 3.5" |
Height: 146.50mm / 5.75" Width Custom: Up to 1854mm / 73" Absolute Minimum: 619.13mm / 24.375" For further custom width options please see the overview Depth: 88.90mm / 3.5" |
