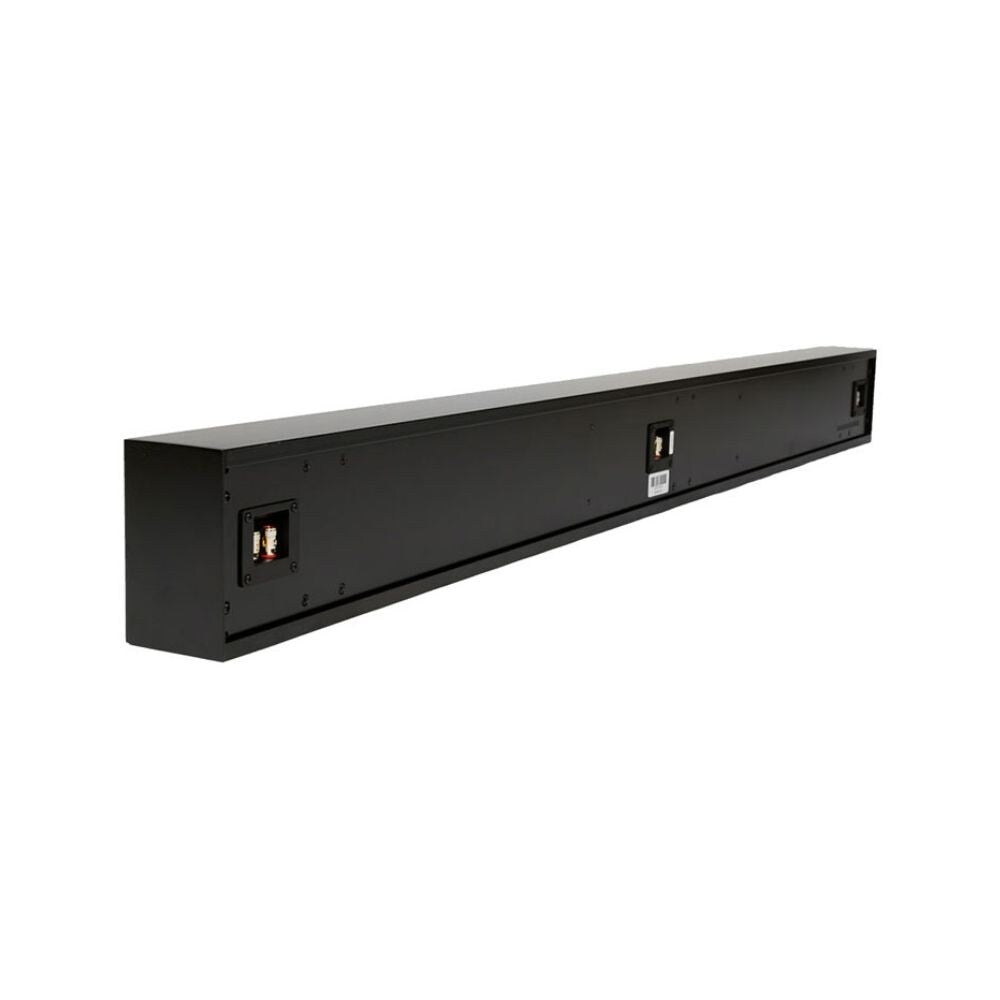

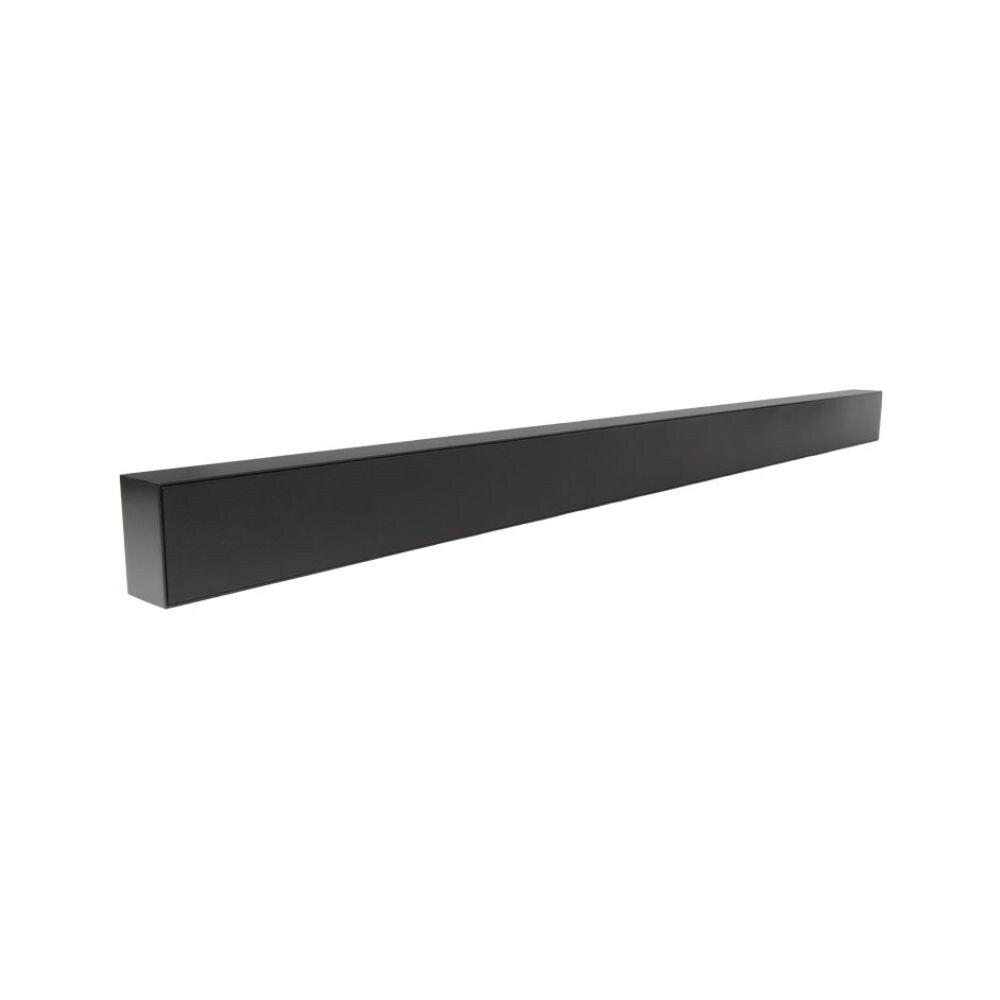

The James SPL5QT-LRSUB loudspeaker is a 2.1 format L/R Soundbar that produces left and right channel audio as well as bass energy from a centre mounted built in subwoofer. These soundbars are ideal for bringing clarity and full range sound to applications where an external subwoofer would prove to be impractical. Enclosure colours, custom colours and shape or width options also available in both indoor, outdoor or marine versions.
The James SPL5QT-LRSUB loudspeaker is a 2.1 format L/R Soundbar that produces left and right channel audio as well as bass energy from a centre mounted built in subwoofer. These soundbars are ideal for bringing clarity and full range sound to applications where an external subwoofer would prove to be impractical. Enclosure colours, custom colours and shape or width options also available in both indoor, outdoor or marine versions.
James has taken the new Quadratech tweeter and Cymatic Diffuser from the VXQ Series and applied it to the SPL Series for exceptional detail and dispersion.
The James Loudspeaker SPL5QT-LRSUB is a custom width soundbar and is available at an absolute minimum width of 905mm / 35.63" up to 1880mm / 74" as standard. If a larger width is required an additional charge will be applicable, please select from the following two options:
Option 1: JAM-SPL-W97 is 1880mm / 74" to 2463mm / 97"
Option 2: JAM-SPL-W98 is 2489mm / 98" and above.
Please confirm the width, make and model of your TV with your order.
This soundbars is ideally suited for boardrooms, conference rooms, lobbies, retail showrooms and nightclubs, as well as residential applications such as bedrooms or other outside zones where a flat panel TVs are sited but surround sound is not required.

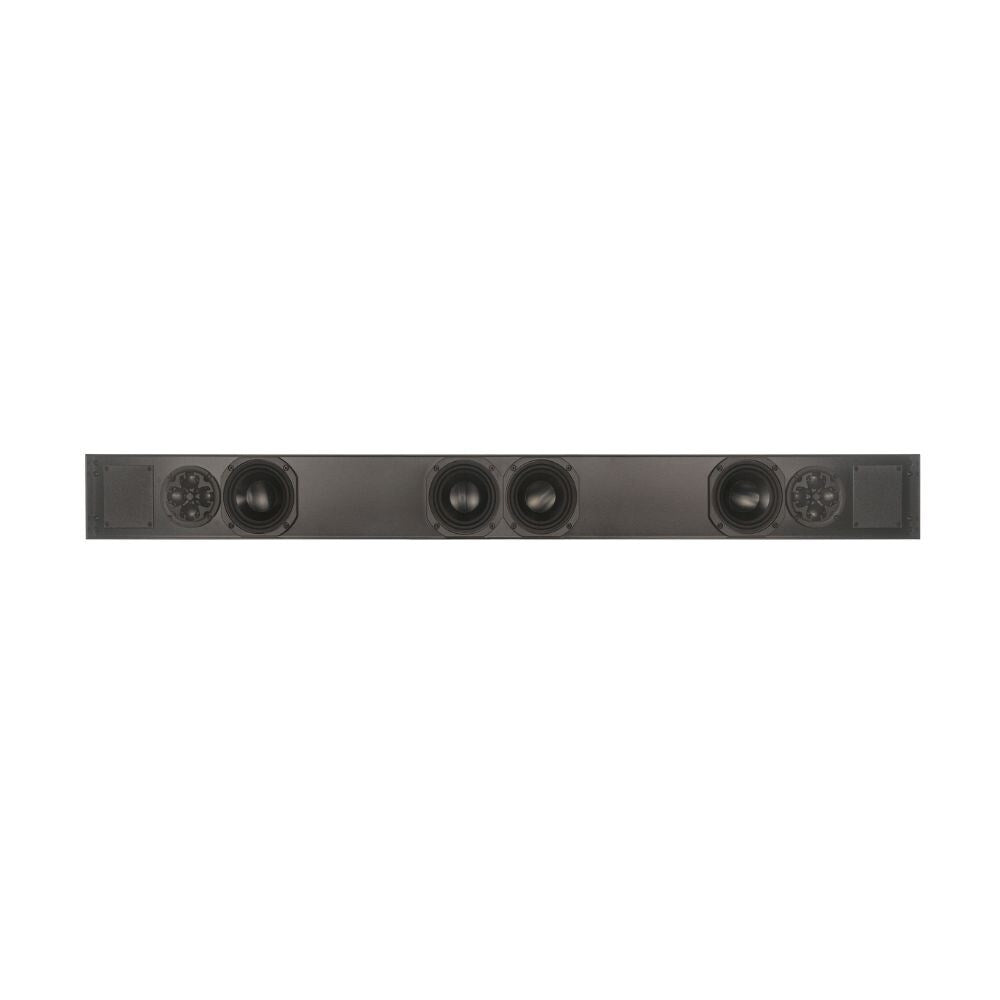

James Loudspeaker's soundbars are built from elegant aircraft grade aluminium for strength, sonic performance and durability when used for outdoor or marine applications. Each soundbar features proprietary aluminium cone woofers and aluminium dome quad tweeters for unsurpassed dispersion and musicality. They can be a custom fit and painted to match any display or decor. Each bar comes with a matching aluminium perforated grille.
For outdoor or marine applications, order the SPL5QT-LRSUB-M.
The JAM-SPL5QT-LRSUB offers high output, superb clarity and bass extension below 60Hz from nearly any size form factor. The 2.1 configuration makes them a perfect match to the James Loudspeaker A2.1 three channel amplifier, which features onboard crossovers and independent controls for easy system calibration.
They can be mounted directly to any TV for a seamless presentation or wall mounted using available brackets. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting. (Please see related items).
Customisations - Optional Extras
Custom Hydro Dipping
James now offers an innovative custom finish for their products, hydro dipping custom finishes allow you to create a myriad of designs for the exterior of James' speakers. Perfect for matching your speakers with key elements in your room or space or simply to make a design statement, the choice is very much yours. Please speak to your local Business Development Manager or the Team at Habitech on 01256 638500 for further details about custom hydro dipping.
Custom Width Options Please confirm with your order the width, make and model of your TV
Standard Width: 1048mm / 41.25" to 1880mm / 74"
James offers two additional width options to fit your installation requirements and needs:
JAM-SPL-W97 offers custom widths from 1880mm / 74" to 2463mm / 97" for soundbars
JAM-SPL-W98 offers custom widths from 2489mm+ / 98"+ for soundbars
Custom Curved Soundbar Option
Please confirm with your order the width, make and model of your TV.
James also offer a custom curved soundbar option with JAM-SPL-CURVED
JAM-SPL5QT-LRSUB LR 5.25" 2.1 Channel L/R With Sub Soundbar Indoor |
JAM-SPL5QT-LRSUB-M 5.25" 2.1 Channel L/R With Sub Soundbar Marine Grade Outdoor |
|
Tweeter | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber |
Woofer | 2-4 x 5.25" aluminium | 2-4 x 5.25" aluminium |
Subwoofer | 2-4 x 5.25" aluminium | 2-4 x 5.25" aluminium |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |

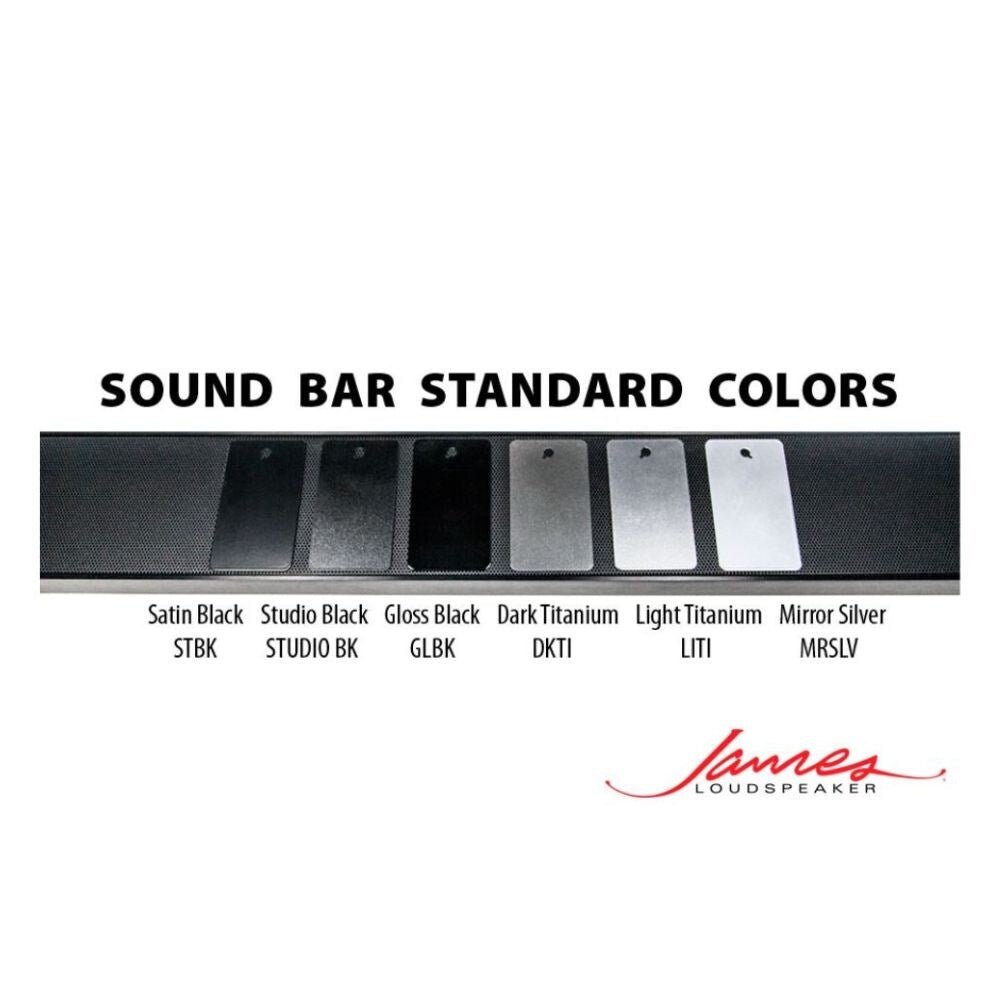

Finish | Select from: Studio black - JAM-SPL5QT-LRSUB-STUDIOBK Satin black - JAM-SPL5QT-LRSUB-STBK Gloss black - JAM-SPL5QT-LRSUB-GLBK Dark titanium - JAM-SPL5QT-LRSUB-DKTI Light titanium - JAM-SPL5QT-LRSUB-LITI Mirror Silver - JAM-SPL5QT-LRSUB-MRSLV |
Select from: Studio black - JAM-SPL5QT-LRSUB-M-STUDIOBK Satin black - JAM-SPL5QT-LRSUB-M-STBK Gloss black - JAM-SPL5QT-LRSUB-M-GLBK Dark titanium - JAM-SPL5QT-LRSUB-M-DKTI Light titanium - JAM-SPL5QT-LRSUB-M-LITI Mirror Silver - JAM-SPL5QT-LRSUB-M-MRSLV |
Frequency Response | 40Hz to 24kHz | 40Hz to 24kHz |
Nominal Impedance | 4/8Ω | 4/8Ω |
Sensitivity | 89dB 2.83V/1m | 89dB 2.83V/1m |
Recommended Power Range | L/R 25W to 150W per channel Sub: 50W to 100W |
L/R 25W to 150W per channel Sub: 50W to 100W |
Protection Rating | - | IP65 |
Dimensions | Height: 146.50mm / 5.75" Width Custom: Up to 1854mm / 73" Absolute Minimum Width: 905mm / 35.63" For further custom width options please see the overview Depth: 88.90mm / 3.5" |
Height: 146.50mm / 5.75" Width Custom: Up to 1854mm / 73" Absolute Minimum Width: 905mm / 35.63" For further custom width options please see the overview Depth: 88.90mm / 3.5" |
