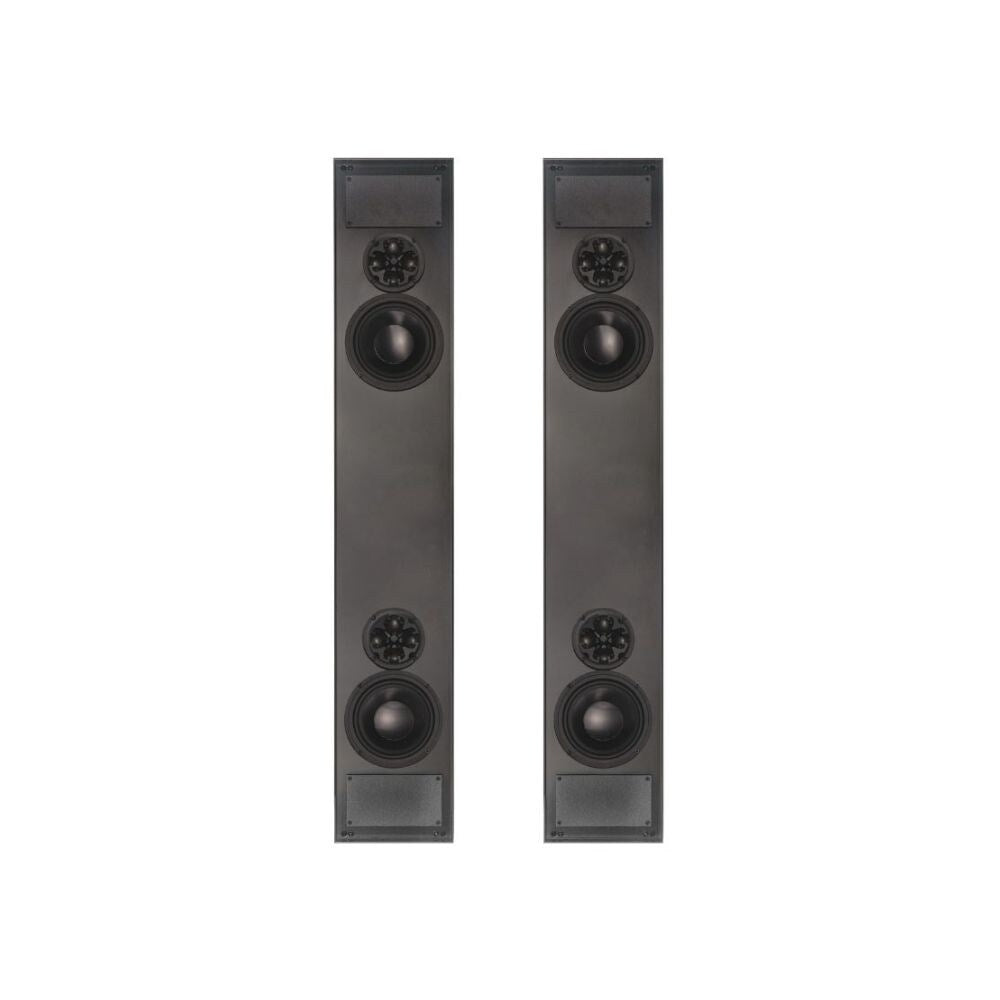

James Loudspeaker's SPL6QT-CS soundbar delivers impressive output and wide frequency response. Designed to use centergy technology, this soundbar pair combines a right and left channel in either bar with a centre channel split between the two, perfect for applications where 3 channels are needed and where the available space is only to the sides of the TV. Complete with coloured aluminium perforated grille, this soundbar mounts directly to any TV, to seamlessly integrate this speaker into any indoor or outdoor entertainment system. Various enclosure colours, custom colours and shape or width options also available.
James Loudspeaker's SPL6QT-CS soundbar delivers impressive output and wide frequency response. Designed to use centergy technology, this soundbar pair combines a right and left channel in either bar with a centre channel split between the two, perfect for applications where 3 channels are needed and where the available space is only to the sides of the TV. Complete with coloured aluminium perforated grille, this soundbar mounts directly to any TV, to seamlessly integrate this speaker into any indoor or outdoor entertainment system. Various enclosure colours, custom colours and shape or width options also available.
When combined with James' high output 6.5" woofers, the SPL6QT-CS has a remarkable 91dB sensitivity with bass down below 60Hz, delivering high efficiency, low distortion and crisp clear audiophile sound.
Option 1: JAM-SPL-W97 is 1880mm / 74" to 2463mm / 97"
Option 2: JAM-SPL-W98 is 2489mm / 98" and above
Please confirm the width, make and model of your TV with your order.
This soundbar has proprietary quad tweeter technology scaled down into a compact array of four 0.75" aluminium dome tweeters to provide a wide dispersion angle. When combined with James' high output 6.5", this soundbar has a remarkable 91dB sensitivity with bass down below 60Hz, delivering high efficiency, low distortion and crisp clear audiophile sound. The cabinet design features all aircraft grade aluminium for strength, sonic performance and suitability for all outdoor and marine applications, being IP65 rated. Complete with a custom fit and coloured aluminium perforated grille, this soundbar mounts directly to any TV. James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible.
The JAM-SPL6QT-CS-M soundbar offers the perfect solution for high end, high output audio to complete, with seamlessly and elegantly integration, any outdoor and marine entertainment system.

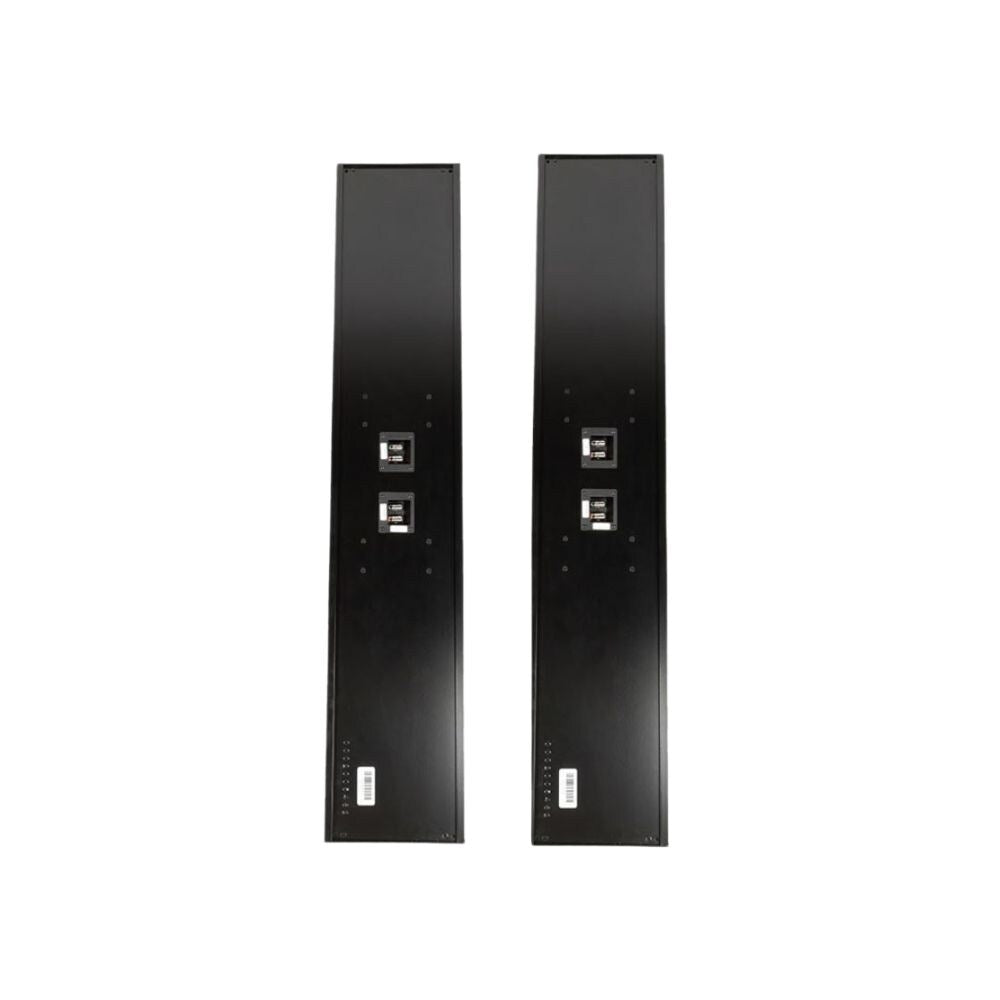

Please note: Custom TV mounting brackets for CS pair soundbars must be purchased separately. Please see PL-B-CUSTOM. Blind through holes are incorporated into each bar for wall mounting.
Custom Options:
Custom Hydro Dipping
James now offers an innovative custom finish for their products, hydro dipping custom finishes allow you to create a myriad of designs for the exterior of James' speakers. Perfect for matching your speakers with key elements in your room or space or simply to make a design statement, the choice is very much yours. Please speak to your local Business Development Manager or the Team at Habitech on 01256 638500 for further details about custom hydro dipping.
Custom Height Options Please confirm with your order the width, make and model of your TV
Standard Height: 699mm / 27.5" to 1880mm / 74"
James offers two additional height options to fit your installation requirements and needs:
JAM-SPL-W97 offers custom heights from 1880mm to 2463mm (74" to 97") for their soundbars
JAM-SPL-W98 offers custom heights from 2489mm+ (98"+) for their soundbars
JAM-SPL6QT-CS Centergy 6.5" Dual Monaural L/R Quad Tweeter Array In Wall Soundbar, Pair Indoor |
JAM-SPL6QT-CS-M Centergy 6.5" Dual Monaural L/R Quad Tweeter Array In Wall Soundbar, Pair Marine Grade Outdoor |
|
Tweeter | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber | Quadratech 0.75" four titanium dome tweeter, Ferrofluid cooled, acoustic back chamber |
Woofer | 2-8 x 6.5" low profile | 2-8 x 6.5" low profile |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |

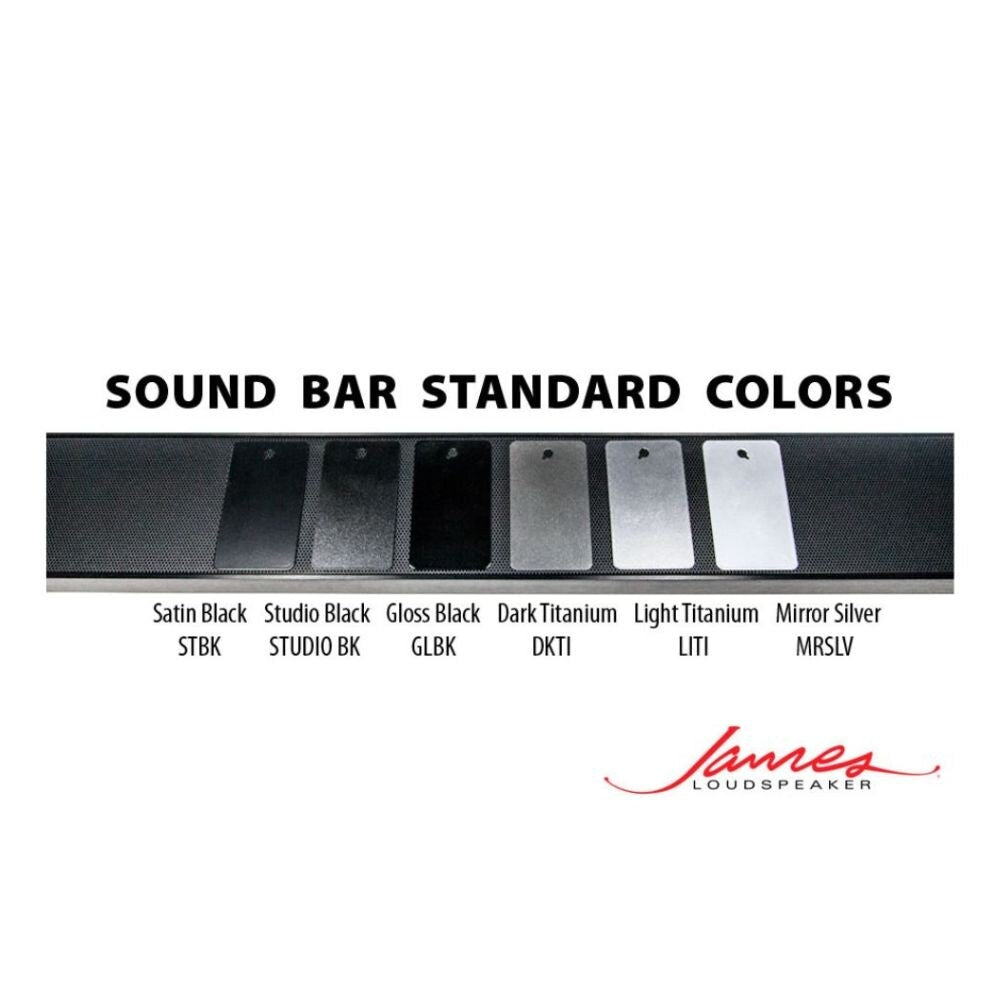

Finish | Select from: Studio black - JAM-SPL6QT-CS-STUDIOBK Satin black - JAM-SPL6QT-CS-STBK Gloss black - JAM-SPL6QT-CS-GLBK Dark titanium - JAM-SPL6QT-CS-DKTI Light titanium - JAM-SPL6QT-CS-LITI Mirror silver - JAM-SPL6QT-CS-MRSLV |
Select from: Studio black - JAM-SPL6QT-CS-M-STUDIOBK Satin black - JAM-SPL6QT-CS-M-STBK Gloss black - JAM-SPL6QT-CS-M-GLBK Dark titanium - JAM-SPL6QT-CS-M-DKTI Light titanium - JAM-SPL6QT-CS-M-LITI Mirror silver - JAM-SPL6QT-CS-M-MRSLV |
Frequency Response | 60Hz to 24kHz +/-3dB | 60Hz to 24kHz +/-3dB |
Nominal Impedance | 4Ω | 4Ω |
Sensitivity | 91dB 2.83V/1m | 91dB 2.83V/1m |
Recommended Power Range | 50W to 200W | 50W to 200W |
Protection Rating | - | IP65 |
Dimensions | Height: Custom Absolute Minimum Height: 698.3.4mm / 267.5" Width: 206.38mm / 8.13" Depth: 101.60mm / 4" |
Height: Custom Absolute Minimum Height: 698.3.4mm / 267.5" Width: 206.38mm / 8.13" Depth: 101.60mm / 4" |
Quantity | Pair | Pair |
Please Note:Custom TV mounting brackets for CS pair soundbars must be purchased separately. See PL-B-CUSTOM.
