Description

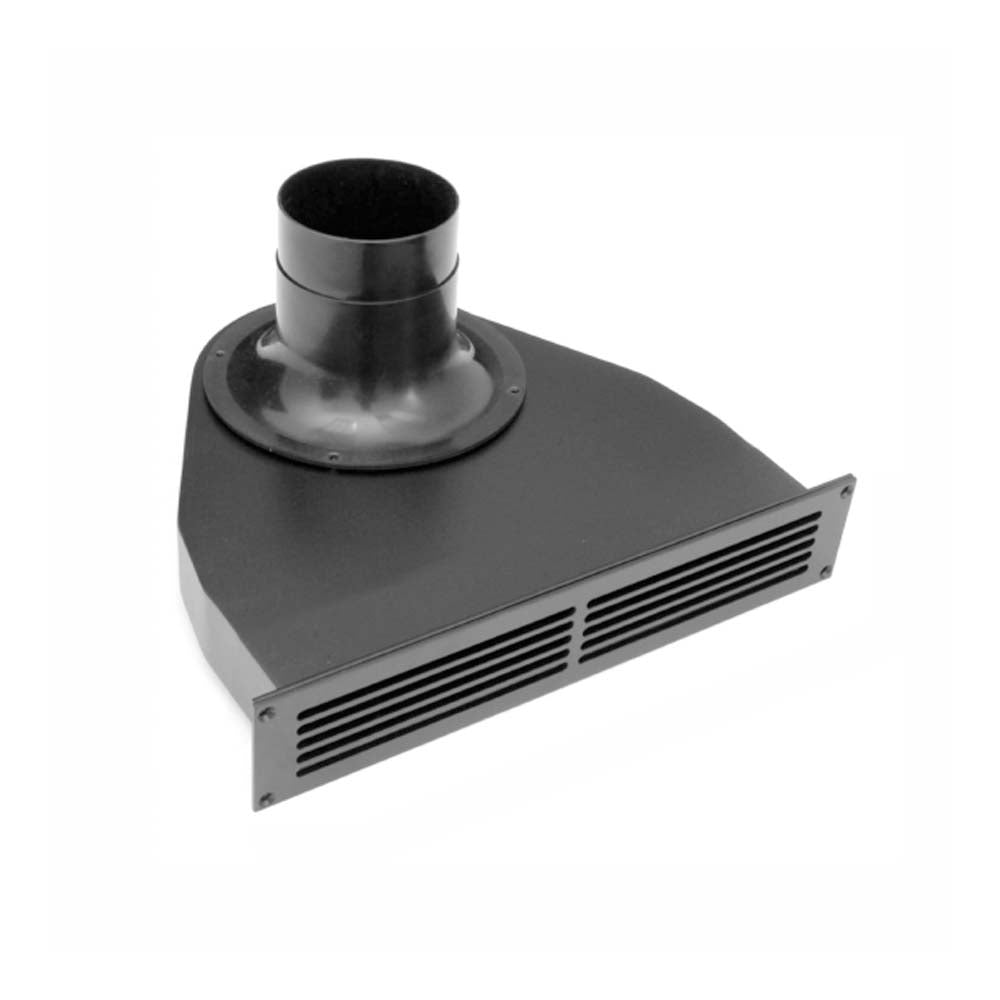

The TK4S-3X14-6 James Loudspeakers' through wall toekick is specifically designed for behind wall mounting with walls up to 152.4mm or 6" thick. The tube size is 101.6mm or 4" and has a straight through entry. They are compatible with the PowerPipe Subwoofer series (except the PP15-M) and allow a more versatile variety of aesthetic options to match your subwoofer port to any look you want.
The TK4S-3X14-6 James Loudspeakers' through wall toekick is specifically designed for behind wall mounting with walls up to 152.4mm or 6" thick. The tube size is 101.6mm or 4" and has a straight through entry of180°.
They are compatible with the PowerPipe Subwoofer series, except the PP15-M and allow a more versatile variety of aesthetic options to match your subwoofer port to any look you want.
This unit has an in room opening and a 10.25" / 260mm clearance from flange edge to tube. It has an overall toekick depth of 343mm.
The term "toekick" came from the first PowerPipe subwoofers where the port was designed to fit nicely in the toekick area in the front of a cabinet. Now, the term include all versions of ports used for PowerPipe subwoofers. These standard and custom toekicks are designed to be the adapter piece between the PowerPipe subwoofer of your choice.
Whether you're looking to match an HVAC vent, your Small Aperture series speakers or simply blend in with the surrounding material, there's a toekick design that perfectly matches your needs.
Please Note: The round pipe or tube may need to be physically deformed to fit the elliptical outlet. The JAM-TKAD-4-E adaptor will allow this to be achieved without having to force the JAM-TK4S-3X14-6.
Specification
| Compatible With | JAM-TKAD-4-E adaptor Used With: James PowerPipes: PP6-M, PP8-M, PP10-M, PP12, PP12-M, PP12-2 and PP12-2-M |
| Construction | Aluminium |
| Finish | Black powder coat |
| Cut Out | Height: 52.40mm / 2.063" Width: 322.33mm / 12.69" |
| Dimensions | Height: 69.85mm / 2.75" Width: 358.77mm / 14.13" Depth: 263.52mm / 10.38" |
Features
- Ideal for behind wall mounting
- Compatible with James Loudspeakers PowerPipes: PP6-M, PP8-M, PP10-M, PP12, PP12-M, PP12-2 and PP12-2-M^
- ToeKicks provide aesthetic options to match your subwoofer port

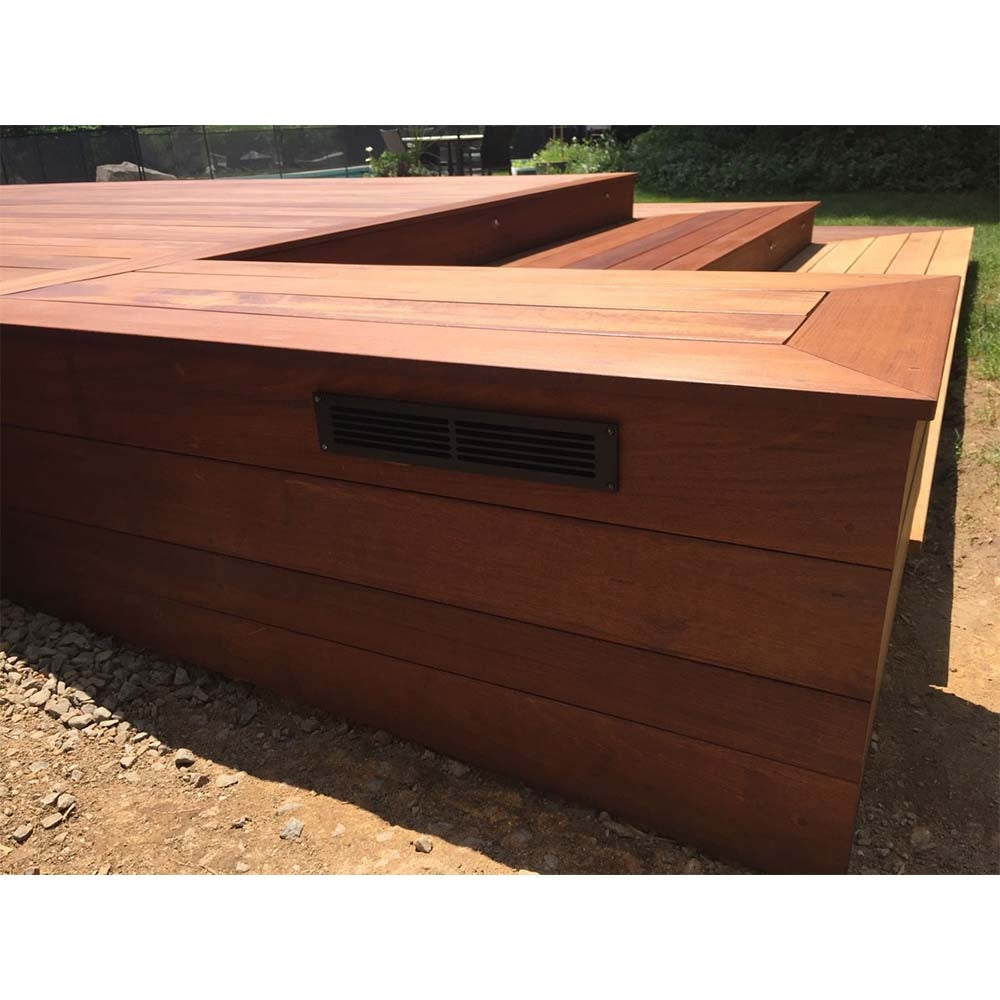

- Designed to fit perfectly in the toekick area in the front of a cabinet
^ Please refer to the Download section for compatible PowerPipe Series Data Sheets
Understanding toekick model numbers. The TK4S-3x14-6 models start with the "TK" designation for Toe Kick. The next character is a number and indicates the diameter of the tube or hose. James has used 3",4" and 8" tubes. If the 4th character is an "S", this indicates a "straight through" design, meaning no 90 degree bend. No "S" present indicates it is a 90 degree connection. The next group of numbers, such as 3 x 14, is an approximate port opening in inches. These are approximate dimensions, always check the drawings in the download section. Finally, there is a final dash number, such as "-6". This indicates the approximate distance from the front of the toe kick to the edge of the exit flange. So, if you need to go through a 4" stud wall, you need at least a -6 since the wall thick would be approximately 0.5" + 3.5" + 0.5" = 4.5" including sheetrock on both sides.
Please Note: The round pipe/tube may need to be physically deformed to fit the elliptical outlet. The JAM-TKAD-4-E adaptor will allow this to be achieved without having to force the JAM-TK4S-3X14-6.
User guides
Download User Guides:
Technical Drawing
