Description

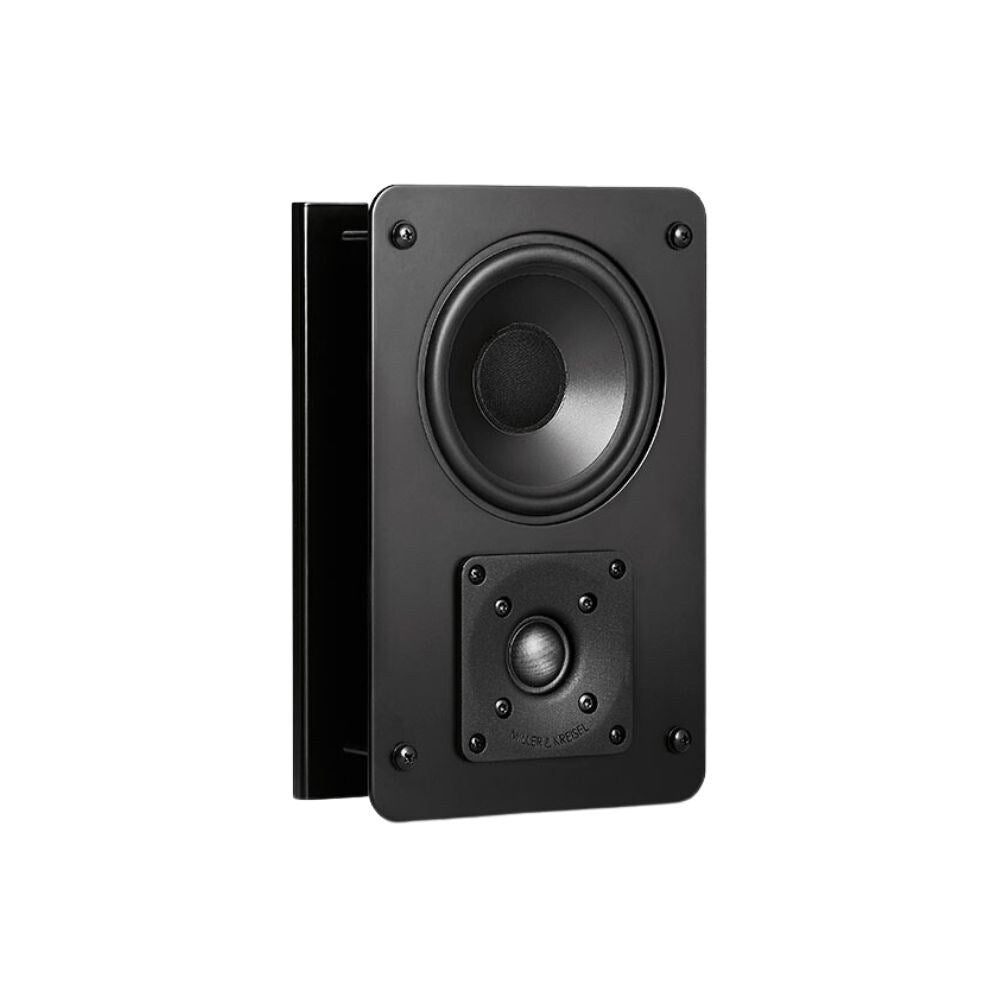

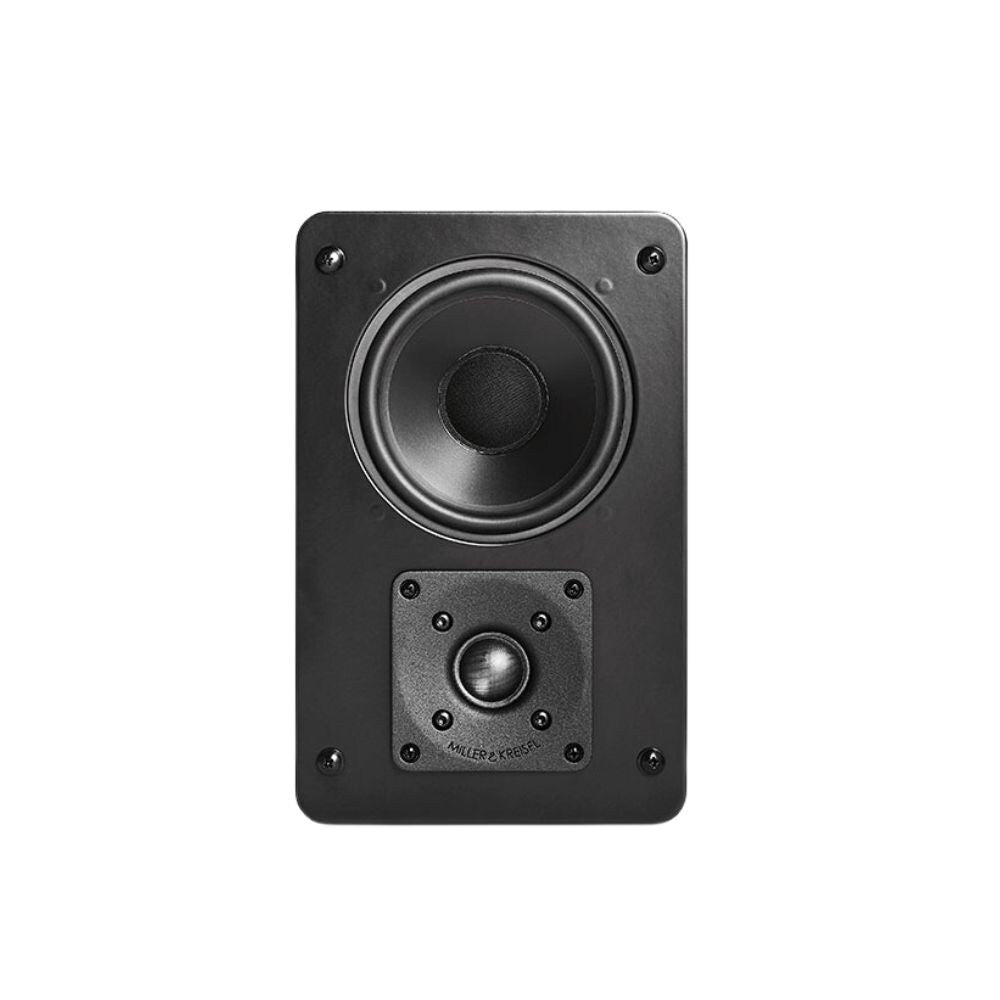

M&K Sound's MKS-IW85 full range speaker in a compact package that integrates beautifully into walls or ceilings. The versatile IW85 is superb in two channel or surround applications and can be combined with any M&K Sound speakers for a seamless sonic timber match.
M&K Sound's MKS-IW85 full range speaker in a compact package that integrates beautifully into walls or ceilings. The versatile IW85 is superb in two channel or surround applications and can be combined with any M&K Sound speakers for a seamless sonic timber match.
Ever more complex surround formats such as Dolby Atmos™, DTS X and Auro create an increasing need for high performance, yet concealed loudspeakers to handle installations incorporating 9 to 11 channels and beyond with discretion and style. This is where the MKS-IW85 comes into its own.
The IW85 speaker features a 1" high frequency driver and a 5.25" polypropylene cone woofer to deliver a 85Hz to 20kHz frequency response and 88dB sensitivity to ensure hours of high impact and dynamic listening pleasure around the home or in a dedicated AV room.

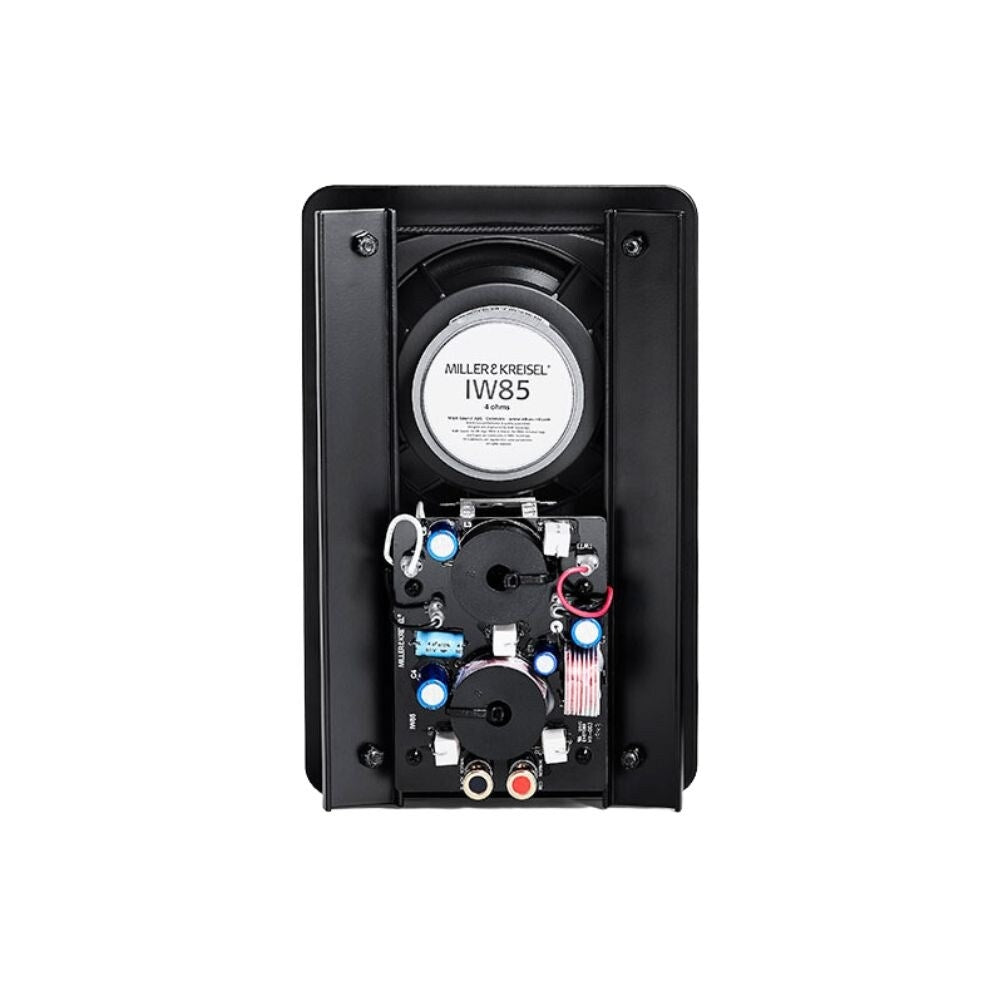

This speaker incorporates a second order phase focused crossover frequency of 1.6kHz supporting a smooth and imperceptible transition between tweeter and woofer. This speaker delivers extraordinary low end detail independently and can successfully be paired with any of M&K Sound's powerful and articulate subwoofers.

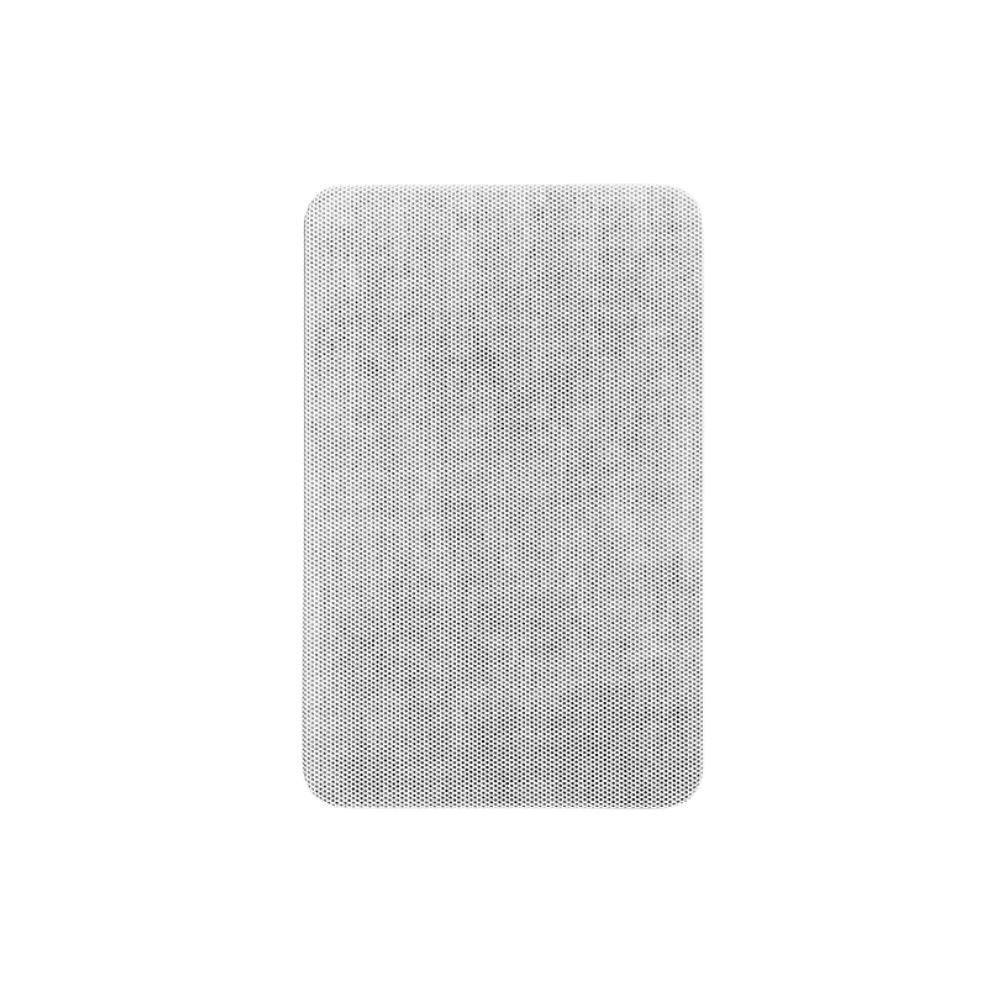

M&K's architectural frameless, low profile and metal mesh front grilles are a subtly elegant and virtually invisible element in any living space and the grilles can be painted to match the surrounding surface. For vibration free mounting, the M&K In Wall Series grilles are fitted with multiple rubber coated neodymium magnets with more than enough strength for safe in-ceiling use.
Further revisions take into account practical considerations such as service access and most critically, ensure easy, fast, accurate and safe installation. Simply mark the intended placement using the cut out template enclosed with the speaker, prepare the opening, attach speaker wire, drop in the box, tighten screws and fit the front grille.
All of this comes from the company universally regarded as 'The Choice of Professionals®'.
Specification
| Frequency Response | 85Hz to 20kHz (Average response in room +/- 2 dB) |
| Crossover Frequency | 1.6kHz "Phase focused" - 4th and 2nd order |
| Nominal Impedance | 4Ω (Z-min 3.4Ω) |
| Tweeter | 1 x 1.1" coated silk dome, low compression |
| Woofer | 1 x 5.25" coated glass fibre |
| Recommended Amplifier Power | 25 to 200W |
| Loudspeaker Sensitivity | 88dB (Average SPL 2.83V / 1m on axis 200Hz to 10kHz) |
| Enclosure Type | In wall with open back |
| Connection | Gold plating, push terminal |
| Finish | Black cabinet and front with white paintable grille |
| Cabinet Dimensions | Height: 264mm / 10.39" Width: 152mm / 6" Depth: 93mm / 3.66" |
| Grille Dimensions | Height: 270mm / 10.62" Width: 175mm / 6.88" |
| Cut Out Dimensions | Height: 239mm / 9.4" Width: 152mm / 6" |
| Weight | 4.1kg / 9lb |
Features
- Compact on wall or in ceiling speaker
- Superb in two channel or surround applications
- Timber matched and for use with any of M&K Sound's speakers
- 85Hz to 20kHz frequency response
- Phase focused crossover
- Paintable grille
- Multiple rubber coated neodymium magnets provide enough strength for safe in ceiling use
- Easy, fast, accurate and safe installation
User guides
Download User Guides:
Data Sheet
