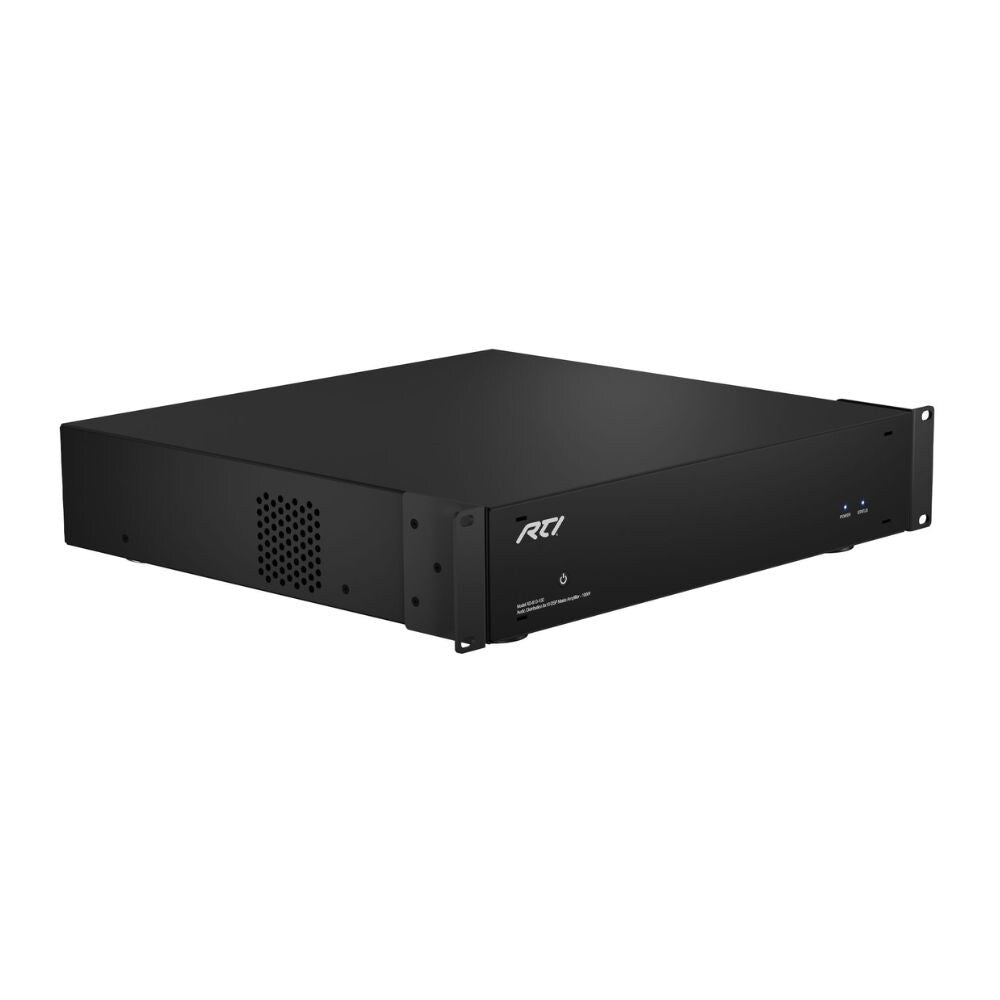

RTI's AD-810-100 8x10 DSP matrix amplifier combines Class D Cool Power® audio amplification with audio matrix switching for 8 sources to 8 amplified zones at 100W and pre-amp outputs to a further two zones.
RTI's AD-810-100 8x10 DSP matrix amplifier combines Class D Cool Power® audio amplification with audio matrix switching for 8 sources to 8 amplified zones at 100W and pre-amp outputs to a further two zones.
This DSP Matrix Amplifier delivers distribution of eight stereo audio sources to ten zones, with eight zones amplified at 100W. Two zones feature pre-amp outputs to integrate external power amplifiers or subwoofers.
The AD-810-100 enables seamless routing of both digital and analogue sources to any desired zone and features a comprehensive set of DSP controls. This includes a 5 band parametric EQ, allowing integrators to fine tune acoustic characteristics and tailor sound to specific spaces, plus mixing and auto ducking features facilitate seamless integration of microphones and doorbells, effortlessly prioritising audio sources and ensuring smooth transitions.
Amplification is with an efficient Class D Cool Power® design that optimises performance while minimising heat generation. Up to 100W per channel power output provides for a robust and clear audio experience even in demanding environments.
For projects that need more power, integrators can bridge outputs to enable a 200W per channel output.
For projects that need more zones, up to eight AD-810-100 chassis can be combined to deliver 64 amplified and 16 pre-amp zones.
Specification

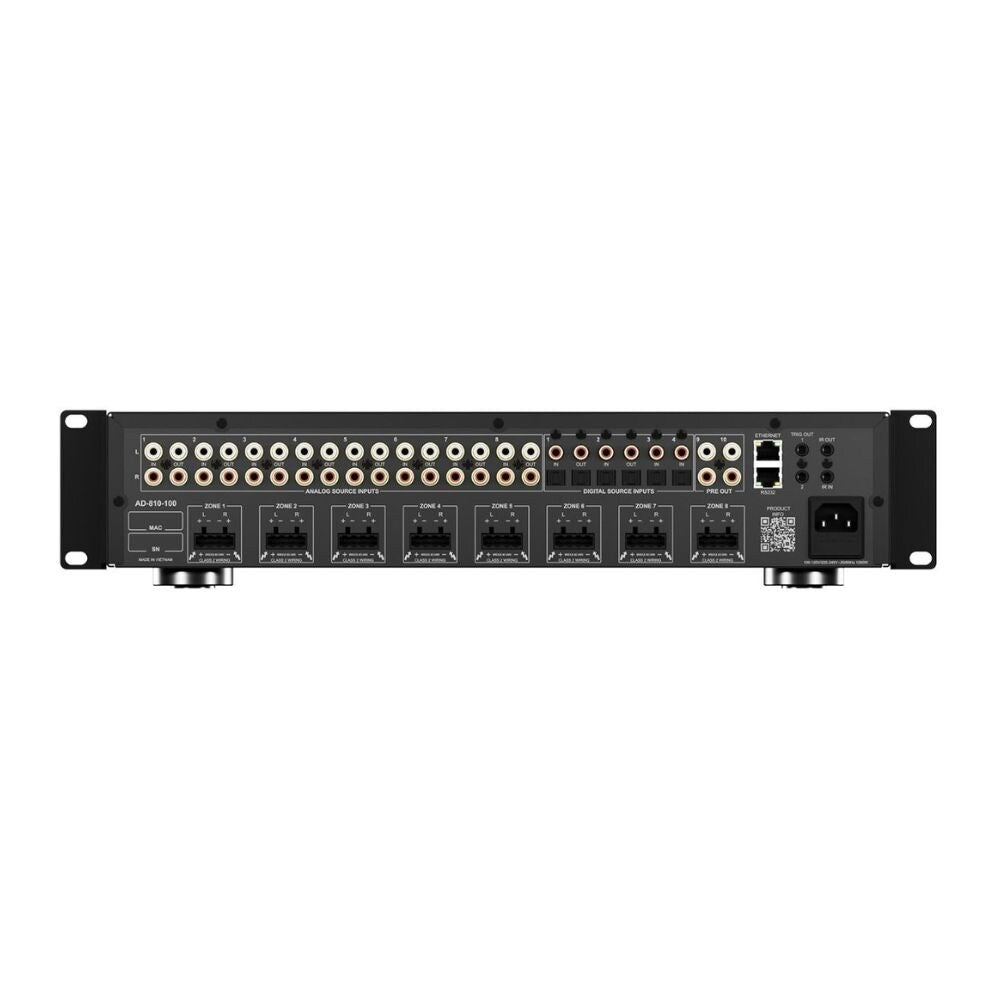

| Analogue Sources | 8 RCA stereo |
| Digital Sources | 4 Coax and 4 optical Mirror analogue 1 - 4 |
| Loop Out | 8 Analogue and 2 digital |
| Amplified Zones | 8 Stereo 16 channels |
| Preamp Zones | 2 Stereo or 4 mono 4 channels |
| Audio Zone Expansion | Up to 80 zones by combining up to 8 AD-810-100 units |
| Input Impedance | 20kΩ |
| Amplifier | Class D |
| Power |
8Ω: 50W per channel all channels driven 4Ω: 75W per channel all channels driven 8Ω Bridged: 150W/ per channel bridged all channels driven |
| Analogue Input | 2 Vrms Maximum |
| Analogue Output | 2 Vrms Maximum, volume controlled |
| Volume Range | 0 to 100 or -80dB to 0dB |
| Digital Optical Input | Up to 192kHz/24Bit sample rate. PCM only |
| Digital Coaxial Input | Up to 192kHz/24Bit sample rate. PCM only |
| THD-N |
THD+N <0.01%, 1kHz @ 1/8 rated power THD+N <0.05%, 20Hz-20kHz @ 1/8 rated power |
| SNR |
>95 dB, A-weighted input to output @ rated power @amp >100 dB, A-weighted input to output @ pre-amp out |
| Frequency Response | 20Hz to 20kHz +/- 2 dB @ 4Ω and 8Ω |
| Dynamic Range | >95dB A-weighted |
| Sampling Frequency | 48kHz |
| RTI or 3rd Party Control | IP (RJ45), RS-232 (RJ45) and IR (3.5mm mono) |
| AC Input Voltage | 100 to 120V, 220 to 240V~, 50/60Hz, 800W |

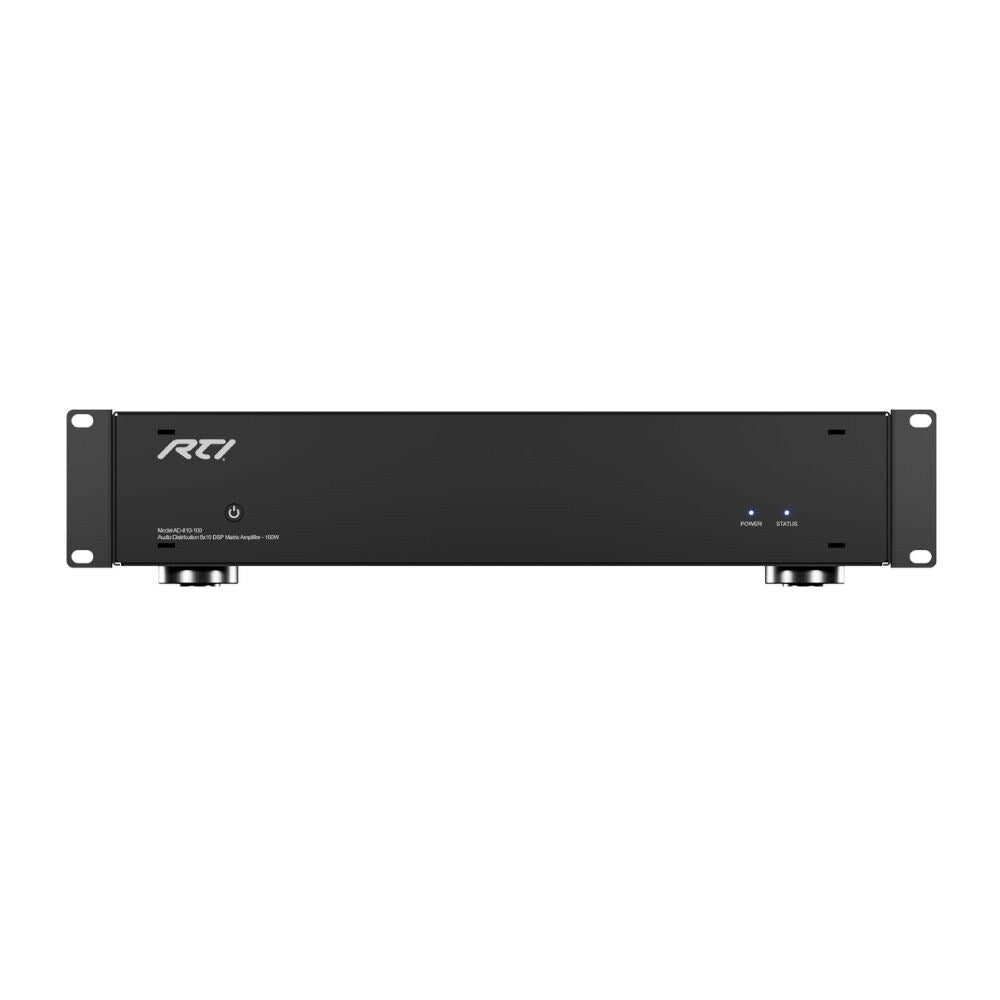

| Power Switch | Front panel On/Off with LED power indicator |
| Mounting | Rack mount or free standing |
| Operating Temperature |
0°C / 32°F to 50°C /122°F Relative Humidity: 5% to 95% non condensing |
| Dimensions |
Height: 416.5mm / 16.40" Width: 437mm / 17.02" Depth: 89mm / 3.50" |
| Weight | 10.78Kg / 23.77" |
| Included | Rack ears and removable feet |
| Warranty | 3 years parts and labour RTB |
Features

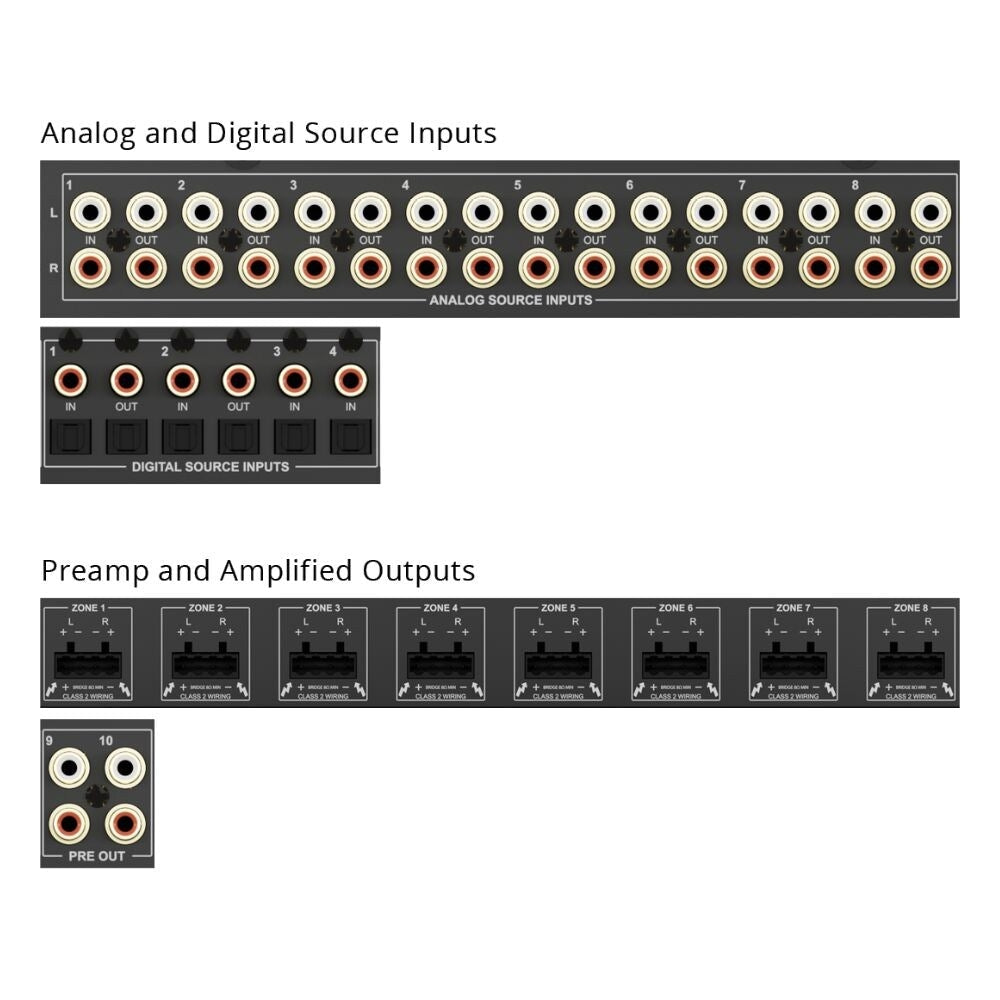

- Eight analogue audio source inputs and four mirrored digital inputs, mirrored analogue inputs
- Ten stereo audio output zones with eight amplified stereo and two preamp stereo outputs
- Class D amplifier provides a robust and clear audio experience with 100W @ 4Ω per channel per zone
- Distribute eight audio source inputs to ten zones, expandable to 80 zones by stacking up to eight AD-810-100 units
- Fine tune acoustic characteristics for each zone with the 5 band parametric EQ, mixing and auto ducking features
- Configure and optimise DSP and matrix settings
- Multiple control options with RS-232, IP and IR
- Rack mount or free standing installation with included rack ears and removable feet
