Description
Description:

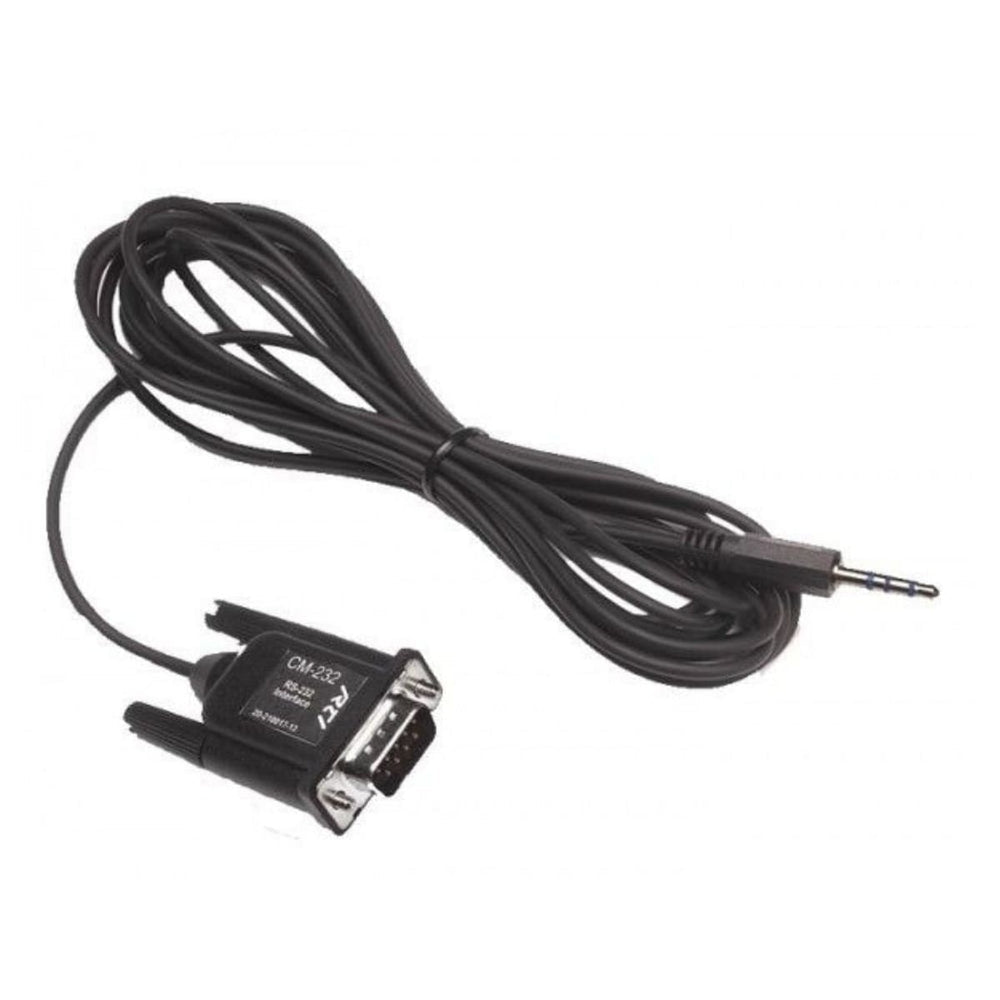

RTI's CM-232 communication module provides an RS-232 interface to almost any RS-232 enabled device. It attaches to an RTI control processor on one end and a device's DB-9 serial port connector on the other end.
The CM-232 is capable of one way transmission, as no receive function is supported, of user defined character or binary strings. These character strings, as well as the baud rate, parity and bit structure are programmed using RTI's Integration Designer software.
This communication module connects to the output ports of the control processor or expansion module, such as XP3, XP6, XP8s (RTI-XP) or PCM-4. The software selectable baud rate up to 115.2K, depending on control processor and power is supplied by the output ports.
Features:
- Connects to the output ports of the control processor or expansion module, such as XP3, XP6, XP8s (RTI-XP) or PCM-4
- Allows the control processor to send commands to almost any RS-232 enabled device
- Software selectable baud rate up to 115.2K, depending on control processor
- Industry standard DB-9 male connector
- Power is supplied by the output ports
- User definable output strings using Integration Designer® software
Specifications:
Baud Rate | Software selectable, attached control system dependent |
Connector | DB-9 male |
Pins Used | GND, TXD, DTR (tied high) |
Control Cable Length | 3.7m |
Operating Temperature | 0°C / 32°F to 50°C / 122°F |
Operating Humidity | 5% to 95% non condensing |
Dimensions |
Height: 14mm / 0.55" Width: 33mm / 1.30" Depth: 51mm / 2.01" |
Warranty | 3 years parts and labour RTB |
