Description

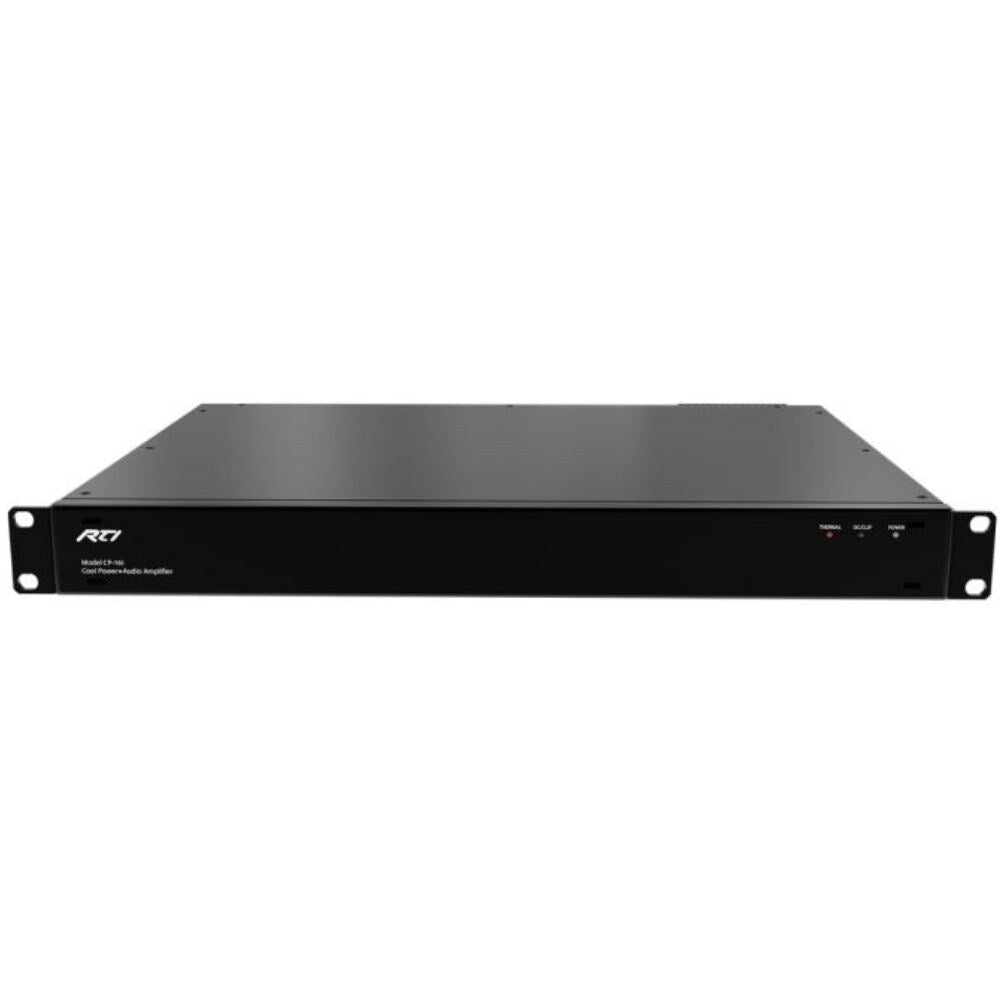

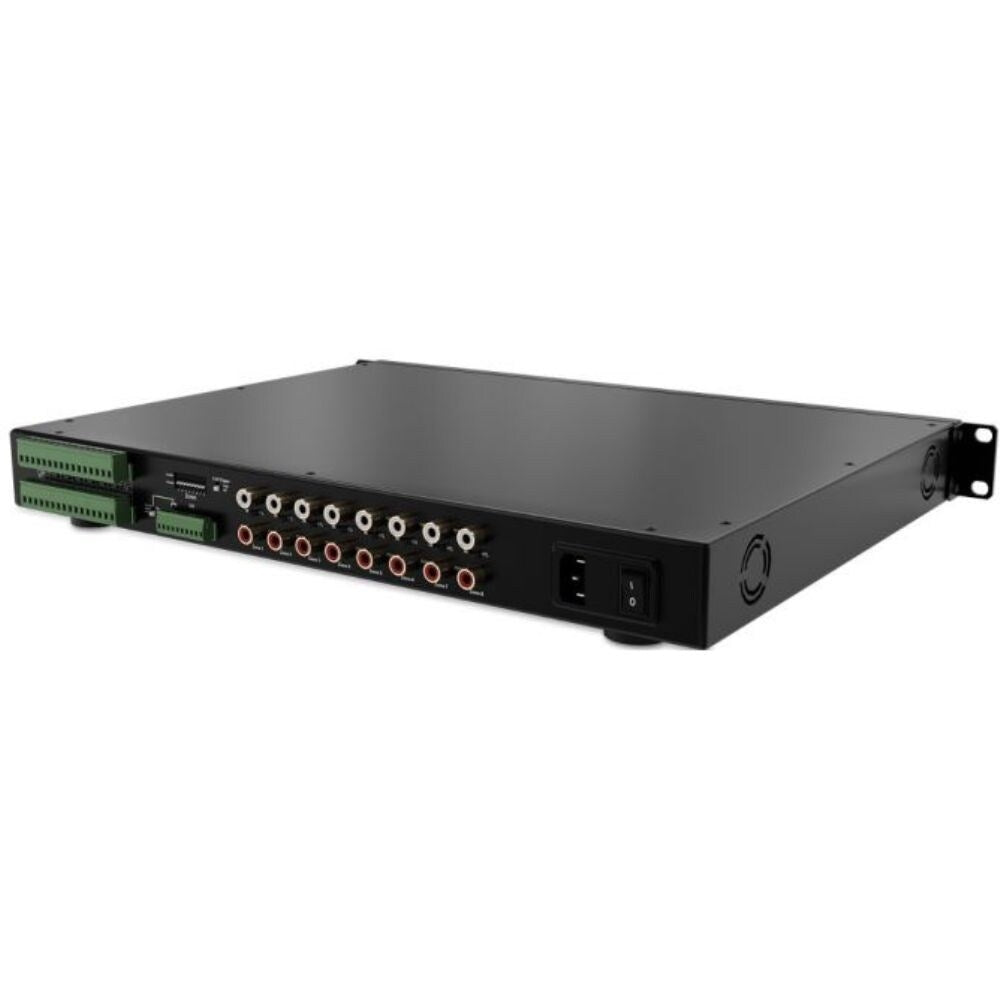

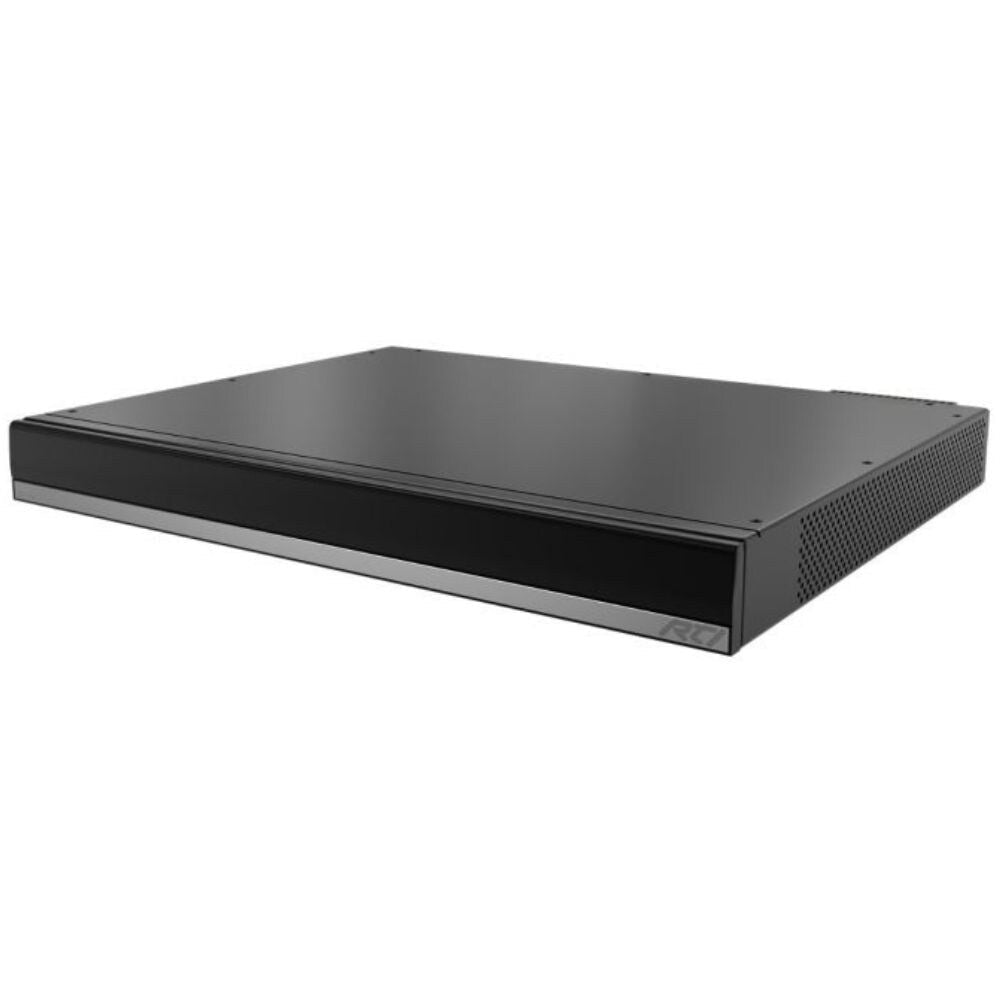

RTI's CP-16i 16 channel Cool Power® distributed audio amplifier is ideal for discerning listeners who demand the highest quality audio in every room. Capable of delivering 100W of true audiophile grade sound to 16 channels, the Cool Power amplifier expands the reach of any audio distribution system.
RTI's CP-16i 16 channel Cool Power® distributed audio amplifier is ideal for discerning listeners who demand the highest quality audio in every room.
Capable of delivering 100W of true audiophile grade sound to 16 channels, the Cool Power amplifier expands the reach of any audio distribution system.
Engineered for performance, the CP-16i features highly efficient Class-D amplification, overload detection and a compact chassis that fits nicely into one rack space.
The power output is 100W per channel at 4Ω and bridgeable audio outputs for increasing power to 200W per channel. It easily expands the RTI AD-4x, AD-8x and AD-16x (RTI-AD) audio distribution systems and is compatible with virtually any audio distribution system. The power control via voltage triggers or audio signal sense.
Thermal overload and OC (Over Current) monitor indicators protect the amplifier, whilst the Class-D amplifier technology ensures efficient heat dissipation and low power consumption.
Specification
| AC Input Voltage | 115V AC or 240V AC , switchable, 230W |
| Power Switch | Front panel On/Off control with LED power indicator |
| Output Zones | Eight, two channels each (bridgeable) |
| Power / Channel |
100W per channel in SE, 4Ω (1% THD+N, 20Hz to 20kHz) 200W per channel in BTL, 8Ω (1% THD+N, 20Hz to 20kHz) |
| Frequency Response | ±0.4dB, 10Hz to 20kHz, all loads |
| Gain (20Hz to 20kHz) | 25.8dB ±0.5dB |
| Input Impedance | 47K Ω |
| Mounting | 1U rack ears included or free standing |
| Environment Operating Temperature | 0°C / 32°F to 45°C / 112°F |
| Thermal Dissipation | 2 low noise fans mounted in side panels |
| Dimensions |
Height: 44mm / 1.73" Width: 438mm / 17.24" Depth: 228mm / 8.98" |
| Weight | 4.08kg / 8.99lb |
| Warranty | 3 years parts and labour RTB |
Features
- Sixteen channel amplifier utilising Cool Power® audio technology
- Power output is 100W per channel at 4Ω
- Bridgeable audio outputs for increasing power to 200W per channel
- Easily expands the RTI AD-4x, AD-8x and AD-16x (RTI-AD) audio distribution systems
- Compatible with virtually any audio distribution system
- Power control via voltage triggers or audio signal sense
- Signal Sense feature automatically powers the CP-16i on when an audio signal is detected or puts the unit is standby mode when no signal is present
- Voltage trigger pass through for powering on/off additional amplifiers
- Thermal overload and OC (Over Current) monitor indicators protect the amplifier
- Included 1U rack ears or free standing installation possible
- Class-D amplifier technology ensures efficient heat dissipation and low power consumption
