Description:

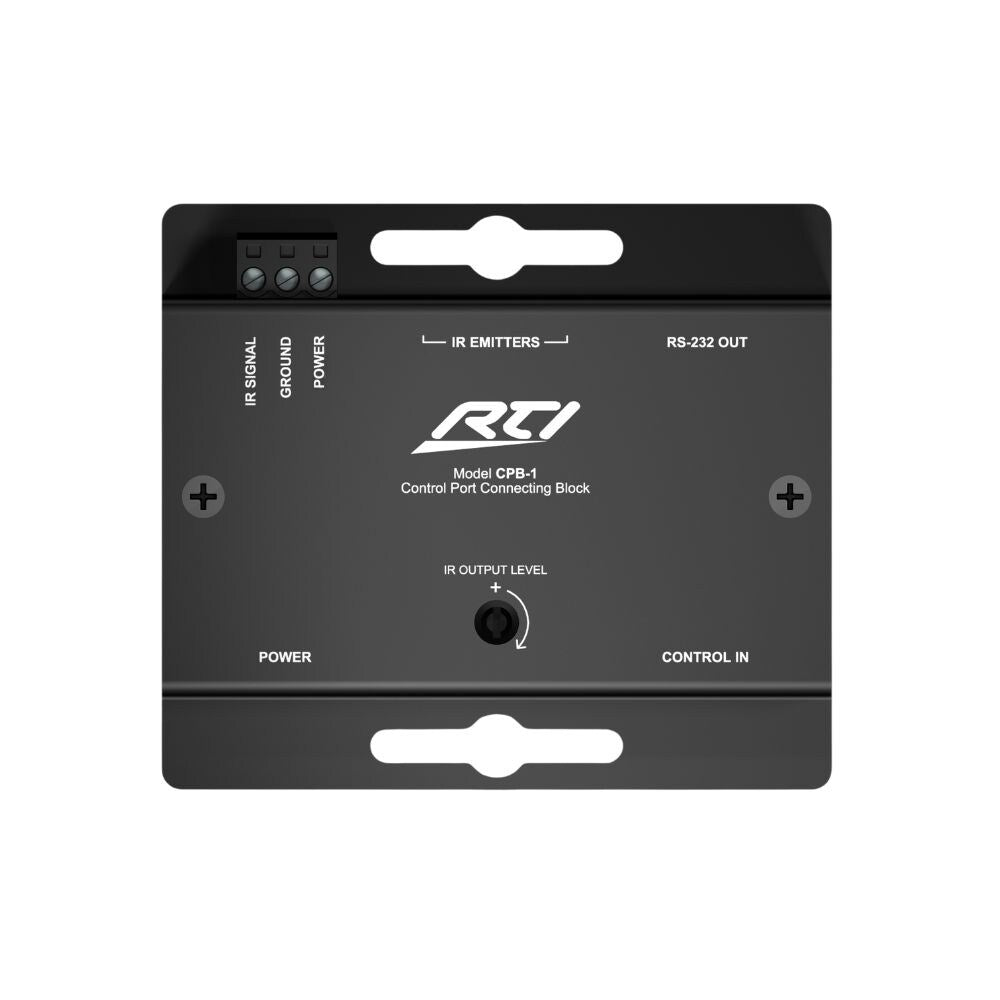

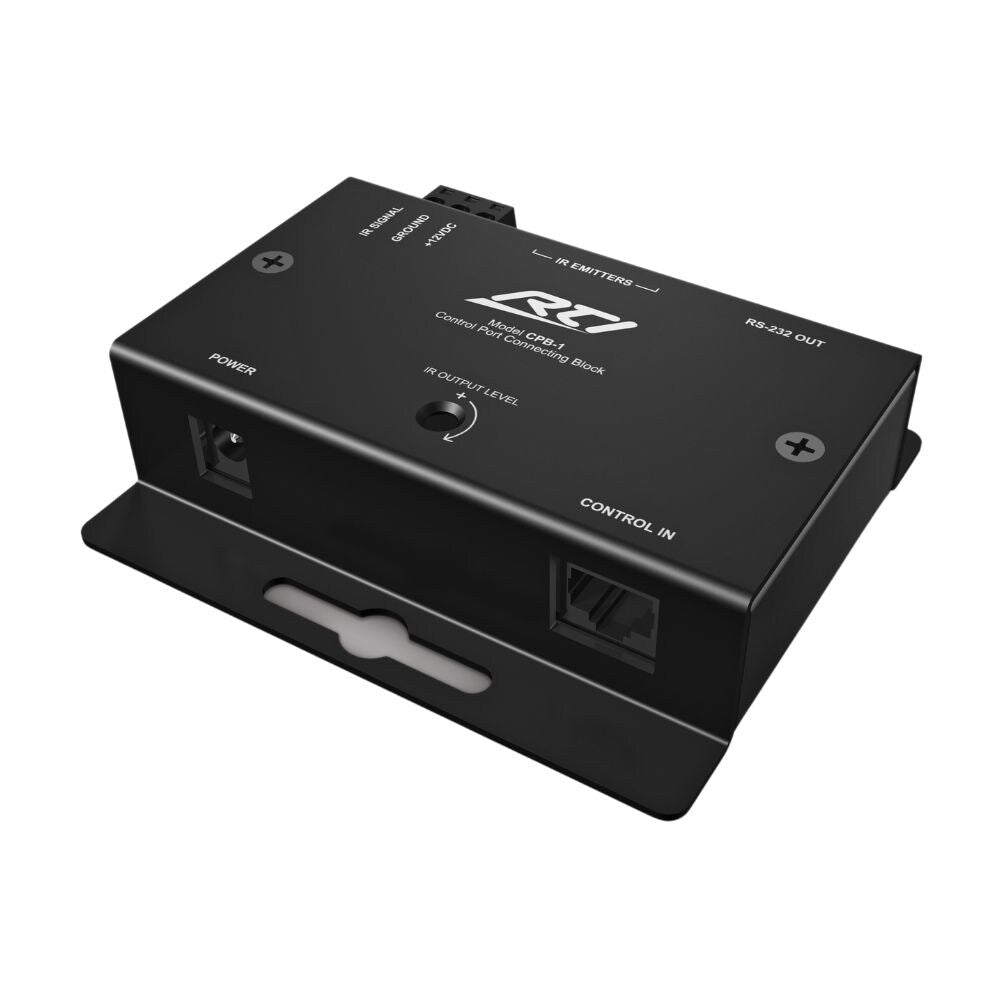

RTI's CPB-1 control port connecting block provides a cost effective solution for one room installations, that require an in wall controller and both infrared and RS-232 control of local devices.
It provides power to one RTI user interface and has two output ports that allow the connection of up to two single or dual infrared emitters. It also incorporates an RS-232 port for control of devices without the need of an RTI processor.
The connecting block also includes 12V DC power supply.
Features:
- Provides power for one in wall controller
- Two infrared emitter outputs
- Variable IR output power
- Allows RTI in wall controllers to communicate via one way RS-232 to devices without a processor
- Includes 12V DC power supply
Specifications:
| Power | +12V -16V DC |
| IR Output Ports | Two, 3.5mm jacks |
| IR Output Drive | 100mA maximum, per port, adjustable |
| IR Input | Compatible with industry standard repeaters and receivers |
| RS-232 | RJ45 connection, includes RJ45 to DB9 adapter |
| Mounting | Wall mount or free standing |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions | Height: 89mm / 3.50" Width: 102mm / 4.02" Depth: 28mm / 1.10" |
| Weight | 238g / 0.53lb |
| Warranty | 3 years parts and labour RTB |
