Description:

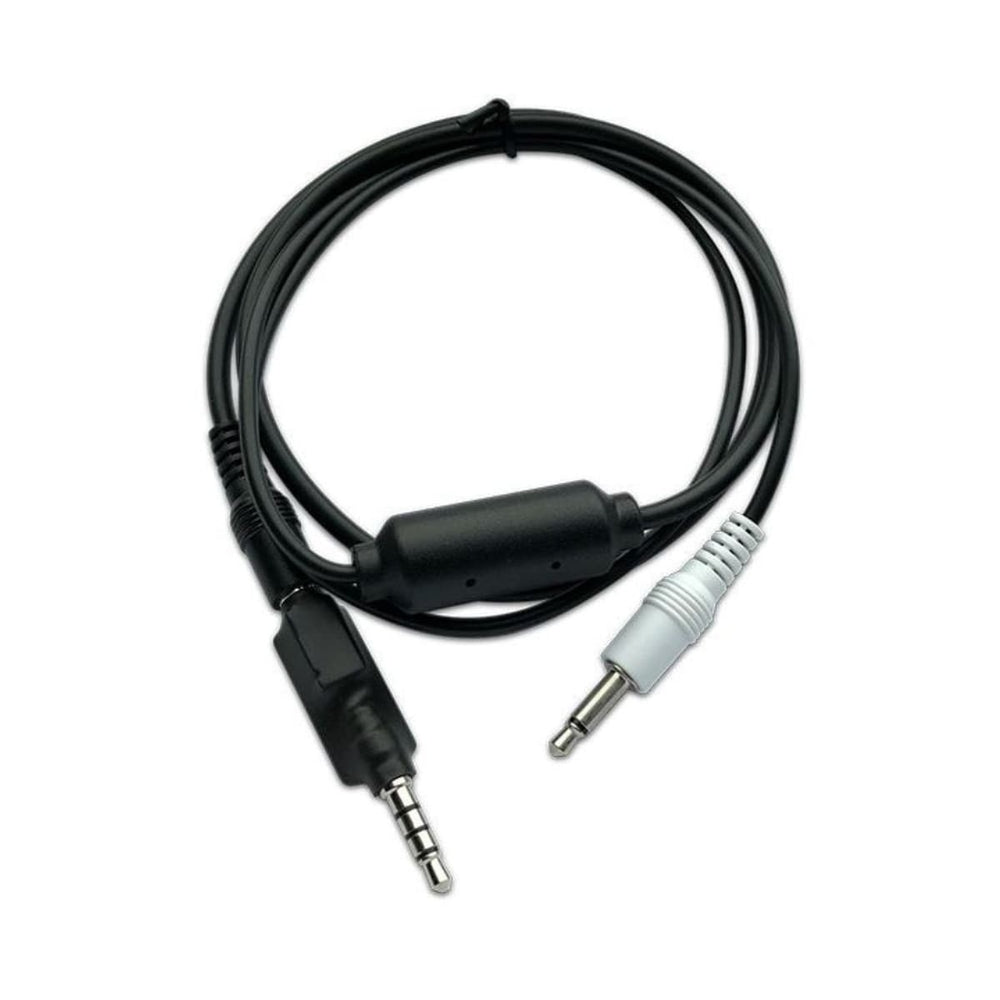

RTI's OPT-1x Opto-Coupling Adaptor Cable is designed for processor connectivity to X-Series HDBaseT and AV distribution products. The infrared adaptor cable is required for IR pass through over HDBaseT.
The OPT-1x connects to an RTI processor and an X-Series HDBaseT matrix switcher in order to send IR signals from the processor to the matrix switcher, which passes the IR signal through to a remote HDBaseT receiver.
The cable length is 0.5m.
Features:
- 3.5mm stereo mini jack to 3.5mm mono mini jack
- 0.5m cable
- Sends IR signals from an RTI control processor to an X-Series HDBaseT matrix switch or remote HDBaseT receiver
Specifications:
| Connectors | 3.5mm stereo mini jack to 3.5mm mono mini jack |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95%non condensing |
| Weight | 3g / 0.01lb |
| Cable Length | 0.5m |
| Warranty | 3 months RTB |
