Description
Description:

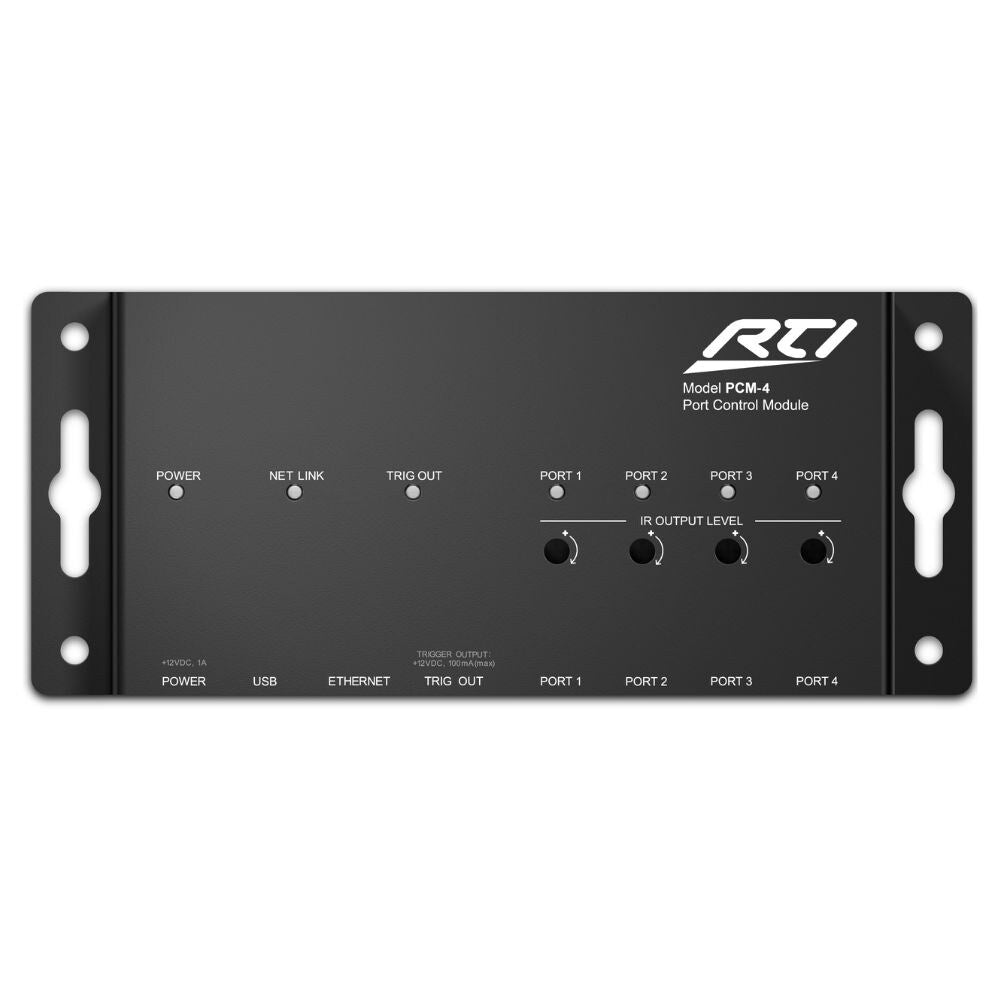

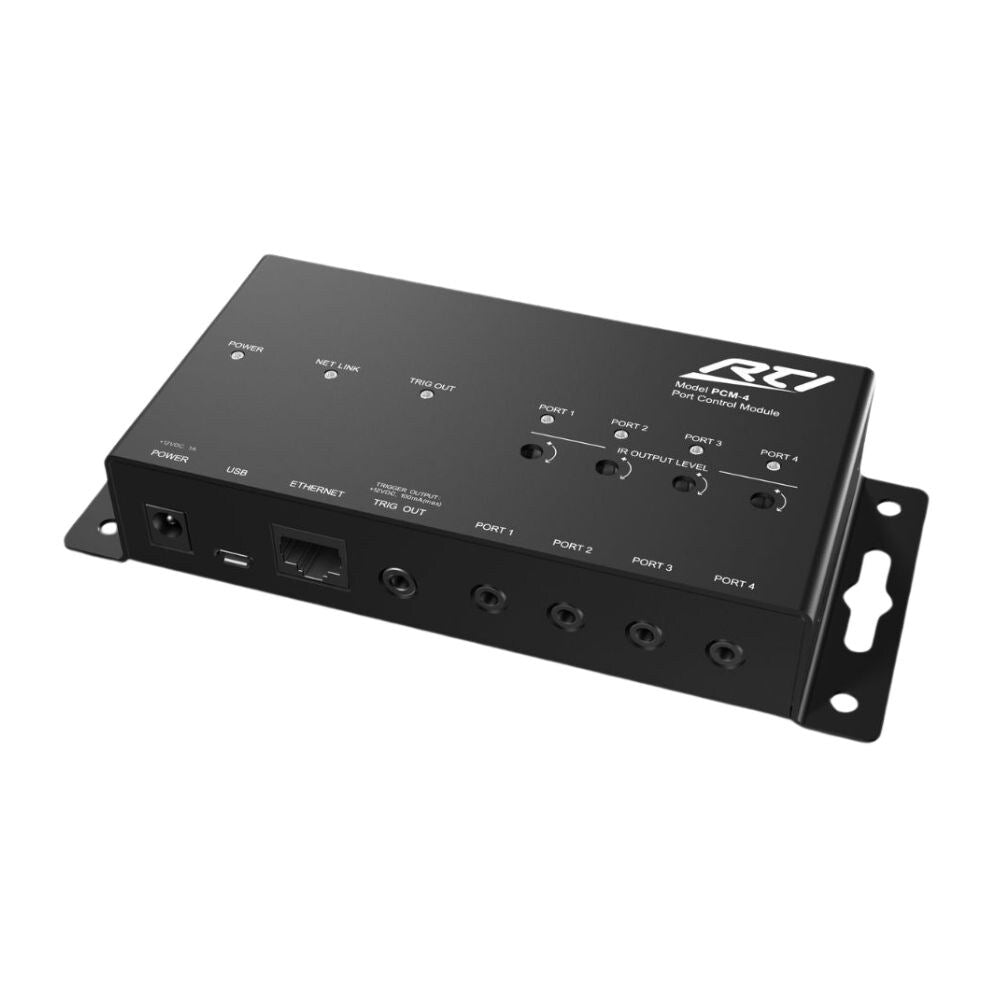

RTI's PCM-4 four port expansion control module with ethernet with four I/O ports and a 12V DC trigger output, expands the output capabilities of an XP series control processor to accommodate larger projects.
Four multi purpose I/O ports and a voltage trigger output, 12V DC provide convenient control anywhere a local area network LAN connection exists.
Each MPIO port provides IR routing capabilities, one way RS-232 communication, using CM232 and power sensing, using VPS1/SPS1.
This expansion module is designed for RTI modules as well as industry-standard IR emitters and its infrared input is compatible with industry standard repeaters and receivers.
The PCM-4 is constructed of formed steel with a black powder coating.
Features:
- Adds four multi purpose I/O ports to an RTI XP series control processor
- Use multiple PCM-4 modules for virtually unlimited control of devices
- Communication with XP processor over Ethernet for easy expansion to anywhere a LAN connection exists
- Variable IR output power
- One 12V DC voltage trigger output
- Powered via 12V DC power supply, included or PoE available separately
- Constructed of formed steel with a black powder coating
Specifications:
| Power | +12VDC, 1A or PoE |
| Multi-Purpose Output Ports | Four, custom 3.5mm 4 conductor jacks |
| IR Output Drive | 100mA maximum, per port, adjustable |
| IR Frequency Range | 15kHz to 460 kHz |
| IR Input | Compatible with industry standard repeaters and receivers |
| Ethernet Port | One, RJ-45, 10/100Base-T |
| Trigger Output | One, 12VDC, 100mA max |
| Mounting | Wall mount or free standing |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 74mm / 2.91" Width: 174mm / 6.85" Depth: 31mm / 1.22" |
| Weight | 406g / 0.90lb |
| Warranty | 3 years parts and labour RTB |
