Description
Description:

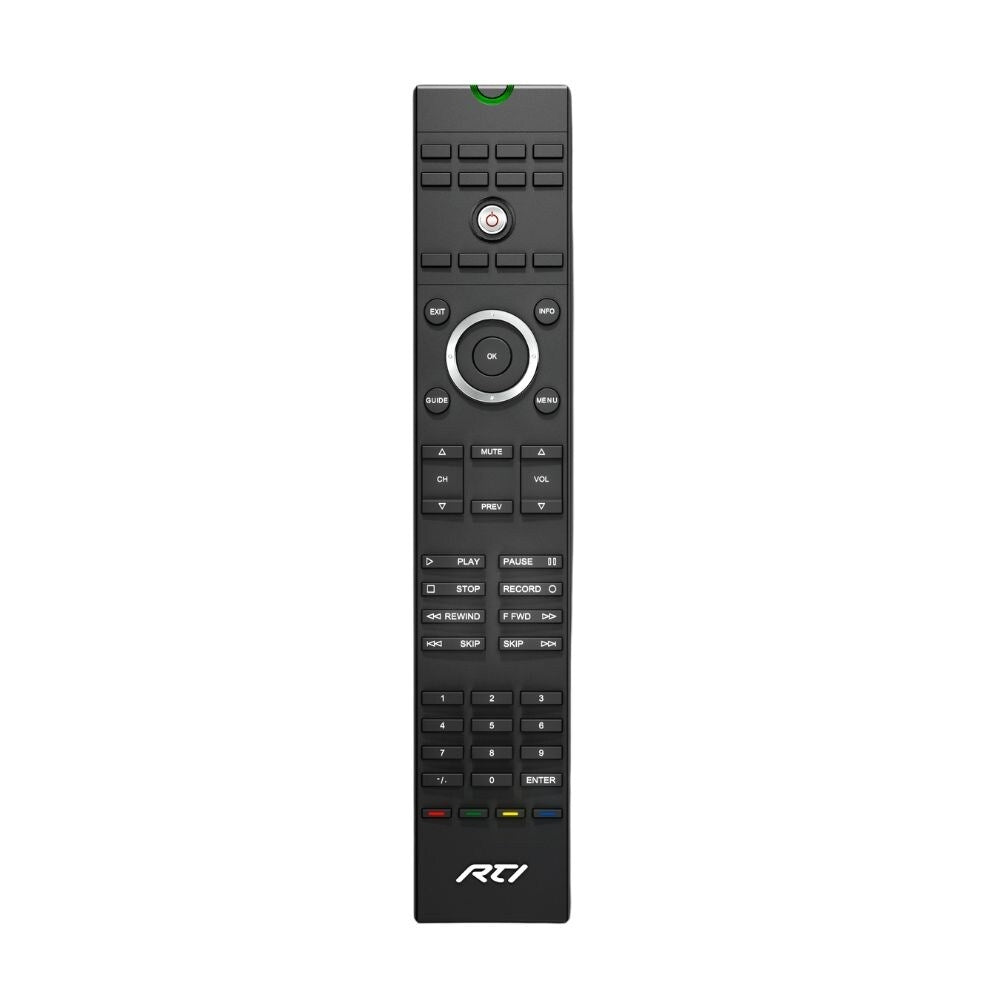

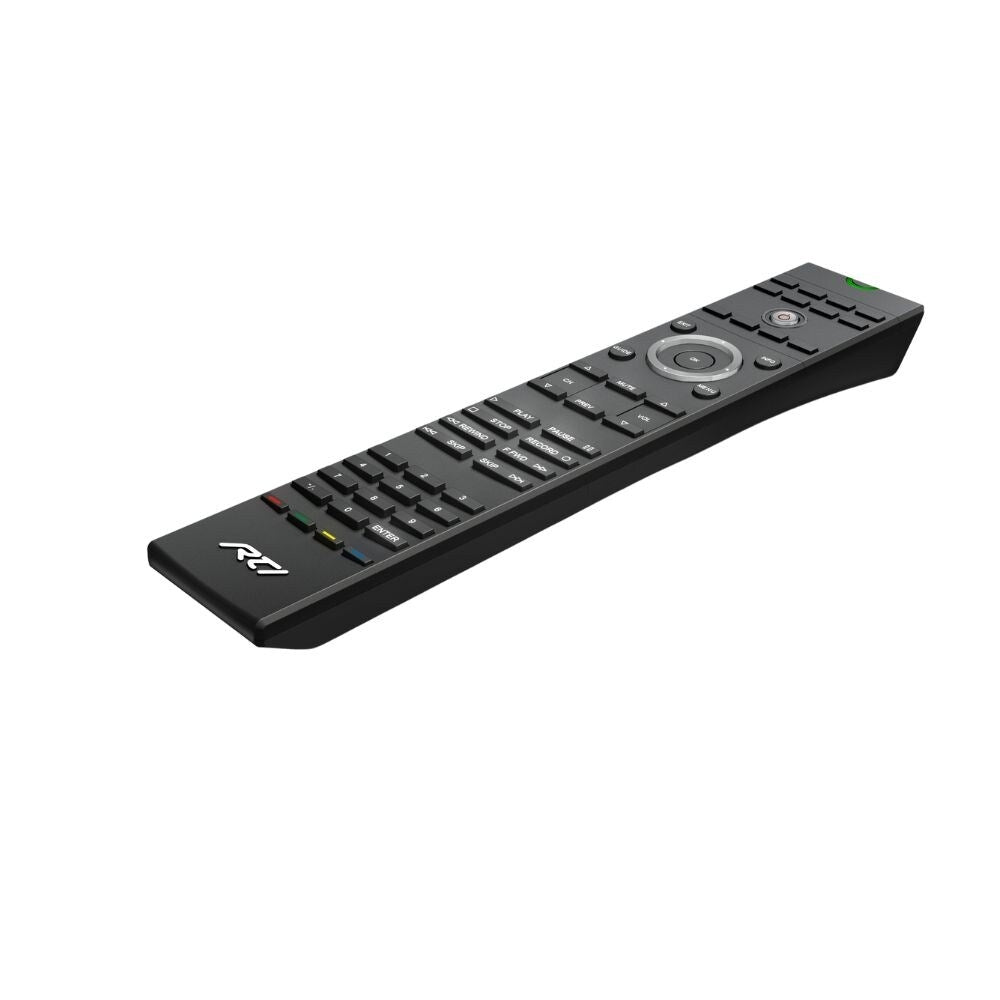

RTI T1-B+ universal system controller is the third generation of RTI's popular T1 universal system controller, now featuring the RTI dual RF platform and backlit buttons.
The T1-B+ allows all other factory remote controls to be combined into one simple, ergonomic user interface providing powerful one handed system control.
Featuring a sleek new industrial design and perfect assortment of keypad buttons for commonly used functions, the T1-B+ can operate today's sophisticated media system, no matter how complex, at an affordable price.
The controller's dual RF transmission capability uses 433MHz and 2.4GHz (utilising Zigbee® technology) for bidirectional control communication with RTI processors. The RF control requires an RM-433 433MHz antenna, ZM-24 2.4GHz transceiver module and an RTI control processor or an RTI control processor with an integrated antenna. With IR control drive devices directly without a control processor
52 Hard Buttons provide quick access to often used control functions such as lights, music and audio/video source selection without the need to navigate through the graphical interface on your touch panel. With Laser Shark customise button labels with text or graphics.
Pick up your remote and the accelerometer automatically wakes the touch screen
With Lithium Ion Battery or Charging Cradle, this remote can operate 5 to 7 days on average use. Charge it conveniently with the included charging cradle
Features:
- 2 Way control is delivered with the buttons of your remote and get status feedback via button backlight
- Ergonomic design permits effortless one handed operation
- Dual RF transmission capability uses 433MHz and 2.4GHz (utilising Zigbee® technology) for bidirectional control communication with RTI processors
- RF control requires an RM-433 433MHz antenna, ZM-24 2.4GHz transceiver module and an RTI control processor or an RTI control processor with an integrated antenna
- With IR control devices directly without a control processor
- 52 Hard Buttons provide quick access to often used control functions such as lights, music and audio/video source selection without the need to navigate through the graphical interface on your touch panel
- With Laser Shark customise button labels with text or graphics
- Pick up your remote and the accelerometer automatically wakes the touch screen
- USB programming port
- With Lithium Ion Battery or Charging Cradle, this remote can operate 5 to 7 days on average use
- Charge it conveniently with the included charging cradle
Specifications:
| Power | 3.6 VDC, 900mAh Lithium Ion battery pack |
| Battery Charge Time | 3 to4 hours |
| Power Management | Automatic On/Off (tilt switch) |
| IR Control Range | 9.1m @ 60° |
| IR Frequency Range | 15kHz - 460kHz |
| RF Control Range | Up to 30.5m with optional system interfaces or processors |
| Radio Frequency Carrier | 433 MHz and 802.15.4 @ 2.4Ghz (Zigbee® technology) |
| Communications | USB programming port |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions (W x H x D) |
Height: 48mm /1.89" Width: 254mm / 10" Depth: 23mm / 0.91" |
| Weight Including Battery | 200g / 0.44lb |
| Warranty | 3 years parts and labour RTB |
