Description:
RTI's VDA Series HDMI® 2.0 splitters deliver 4K video signal from one source to up to four displays simultaneously.
Compliant with HDMI2.0 and HDCP2.2, these HDMI® 2.0 splitters support resolutions up to 4K and supports 3D at 1080.

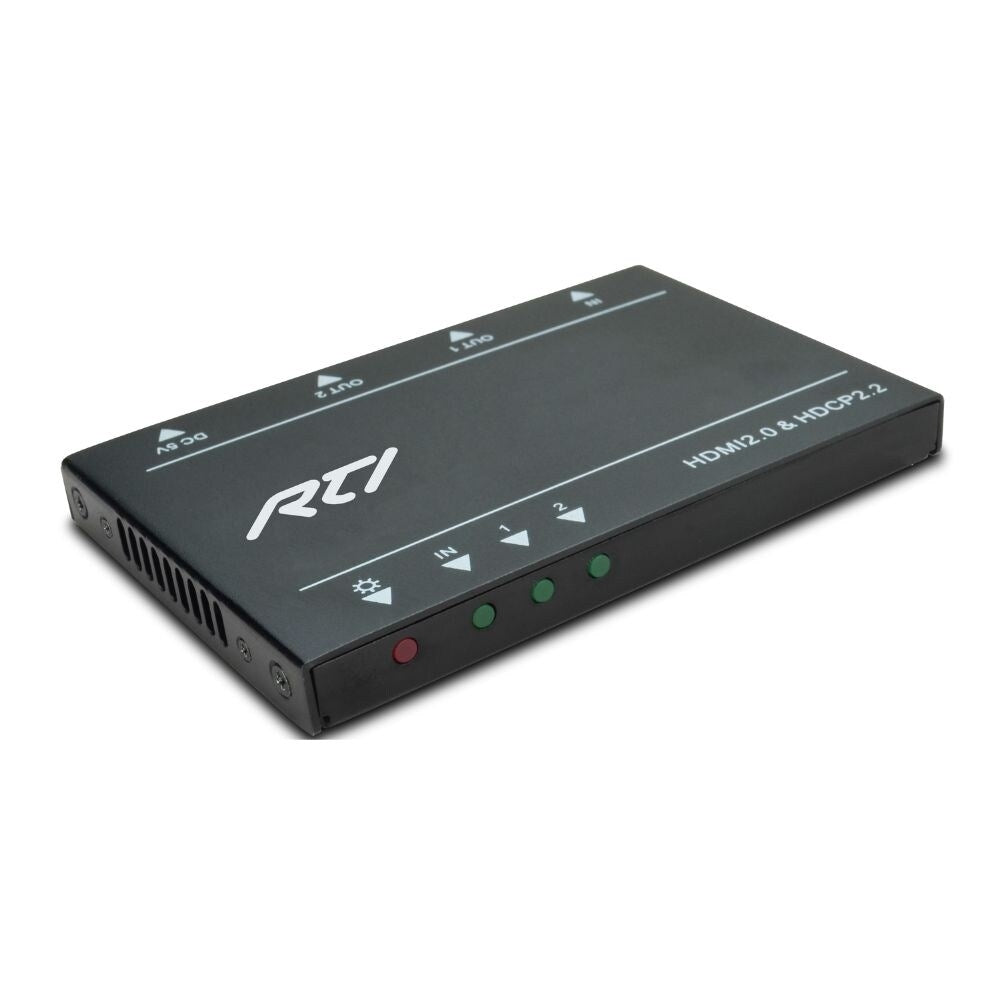

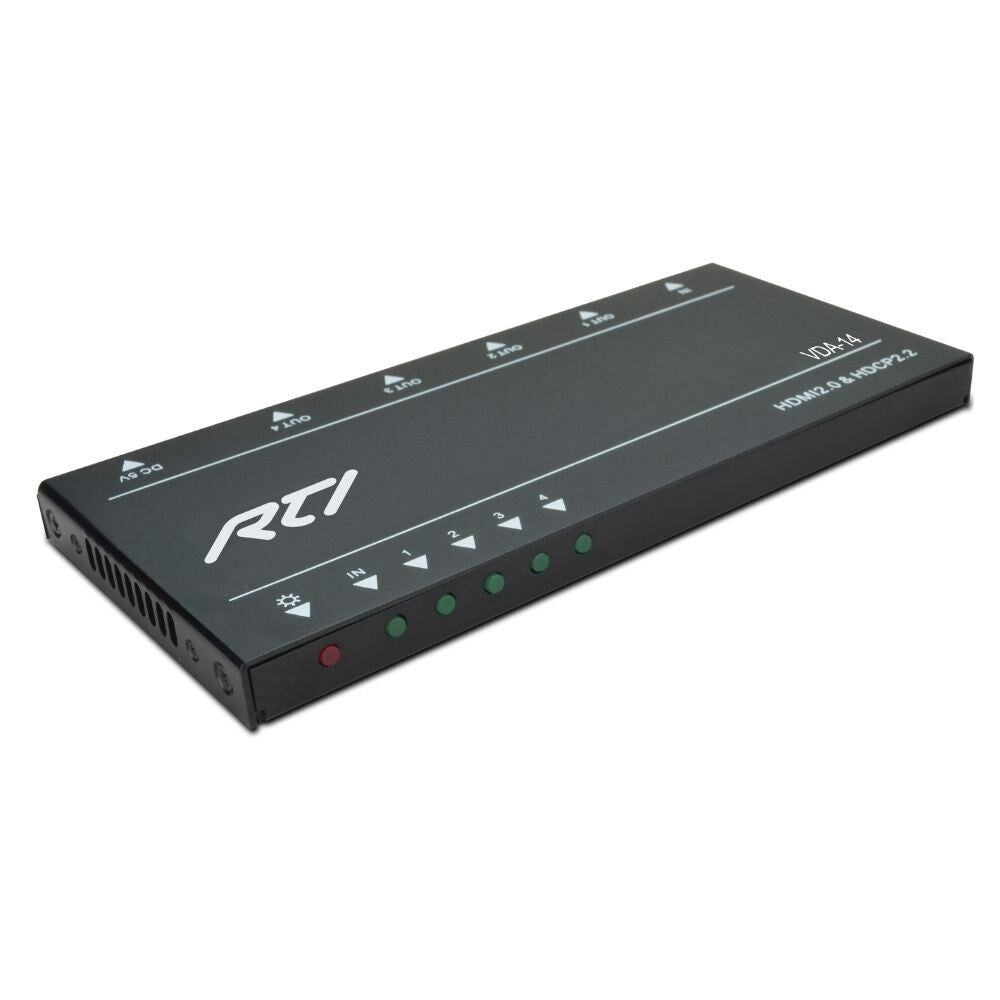

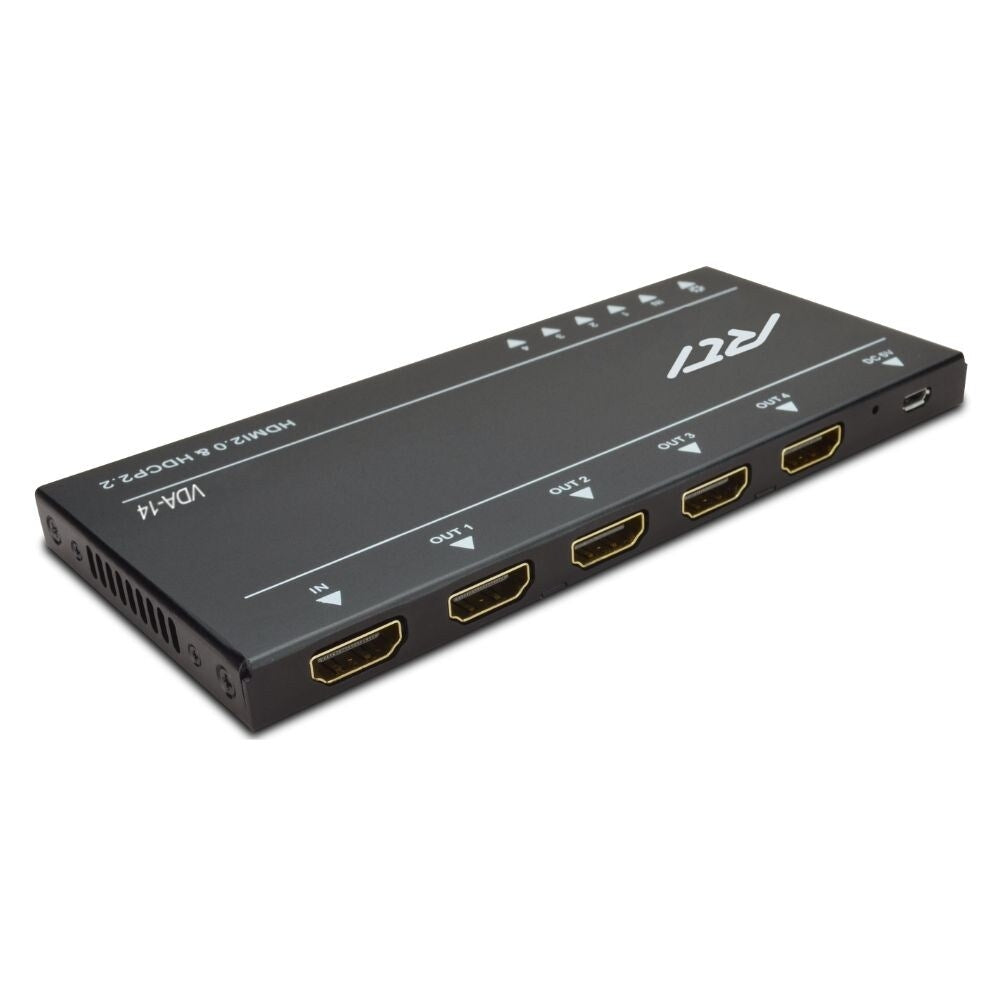

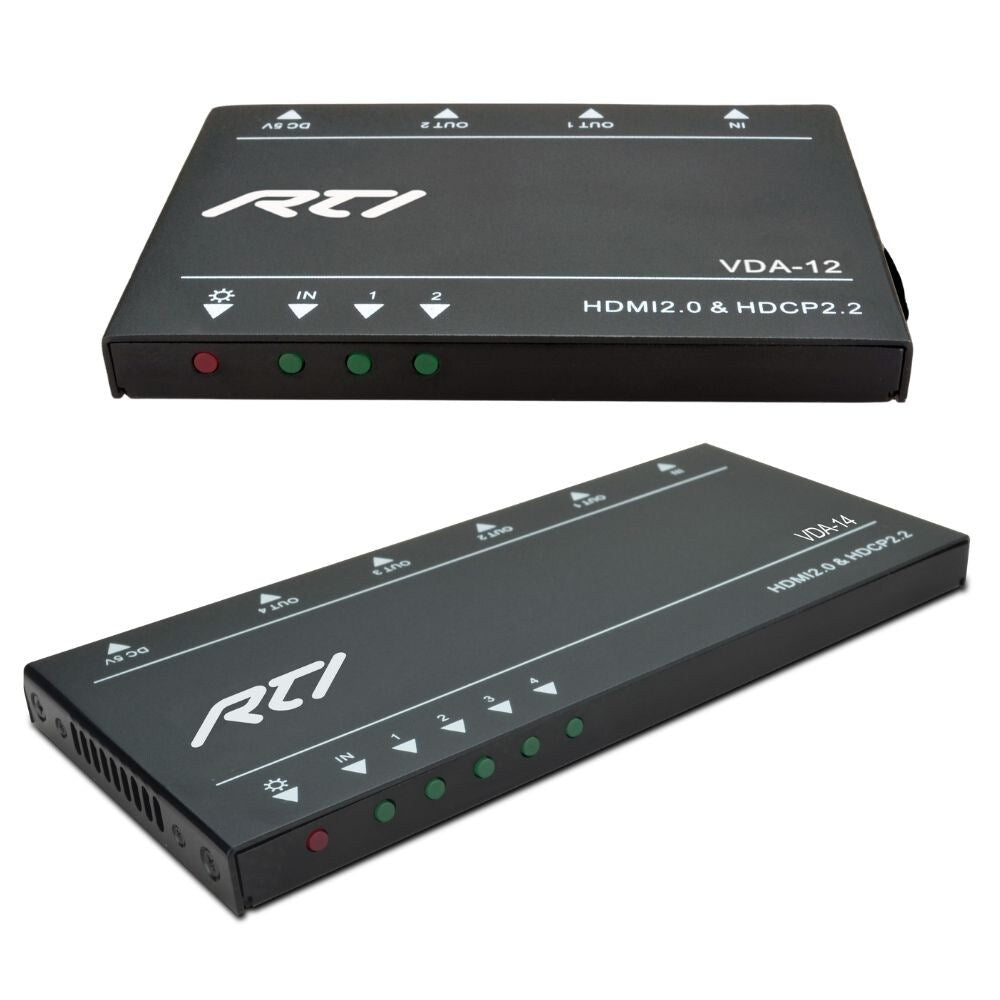

Two way or four way options available. VDA-12 is a two way HDMI® 2.0 splitter or VDA-14 is a four way HDMI® 2.0 splitter.
By auto detecting the input resolution and with the built in EDID management, the VDA Series HDMI® 2.0 splitter automatically adjusts the output resolution to fit the connected displays.
Up to 10m cable length for 4K resolution when using 24 AWG HDMI cables and LEDs indicate connection and HDCP compliance status.
Features:
- Provides distribution of one video source to two displays or projectors simultaneously
- HDCP 2.2 compliant, supporting HDMI 2.0, backwards compatible with all previous HDMI standards
- Supports HDMI / DVI resolutions up to 4K x 2K @60Hz 4:4:4
- Up to 10m cable length for 4K resolution when using 24 AWG HDMI cables
- Auto detect of input resolution
- Built in EDID management adjusts output resolution to fit all connected displays
- LEDs indicate connection and HDCP compliance status
- Two way and four way options available
Specifications:
| Model | VDA-12 |
VDA-14 |
| Power Supply | +5V DC, 2A |
|
| Digital Video Input | One, HDMI |
|
| Digital Video Output | Two, HDMI |
Four, HDMI |
| Compliance | HDMI 2.0, HDCP 2.2 |
|
| Resolution Range | 720x480 @ 60Hz to 4Kx2K @ 60Hz 4:4:4, 1080p 3D |
|
| Supported Audio Formats | Dolby Digital, DTS, DTS-HD and PCM |
|
| EDID Management | Built in EDID management |
|
| Front Panel LEDs | Connection status, HDCP compliance status |
|
| USB | Micro USB for firmware updates |
|
| Mounting | Wall mount, surface mount or free standing |
|
| Operating Temperature | -10°C / 14°F to 40°C / 104°F |
|
| Operating Humidity | 5% to 95% non condensing |
|
| Dimensions |
Height: 11mm / 04.33" Width: 102mm / 4.02" Depth: 70mm / 2.76" |
Height: 11mm / 0.433" Width: 152mm / 5.98" Depth: 70mm / 2.76" |
| Weight | 97g / 0.21lb |
140g / 0.31" |
| Warranty | 3 years parts and labour RTB |
