Description
Description:

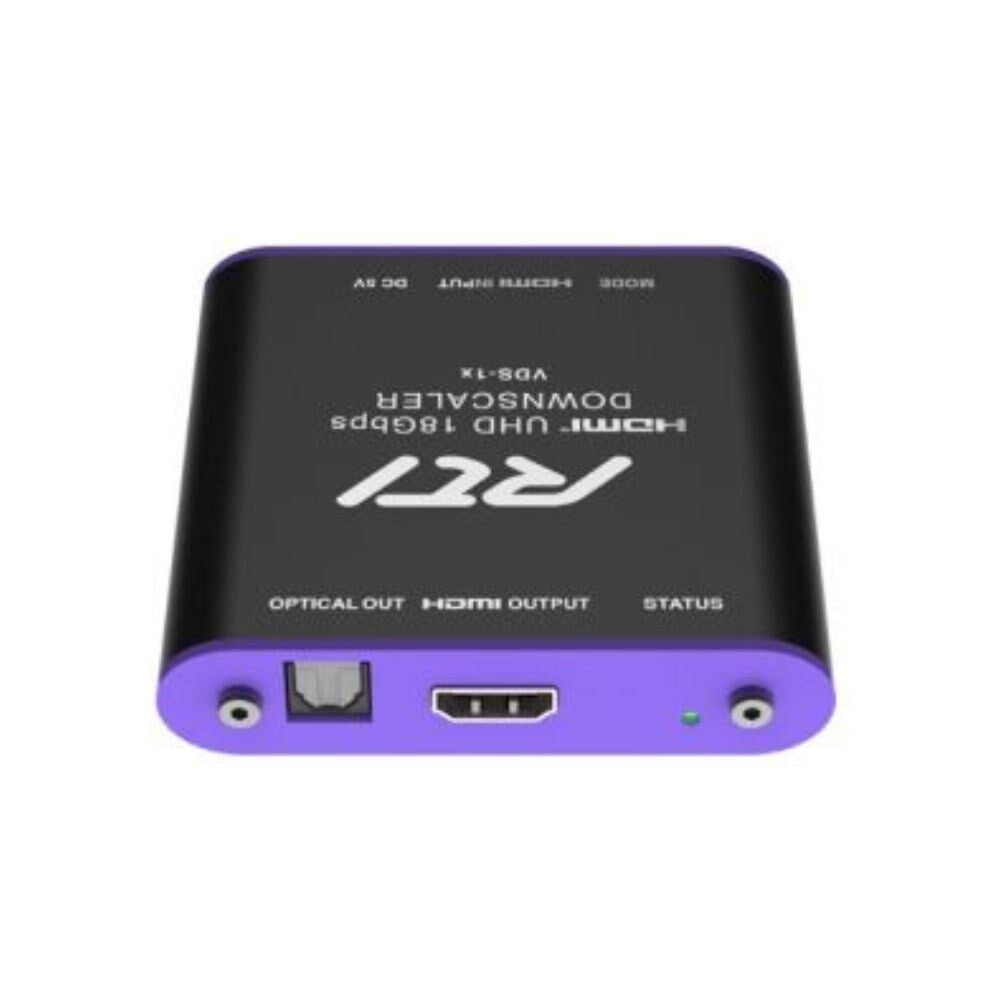

RTI's VDS-1x HDMI 4K UHD 18Gbps downscaler is suitable for video distribution deployments with mixed resolution displays.
For example, an installation with a legacy 1080p TV in one room and a 4K HDR TV in another room, and they both need to access the same ultra high definition content. In cases like this, the simple solution is the VDS-1x HDMI® downscaler.
The VDS-1x converts 4K video to 1080p in real time with no latency or tearing.
Engineered to support even the highest resolution UHD content, the downscaler also offers an optical audio output and a low profile design, small enough to fit behind any TV.
This downscaler also offers simple set up using HDMI inputs and outputs and a rotating dial switch for selecting downscale mode.
It is perfect for use with RTI matrix systems and provides easy setup for plug and play installation.
Features:
- HDMI® 4K UHD > 1080p downscaler
- Perfect for mixed resolution deployments
- No latency or tearing for the best possible picture
- Discreet design, ideal for placing behind a TV
- Easy setup for plug and play installation
- Seamlessly downscales 4K UHD signals to 1080p
- Simple set up using HDMI inputs and outputs
- Rotating dial switch for selecting downscale mode
- Perfect for use with RTI matrix systems
- Discreet design bring only 18mm high, perfect for mounting behind a TV
- Optional optical port for using S/PDIF audio output
- Status LED indicator
Specifications:
| Power Supply | 5V DC, 10W |
| Power Consumption | Max 2A @ 5V 10W |
| ESD Protection | +/- 8kV (Air gap discharge) +/- 4 kV (Contact discharge) |
| Surge Protection |
IEC 61000-4-4 (EFT) 40A (5/50 nano seconds) IEC 61000-4-5 (Lightning) 25A (8/20 micro seconds) |
| Electrical Fast Transient Burst | Data comm cord:1 kV Power cord : 2 kV |
| Video Input | One, HDMI |
| Audio Format Input | 5.1 Dolby Digital or 2-channel stereo PCM |
| Input Video Signal | 3.3V DC bias, 400 to 600mVp-p |
| Input DCC Signal | 5V p-p (TTL) |
| Video - Audio Output |
One, HDMI One, Toslink (Optical) |
| Audio Format Output | 5.1 Dolby Digital or 2 channel stereo PCM |
| Scale Video Down From |
3840x2160p @ 24/25/30/60Hz to 1920x1080p @ 24/25/30/60Hz |
| Max In-Out Resolution Supported | Up to 3840 x 2160p @ 60Hz |
| Colour Supported |
4:4:4 (8-bit), 4:2:2 (10 bit) or 4:2:0 (12 bit) all at 3840 x 2160p @ 60Hz |
| Max Video Output Clock Speed |
Input: 594MHz Output: 340MHz |
| Output Impedance | 100Ω |
| Transmission Distance (4K-1080p) |
Input: 2m Output: 2m |
| Compliance | HDCP 1.4, HDCP 2.2 |
| Operating Temperature | 0°C / 32°F to 35°C / 95°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 18mm / 0.71" Width: 79mm / 3.11" Depth: 180mm / 7.09" |
| Weight | 100g / 0.22lb |
| Warranty | 3 years parts and labour RTB |
