Description
Description:
RTI's VIP-UHD-CTRL HDMI® 4K HDCP 2.2 UHD VoIP control module controls distribution of 4K video over a 1GB network switch to virtually unlimited endpoints. The result is an exceptionally flexible and scalable system that be installed in minutes and controlled natively within the RTI control environment.

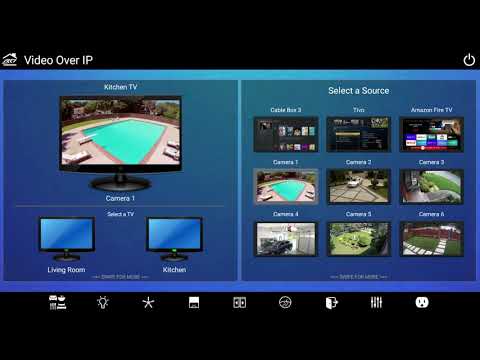

This control module allows advanced control from any RTI control processor using TCP/IP, RS-232 and IR. It features a web interface module for easy configuration of the system.
The control module eliminates the need for a deep understanding of complex network infrastructures and yet it is powerful enough to allow independent routing of IR, RS-232, USB / KVM, audio and video.
Enjoy stunning picture quality with 4K UHD resolution and be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source.
The VIP-UHD-CTRL Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Digital Plus®, and DTS-HD Master Audio® transmission. It allows you to go beyond the distance limitations of HDMI cables. 4K video can be transmitted over cable up to 100m. Whilst being PoE powered means you can keep the rack clean and reduce the need for extra power leads.
With Certified Network Switches allows simple and easy integration. Use select network switches for single switch deployments.
Features:
- Decodes and encodes HDMI® 4K HDR UHD
- Enjoy stunning picture quality with 4K UHD resolution
- 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0
- HDCP 2.2 and advanced EDID management
- Be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source
- Built in Scaling: Let each screen display its full resolution rather than being limited by the lower video resolution of a legacy display in the system
- Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Digital Plus®, and DTS-HD Master Audio® transmission
- Analogue audio embedding and breakout
- Go beyond the distance limitations of HDMI cables. 4K video can be transmitted over cable up to 100m.
- PoE powered to keep the rack clean and reduce the need for extra power leads
- With Certified Network Switches allows simple and easy integration. Use select network switches for single switch deployments
Specifications:
| Power Supply | PoE or 12V 1A DC |
| Mounting | Free standing |

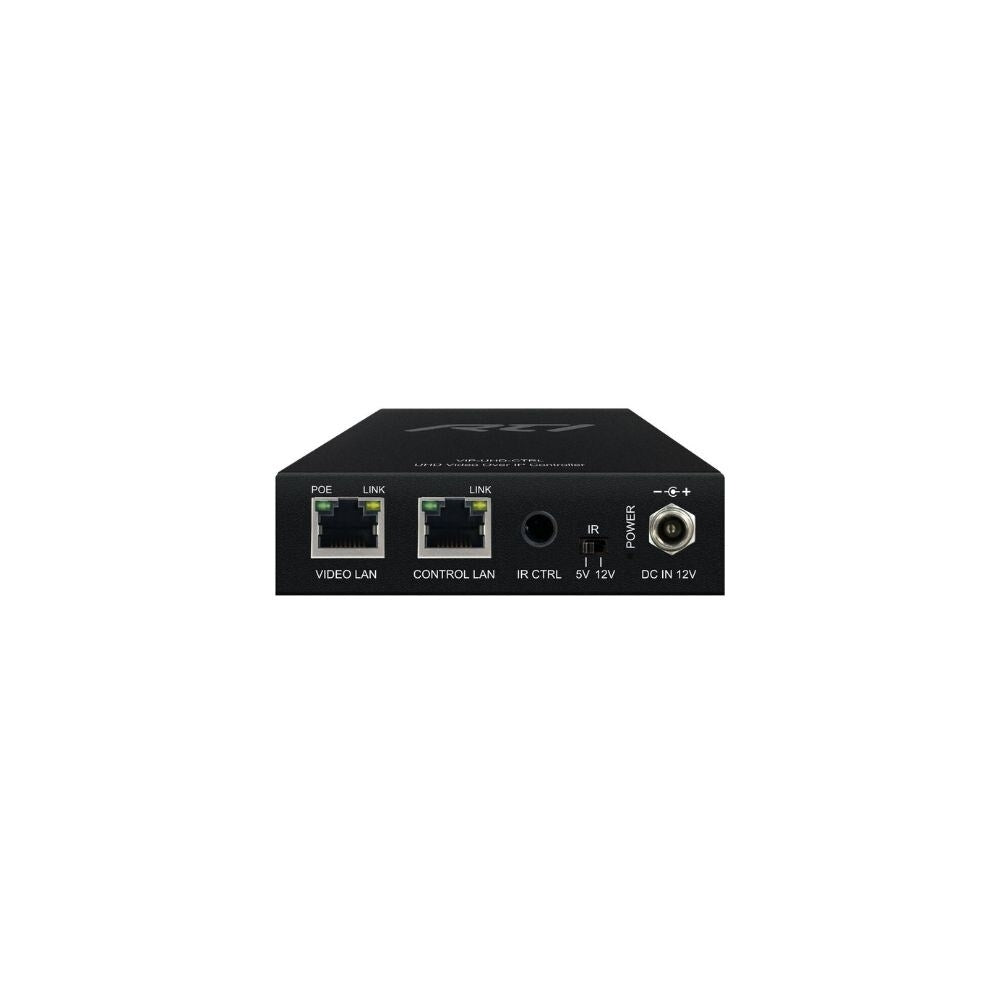

| Ethernet | Two, LAN RJ45 connector (One, PoE support) |

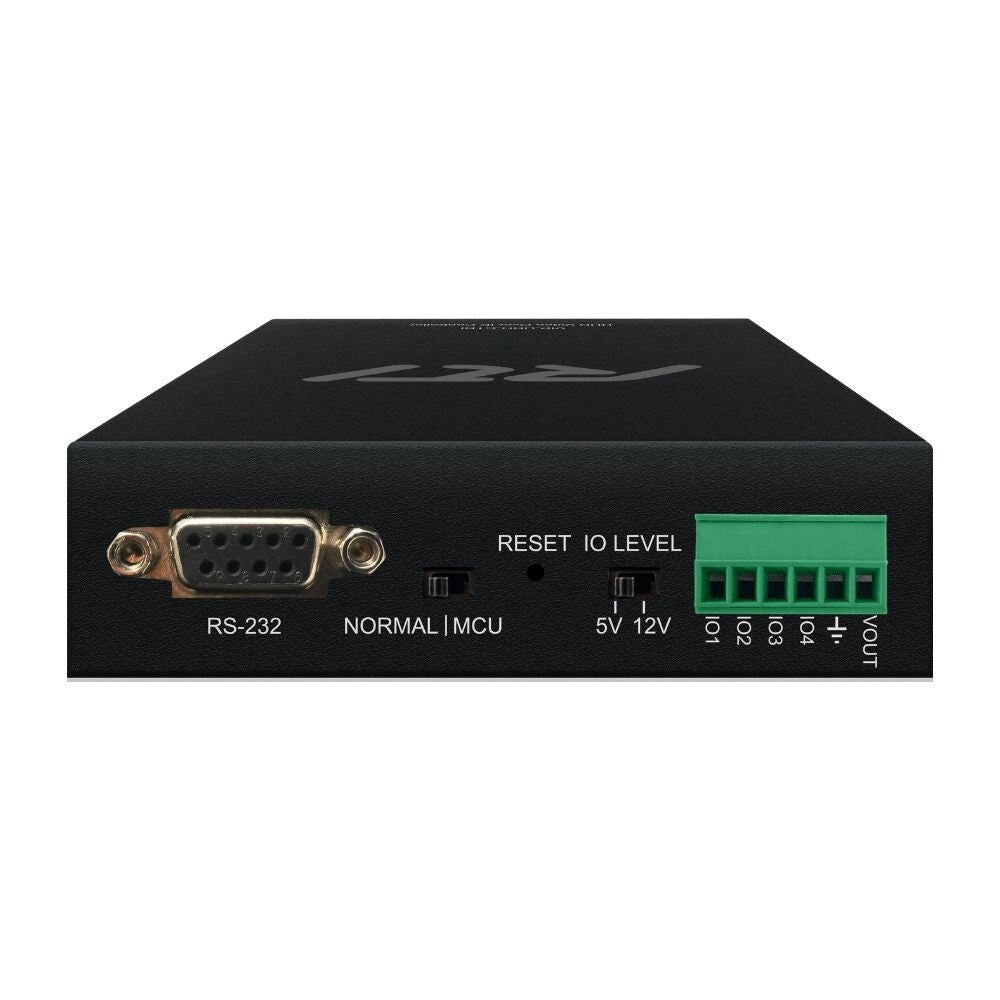

| RS-232 Serial Port | One, DB-9 female |
| IR Input | One, 3.5mm jack |
| Operating Temperature | 0°C / 32°F to 40°C / 104°F |
| Storage Temperature | -20°C / -4°F to 60°C / 140°F |
| Dimensions |
Height: 26mm / 1.02" Width: 96mm / 3.78" Depth: 110mm / 4.33" |
| Weight | 0.6kg / 1.32lb |
| Warranty | 3 years parts and labour RTB |
