Description
Description:

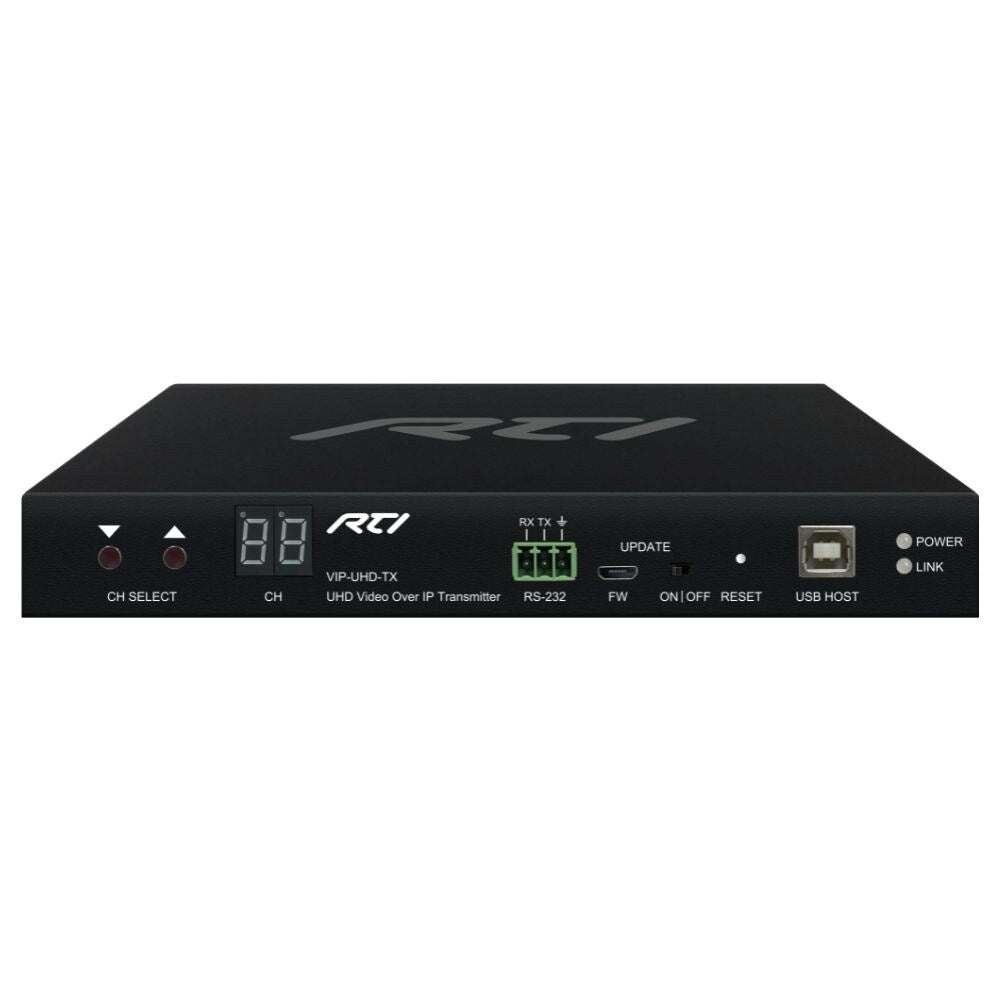

RTI's VIP-UHD-TX HDMI® 4K HDCP 2.2 VoIP encoder enables distribution of 4K video over a 1GB network switch to virtually unlimited endpoints. The result is an exceptionally flexible and scalable system that be installed in minutes and controlled natively within the RTI control environment.
This encoder is an industry leading 4K HDCP 2.2 HDMI® transmitter using visually lossless compression technology to deliver HDMI, bidirectional IR, RS-232 and USB/KVM up to lengths of 100m over standard network architecture.
The VIP-UHD-TX can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available, the VIP solution is ideal for both residential and commercial installations.
HDCP 2.2 and advanced EDID management allows full compliance with the latest copy protection algorithms to avoid black screens when connecting an HDMI source and built in scaling lets each screen display its full resolution rather than being limited by the lower video resolution of a legacy display in the system
This encoder supports all known HDMI audio formats including Dolby TrueHD®, Dolby Digital Plus®, and DTS-HD Master Audio® transmission and the Certified Network Switches provide simple and easy integration. Use select network switches for single switch deployments.
Features:
- Encodes HDMI® 4K HDR UHD with stunning picture quality with 4K UHD resolution
- 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0
- HDCP 2.2 and advanced EDID management allows full compliance with the latest copy protection algorithms to avoid black screens when connecting an HDMI source
- Built in scaling lets each screen display its full resolution rather than being limited by the lower video resolution of a legacy display in the system
- Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Digital Plus®, and DTS-HD Master Audio® transmission
- Go beyond the distance limitations of HDMI cables. 4K video can be transmitted over cable up to 100m
- PoE powered to keep the rack clean and reduce the need for extra power leads
- Certified Network Switches provide simple and easy integration. Use select network switches for single switch deployments
Specifications:

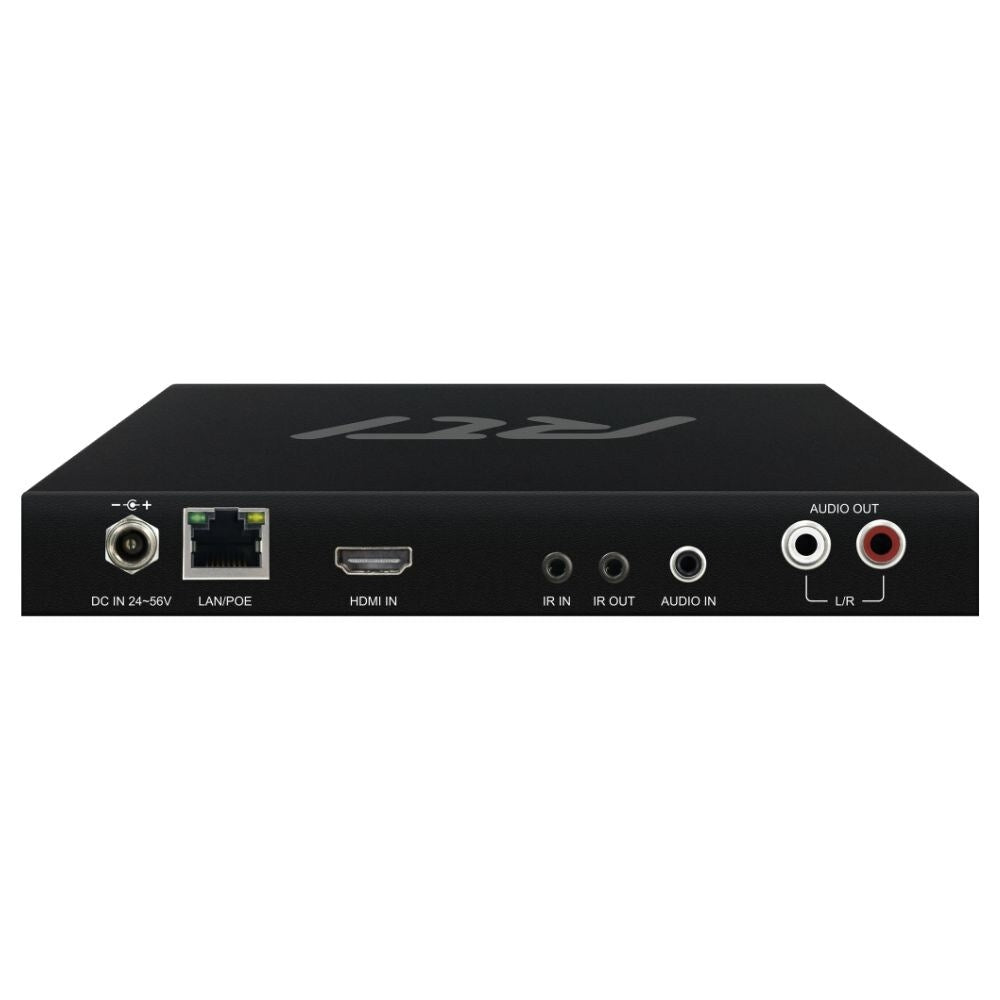

| Power Supply | PoE or 24 to 56V 1A DC |
| PoE Budget | ~6W without USB devices attached and ~12W with USB devices attached |
| Mounting | Free standing or rack mount kit available separately |
| Video Input | One, HDMI Type A, female |
| Video Output | One, LAN RJ45 connector |
| Audio Input | One, 3.5mm L/R analogue audio |
| Audio Output | Two, RCA L/R analogue audio |
| Ethernet | One, LAN RJ45 connector |
| RS-232 Serial Port | One, 3 pin Phoenix connector |
| USB/KVM | One, USB-B |
| IR Input | One, 3.5mm jack |
| IR Output | One, 3.5mm jack |
| Firmware Updates | One, Micro-USB |
| Operating Temperature | 0°C / 32°F to 40°C / 104°F |
| Storage Temperature | -20°C / -4°F to 60°C / 140°F |
| Dimensions |
Height: 26mm / 1.02" Width: 190mm / 7.48" Depth: 114mm / 4.49" |
| Weight | 0.8kg / 1.76lb |
| Warranty | 3 years parts and labour RTB |
