Description
Description:

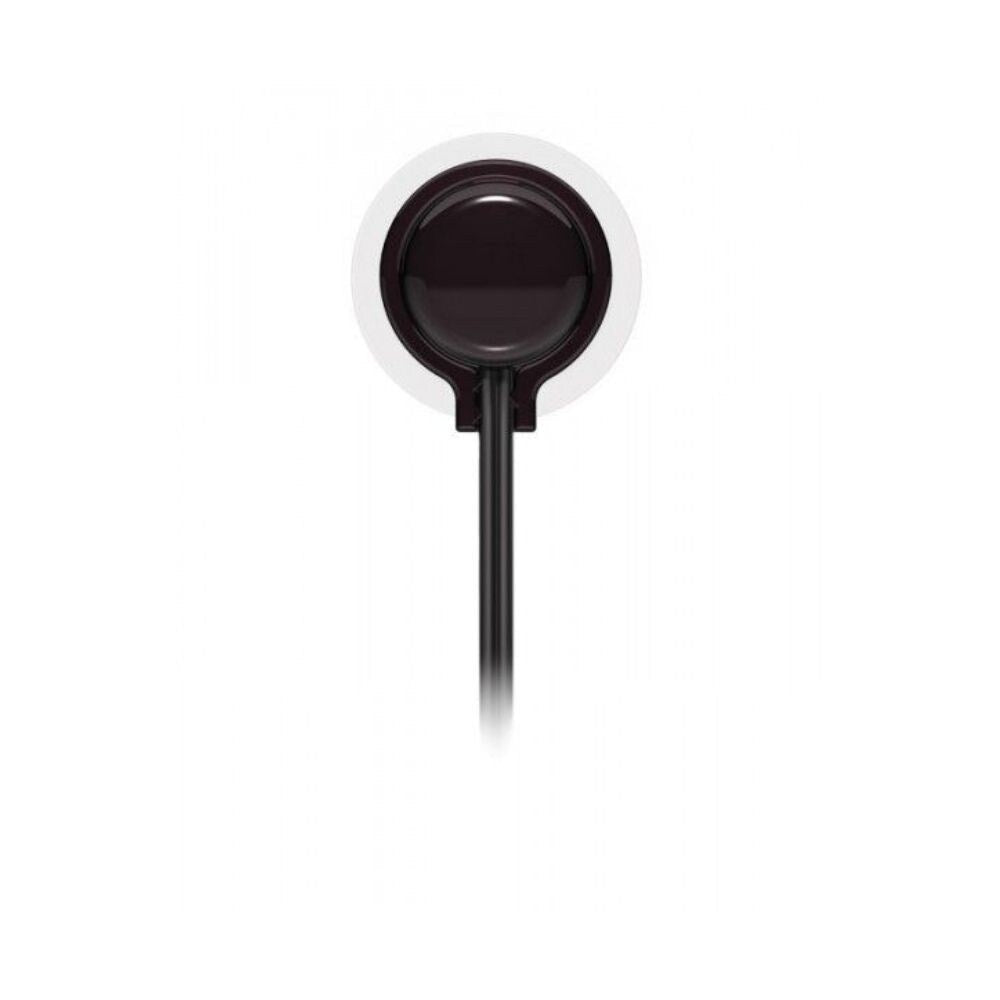

RTI's vIRsa Mouse is an IR emitter built to outperform all others.
Installations will go smooth with an unobtrusive and low profile IR emitter that features a flexible film adhesive which conforms to curved surfaces.
Troubleshooting will be a breeze with features such as a separate holder that stays attached, allowing easy removal and replacement of the emitter and a visible blue LED flasher that can be covered during normal operation.

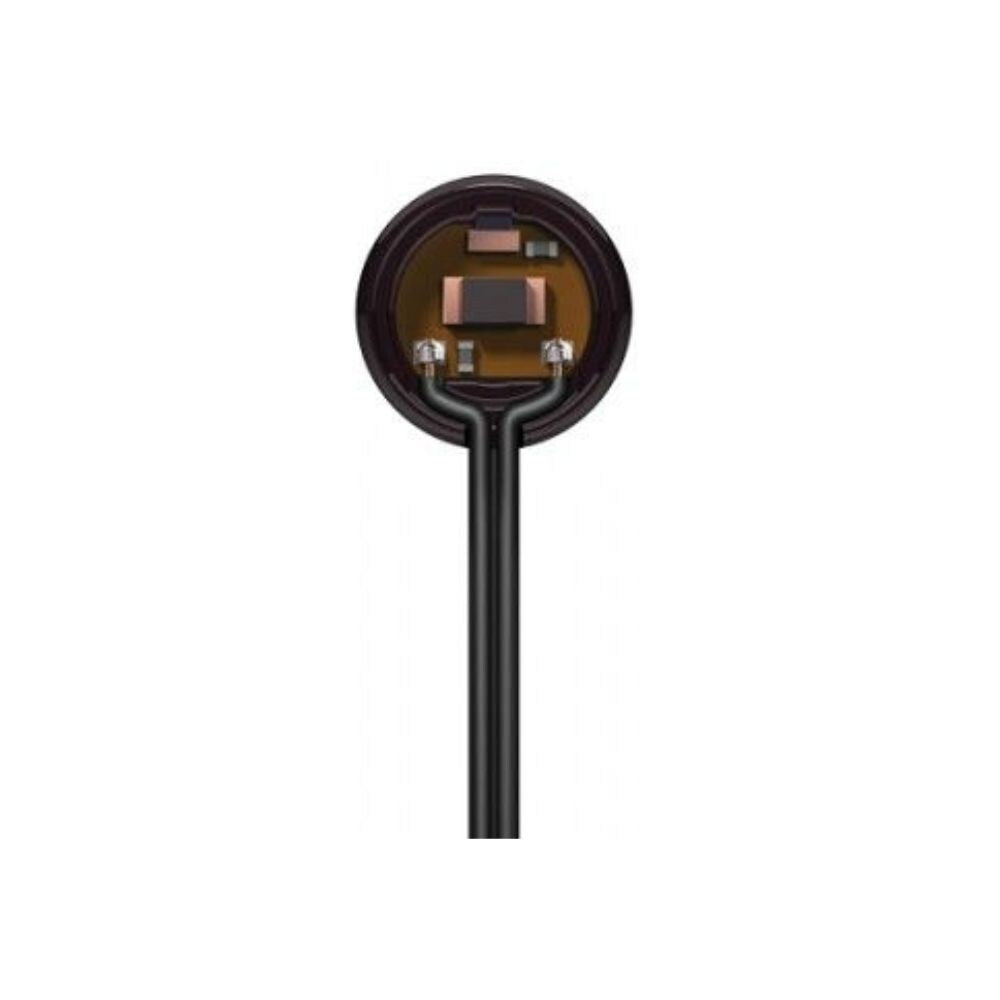

A translucent PCB improves the integrity of electrical connections within the emitter.
A built in resistor protects against over driving.
The industry standard 3.5mm mini plug uses precision over moulding to ensure consistency and a 3m cable reaches the entire rack. This mouse also offers a integrated cable management strap.
Features:
- Sleek, low profile and symmetrical design
- Separate holder allows for easy removal or replacement of emitter. Please see related items
- Flexible film adhesive conforms to curved surfaces
- Blue LED flasher can be visible during normal operation or only for troubleshooting
- Translucent circuit board allows IR pass through
- Industry standard 3.5mm mini plug uses precision over moulding to ensure consistency
- 3m cable reaches the entire rack
- Integrated cable management strap
Specifications:
| Input Requirements | 3V to 16V DC, 20mA minimum |
| Maximum Current Consumption | 0.5mA |
| Control Cable Length | 3m |
| Control Cable Plug | Industry standard 3.5mm plug |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Adhesive Backing Diameter: 15mm / 0.59" Emitter Diameter: 10mm / 0.39" |
| Warranty | 90 days RTB |
