Description
Description:

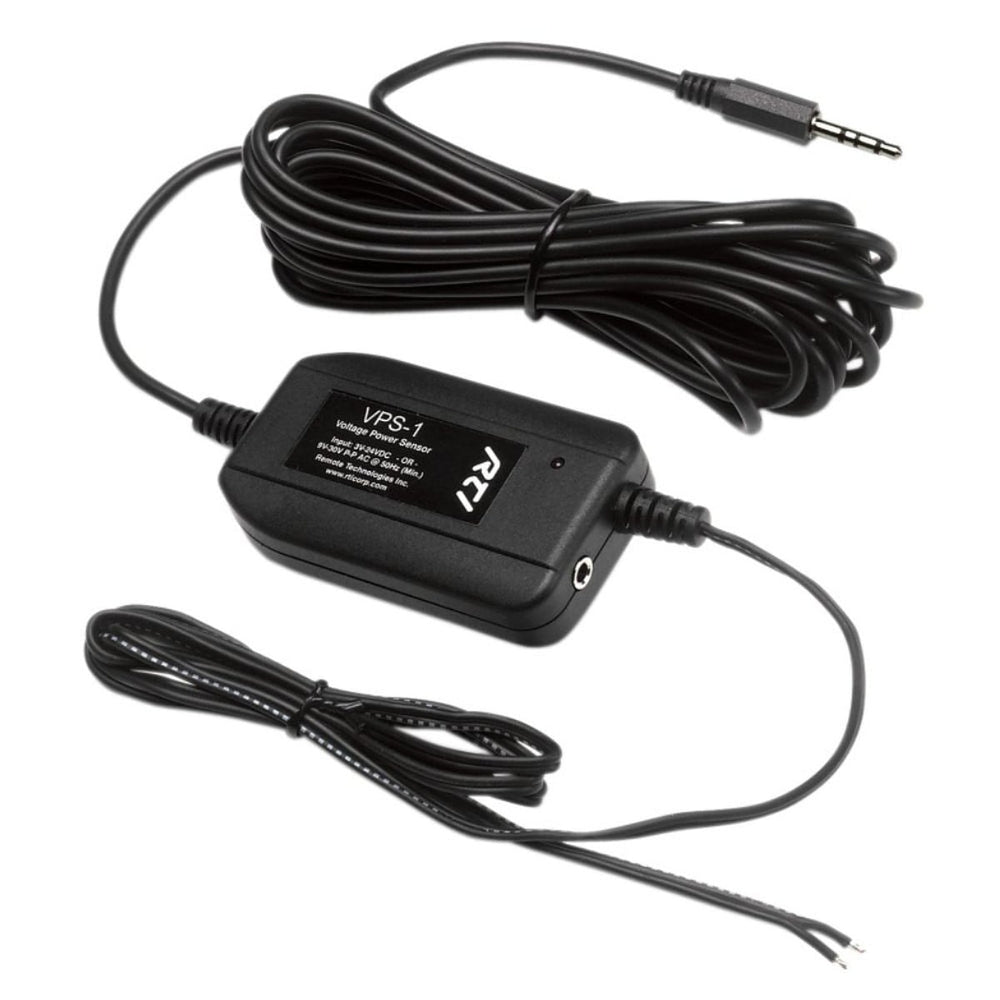

RTI's VPS-1 voltage power sensing module monitors the on/ off status of almost any electronic component. It is used to provide power status information to RTI control processor.
When the attached component is powered on, the VPS-1 detects the voltage supplied from the component, an attached power supply or a third party power sensor and sends a signal to the system interface module.
Power is supplied by the output ports, so no additional power supply required. The power sensing circuit is housed in a compact and rugged ABS enclosure.
The LED light indicates the current power status and the control cable can be extended up to 150m.
Features:
- Connects to the MPIO (Multi-Purpose I/O) ports of an RTI control processor or expansion modules ie. PCM-4 port control module
- Detects the on/off status of almost any component
- Power is supplied by the output ports. No additional power supply required
- Power sensing circuit is housed in a compact and rugged ABS enclosure
- LED light indicates the current power status
- Control cable can be extended up to 150m
Specifications:
| Output | Compatible with industry standard IR emitters |
| IR Output Drive | 100mA maximum |
| Input Requirements | 3V to 24V DC or 9V to 30V P-P AC (50Hz min) |
| Maximum Current Consumption | 0.5mA |
| Control Cable Length | 3.7m |
| Voltage Sensor Cable Length | 0.9m |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 76mm / 2.99" Width: 44mm / 1.73" Depth: 18mm / 0.71" |
| Warranty | 3 years parts and labour RTB |
