Description:

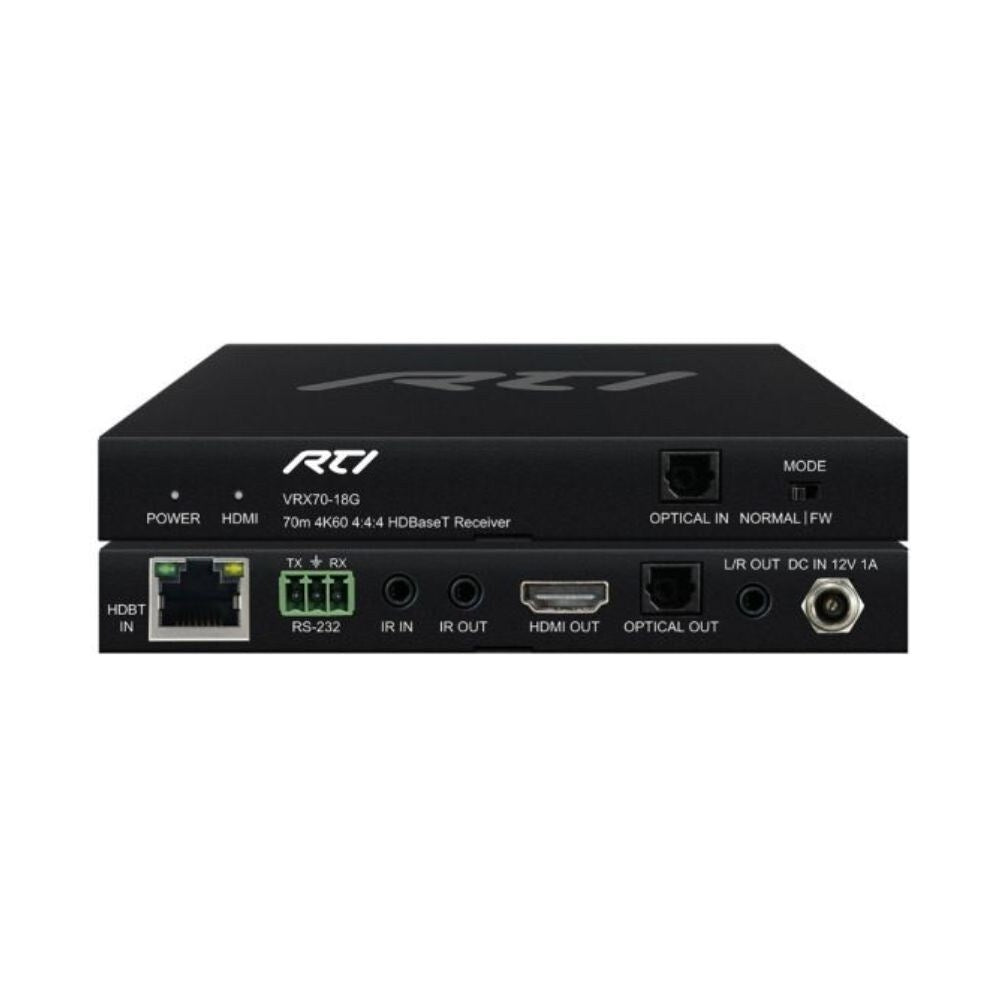

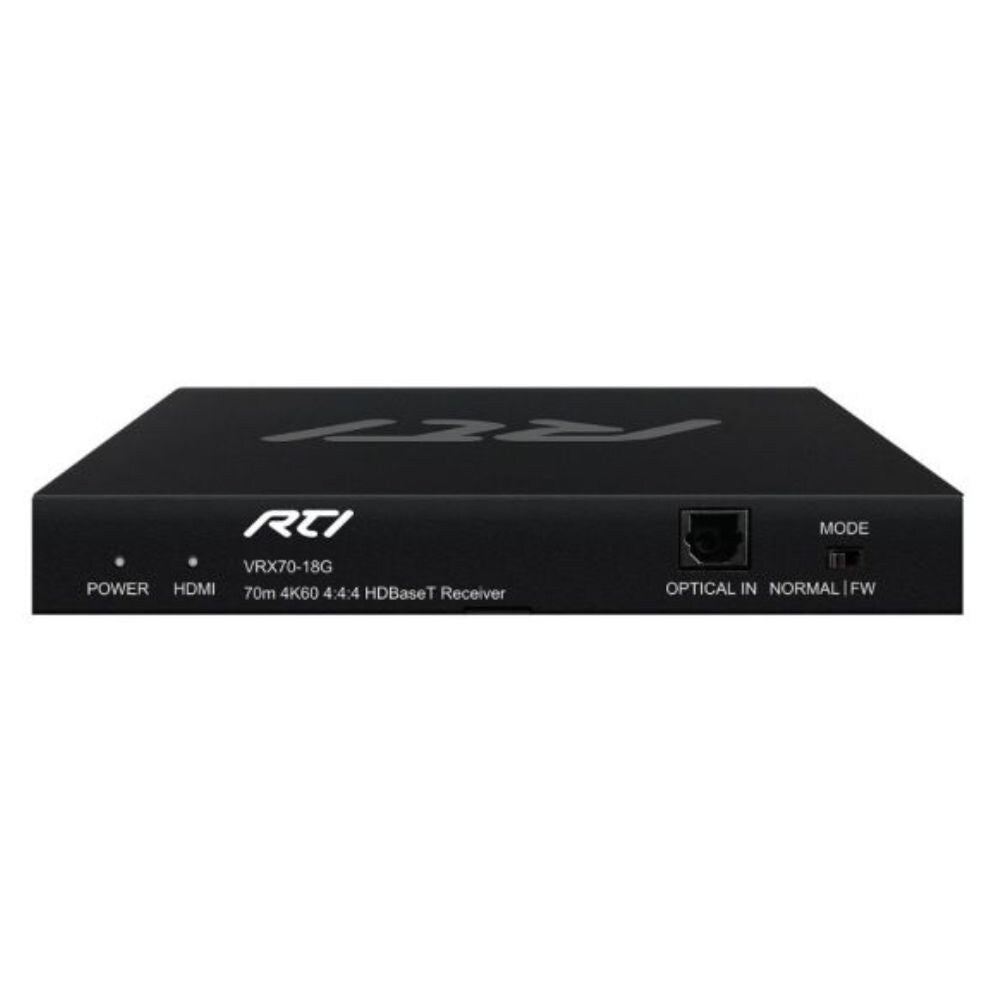

RTI's VRX70-18G HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ receiver pairs perfectly with the VX88-18G matrix switch and offers market leading features and outstanding value, including Colour Space Conversion (CSC) technology.
The product extends HDMI, bidirectional IR and is powered by the matrix up to lengths of 70m or 4K 40m.
This receiver provides advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable and advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR.
It supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission. The HDMI re-clocking helps to solve HDMI HDCP compatibility and handshaking issues. IR pass through is possible to compatible HDBaseT™ devices.
The VRX70-18G supports bidirectional PoC (Power over Cable) from VX88-18G and HDCP 2.2.
Features:
- Advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
- HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
- IR pass through to compatible HDBaseT™ devices
- Supports bidirectional PoC (Power over Cable) from VX88-18G
- HDCP 2.2 support
Specifications:
| Video Input | One, HDBaseT™ RJ45 connector |
| Video Output | One, HDMI Type A, 19 pin, female |
| Audio Input | One, Toslink (S/PDIF) |
| Audio Output |
One, Toslink (S/PDIF) One, 3.5mm L/R analogue audio |
| HDBaseT™ Transmission Distance |
1080p @ 50/60Hz ≤ 70m 3840 x 2160 @ 50/60Hz 4:4:4 ≤ 40m |
| Max. Bandwidth | 18Gbps |
| RS-232 Serial Port | One, 3 pin Phoenix connector |
| IR Input | One, 3.5mm stereo Jack |
| IR Output | One, 3.5mm mono jack |
| Mounting | Mounting kit included |
| Operating Temperature | 0°C / 32°F to 40°C / 104°F |
| Storage Temperature | -20°C / -4°F to 60°C / 140°F |
| Dimensions |
Height: 18mm / 0.71" Width: 140mm / 5.51" Depth: 84mm / 3.31" Including Connectors: Height: 18mm / 0.71" < Width: 140mm / 5.51" Depth: 88mm / 3.47" |
| Weight | 0.6kg / 1.32lb |
| Warranty | 3 years parts and labour RTB |
