Description:

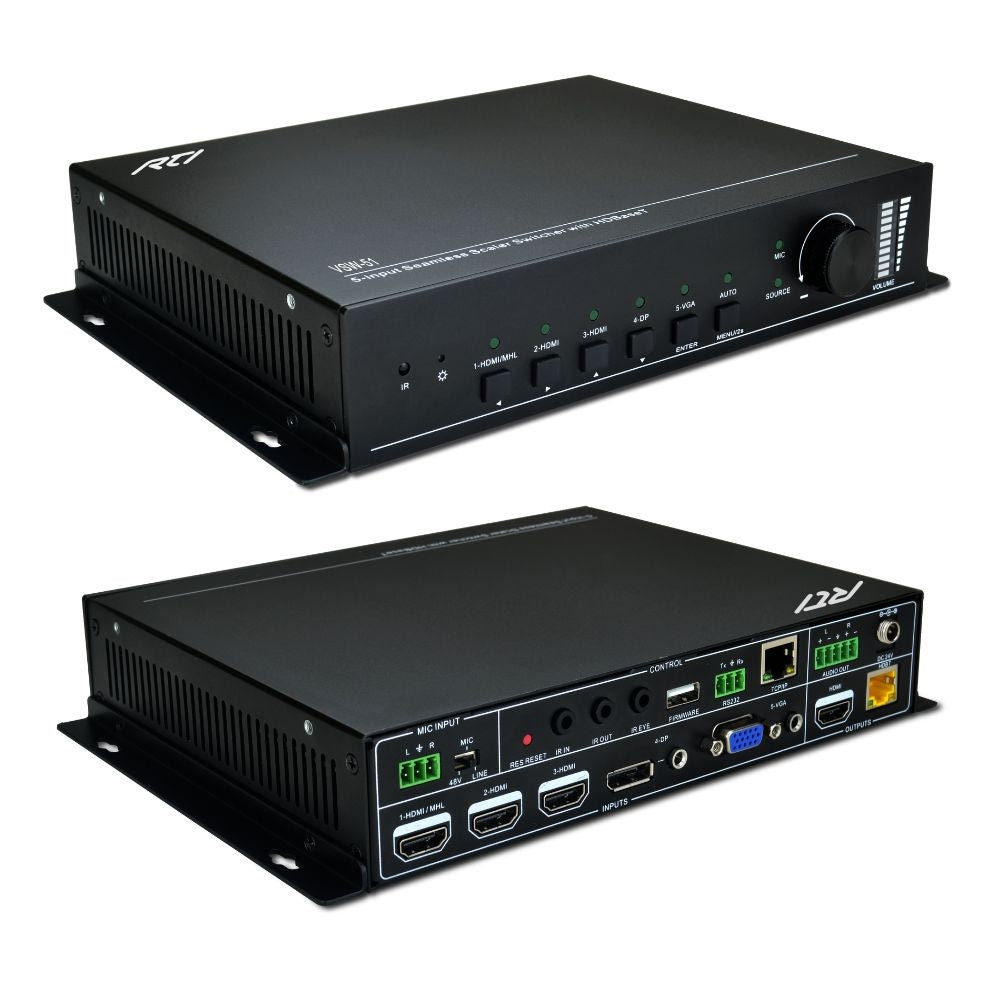

RTI's VSS-51 five way HDBaseT presentation switcher scaler kit with HDMI and HDBT mirror output combines seamless switching with advanced scaling to provide excellent picture quality regardless of the source. The compact switcher comes with five video inputs, including three HDMI, one display port and one VGA port.

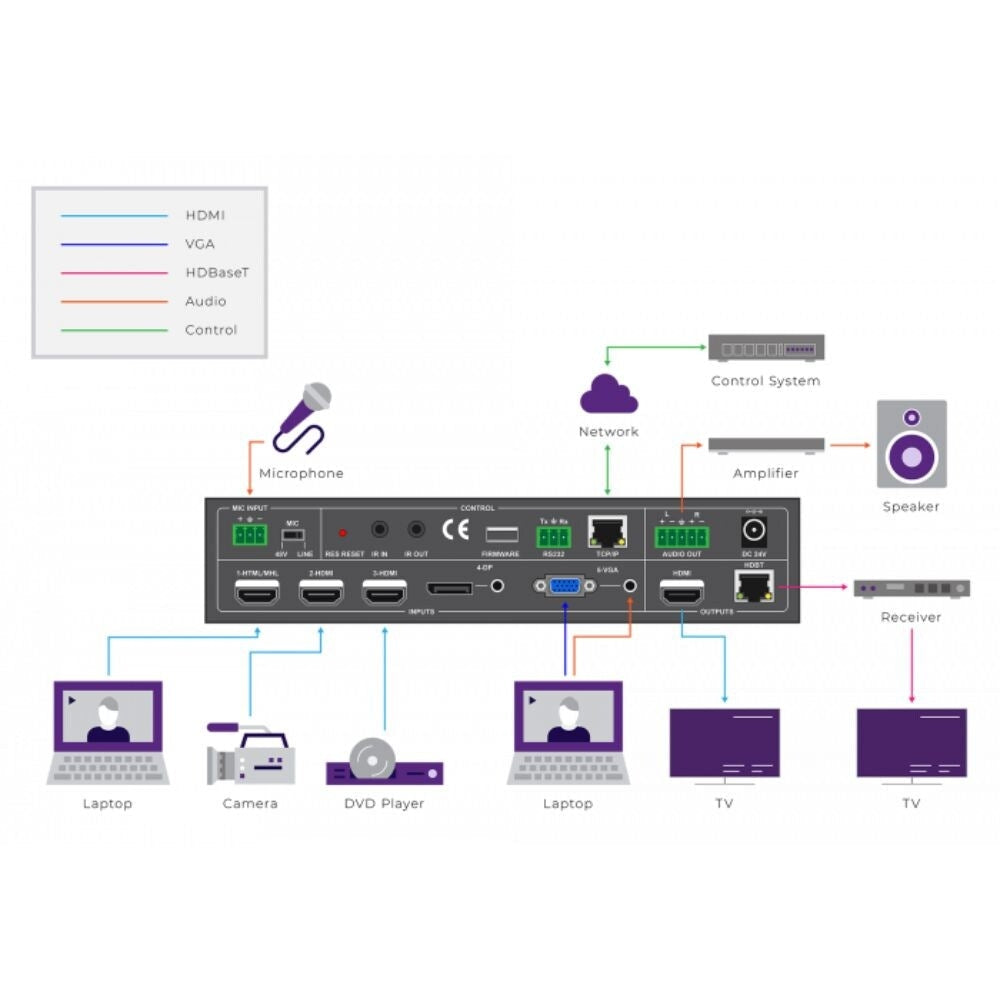

Video is output through an HDMI port and a mirrored HDBaseT port for delivery of HD video to an additional display via the included VSW-51R HDBaseT receiver.
The built in scaler upscales input resolution to up to 1920 x 1200 output resolution and auto switching is delivered with Quick Switch technology.
The HDMI output with mirrored HDBaseT output up to 70m for full HD video over CAT6 cable and supports HDBaseT 4-Play with transmission of video, audio, power (PoH) and control signals (IR / RS-232) over a single CAT6 cable.
A microphone input is also available with support for condenser and dynamic microphone and line level audio with a balanced or unbalanced adjustable microphone input with 48V phantom power for condenser, dynamic or wireless microphones.
Features:

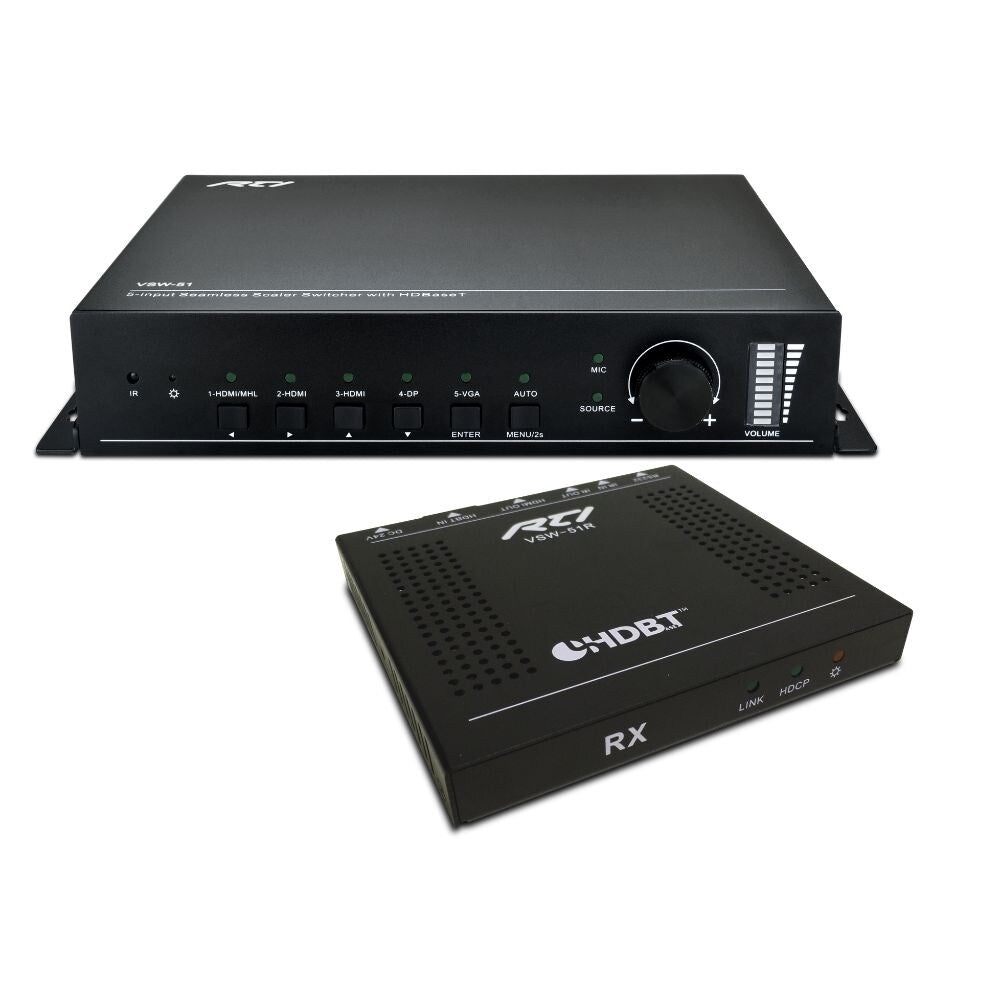

- Kit includes VWS-51 high definition, multi format 5x1 presentation scaler switcher and VWS-51R HDBaseT receiver
- Built in scaler upscales input resolution to up to 1920 x 1200 output resolution
- Auto switching with Quick Switch technology
- HDMI output with mirrored HDBaseT output up to 70m for full HD video over CAT6 cable
- Supports HDBaseT 4-Play with transmission of video, audio, power (PoH) and control signals (IR / RS-232) over a single CAT6 cable
- Provides signal switching of up to five video sources
- Supports HDMI, Display Port and VGA sources
- Balanced/unbalanced adjustable microphone input with 48V phantom power for condenser, dynamic or wireless microphones
- Controllable via front control panel, RS-232 or web interface
Specifications:
| Power Supply | +24 VDC, 2.71A |
| Digital Video Input |
One HDMI/MHL Two HDMI One Display Port |
| Analogue Video Input |
One VGA, female 15 pin Supports YPbPr and composite video using supplied adapter cable |
| Video Output Mirrored |
One HDMI One HDBaseT with PoH (RJ45), 1920 x 1200 ≤ 70m |
| Output Resolution Range |
1920 x 1200, 1920 x 1080, 1600 x 1200, 1600 x 900, 1360 x 768, 1280 x 800, 1280 x 720, 1024 x 768 |
| Compliance | HDMI 2.0, HDCP 2.2 |
| Audio Line Input | Two analogue stereo for VGA and Display Port (3.5mm jack) |
| Microphone Input | One balanced/unbalanced (3-pin Phoenix connector), switchable Line / 48V Phantom power |
| Audio Input Impedance | 10K Ω |
| Audio Output | One, dual mono analogue audio (5 pin Phoenix connector) |
| Audio Output Impedance | 70Ω |
| Frequency Response | 20Hz to 20KHz |
| Stereo Channel Separation | >80dB @ 1kHz |
| Front Panel Control | 6 buttons, 1 volume knob, bar graph and status LED |
| RS-232 Control |
One, bidirectional (3 pin Phoenix) for VSS-51 or remote device through HDBaseT |
| IR Control of Local or Remote Device |
One, 3.5mm jack (IR IN) to IR OUT or HDBaseT to IR OUT on HDBaseT Receiver |
| USB | USB Type-A for Firmware updates |
| Ethernet | One, 10/100Base-T (RJ45) |
| Mounting | Surface, wall mount or free standing |
| Operating Temperature | -10°C / 14°F to 40°C / 104°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 44mm / 1.73" Width: 220mm / 8.66" Depth: 172.5mm / 6.79" |
| Weight | 800g / 1.76lb |
| Warranty | 3 years parts and labour RTB |

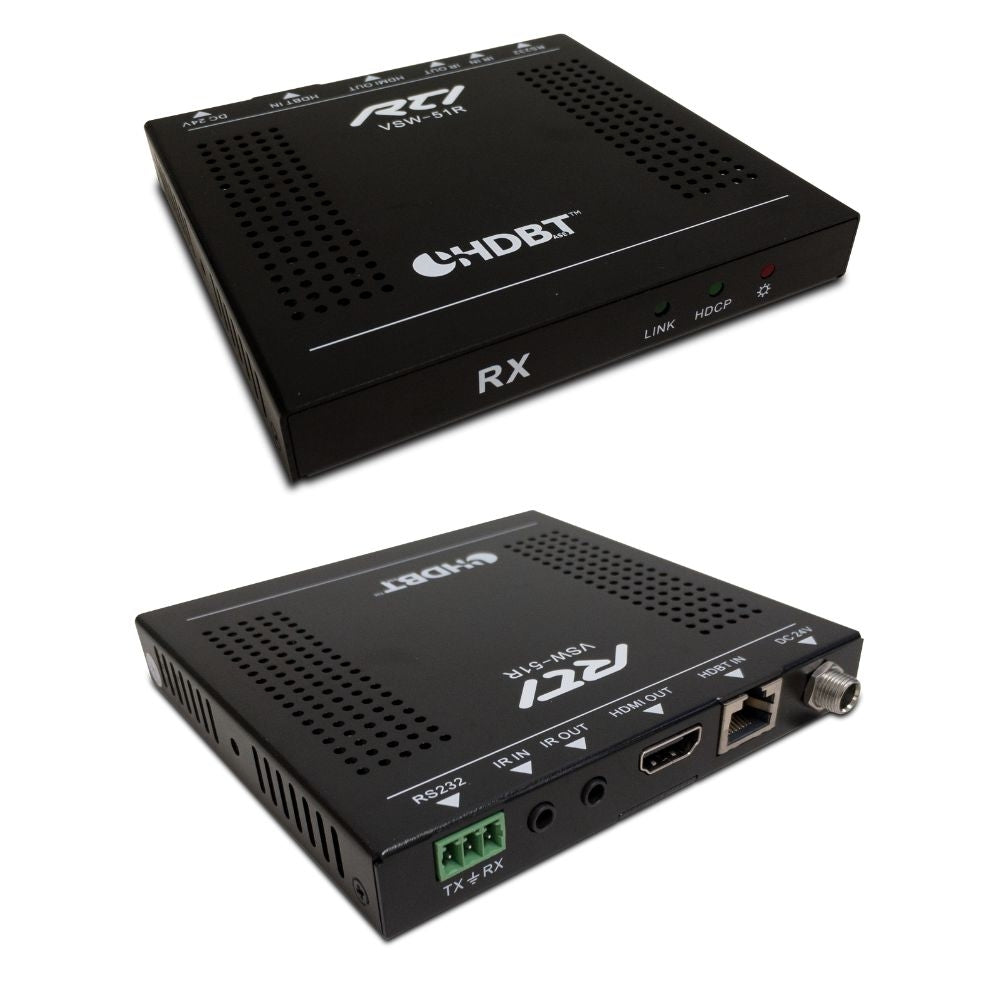

| VSW-51R HDBaseT Receiver Included | |
| Power Supply | PoH (Power over HDBaseT) |
| Input | One, HDBaseT with PoH (RJ45) |
| Output | One, HDMI |
| Compliance | HDMI 1.4, HDCP 2.2 |
| Control ports |
One RS-232 bidirectional (3 pin Phoenix) One IR in (3.5 mm jack), one IR out (3.5 mm jack) |
| Mounting | Surface, wall mount or free standing |
