Description:

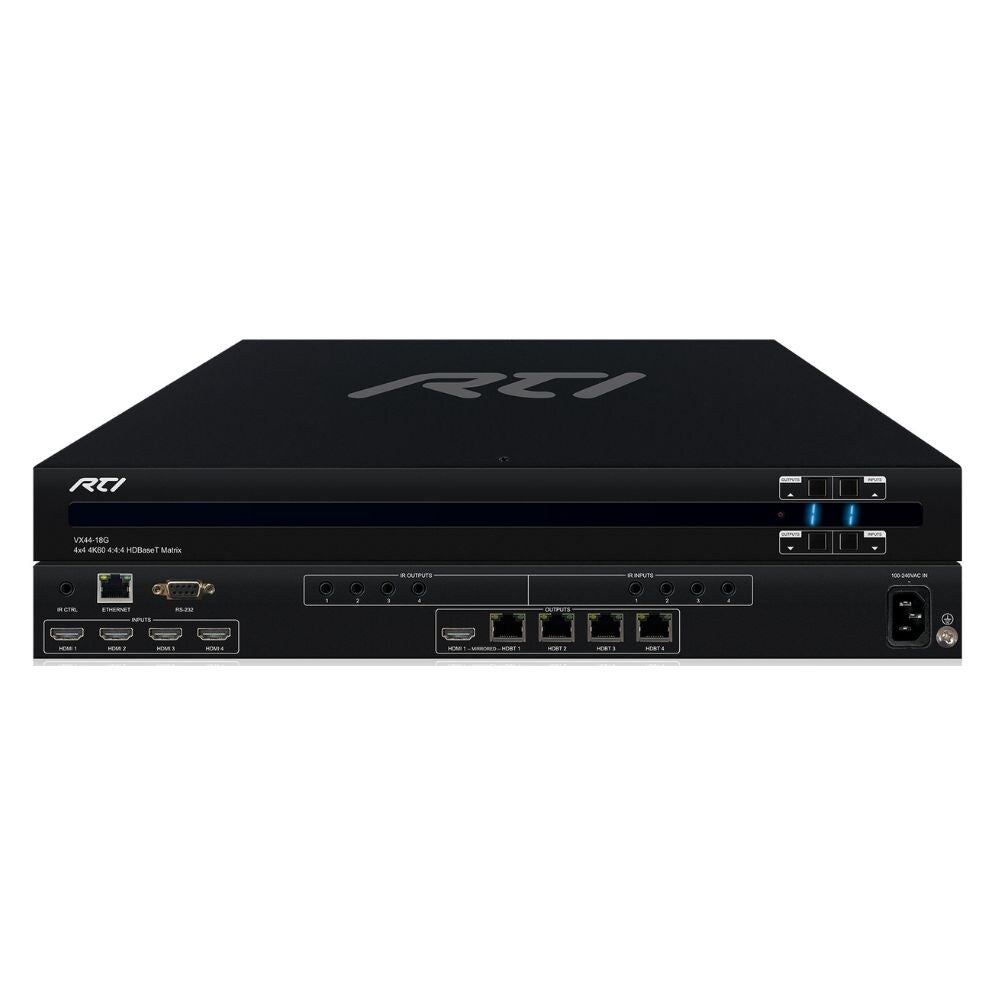

RTI's VX44-18G-KIT 4x4 HDBaseT™ matrix combines exceptional performance with outstanding value for custom integrators. The kit is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix using Colour Space Conversion (CSC) technology to deliver HDMI, bidirectional IR and PoC up to lengths of 70m over a single CAT cable.
The matrix delivers advanced features including simultaneous HDBaseT™/HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for simple configuration of the matrix.
Four HDMI HDBaseT™ receivers are included in this kit.
The four HDMI inputs can be independently routed to four HDBaseT™ outputs with output 1 featuring simultaneous HDMI and HDBaseT™ outputs and the video down conversion on HDBaseT™ outputs allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs.
This kit supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m and all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission.
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers and the advanced EDID management and HDCP 2.2 is compliant.
Features:
- Advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- The four HDMI inputs can be independently routed to four HDBaseT™ outputs with output 1 featuring simultaneous HDMI and HDBaseT™ outputs
- Video down conversion on HDBaseT™ outputs allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
- Advanced EDID management and HDCP 2.2 compliant
Specifications:
| Video Inputs | Four, HDMI Type A, 19 pin, female |
| Video Outputs |
One, HDMI Type A, 19 pin, female Four, HDBaseT™ RJ45 connector |
| HDBaseT™ Transmission Distance |
1080p @ 50/60Hz ≤ 70m 3840 x 2160 @ 50/60Hz 4:4:4 ≤ 40m |
| Max. Bandwidth | 18Gbps |
| TCP/IP Control | One, RJ45 female |
| RS-232 Serial Port | One, 3 pin Phoenix connector |
| IR Input | Five, 3.5mm stereo Jack |
| IR Output | Four, 3.5mm mono jack |
| Mounting | 1U rack ears included or free standing |
| Operating Temperature | 0°C / 32°F to 40°C / 104°F |
| Storage Temperature | -20°C / -4°F to 60°C / 140°F |
| Dimensions |
Height: 53mm / 2.09" Width: 437mm / 17.21" Depth: 384mm / 15.12" Without Feet: Height: 44mm / 1.73" Width: 437mm / 17.21" Depth: 377mm / 14.84" |
| Weight | 5kg / 11.02lb |
| Warranty | 3 years parts and labour RTB |
