Description:

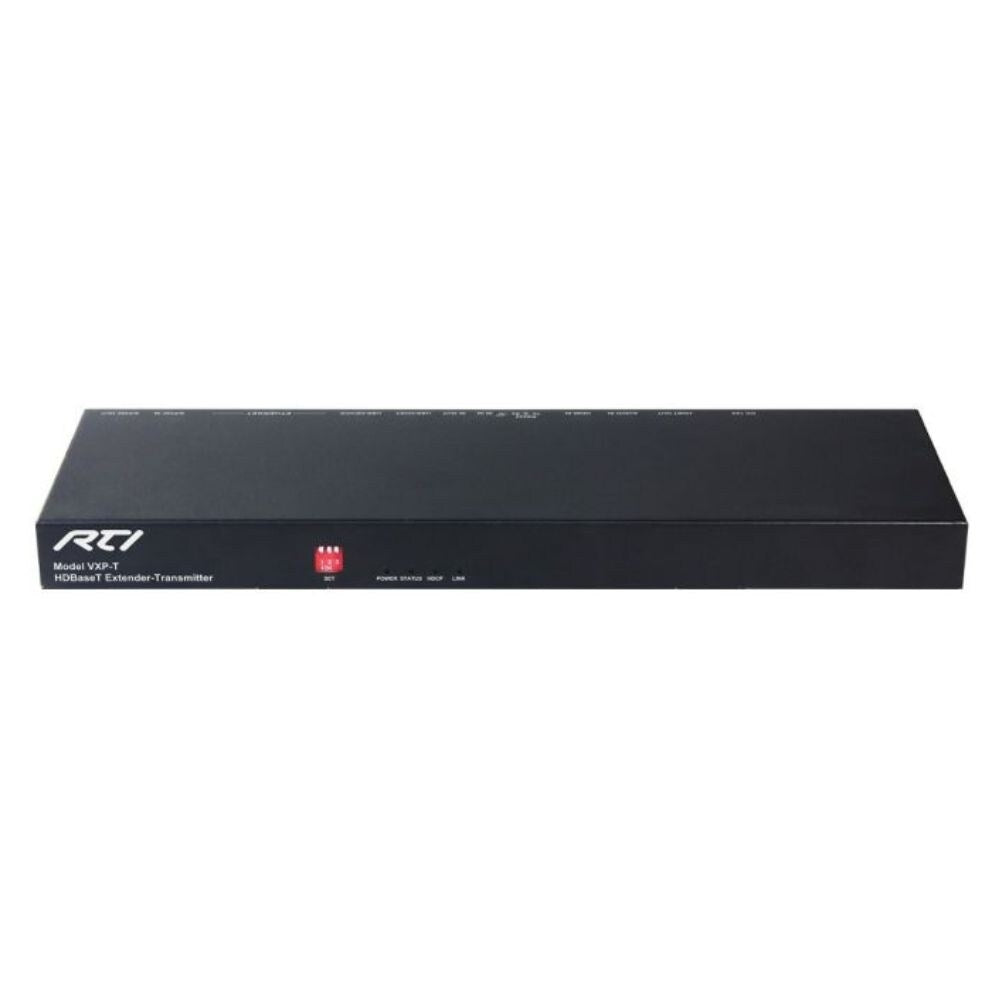

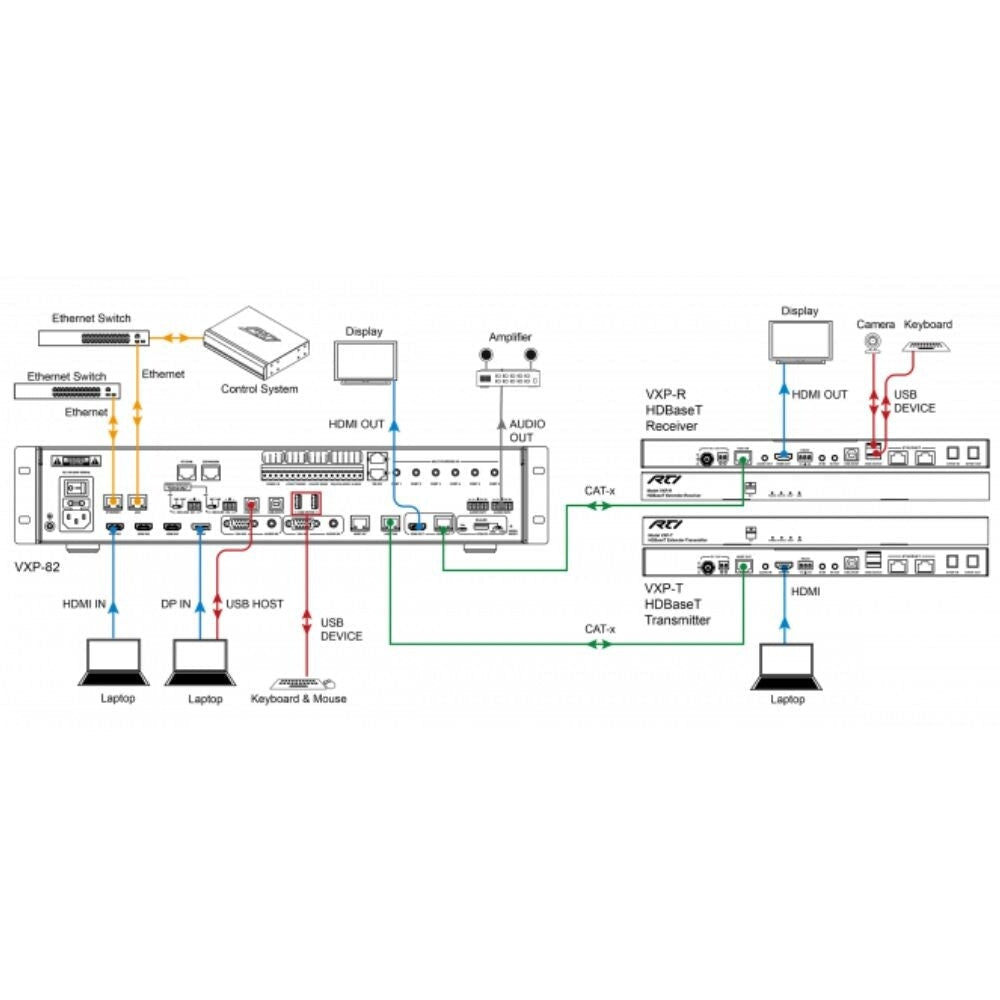

RTI's VXP-T HDMI HDBaseT transmitter is designed for use with the VXP-82 Presentation Switcher and Control Processor to extend high resolution video, audio, Ethernet, control and KVM signals over long distances up to 150m via a single CAT5e or CAT6 cable. In combination with the VXP-82 multiple video sources can be distributed to up to two displays.
Easy wiring and the high bandwidth capability of these Class B HDBaseT extenders make them ideal for any commercial or residential setting where video sources are installed in a central AV rack and TVs or presentation displays are distributed throughout multiple areas such as conference rooms, huddle spaces, restaurant dining rooms or home media rooms.
The VXP-T transmitter can also be used with the and VXP-R receiver as a stand alone signal extension for point to point transmission.
Please Note: Maximum resolution is 4K @3 0Hz when VXP-T is installed with VXP-82 all in one Presentation Switch.
Features:
- Support for audio, video, power, Ethernet, RS-232 and IR pass through over HDBaseT
- Signal transmission up to 100m for 4K and 1080p via a single CAT65 cable
- Supports resolution up to 4 K@ 60Hz 4:2:0 8 bit and HDCP 2.2 when installed with VXP-T transmitter*
- Analogue stereo audio pass through over HDBaseT
- S/PDIF digital audio pass through over HDBaseT
- USB Host and Device ports with bi directional USB pass through for shared KVM control
- Built in 10/100Mb Ethernet switch
- One way PoH (Power over HDBaseT) powers the VXP-R receiver
- Phoenix port for additional power connection
- Support for standard and locking DC power plugs
- VXP-T and VXP-T are sold separately
* Please Note: Maximum resolution is 4K @3 0Hz when VXP-T is installed with VXP-82 all in one Presentation Switch.

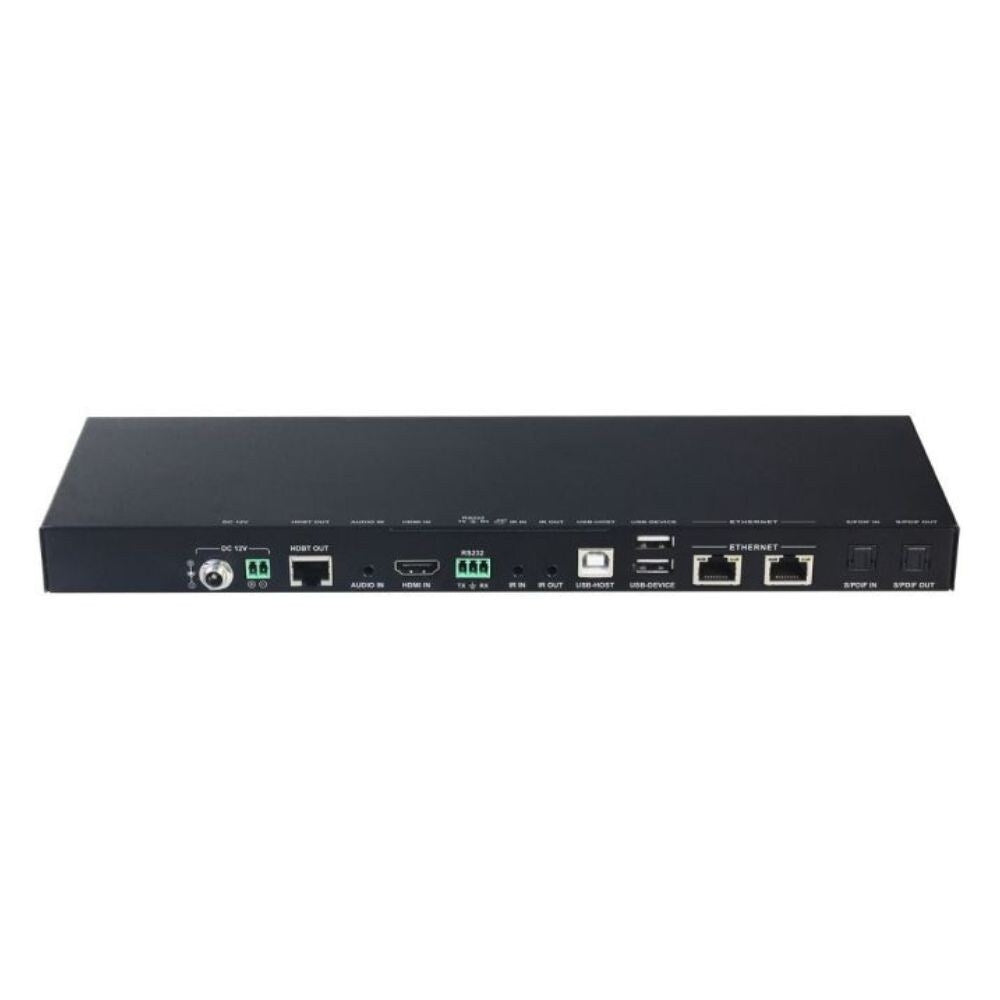

Specifications:
| Video Input | One, HDMI |
| Video Output | One, HDBaseT (PoH) - RJ45 |
| Audio |
One, Stereo Audio (1 x 3.5mm jack) One In, One Out, Digital Audio (S/PDIF) |
| Control Ports |
One, IR in, 3.5mm jack, One IR out 3.5 mm jack One, RS-232 bidirectional, 3 pin Phoenix connector |
| Ethernet | Two, RJ45 |
| USB Host | One, USB Type B |
| USB Device | Two, USB Type A |
| Input/ Output Signal Type |
HDMI with 4K @ 60Hz 4:2:0 4K @ 30Hz when connected with VXP-82 |
| Compliance | HDMI 2.0, HDCP 2.2 |
| Input/ Output Resolutions |
800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1280 x 800 @ 60Hz, 1280 x 960 @ 60Hz, 1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz, 1366 x 768 @ 60Hz, 1440 x 900 @ 60Hz, 1600 x 900 @ 60Hz, 1600 x 1200 @ 60Hz, 1680 x 1050 @ 60Hz, 1920 x 1200 @ 60Hz, 2048 x 1152 @ 60Hz, 3840 x 2160 @ 24Hz/25Hz/30Hz/50Hz*/60Hz*, 4096 x 2160 @ 24Hz/25Hz/30Hz/50Hz*/60Hz*, 1280 x 720P @ 50Hz/59.94Hz/60Hz, 1920 x 1080P @ 50Hz/59.94Hz/60Hz |
| Colour Sampling | 4:4:4, 4:2:2, :2:0, resolutions with an asterisk *: 4:2:0 |
| Audio Formats | HDMI: PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X, Line In/Out: PCM2.0, S/PDIF In/Out: Up to PCM5.1 |
| Max. Bandwidth | 10.2Gbit/s |
| Max Pixel Clock | 297 MHz |
| HDBaseT Transmission Distance |
4K @ 60Hz 4:2:0, 4K @ 30Hz 4:4:2, 1080P @ 60Hz 3D ≤ 100m VXP-T and VXP-R used as stand alone extender set: 1080p @ 60Hz ≤150m |
| Control Method | RS-232 pass through, IR pass through, Ethernet pass through, bidirectional USB |
| Power Supply | 12V DC 2A (transmitter powers receiver via PoH) |
| Operating Temperature | 0°C / 32°F to 30°C / 95°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 25mm / 0.98" Width: 306.8mm / 12.08" Depth: 98.8mm / 3.9" |
| Weight | 720g / 1.59lb |
| Warranty | 3 years parts and labour RTB |
