Description:

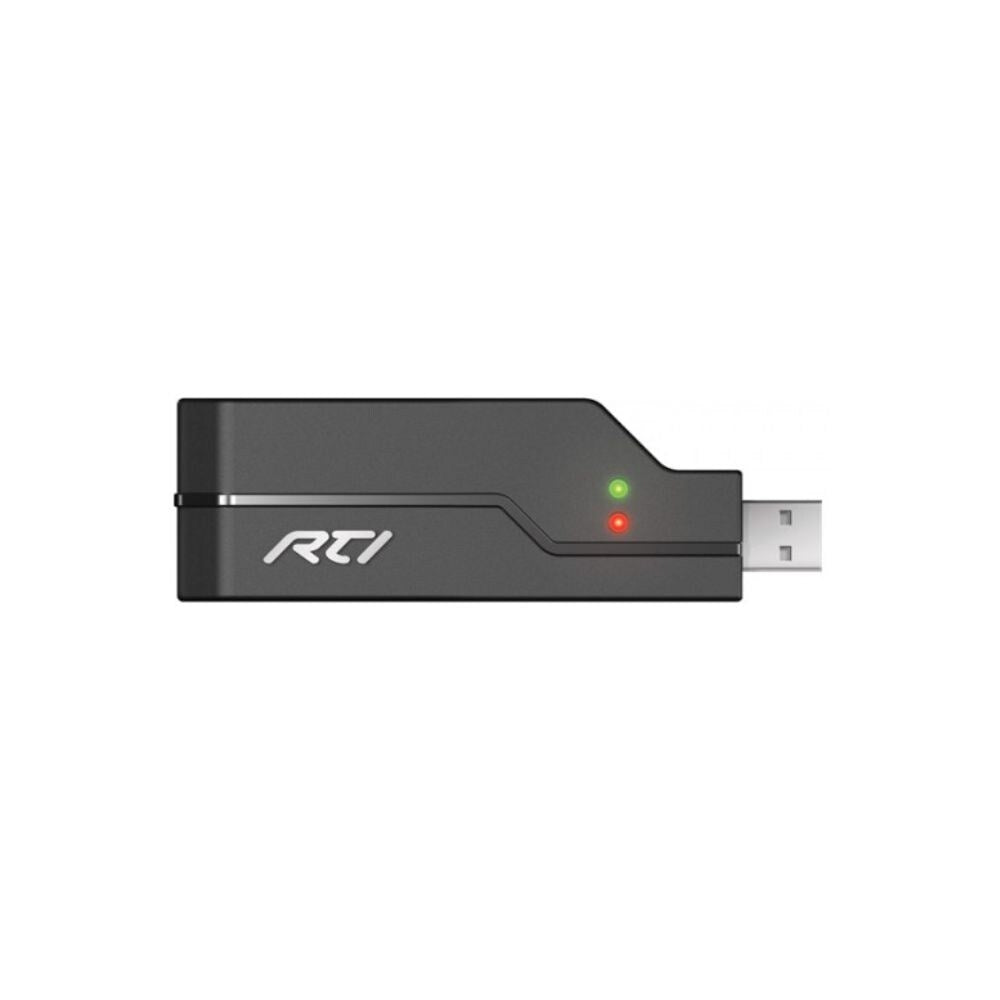

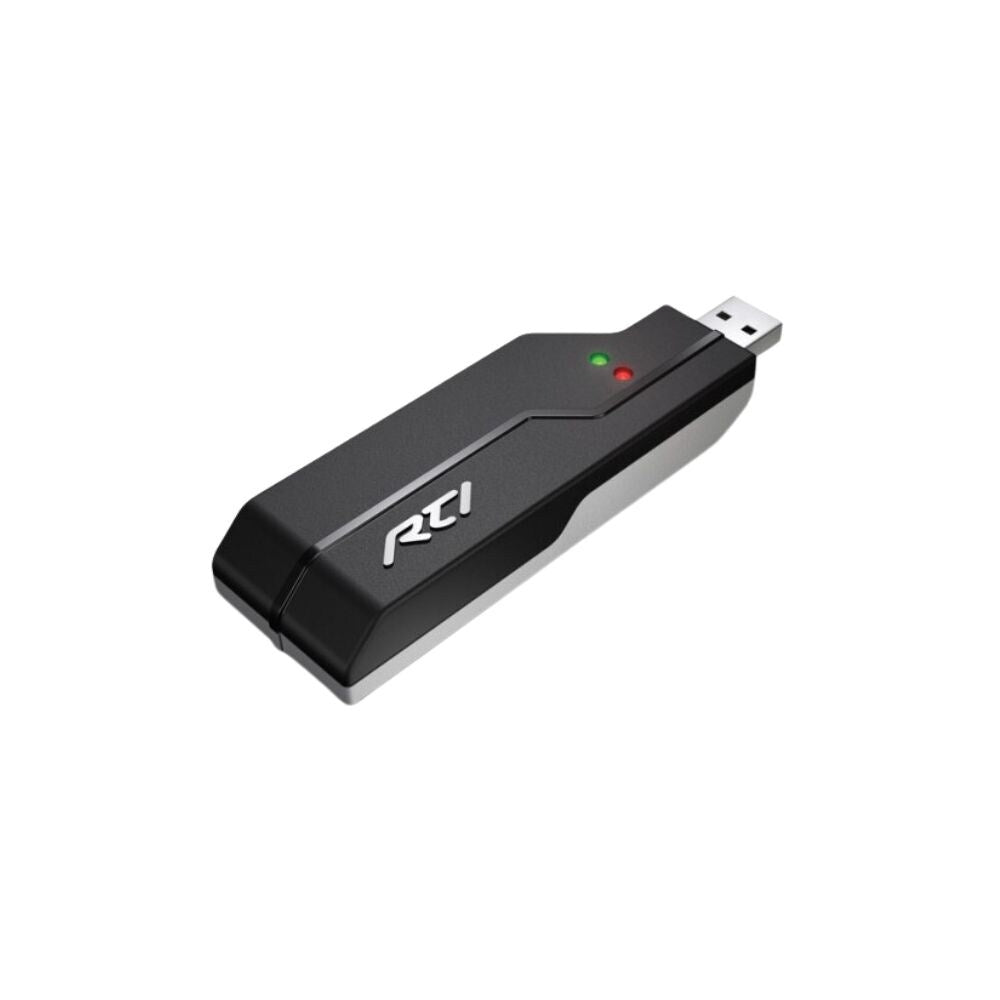

RTI's ZB-Pro is a Professional Network Management Tool for use with 2.4GHz wireless ZigBee® networks. Attached to a standard USB port of a PC, the ZB-Pro communicates with ZM-24 transceiver modules via 2.4GHz RF during the setup process.
It has a compact and rugged design and updates the firmware in the RTI ZM-24 transceiver module, whilst downloads network configuration data into a ZM-24.
This programming kit Utilises IEEE 802.15.4 wireless Zigbee® communication at 2.4Ghz
As it is powered directly from the USB port, no additional power supply required.
Feedback LEDs confirm various operations.
Features:
- Updates the firmware in the RTI ZM-24 transceiver module
- Downloads network configuration data into a ZM-24
- Powered directly from the USB port, no additional power supply required
- Utilises IEEE 802.15.4 wireless Zigbee® communication at 2.4Ghz
- Feedback LEDs confirm various operations
- Compact and rugged design
Specifications:
| Power Requirements | Powered directly from the USB port |
| Frequency Carrier Range | 2.4GHz |
| Wireless Networking | IEEE 802.15.4 (ZigBee® Wireless Mesh Networking) |
| Operating Temperature | 0°C . 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 35mm / 1.38" Width: 109mm / 4.29" Depth: 16mm / 0.63" |
| Weight | 32g / 0.07lb |
| Warranty | 3 years parts and labour RTB |
