RTI ZM-24 Zigbee® 2.4GHz RF Transceiver Module, Black

Description:

RTI's ZM-24 2.4GHz Zigbee® transceiver module provides bi-directional communication between two way enabled RTI remote controls and control processors utilising Zigbee® wireless communication.

Capable of being hard wired directly to a control processor or be used as a wireless repeater device to create an ultra reliable and self healing Zigbee® network.

This transceiver offers wireless Zigbee® communication range between ZM-24 modules up to 30m and can connects to a central processor from up to 300m away using standard CAT5 cable. Multiple ZM-24s may be used when configured in 'repeater' mode.

It utilises IEEE802.15.4 wireless Zigbee® communication at 2.4Ghz and receives power from an RTI control processor or from the included power supply.

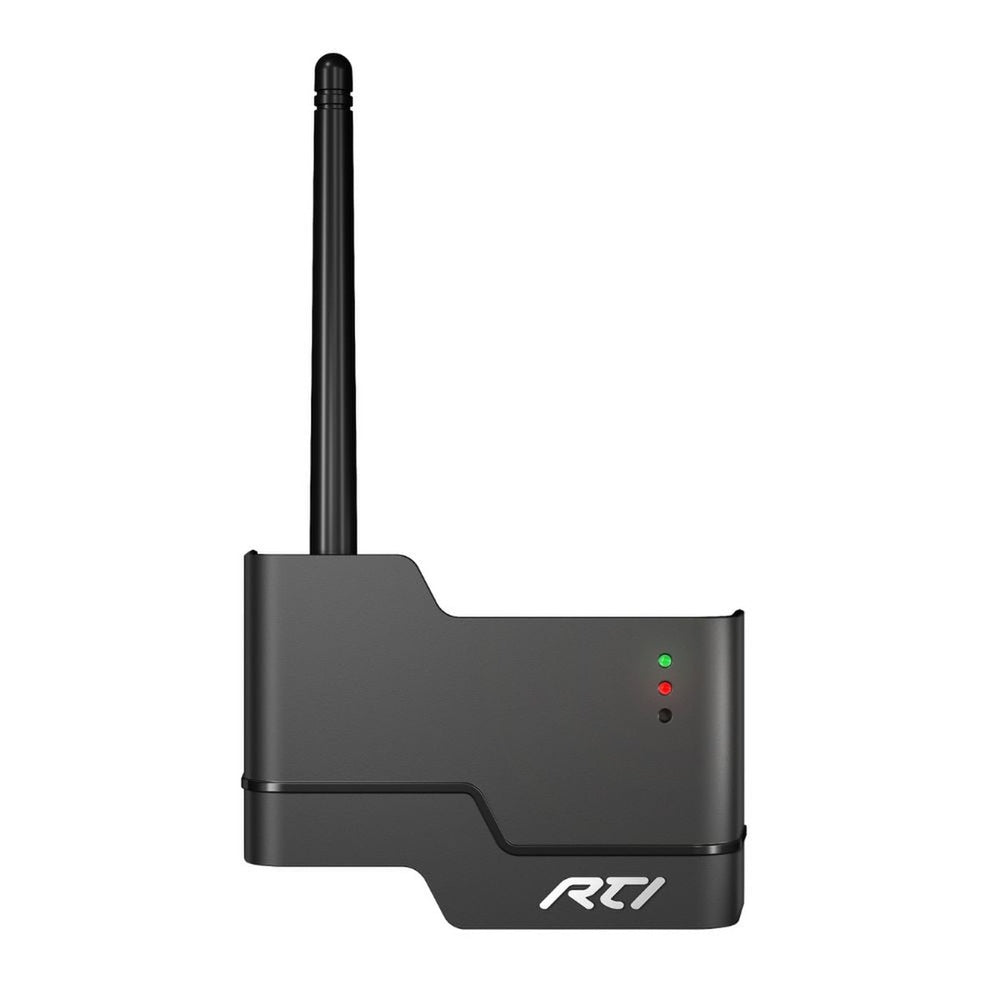

The black enclosure is constructed of durable plastic with an adjustable antenna. This ZM-24 can easily be mounted with a detachable wall bracket.

Please Note: The ZM-24 does not directly control A/V components. It must be used in conjunction with a Zigbee® enabled processor.

Features:

• Enables bidirectional Zigbee® communication
• Wireless Zigbee® communication range between ZM-24 modules up to 30m
• Connects to a central processor from up to 300m away using standard CAT5 cable
• Multiple ZM-24s may be used when configured in 'repeater' mode
• Utilises IEEE802.15.4 wireless Zigbee® communication at 2.4Ghz
• Durable plastic enclosure and adjustable antenna
• Receives power from an RTI control processor or from the included power supply
• Easy mounting with a detachable wall bracket

Please Note: The ZM-24 does not directly control A/V components. It must be used in conjunction with a Zigbee® enabled processor

Specifications:
