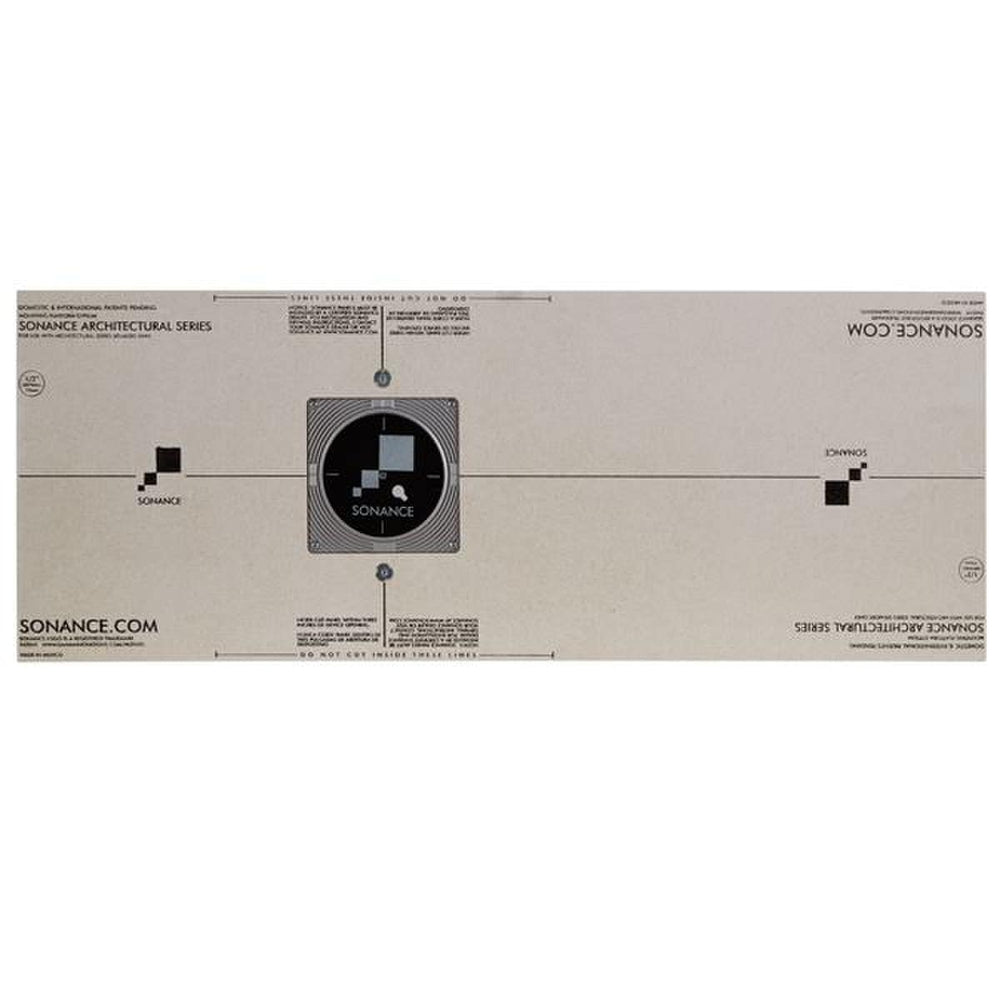

Sonance Architectural ASMP3R 1/2" Round Gypsum Mounting Platform for AS38 Speakers

This ASMP3R Mounting Platform from Sonance is for a round grille finish and is designed for ceiling installations to seamlessly integrates the Architectural Series Medium AS68 or Discreet Opening System AS38RS speakers into the mounting system.

Precision engineered these platforms provide flexibility to align with light fixtures or ceiling features and deliver the highest quality result in drywall, plaster, wood and other solid surfaces.

The Gypsum platforms is made of 100% pressed gypsum board and can be cut to size easily if required.

The mounting platforms are available in panel thicknesses of of 12.7mm or 1/2" and 15.88mm or 5/8" and for a variety of wall coverings and finishes including level 5 drywall, textured drywall, wallpaper, and plaster. They are designed so that the opening can be positioned anywhere within standard 12" to 24" or 304.8mm to 609.6mm on centre joist spacing.

One Mounting Platform is required per speaker installed.

If using the optional retrofit enclosure for the AS38RS or AS68RS speakers, be sure to attach the enclosure prior to attaching the panel bracket to the joists.

You will need to remove and discard the strain relief wire tie in order to attach the enclosure.

Please Note: The retrofit enclosure must be added before installing the panel bracket to the ceiling. Retrofit enclosures cannot be add after the drywall or plaster boarding work is complete.

Please refer to the installation video for further details

Specifications

Features

• Trufig inspired mounting platform with precision grille levelling
• Delivers a high quality, repeatable installation for perfect results every time
• Mounting platform design provides greater positioning flexibility
• Provides a round grille finish
• Laser lines printed on the front of each platform for ease of alignment
