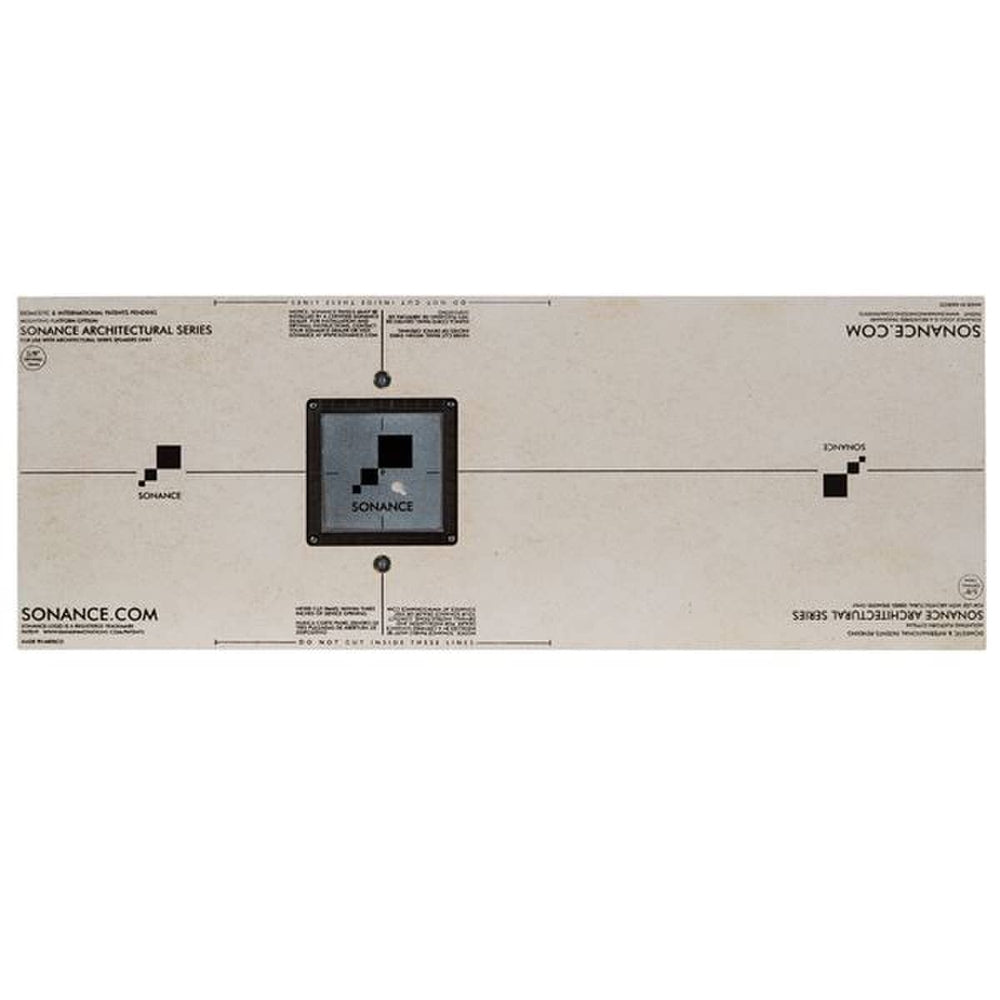

Sonance Architectural ASMP3S 1/2" Square Gypsum Mounting Platform For AS38 Speaker

This ASMP3S Platform from Sonance is for a Square Grille finish aesthetic.

Gypsum mounting platforms are designed for ceiling installations and they contain an integrated back mounting bracket that seamlessly integrates the Architectural Series Medium AS68 or Discreet Opening System AS38RS speaker into the mounting system.

The mounting platforms are available in panel thicknesses of 12.7mm or 1/2" and 15.88mm or 5/8" and for a variety of wall coverings and finishes including level 7 drywall, textured drywall, wallpaper, and plaster.

The panel is made of 100% pressed gypsum board.

One Mounting Platform is required per speaker installed.

The Gypsum platforms can be cut to size easily if required.

If using the optional retrofit enclosure for the AS38RS or AS68RS speakers, be sure to attach the enclosure prior to attaching the panel bracket to the joists.

You will need to remove and discard the strain relief wire tie in order to attach the enclosure.

Please Note: The retrofit enclosure must be added before installing the panel bracket to the ceiling. Retrofit enclosures cannot be added after the drywall / plaster boarding work is complete.

For more details please refer to the installation video.

Specifications

Features

• Trufig inspired mounting platform with precision grille levelling
• Delivers a high quality, repeatable installation for perfect results every time
• Mounting platform design provides greater positioning flexibility
• Provides a square grille finish
• Laser lines printed on the front of each platform for ease of alignment
